Follett 7CI100A Guide de configuration
Order parts online:
www.follettice.com
00951640R03
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Installation, Operation and Service Manual
Serial numbers above D25455
Countertop and Freestanding Ice and Water
Dispenser with Chewblet®Ice Icemaker
7CI100A, 7FS100A
Following installation, please forward this manual
totheappropriate operations person.
7CI100A 7FS100A
2 Dispenser and Icemaker 7CI100A/7FS100A
Contents ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Welcome...................................................................................... 3
Before You Begin............................................................................... 3
Important Safety Information..................................................................... 3
Specications ................................................................................. 4
Dimensions ................................................................................. 4
Ambient Information .......................................................................... 4
Plumbing................................................................................... 4
Water ..................................................................................... 4
Clearances ................................................................................. 4
Electrical ................................................................................... 4
Refrigeration ................................................................................ 4
Heat Rejection .............................................................................. 4
Detailed Drawing ............................................................................ 5
Installation .................................................................................... 6
Countertop Installation ........................................................................ 6
Freestanding Installation....................................................................... 8
Maintenance/Cleaning Mode .....................................................................11
Accessing Internal Components ..................................................................11
Filter Display Indicator Activation ................................................................ 12
Cleaning and Sanitizing ........................................................................ 13
Service ...................................................................................... 14
LED Indicator Description..................................................................... 14
Water Feed Schematic ....................................................................... 15
Bin Melt Water/Evaporator Feed/Clean Out System Schematic ....................................... 16
Vent System Schematic ...................................................................... 16
Refrigeration Schematic ...................................................................... 17
Condenser Fan Motor Removal ................................................................ 18
User Interface Display Identication ............................................................. 19
Electrical Wiring Diagram ..................................................................... 21
Parts ........................................................................................ 22
Exterior ................................................................................... 22
Interior.................................................................................... 24
Bin Assembly .............................................................................. 26
Evaporator Assembly ........................................................................ 28
Base Stand ................................................................................ 30
Dispenser and Icemaker 7CI100A/7FS100A 3
Welcome––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability, and outstanding
after-the-sale support. To ensure that this product delivers that same degree of service, we ask that you take a
moment to review this manual before beginning the installation. Should you have any questions or require technical
help at any point, please call our technical service group at (877) 612-5086 or +1 (610) 252-7301.
Before You Begin –––––––––––––––––––––––––––––––––––––––––––––––––––
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, immediately notify the shipper and contact Follett Corporation so that we can help in the ling of a claim,
if necessary. If needed, the serial number of your dispenser can be found by removing the drip tray (1) and locating
the serial number label (2).
2
1
Check your paperwork to verify that you received the correct dispenser. Follett conguration numbers are designed
to provide information about the type of dispenser you are receiving. The following is an explanation of the different
model numbers.
7 CI 100 A
Dispenser Storage
Capacity Conguration Icemaker Capacity Condenser
7 lb CI Countertop
FS Freestanding
100 lb per day A Air-cooled
Important Safety Information –––––––––––––––––––––––––––––––––––––––––
Please read and adhere to the following safety information while installing, using, or servicing your Follett 7 Series
Ice Dispenser.
1. Always disconnect power before servicing the dispenser.
2. Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
3. Ice is food. Follow the recommended cleaning and sanitizing instructions to maintain cleanliness of
delivered ice.
4 Dispenser and Icemaker 7CI100A/7FS100A
Specications –––––––––––––––––––––––––––––––––––––––––––––––––––––
Dimensions
7CI100A 7FS100A
Width 14.55" (370 mm) 14.55" (370 mm)
Depth 22.05" (560 mm) 22.05" (560 mm)
Height 17.53" (450 mm) 41.93" (1065 mm)
Unit Shipping Weight 90 lb (41 kg) 120 lb (54.4 kg)
Ambient Information
CAUTION!
The 7CI100A and 7FS100A are for indoor use only.
Maximum* Minimum*
Air Temperature†100 F (38 C) 50 F (10 C)
Water Temperature 90 F (32.2 C) 40 F (4.5 C)
Water Pressure 70 psi 10 psi
Relative Humidity 55% at 78 F
* Use outside of these limitations is misuse and will void warranty.
† Best performance is achieved between 80 F (27 C) and 50 F (10 C).
Plumbing
§Water Inlet: 1/4" MPT
§Optional Drain Accessory Kit (item# 00956375): 1/2" ID tubing
§Water Mineral Content: Greater than 5 ppm (mg/l) TDS and less than 400 ppm (mg/l) TDS
§Water shut-off recommended within 10 feet (3 m) of dispenser
Water
§For use in applications with less than 400 ppm (mg/l) total dissolved solids in water (either naturally occurring
or treated with reverse osmosis) and hardness not to exceed 12 grains per gallon (gpg).
§Not recommended for use with softened water
Clearances
§3" (77 mm) behind and on each side of dispenser for electrical and connection and ventilation
Electrical
§115V, 60 Hz, 1 phase, 5A, maximum fuse 15A
§Connect to dedicated 15A circuit, fuse or breaker
§Must be grounded - requires 3-prong outlet. Do not remove ground.
Refrigeration
§Refrigerant R134a – 7.2 ounces (204 grams)
Heat Rejection
§1700 BTU/hr (498 W)
Dispenser and Icemaker 7CI100A/7FS100A 5
Specications (continued) ––––––––––––––––––––––––––––––––––––––––––––––
Detailed Drawing
G
L2
L1
G
L2
L1
1/4" MPT
water inlet
Freestanding models
Countertop models
14.55" (370 mm)
17.54"
(446 mm)
NEMA 5-15
right angle
power cord
17.54"
(446 mm)
14.55" (370 mm)
14.55" (370 mm)
14.55" (370 mm)
22.05" (560 mm)
22.05" (560 mm)
24.39"
(620 mm)
17.54"
(446 mm)
17.54"
(446 mm)
2.40"
(61 mm)
1/4" MPT
water inlet
6.72"
(171 mm)
6.79"
(172 mm)
2.98"
(76 mm)
NEMA 5-15
right angle
power cord
2.40"
(61 mm)
6.72"
(171 mm)
6.79"
(172 mm)
2.98"
(76 mm)
6 Dispenser and Icemaker 7CI100A/7FS100A
Installation ––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CAUTION!
No service or maintenance should be performed until the technician
has thoroughly read this service manual. Except for routine cleaning
and sanitizing, only qualied technicians should attempt to service
or maintain this equipment.
Countertop Installation
Installation instructions for freestanding model may be found on page 8.
1. A clearance of at least 3" (77 mm) is required behind and on
each side of the dispenser for electrical connection and ventilation
(Fig.1).
2. Rough-in the electrical service and water line.
§Electrical: 115V, single phase, 15A receptacle required. The dispenser
has an integral 8 ft. (2.4 m) cord and plug.
§Water: supply line (with shut-off valve) connects to the dispenser's 1/4"
MPT inlet.
NOTICE!
If installing optional Drip Tray Drain Kit or Leg Accessory,
complete those steps before proceeding.
Fig. 1
3. Connect water line. Recommended routing (Fig. 2) allows easy access
to water for cleaning and sanitizing procedure.
4. Connect power supply.
5. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on
page 13).
Fig. 2
countertop models
minimum 3" (77 mm)
clearance required
1/4" MPT
3' (76 mm)
Dispenser and Icemaker 7CI100A/7FS100A 7
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––
Optional Drip Tray Drain Installation
The optional Drip Tray Drain Kit (item# 00956375) requires a oor drain
within 15 ft. (4.5 m) of the dispenser. For detailed installation instructions,
please refer to the instructions shipped with the Drip Tray Drain Kit.
1. If installing optional Drip Tray Drain Kit, cut hole in countertop for
drain tube (Fig. 3).
NOTICE!
Units without legs must have alternate hole positioning.
Fig. 3
2. Remove drip tray and drill 11/32" hole through drain nipple (Fig. 4).
3. Connect supplied drain tubing to drain tray nipple with supplied hose
clamp. Run drain tubing to oor drain.
4. Return tray to original position.
Fig. 4
3"
(76 mm)
15 3/4"
(400 mm)
6"
(152 mm)
6 5/16"
(160 mm)
8 Dispenser and Icemaker 7CI100A/7FS100A
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––
Optional Leg Accessory Installation
CAUTION!
Use caution when tipping the dispenser during leg installation. Do
not lay unit on back or side. DO NOT EXCEED 30° angle. Tipping
more than 30° can result in compressor malfunction.
1. If installing optional 4" Leg Accessory (item# 00956300), place a 5"
(127 mm) spacer underneath the dispenser to ease installation.
2. Remove four plastic, thread-protecting plugs from bottom of
dispenser.
3. Screw each leg into chassis (Fig. 3).
Fig. 5
Freestanding Installation
Installation instructions for countertop model may be found on Countertop
Installation on page 6.
1. A clearance of at least 3" (77 mm) is required behind and on
each side of the dispenser for electrical connection and ventilation
(Fig.1).
2. Rough-in the electrical service and water line.
§Electrical: 115V, single phase, 15A receptacle required. The dispenser
has an integral 8 ft. (2.4 m) cord and plug.
§Water: supply line (with shut-off valve) connects to the dispenser's 1/4"
MPT inlet.
NOTICE!
If using Leg Accessory with base stand, complete those steps
before proceeding.
Fig. 6
spacer
5" (127 mm)
min.
freestanding models
minimum 3" (77 mm)
clearance required
Dispenser and Icemaker 7CI100A/7FS100A 9
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––
3. Remove four plastic, thread-protecting plugs from bottom of
dispenser.

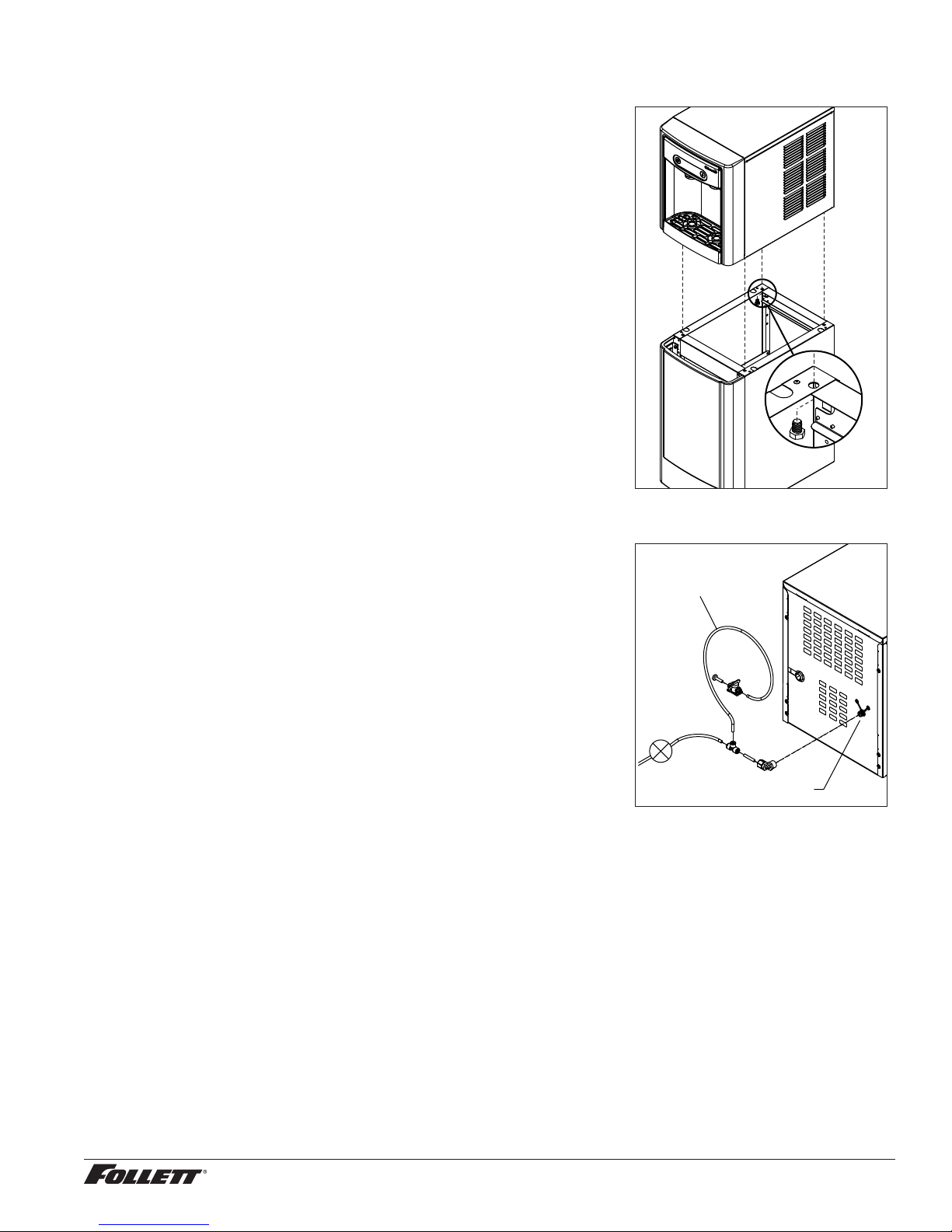

4. Attach dispenser to base stand with supplied hardware (Fig. 7).
NOTICE!
If installing optional Drip Tray Drain Kit, complete those steps
before proceeding.
Fig. 7
5. Connect water line. Recommended routing (Fig. 8) allows easy access
to water for cleaning and sanitizing procedure.
6. Connect power supply.
7. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on
page 13).
Fig. 8
X4
1/4" MPT
3' (76 mm)
10 Dispenser and Icemaker 7CI100A/7FS100A
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
8. Secure unit to wall or cove molding with supplied bracket (Fig. 9) to
prevent tipping.
Note: Fasteners must be supplied by installer.
WARNING!
Freestanding unit must be secured to wall to prevent tipping.
Failure to do could result in personal injury or damage to the
unit.
Fig. 9
Optional Leg Accessory Installation
1. If installing optional 6" Leg Accessory (item# 00956318), tilt or lay
base stand on side and screw each leg into stand (Fig.10).
Fig. 10
Optional Drip Tray Drain Installation
The optional Drip Tray Drain Kit (item# 00956375) requires a oor drain
within 15 ft. (4.5 m) of the dispenser. For detailed installation instructions,
please refer to the instructions shipped with the Drip Tray Drain Kit.
1. If installing optional Drip Tray Drain Kit, remove drip tray and drill
11/32" hole through drain nipple (Fig. 11).
2. Connect supplied drain tubing to drain tray nipple with supplied hose
clamp. Run drain tubing to oor drain.
3. Return tray to original position.
Fig. 11
Autres manuels pour 7CI100A
5
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Follett Distributeur
Follett
Follett 15 Series Guide de configuration
Follett
Follett Symphony Plus 110FB425A Manuel d'utilisation
Follett
Follett Chewblet 7 Series Guide de configuration
Follett
Follett U150 Mode d’emploi
Follett
Follett Symphony Plus 110 Series Manuel utilisateur
Follett
Follett CVU300 Series Guide de configuration
Follett
Follett C25R5A/W Mode d’emploi
Follett
Follett C125A Guide de configuration
Follett
Follett CVU155N Series Guide de configuration
Follett
Follett Symphony Plus 12 Series Manuel utilisateur
