Focal INTEGRATION IFVW GOlF 6 Manuel utilisateur

Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest

technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling,

and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully

all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered

by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing.

Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card

is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available

to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).

• Clean before mounting the speakers.

INTEGRATION IFVW GOLF 6

User manual English version

Français page 6

IFVW Golf 6 installation

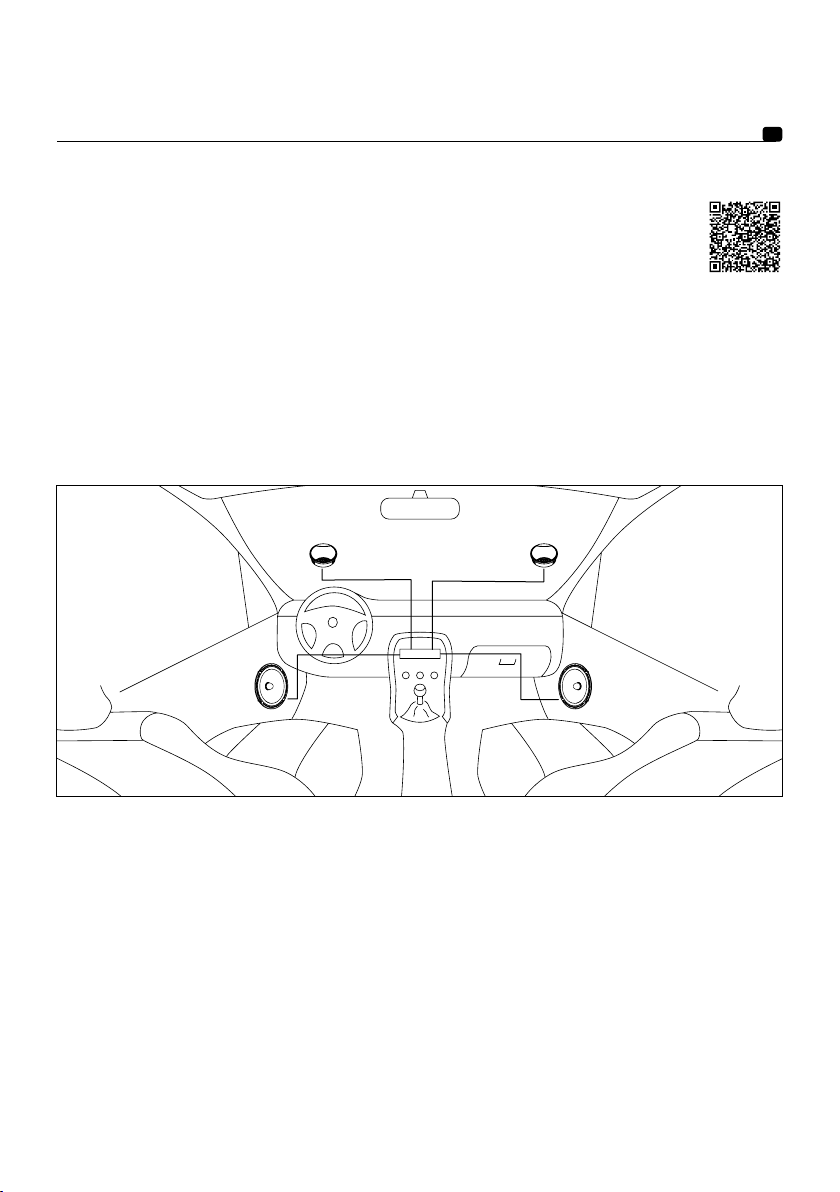

Installation 100% dedicated to Golf 6 in less than an hour (Golf ®is a trademark of Volkswagen®).

Watch the demonstration video: www.focal.com/fr/ifvwgolf6-video-install

- This kit has been designed for installation in a Volkswagen Golf 6 (3/5-door).

- The components of this dedicated kit are compatible with this vehicle’s original connectors and fixings.

- Take extreme care when installing, particularly when removing rivets from the speaker and when reassembling.

- Only the use of appropriate quality tools can guarantee optimal installation.

- Connectors are fragile electronic components. Handle with care.

- Follow these instructions correctly to ensure the proper functioning of the IFVW golf 6 kit.

- Before restarting your system, check your car radio settings (which differ according to the vehicle’s model,

version and engine).

INTEGRATION IFVW GOLF 6

User manual

INTEGRATION IFVW GOLF 6

User manual

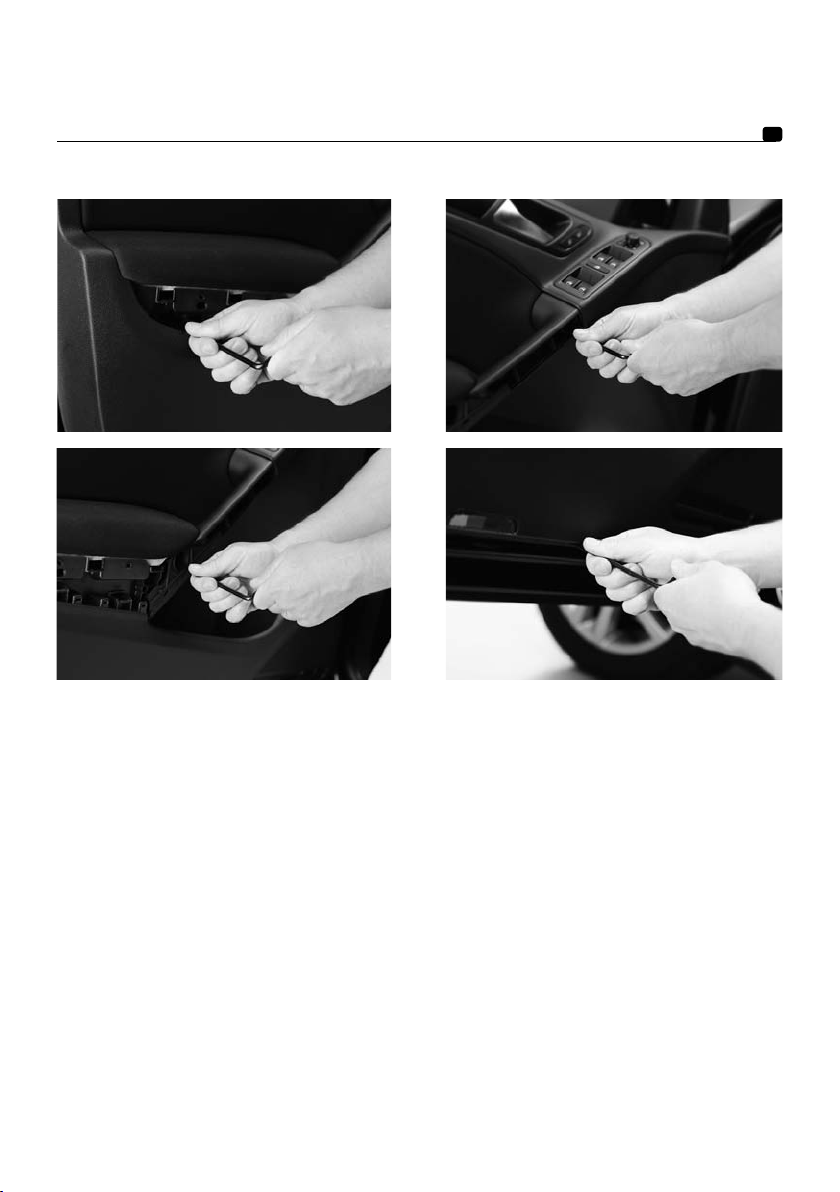

Dismantling the door panel and installing the speaker.

Dismantle to gain access to the screws.

INTEGRATION IFVW GOLF 6

User manual

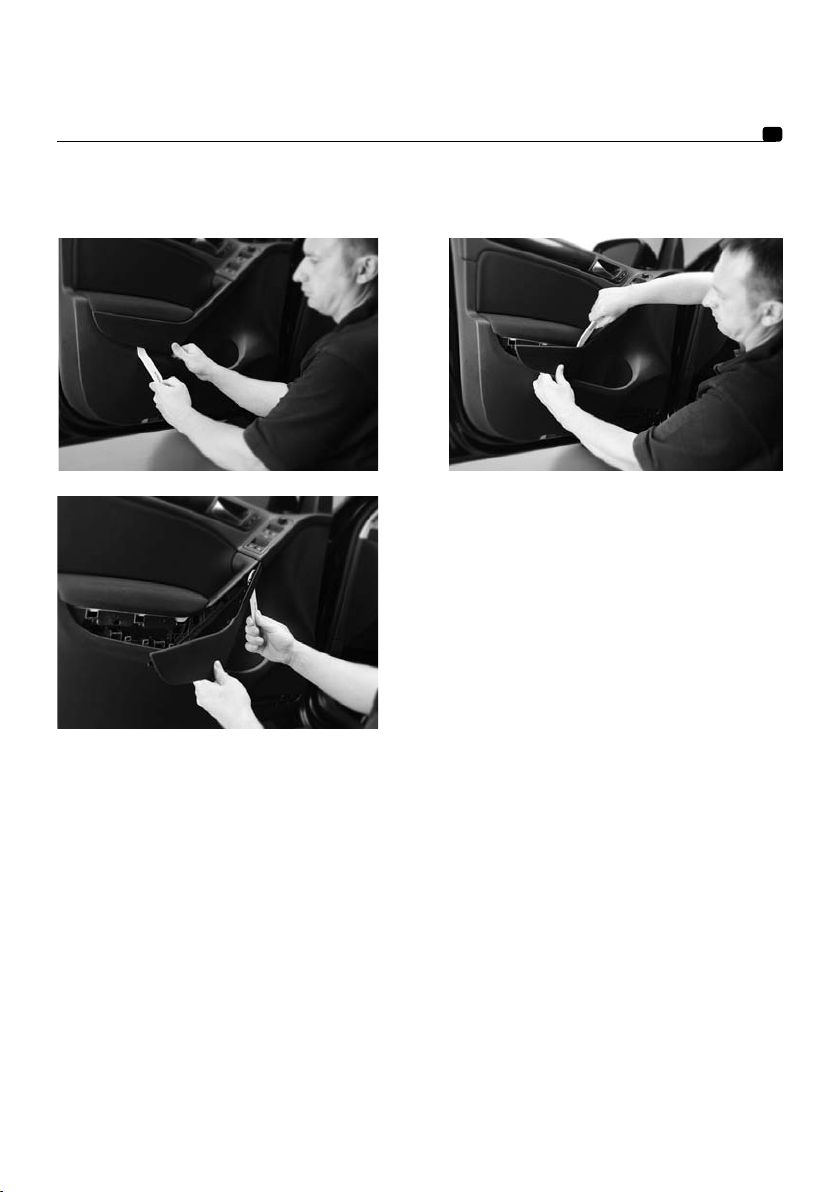

Remove the 4 torx head screws.

Dismantle the door controls.

Remember to reconnect the door cable after installation.

INTEGRATION IFVW GOLF 6

User manual

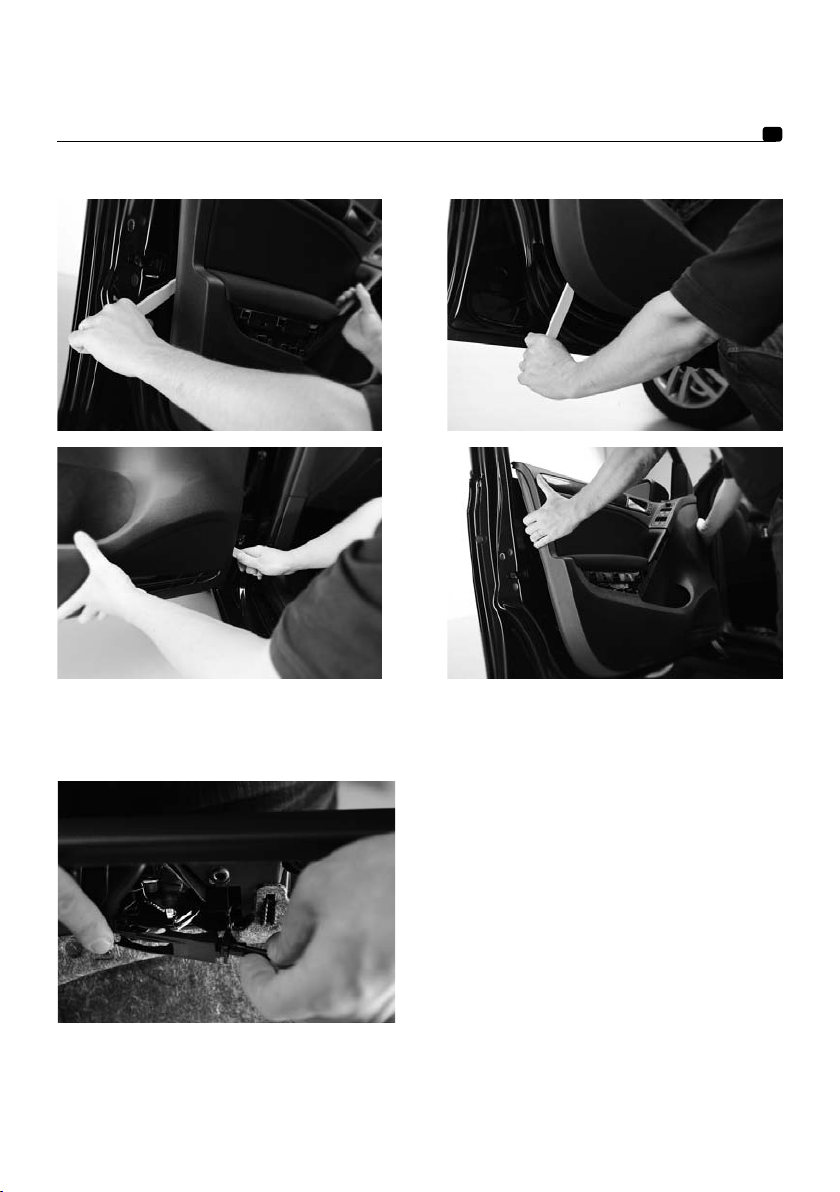

Dismantle the door panel (using the FOCAL tool provided).

Remove the door panel.

INTEGRATION IFVW GOLF 6

User manual

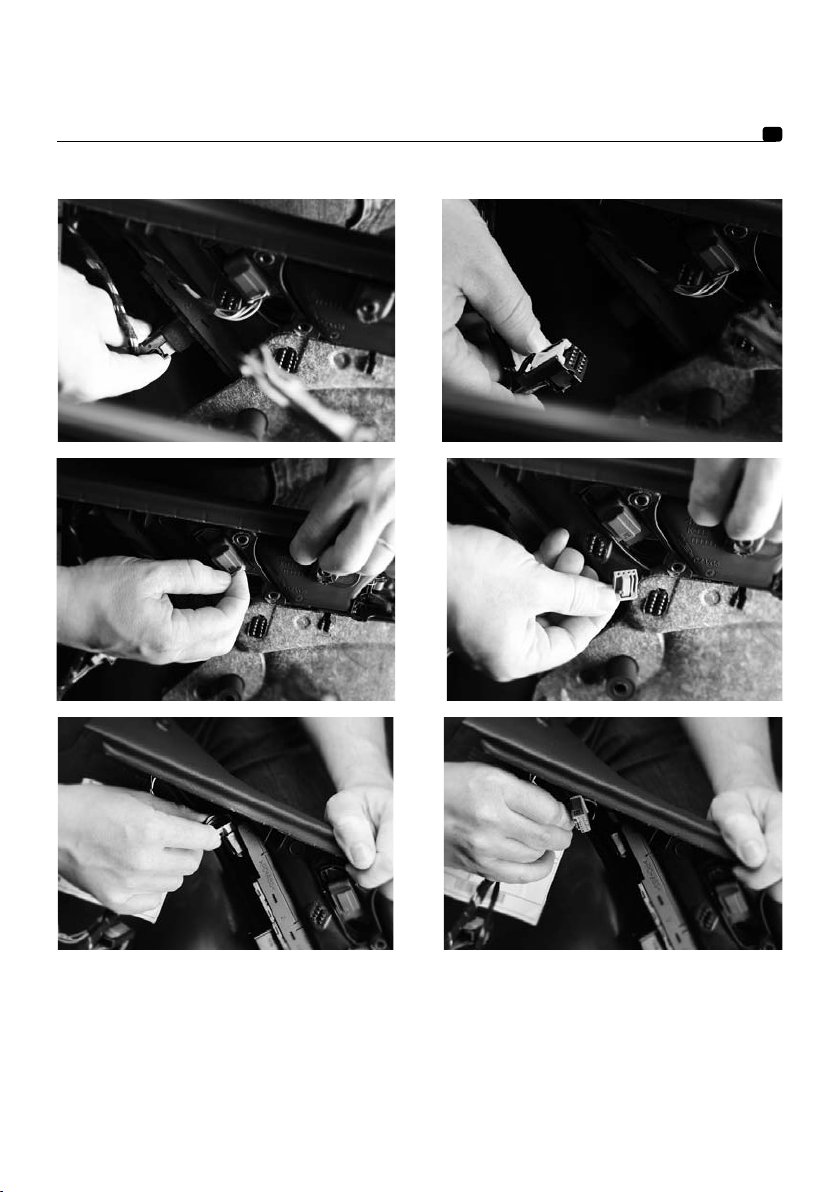

Disconnect the connector plugs (window switches, multiplexer, outside rear-view mirror…).

INTEGRATION IFVW GOLF 6

User manual

Disconnect the original speaker connector.

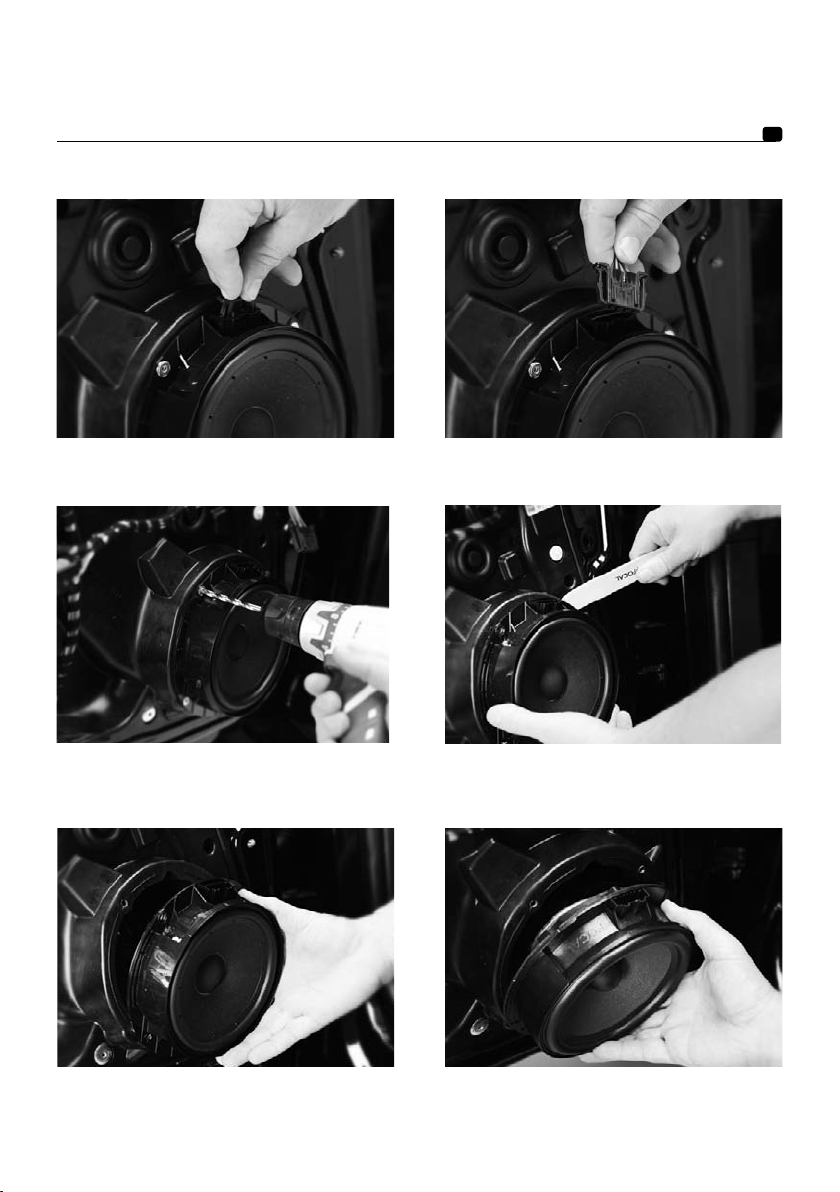

Drill out the original rivets (x4 per woofer).

Use the drill bit provided with the IFVW Golf 6 kit.

Remove the original speaker.

Separate the speaker from its mounting (using the

tool supplied with the kit).

INTEGRATION IFVW GOLF 6

User manual

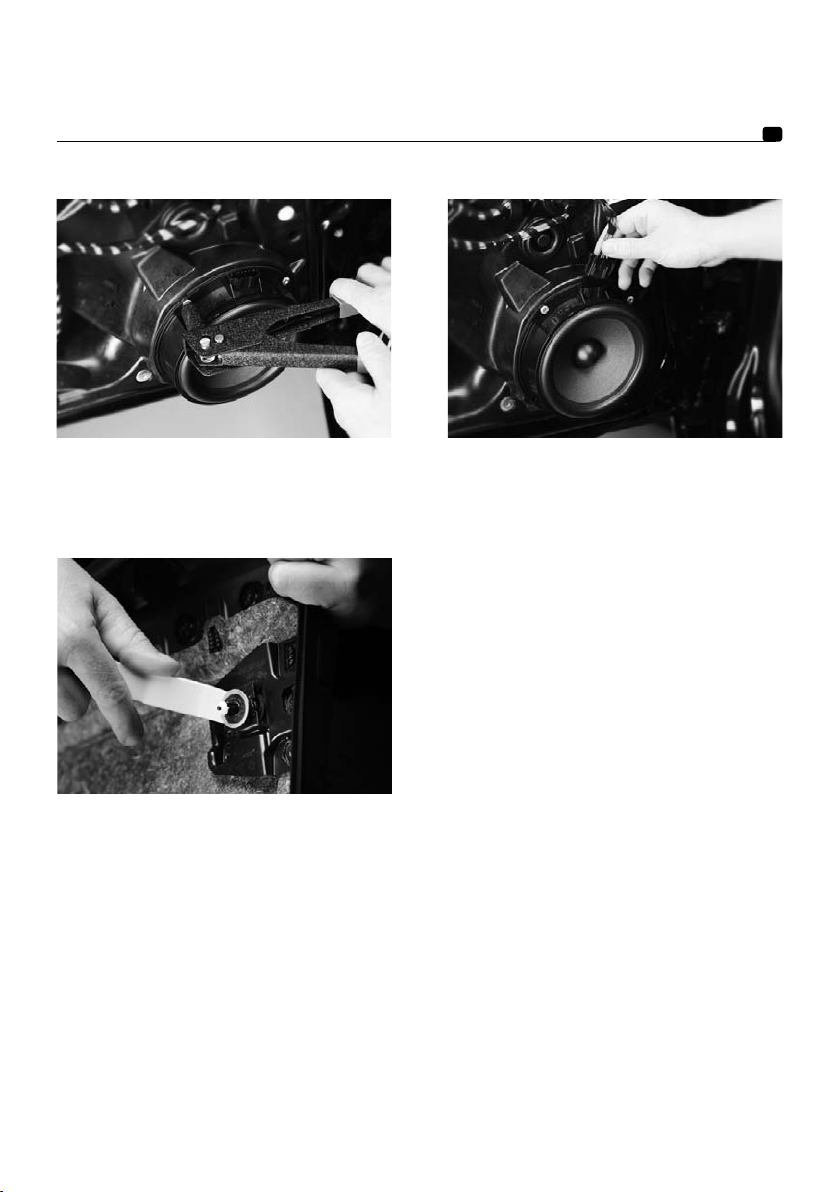

Assemble the Focal speaker using the rivets provi-

ded with the kit.

Warning: use riveting pliers with a long enough

headpiece to avoid damaging the speaker.

Put the fasteners in the “unlock” position before

reassembling the door panel.

Reconnect the Focal speaker (equipped with VW

connector).

INTEGRATION IFVW GOLF 6

User manual

Installing the tweeter in the door.

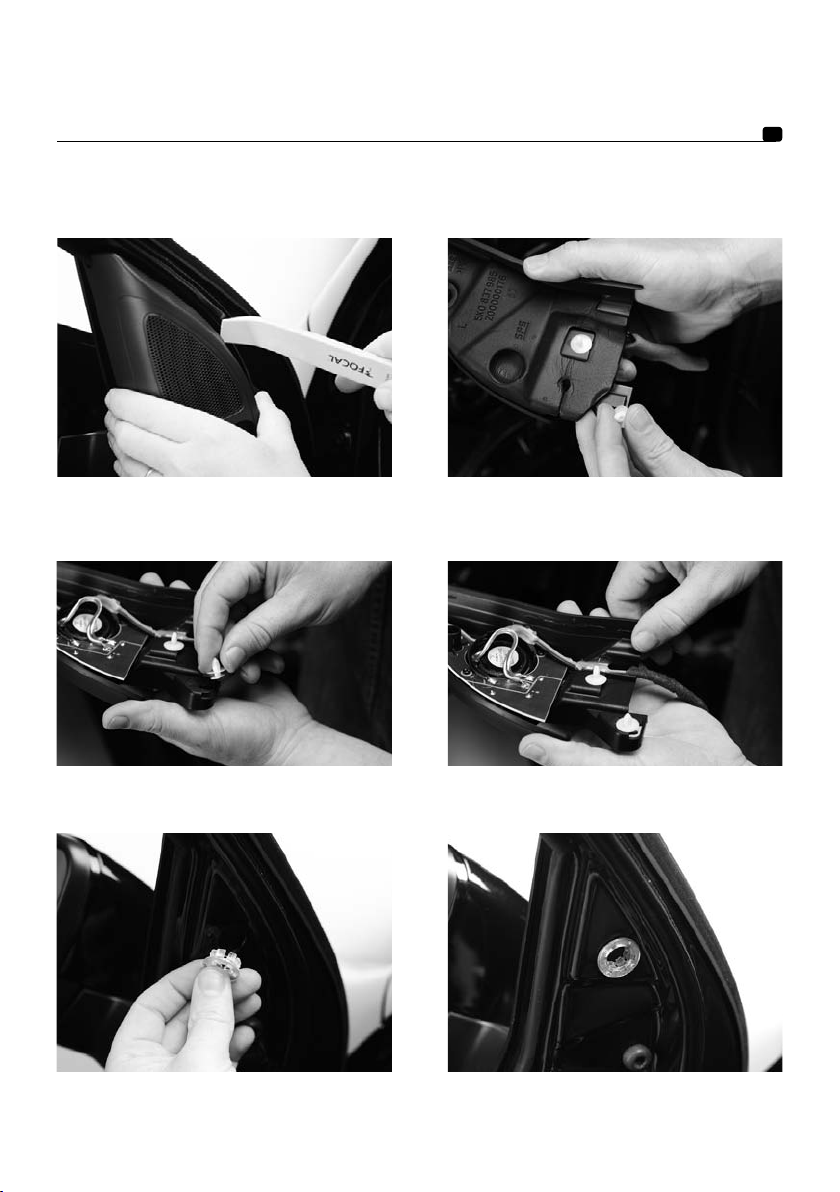

Dismantle the original tweeter mounting (using the

Focal tool provided).

Place the two plastic clips onto the Focal tweeter mounting.

Remove the two plastic clips from the original part.

Place the rubber washer onto the door frame.

Remove the rubber washer from the tweeter moun-

ting.

INTEGRATION IFVW GOLF 6

User manual

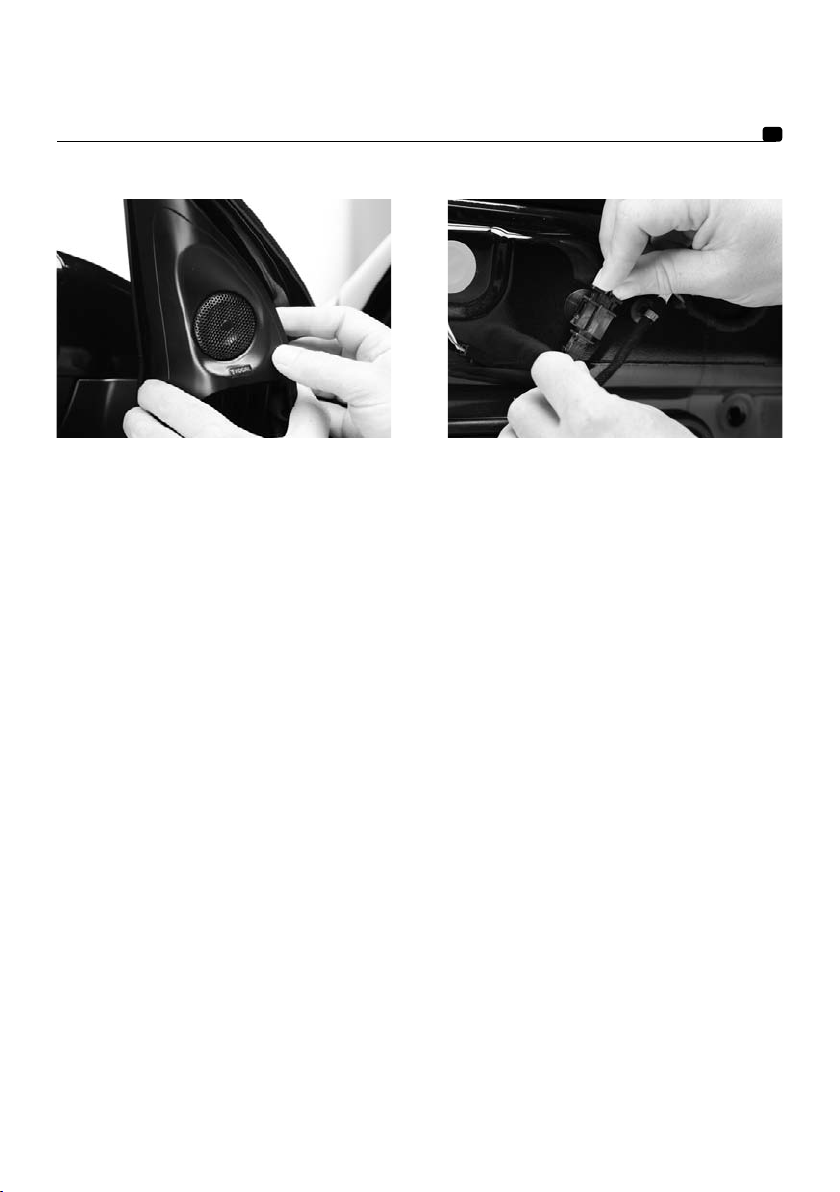

Reassemble the Focal tweeter mounting and reconnect (equipped with VW connector).
