Focal Access 130 A1 Manuel utilisateur

Congratulations on choosing Focal automobile speakers.

Focal speakers remain high quality products, due to the multitude of advanced

materials used. Detailed research and development in the laboratory, from

dedicated engineers and technicians, played a major role in producing such high

performing products. To gain the best results from your speakers, please ensure

you follow these recommendations. If not followed correctly any fault observed,

may not be covered by the guarantee.

Français page 8

t h e focal g u a r a n t e e o n l y applies i f p a g e 16 i s

returned t o u s w i t h i n 10 d a y s o f purchase.

Access 2/3-WAy kit mAnuAl

User Manual

Technical advances, included in the

Access range

• Polypropylene cones

• TN44 aluminum / magnesium inverted dome

tweeter

• Separated crossover, fully optimised with

adjustable level control. High quality

components used throughout.

• Butyl surround

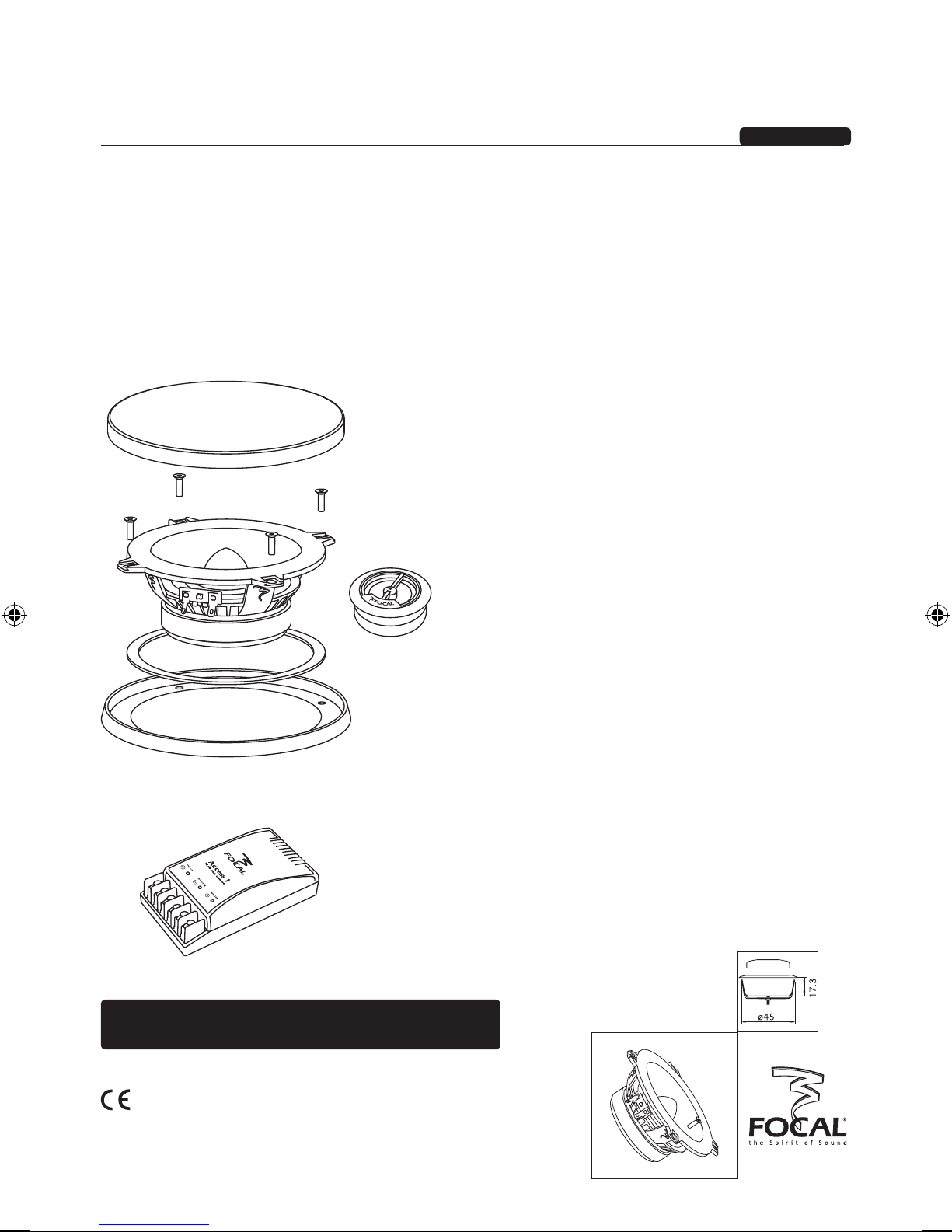

Included

• 2 x woofer / midrange (2-way kits)

• 2 midrange (3-way kits)

• 2 woofer (3-way kits)

• 2 x tweeters

• 2 x gaskets

• 2 x crossovers

• fixing screws

• 2 x lock washers

• 2 x grilles

Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.

Focal® is a trademark of Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière

cedex - France - Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - www.focal-fr.com

notice_access_1.indd 1 26/02/08 14:41:14

Important recommendations

Before attempting any installation work, it is very important to verify how much space is

available to fit the speakers into the vehicle.

Key points:

• For direct replacement of original speakers, please check there is enough space for your

new Focal speakers and grilles.

• Ensure the speaker is clean from debris and metallic particles that maybe attached

(especially after drilling)

• Use the foam gasket supplied (inside the grille), for airtight placement of the speaker into

the panel.

• Do not touch the tweeter cone.

Choice of installation and positioning the tweeter

To achieve best results for your installation, please follow these simple guidelines

• Use a variety of speakers to achieve a large bandwidth, the most central possible.

• Speakers positioned in the most forward location possible, for correct staging.

• Tweeters positioned preferably high in the doors or in the dash (if space permitting),

to obtain un-muddled high and midrange frequencies. These being directive to the

listener.

• To position the tweeters direct in-line to the listeners ears, for improved imaging.

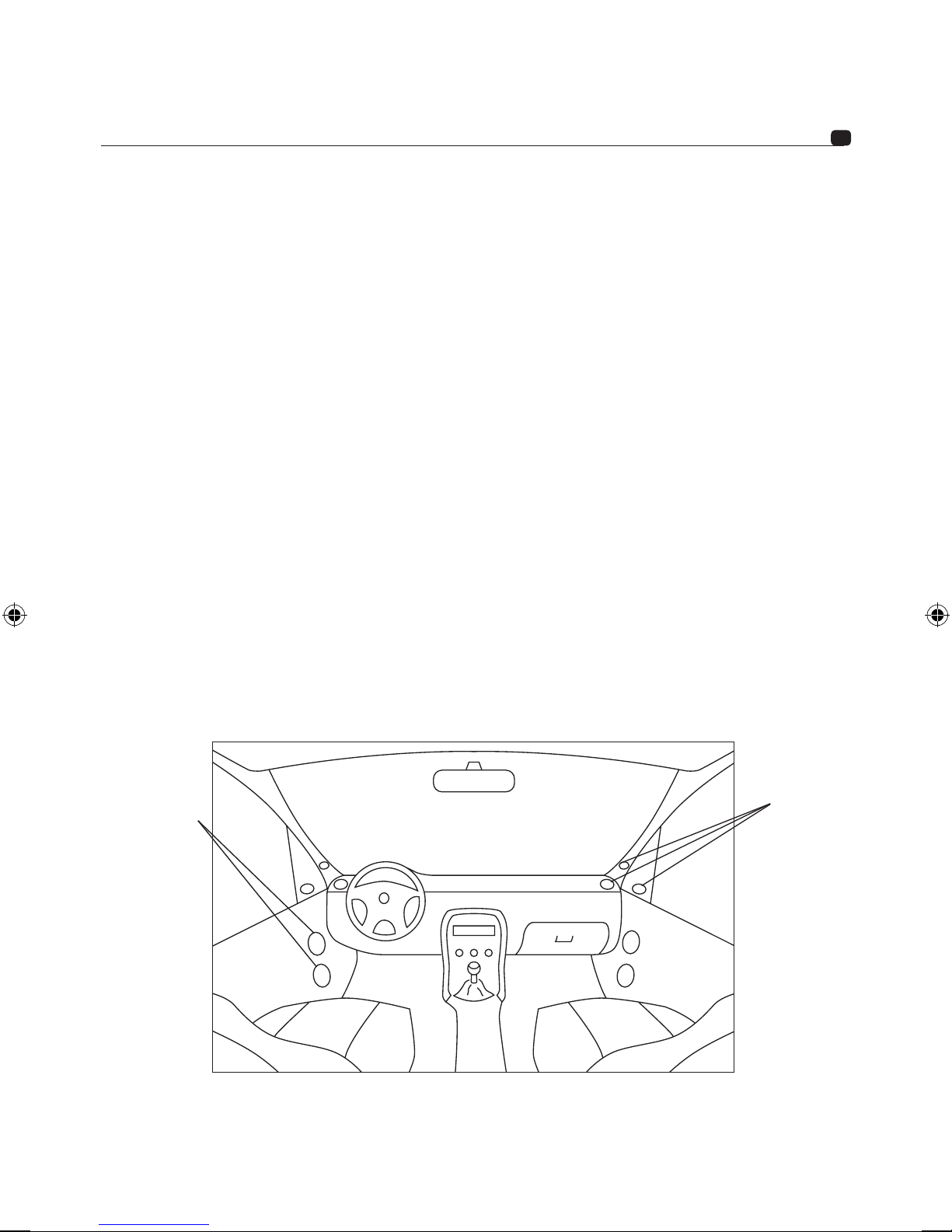

Prefered woofer and

mid-range positions.

3 x prefered tweeter

positions

Access 2/3-WAy kit mAnuAl

User Manual 2

notice_access_1.indd 2 26/02/08 14:41:14

Access 2/3-WAy kit mAnuAl

User Manual 3

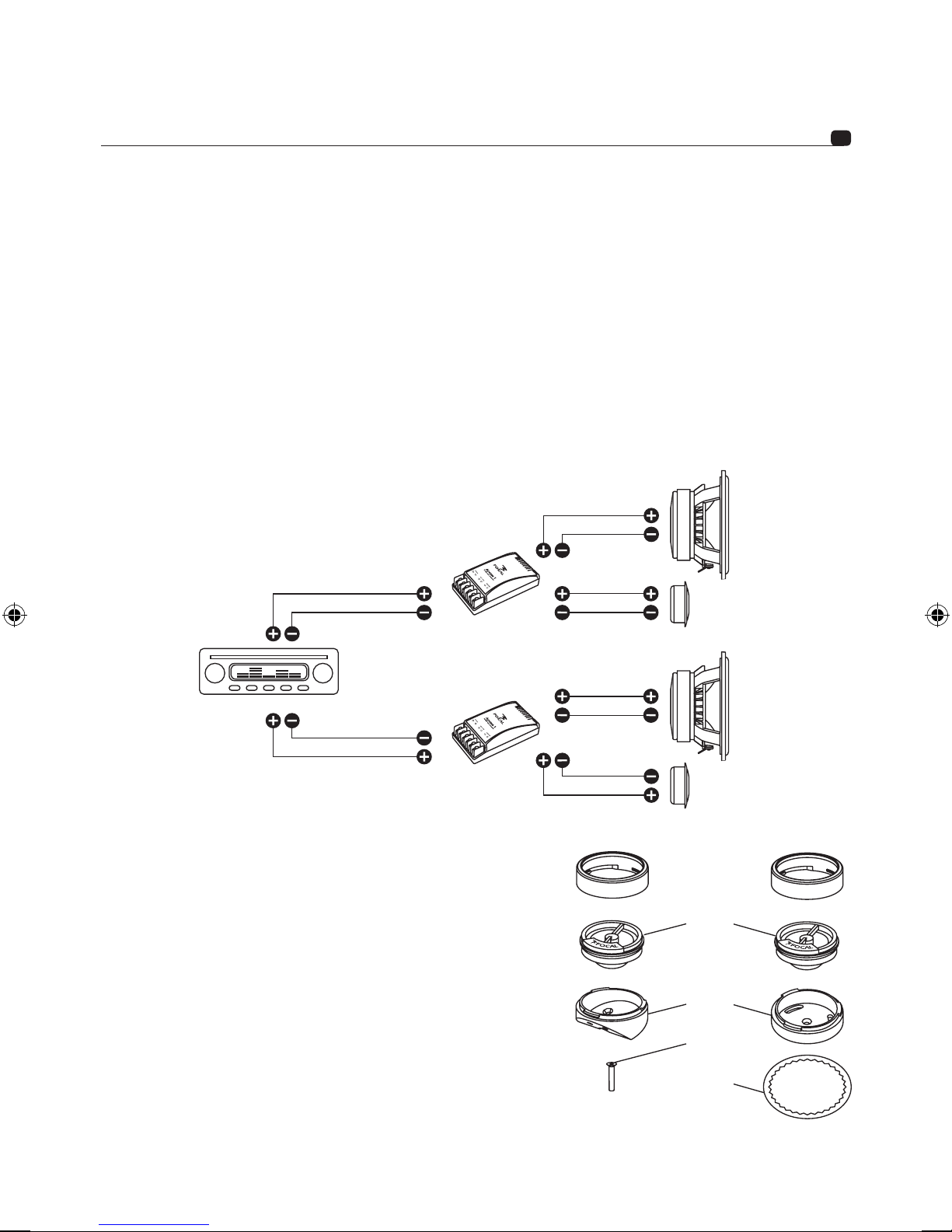

Cables and connections

• For best results with your Access speakers, we recommend you include the use of

Focal cables.

• Alternatively, other high quality cable can be used, if sufficient section thickness is available

(minimum thickness = 1mm2). This is particularly important for long lengths of cable to

ensure a strong efficient signal is maintained.

• Always ensure the polarity is respected, (+ is connected to +) and (- is connected to -).

• Maintain correct connections, from principal source radio / amplifier (left / right / front and

rear), and crossover to speakers (tweeter to tweeter), (mid to mid), (woofer to woofer), is

always observed.

• If the woofer is located at the bottom on the door, connect the woofer directly on the

amplifier in order to have more dynamic midrange.

Fitting the tweeter

There are two mounting possibilities available: surface or

flush mount. To easily install the tweeter, you have to turn

the pod round, then release the tweeter.

Surface mounting (dashboard): choose the angle that

best suits your installation (10° or 30°) and mount the pod

firmly using the screws supplied. Feed the wire through

the hole in the pod and re-fit the tweeter in place.

Flush mounting: cut a neat 45mm diameter hole in the

panel where you want to place the tweeter. Then, insert

the tweeter in the front panel. In the same time, put the

lock washer in the rear panel. Feed the wire through the

hole and push simultaneously on the pod and the washer

to lock the pod on the panel. Feed the wire through the

hole in the pod and re-fit the tweeter in place.

Right Output

Left Output

Woofer

Tweeter

Woofer

Input

Input Tweeter

Tweeter

Pod

Screw

lock washer

notice_access_1.indd 3 26/02/08 14:41:14

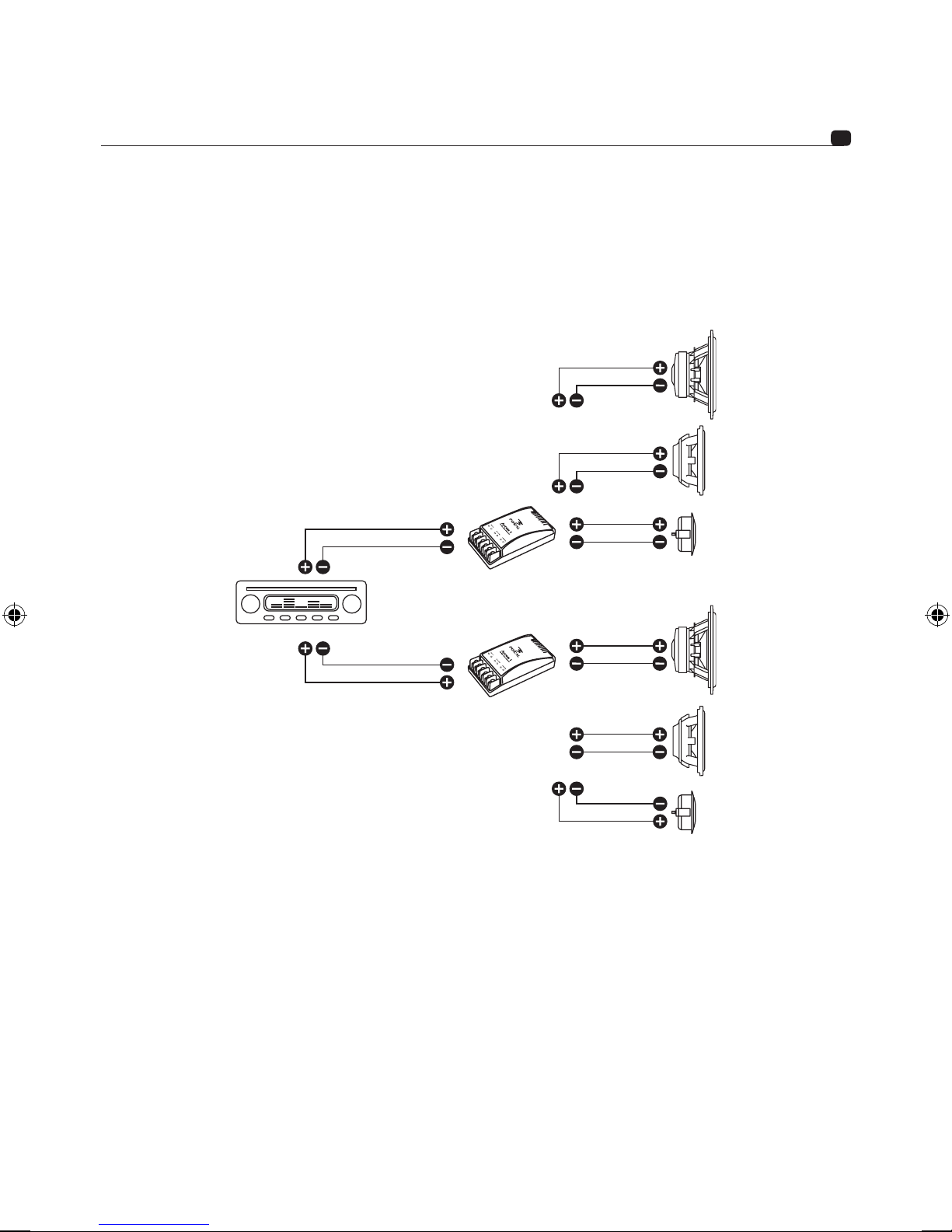

3-way kits connections

Right Output

Left Output

Woofer

Tweeter

Woofer

Midrange

Input

Midrange

Tweeter

Access 2/3-WAy kit mAnuAl

User Manual 4

notice_access_1.indd 4 26/02/08 14:41:15

Access 2/3-WAy kit mAnuAl

User Manual 5

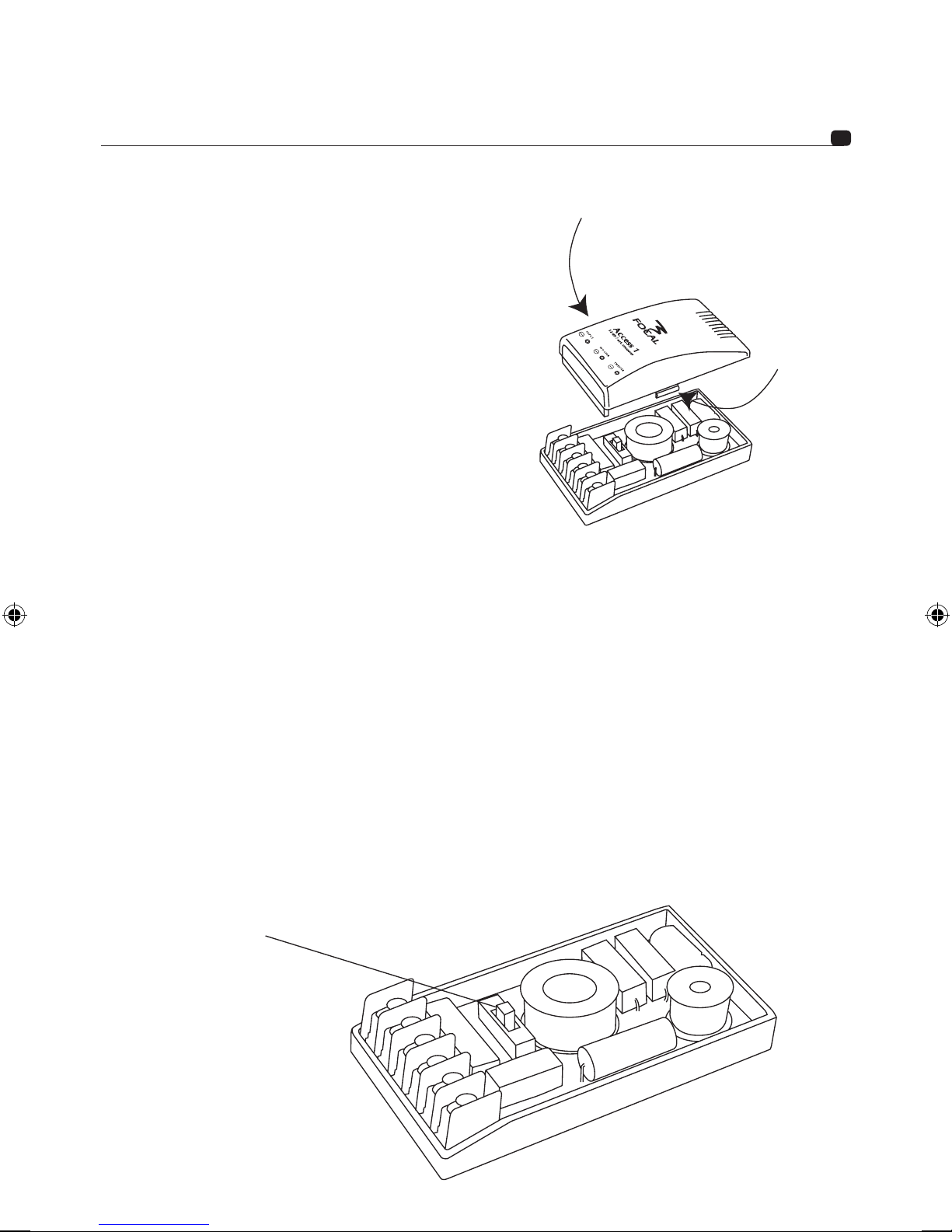

Fitting the crossover

Locate the crossovers in a dry, preferably

ventilated area, using either the screws

supplied or double-sided tape.

To open the box, squeeze the middle on the

side, and remove the cover.

In some cases, depending on your installation

and the space available, it maybe easier to

route the cables and connect to the crossover,

before securing the crossover to the vehicle.

Please check before.

Level adjustment of tweeter and midrange

The toggle switch found inside the crossover, allows the user to adjust the tweeter level.

This user-friendly option allows effective adjustments to be made, to your own personal listening

pleasure, plus optimising the infinite amount of speaker installation locations available.

This allows the system to be “tailor made” to your vehicle, effectively ensuring the best acoustics

are possible. Remember too much treble and your system may sound aggressive, thus suffer a

lose of dynamics, resulting in poor definition.

Level position 0 or -3dB, if the tweeter is located very close to woofer-midrange, or in kick

panel, for the 2-way kits, or +3, 0dB for the 3-way kits.

Level position -3 or -6dB, if the tweeter is located high in the vehicle (in the dash or high in

the doors) with the woofer positioned comparatively low for the 2-way kits and 0, -3dB for

the 3-way kits.

Tweeter level adjustment

–6dB, -3dB and 0dB

notice_access_1.indd 5 26/02/08 14:41:15

Access 2/3-WAy kit mAnuAl

User Manual 6

Specifications

How can you improve the sound quality of your speakers?

Easy. To improve the sound quality of your speakers notably those installed into the doors,

Focal has the answer.

Known as “Plain-Chant”, this material acts as a sound absorber, to effectively reduce unwanted

resonances and ensure your speakers produce a more full sound. No-fuss installation ensures this

accessory, proves to be a real asset for your Focal speakers / installation. Consult your Focal retailer

for further information.

130 A1 165 A1 165 A3

Type 2-way kit 2-way kit 3-way kit

Diameter 5.12’’ (130mm) 6.5’’ (165mm)

4’’ (100mm)

6.5 (165mm)

Maximum power 100W 120W 160W

Nominal power 50W 60W 80W

Sensitivity (2.8V/1m) 91dB 92dB 90dB

Frequency response 65Hz – 20kHz 60Hz – 20kHz 55Hz – 20kHz

Impedance 4 ohms 4 ohms 4 ohms

Fitting diameter 4.61’’ (117mm) 5.35’’ (141mm)

3.70’’ (94mm)

5.55’’ (141mm)

Mounting depth 2.20’’ (56mm) 2.60’’ (66mm)

2.17’’ (55mm)

2.60’’ (66mm)

notice_access_1.indd 6 26/02/08 14:41:15

Access 2/3-WAy kit mAnuAl

User Manual 7

What is the power for your amplifier?

Access speakers are already highly efficient, with improved sensitivity. Therefore, their use with

a high power head unit will provide comfortable listening pleasure.

However used in a more high-end system, with separate amplification, the audio quality will

be greatly improved. It is very important to know the rated power of the amplifier is suitable for

the speakers used. Otherwise your speakers may distort, or possible damage could occur.

Always consult the owners manual of the principal source (head unit/amplifier), to ensure the

power rating is compatible. A safe guide is to ensure the maximum power of the amplifier is

not greater than the nominal power of the speakers.

Installation upgrade (with the help of a subwoofer)

If you want your system to have bass, with real punch and power, we recommend the inclusion

of a subwoofer. This will greatly improve your listening pleasure and give your system, some

real physical dimension.

Focal has therefore developed a range of subwoofer drivers and complete subwoofer systems,

to compliment your Access speakers.

Consult your local dealer, or check out these exciting products on the Focal Internet site:

www.focal-fr.com

Guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor

in your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee

cover extends at least to that granted by the legal guarantee in force in the country where the

original purchase invoice was issued.

In addition to Car hi-fi systems, Focal offers personalized solutions for the equipment of your

house. Enjoy at home the hi-fi and home cinema sensations provided by the Focal sound.

Four product lines by the French leading loudspeaker manufacturer, are at your disposal to

share with you our passion : the Spirit of Sound / www.focal-fr.com

notice_access_1.indd 7 26/02/08 14:41:15

Nous vous remercions d’avoir choisi Focal.

Les haut-parleurs Focal sont des produits de haute technologie, conçus pour

fournir des performances élevées, constantes dans le temps. Aussi, afin de

tirer le meilleur parti de vos haut-parleurs, nous vous recommandons de lire

attentivement cette notice. Tout problème dû à un non respect des règles

d’utilisation peut entraîner l’invalidation de la garantie.

Les technologies Focal - Ligne Access

• Membrane Polypropylène

• Tweeter TN44 à dôme inversé en aluminium /

magnésium

• Filtres séparés optimisés avec réglage de niveau,

composants de haute-qualité

• Suspension Butyle longue durée

Access 2/3 voies sépArées

Manuel Utilisateur

po u r v a l i d a t i o n d e l a g a r a n t i e fo c a l , merci d e

n o u s r e t o u r n e r l a p a g e 15 d a n s l e s 10 jours

Dans un but d'évolution, Focal-JMLab se réserve le droit de modifier les spécifications techniques de ses produits sans préavis. Images non contractuelles.

Focal® est une marque de Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière

cedex - France - Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - www.focal-fr.com

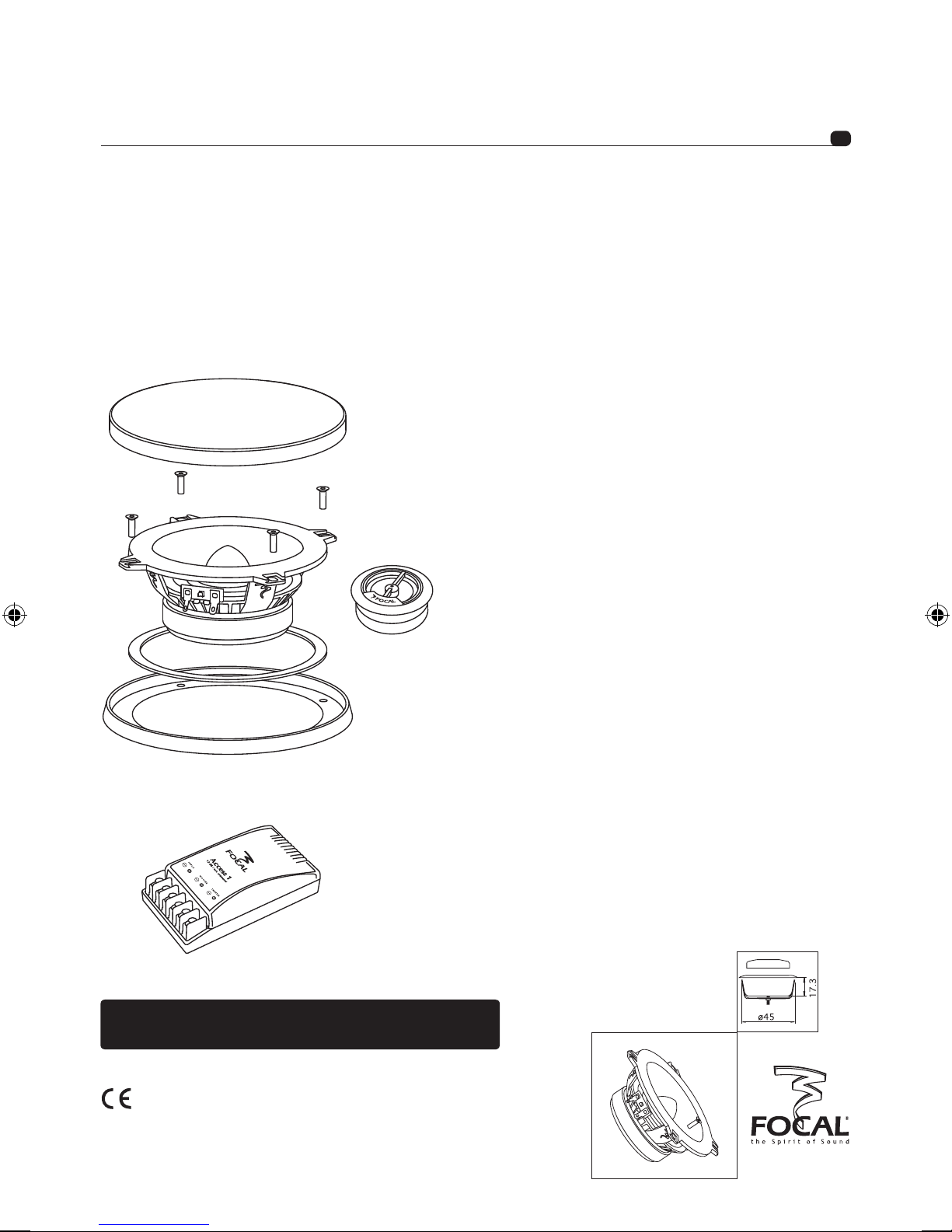

Contenu de l'emballage

• 2 x haut-parleurs grave-médium (kits 2 voies)

• 2 x haut-parleurs médium (kits 3 voies)

• 2 x haut-parleurs grave (kits 3 voies)

• 2 x joints

• 2 x filtres

• vis de fixation

• 2 x tweeters

• 2 x grilles avec supports

• 2 x rondelles crantées

notice_access_1.indd 8 26/02/08 14:41:15

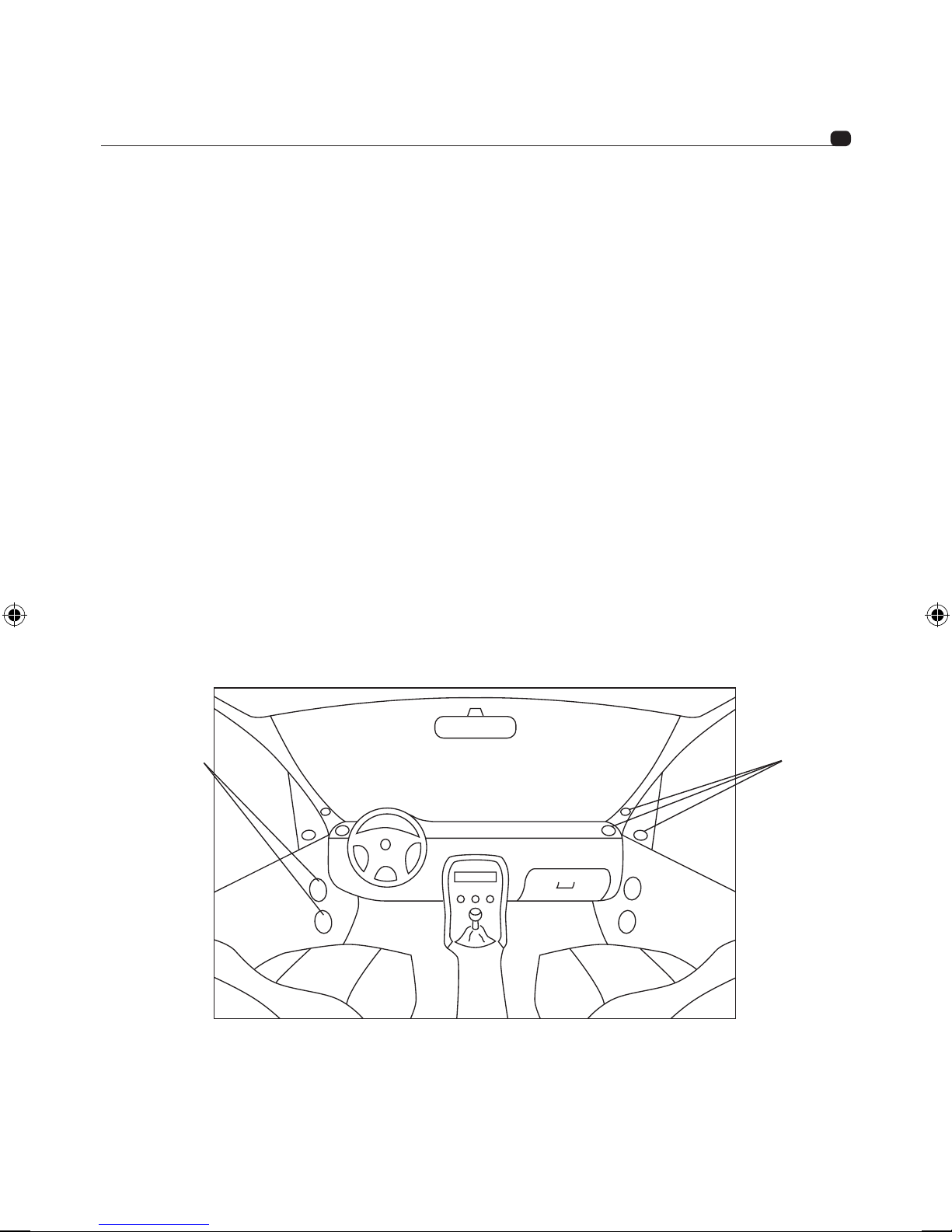

Positionnement possible

des haut-parleurs

de graves et médiums

3 positionnements possibles

des tweeters

Access 2/3 voies sépArées

Manuel Utilisateur 9

Recommandations importantes

Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter aux

plans sur l’emballage) puis procédez aux découpes.

• Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace suffisant

entre le haut-parleur et la grille de protection.

• Tenir les haut-parleurs à l’écart des copeaux métalliques et des poussières. Procédez à un

nettoyage soigneux avant de les monter.

• Utilisez le joint d’étanchéité fourni dans la grille afin d’assurer une étanchéité parfaite.

• Ne touchez pas à la membrane du tweeter.

Choix de l’emplacement et orientation du tweeter

Le résultat optimum sera obtenu en respectant quelques règles simples :

• L’image sonore la plus large et la plus centrée sera obtenue par un écartement maximum des

haut-parleurs et par un positionnement le plus à l’avant possible.

• Les fréquences médiums et aigues seront favorisées par un emplacement en haut de portière

ou sur le tableau de bord, les fréquences graves sont peu directives et ne sont donc pas

déterminantes pour le choix de l’emplacement du haut-parleur.

• L’orientation des tweeters en direction des oreilles de l’auditeur permet d’optimiser l’image

sonore.

notice_access_1.indd 9 26/02/08 14:41:16

Access 2/3 voies sépArées

Manuel Utilisateur 10

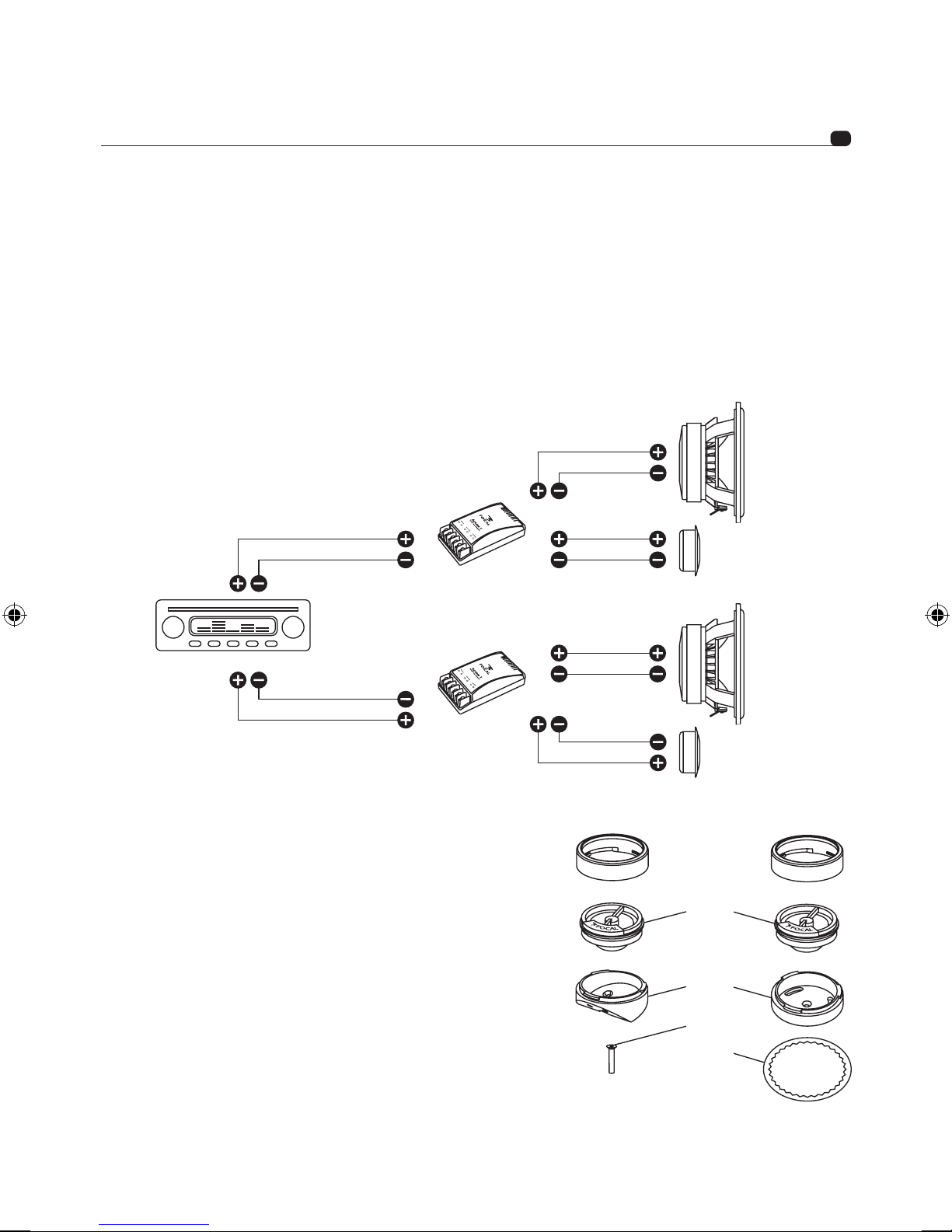

Câblage et connexions

Afin de tirer le meilleur parti de vos haut-parleurs Access, nous vous recommandons d'utiliser

des câbles Focal. A défaut, un câble de qualité et de section suffisante (1 mm2 minimum) est

recommandé, surtout si la distance entre l’amplificateur ou l’autoradio et les haut-parleurs

est importante.

Veillez à respecter la polarité des branchements (+ sur +, etc.) et la convenable orientation

des câbles vers ampli, grave, ou tweeter. Si le woofer est installé au bas d'une portière,

connectez-le directement sur l'autoradio sans passer par le filtre pour récupérer un maximum

d'énergie dans le médium.

Installation du tweeter

Il existe deux possibilités de montage : montage en

surface et montage encastré. Pour installer le tweeter, vous

devez le sortir de son support : débloquez le support du

tweeter en le faisant pivoter, puis dégagez le tweeter de

son logement.

Montage en surface (tableau de bord) : choisir

l’inclinaison (10° ou 30°), fixer le support à l’aide des vis

fournies, passer les fils puis bloquer le tweeter en faisant

pivoter le support.

Montage encastré : découper un trou de 45 mm de

diamètre, insérer le support et le bloquer contre la paroi

à l’aide de la rondelle crantée. Passer les fils et bloquer le

tweeter en faisant pivoter le support.

Sortie droite

Sortie gauche

Woofer

Tweeter

Woofer

Tweeter

Input

Tweeter

Support

Vis

Rondelle

crantée

notice_access_1.indd 10 26/02/08 14:41:16

Autres manuels pour Access 130 A1

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Focal Haut-parleurs de voiture

Focal

Focal BOMBA 20 A1 Manuel utilisateur

Focal

Focal Access 165 A3 Manuel utilisateur

Focal

Focal K2 Power 165 KRC Manuel utilisateur

Focal

Focal KIT 170 V Manuel utilisateur

Focal

Focal BombA 27 V1 Manuel utilisateur

Focal

Focal IFBMW-C Manuel utilisateur

Focal

Focal IC FORD 165 Manuel utilisateur

Focal

Focal INTEGRATION IFP 207 Manuel utilisateur

Focal

Focal Integration IC 570 Manuel utilisateur

Focal

Focal Access 1 130 CA1 Manuel utilisateur

Focal

Focal K2 POWER 130 KF Manuel utilisateur

Focal

Focal T3Y Series Manuel utilisateur

Focal

Focal K2 Power 100 KRS Manuel utilisateur

Focal

Focal Polyglass 165 CVX Manuel utilisateur

Focal

Focal Elite Utopia Be 165W-RC Manuel utilisateur

Focal

Focal INTEGRATION PLUG&PLAY TOYOTA Manuel utilisateur

Focal

Focal N 5 Manuel utilisateur

Focal

Focal INTEGRATION PLUG&PLAY IS 165VW Manuel utilisateur

Focal

Focal K2 Power 130 KRC Manuel utilisateur

Focal

Focal POLYGLASS MULTI SPEAKER Manuel utilisateur

Focal

Focal K2 Power 100 KRS Manuel utilisateur

Focal

Focal Utopia Series Manuel utilisateur

Focal

Focal IFP 207 Manuel utilisateur

Focal

Focal IC 165VW Manuel utilisateur

Manuels Haut-parleurs de voiture populaires d'autres marques

Blaupunkt

Blaupunkt GTt 300 Fiche technique

Boston Acoustics

Boston Acoustics SX55 Manuel utilisateur

Kenwood

Kenwood KFC-W212 Manuel utilisateur

VR3

VR3 Elite VRS653 Manuel utilisateur

Premier

Premier TS-W3001D4 Manuel utilisateur

Infinity

Infinity 6530cx Manuel utilisateur

Precision Power

Precision Power PPI4.2 Manuel utilisateur

Mopar

Mopar 2011-UP Manuel utilisateur

Jensen

Jensen XS Series Manuel utilisateur

Blaupunkt

Blaupunkt GTx Series Manuel utilisateur

AudioBahn

AudioBahn AT60 Manuel utilisateur

Blueant

Blueant S1 Manuel utilisateur

Naxa

Naxa NCS-768 Manuel utilisateur

Boston Mobile Audio

Boston Mobile Audio SR80 Manuel utilisateur

Blaupunkt

Blaupunkt GTx 352 DE Manuel utilisateur

Blaupunkt

Blaupunkt GTt 1200 Mk II Manuel utilisateur

Pioneer

Pioneer TS-D1320C - Car Speaker - 35 Watt Manuel utilisateur

JBL

JBL GTO327 Manuel utilisateur
