FLY XENIT SUPER Manuel utilisateur

VERSION 1.0 – 05/13

FLY

Products s.r.l.

Via Perù n. 30

63013 GROTTAMMARE (AP) - ITALY

tel./fax +39.735.632486

www.flyproducts.com - [email protected]

XENIT SUPER

OWNER’S MANUAL

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

Index

Chapter Description

1.0

XENIT SUPER FEATURES

2.0

FRAME ASSEMBLY

3.0

EMERGENCY PARACHUTE

4.0

PROP MOUNTING

5.0

STARTING AND STOPPING ENGINE

6.0

ADJUSTING VERSION TANDEM OR MONO

7.0

A-ASSIST SYSTEM

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

(1.0) XENIT SUPER FEATURES

•Easy assembly and disassembly

•Electric Starter

•Power Ignition

•Reduction drive

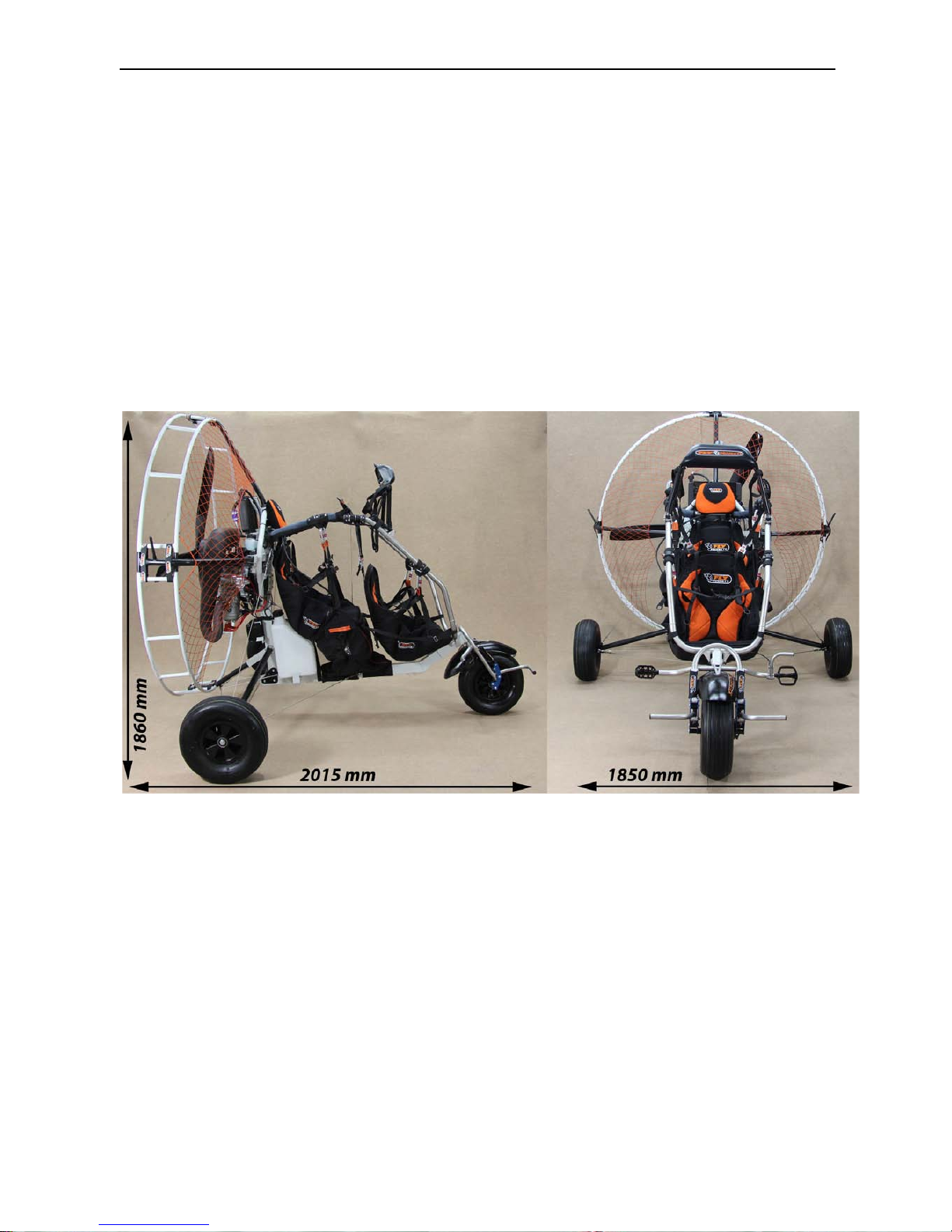

Dimensions

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

(2.0) Frame assembly

Frame assembly and disassembly is very fast and easy.

The outer frame consists of four parts, and they are held together by the velcro straps.

For an easy and correct assembly proceed in the following order:

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

(3.0) Emergency parachute

A reserve parachute can be attached to the XENIT SUPER and is highly recommended for obvious

security reasons. The reserve parachute is inserted under the harness of the pilot.

Assembly procedure of the emergency system:

Insert the emergency in the

pocket

Using a string to close the bag

Attach the handle

Side view after complete closure

Pass the straps behind the harness

Attach the straps to carabiner

where the glider is attached

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

(4.0) Prop mounting

Mounting the prop is quick and easy.

Place the rear prop flange on the rear side of the prop.

Insert the six (6) prop bolts through the rear prop flange and

prop.

The correct torque to use is 28 Nm

A more practical “field method” of torquing is to tighten the

bolts snuggly and evenly, but not enough to begin to crush the

wood of the prop.

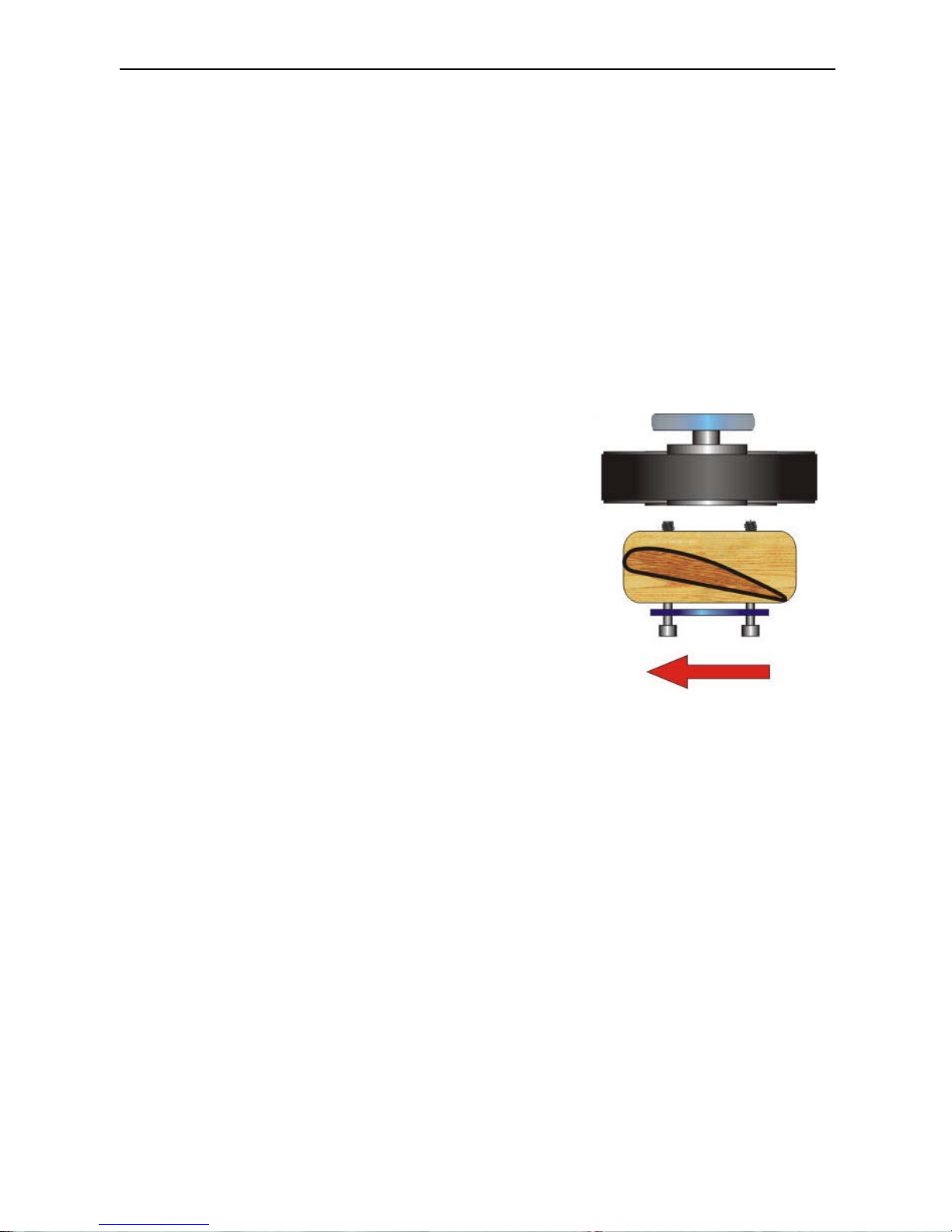

Mounting the prop, the red arrow indicate the direction of

propeller rotation.

(5.0) Starting and stopping engine

Stopping the engine

Before of proceed it's better to learn the function of the handgrip:

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

A– STOP” button

B– Cruise control setup

C– Throttle lever

Since it’s important to know how to stop the engine once it’s started, let’s cover “Stopping the Engine”

first. To stop the engine, simply depress the “STOP” button A and hold it until the engine comes to a

complete stop.

Starting the engine

XENIT SUPER OWNER’S MANUAL ____ ___ VER. 1.1

___________________________________________________________________________

FLY

Products s.r.l. Page

Pump the fuel until the carburator float is

full.

Choke level to be used for the first start at cool

engine.

(6.0) Adjustments version tandem or mono
