Fluidwell F Series Manuel utilisateur

F050-A

PRESSURE INDICATOR

Signal input sensor: (0)4-20mA.

Options: Intrinsically Safe.

F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries

F-Series - Field mounted indicators for safe and hazardous areas.

More info: www.fluidwell.com/fseries

FW-F050-A-M_v0403_04_EN.docx

Page 2

SAFETY INSTRUCTIONS

▪Any responsibility is lapsed if the instructions and procedures as described in this manual

are not followed.

▪LIFE SUPPORT APPLICATIONS: The F050-A is not designed for use in life support

appliances, devices, or systems where malfunction of the product can reasonably be

expected to result in a personal injury. Customers using or selling these products for use

in such applications do so at their own risk and agree to fully indemnify the manufacturer

and supplier for any damages resulting from such improper use or sale.

▪Electro static discharge does inflict irreparable damage to electronics! Before installing or

opening the unit, the installer has to discharge himself by touching a well-grounded object.

▪This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

▪Do connect a proper grounding to the aluminum casing as indicated if the F050-A has been

supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the

back-casing and removable terminal-block may never be removed.

▪Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and

consult “Fluidwell F0..-..-XI - Documentation for Intrinsic Safety”.

DISPOSAL

▪At the end of its life this product should be disposed of according to local regulations regarding

waste electronic equipment. If a battery is present in this product it should be disposed of

separately. The separate collection and recycling of your waste equipment will help to conserve

natural resources and ensure that it is recycled in a manner that protects the environment.

SAFETY RULES AND PRECAUTIONARY MEASURES

▪The manufacturer accepts no responsibility whatsoever if the following safety rules and

precautions instructions and the procedures as described in this manual are not followed.

▪Modifications of the F050-A implemented without preceding written consent from the

manufacturer, will result in the immediate termination of product liability and warranty period.

▪Installation, use, maintenance and servicing of this equipment must be carried out by authorized

technicians.

▪Check the mains voltage and information on the manufacturer's plate before installing the unit.

▪Check all connections, settings and technical specifications of the various peripheral devices

with the F050-A supplied.

▪Open the casing only if all leads are free of potential.

▪Never touch the electronic components (ESD sensitivity).

▪Never expose the system to heavier conditions than allowed according to the casing

classification (see manufacture's plate and chapter 4.2.).

▪If the operator detects errors or dangers, or disagrees with the safety precautions taken, then

inform the owner or principal responsible.

▪The local labor and safety laws and regulations must be adhered to.

FW-F050-A-M_v0403_04_EN.docx

Page 3

ABOUT THE OPERATION MANUAL

This operation manual is divided into two main sections:

▪The daily use of the unit is described in chapter 2 "Operation". These instructions are meant for

users.

▪The following chapters and appendices are exclusively meant for electricians/technicians. These

provide a detailed description of all software settings and hardware installation guidance.

This operation manual describes the standard unit as well as most of the options available. For

additional information, please contact your supplier.

A hazardous situation may occur if the F050-A is not used for the purpose it was designed for

or is used incorrectly. Please carefully note the information in this operating manual

indicated by the pictograms:

A "warning" indicates actions or procedures which, if not performed correctly, may lead to

personal injury, a safety hazard or damage of the F050-A or connected instruments.

A "caution" indicates actions or procedures which, if not performed correctly, may lead to

personal injury or incorrect functioning of the F050-A or connected instruments.

A "note" indicates actions or procedures which, if not performed correctly, may indirectly

affect operation or may lead to an instrument response which is not planned.

Hardware version : FB03.03.xx

Software version : 03.02.xx

Manual : FW-F050-A-M_v0403_04_EN.docx

Information in this manual is subject to change without prior notice. The

manufacturer is not responsible for mistakes in this material or for incidental

damage caused as a direct or indirect result of the delivery, performance or

use of this material.

in any form or by any means without written permission of your supplier.

FW-F050-A-M_v0403_04_EN.docx

Page 4

CONTENTS MANUAL

Safety instructions ................................................................................................................................ 2

Disposal ......................................................................................................................................... 2

Safety rules and precautionary measures............................................................................................ 2

About the operation manual ................................................................................................................. 3

Contents manual................................................................................................................................... 4

1. Introduction....................................................................................................................... 5

2. Operational....................................................................................................................... 6

3. Configuration.................................................................................................................... 8

4. Installation......................................................................................................................15

5. Intrinsically safe applications..........................................................................................22

6. Maintenance...................................................................................................................27

Appendix A: Technical specification................................................................................................... 28

Appendix B: Problem solving.............................................................................................................. 30

Appendix C: Declaration of Conformity .............................................................................................. 31

Appendix D: Control Drawing ............................................................................................................. 32

Index of this manual............................................................................................................................ 33

Notes .......................................................................................................................................34

FW-F050-A-M_v0403_04_EN.docx

Page 5

1. INTRODUCTION

1.1. SYSTEM DESCRIPTION OF THE F050-A

Functions and features

The pressure indicator model F050-A is a microprocessor driven instrument designed to display

pressure.

This product has been designed with a focus on:

▪ultra-low power consumption to allow long-life battery powered applications (type PB / PC),

▪intrinsic safety for use in hazardous applications (type XI),

▪several mounting possibilities with GRP or aluminum enclosures for industrial surroundings,

▪ability to process all types of sensor signals,

▪transmitting possibilities with one configurable output.

Sensor input

This manual describes the unit with an analog (0)4-20mA input type from the sensor "-A version".

Other versions are available to process a 0-10V sensor signal.

One sensor with a passive or active (0)4-20mA signal output can be connected to the F050-A. To

power the sensor, several options are available.

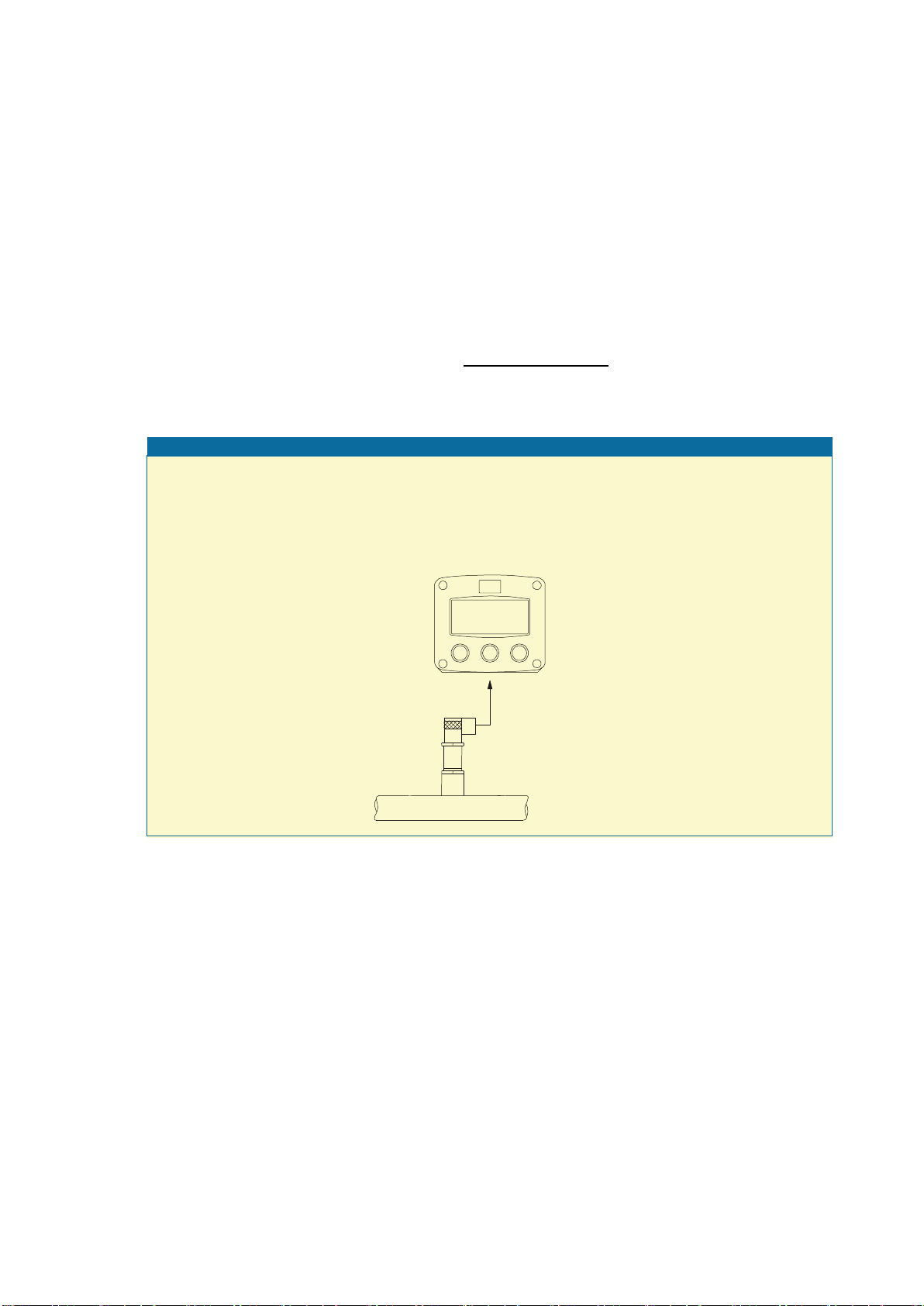

Fig. 1: Typical application for the F050-A.

Configuration of the unit

The F050-A has been designed to be implemented in many types of applications. For that reason, a

SETUP-level is available to configure your F050-A according to your specific requirements.

It includes several important features, such as Span, measurement units, display options etc. All

setting are stored in EEPROM memory and will not be lost in the event of power failure. To extend

the battery-life time, please use of the power-management functions as described in chapter 3.2.3.

Display information

The unit has a very large transflective LCD with all kinds of symbols and digits to display measuring

units, status information and key-word messages.

Pressure values are displayed with the large 26mm (1”) digits while the smaller 8mm (0.31”) digits

will display the measuring unit.

The Piegraph is percentage-wise related to the span.

Options

The following options are available: intrinsic safety, power- and sensor-supply options, panel-mount,

wall-mount and weather-proof enclosures, flame proof enclosure and LED backlight.

Overview typical application F050

FW-F050-A-M_v0403_04_EN.docx

Page 6

2. OPERATIONAL

2.1. GENERAL

▪The F050-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

▪Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

This chapter describes the daily use of the F050-A. This instruction is meant for users / operators.

2.2. CONTROL PANEL

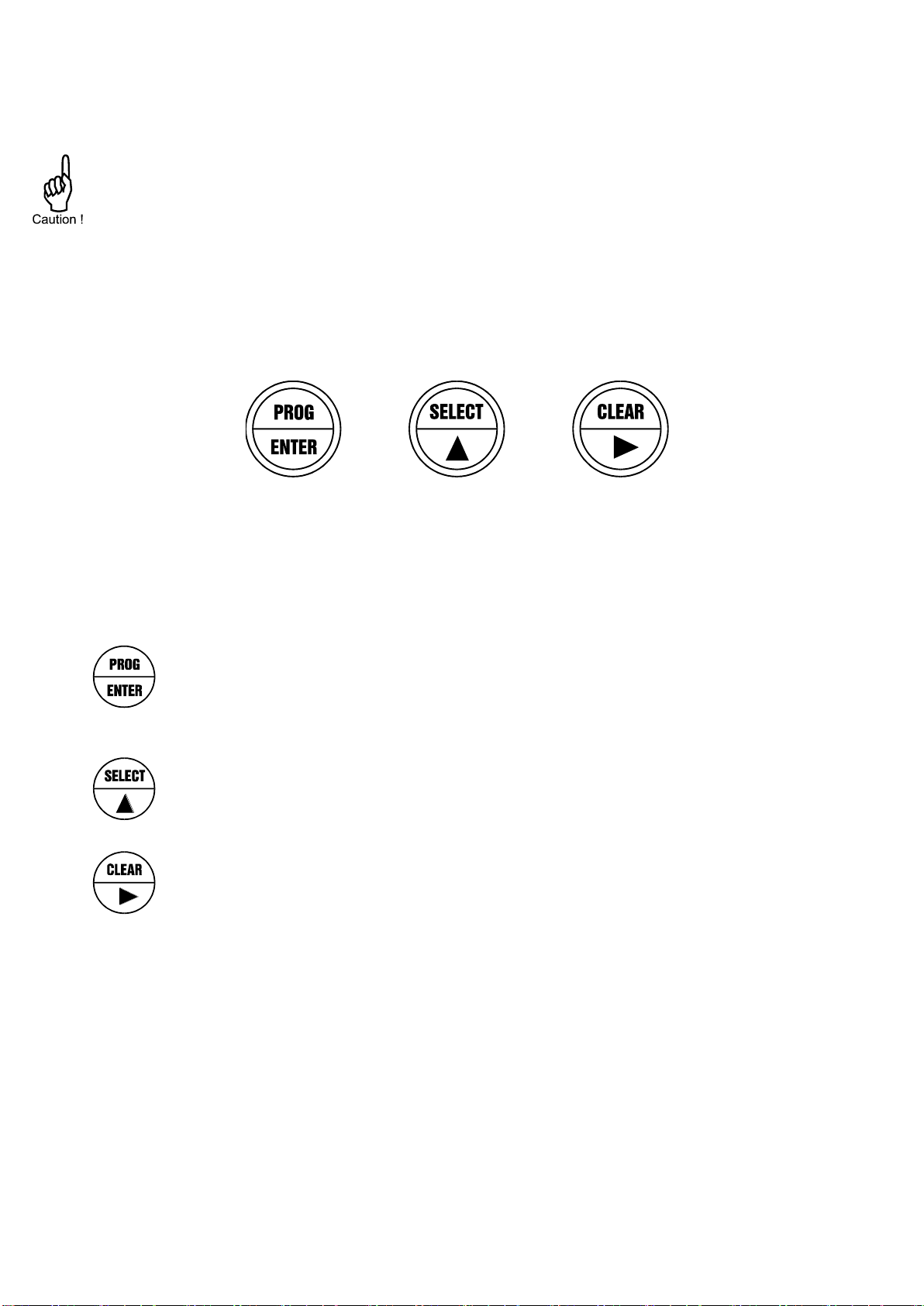

The following keys are available:

Fig. 2: Control Panel.

Functions of the keys

This key is used to program and save new values or settings.

It is also used to gain access to SETUP-level; please read chapter 3.

The arrow-key is used to increase a value after PROG has been pressed

or to configure the unit; please read chapter 3.

The arrow-key is used to select a digit after PROG has been pressed or to

configure the unit; please read chapter 3.

FW-F050-A-M_v0403_04_EN.docx

Page 7

2.3. OPERATOR INFORMATION AND FUNCTIONS

In general, the F050-A will always act at Operator level. The information displayed is dependant

upon the SETUP-settings. The signal generated by the connected sensor is measured by the

F050-A in the background, whichever screen refresh rate setting is chosen. After pressing a key, the

display will be updated very quickly during a 30 second period, after which it will slow-down again.

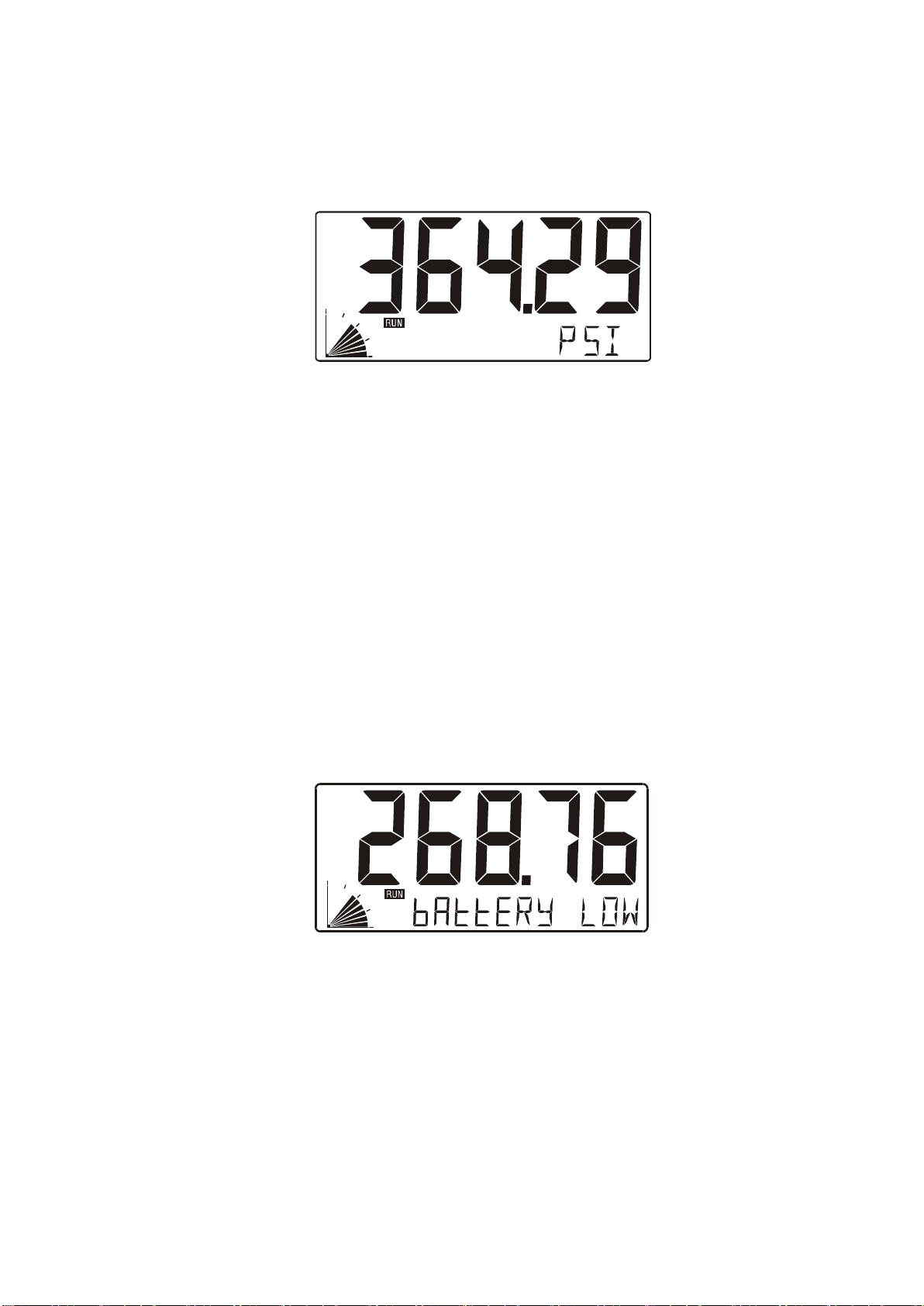

Fig. 3: Example of display information during process.

For the Operator, the following functions are available:

▪Display pressure

This is the main display information of the F050-A. After selecting any other information, it will

always return to this main display automatically.

Pressure is displayed on the upper-line of the display and the measuring unit on the bottom

line.

When "-------" is shown, then the value is too high to be displayed. T

▪Piegraph indication

This 10 segment Piegraph gives a quick impression about the actual value in relation to its

measuring range in a scale of 0-100%.

▪Low-battery alarm

When the battery voltage drops, it must be replaced. At first "low-battery" will flash, but as

soon as it is displayed continuously, the battery MUST be replaced shortly after!

Only original batteries supplied by the manufacturer may be used, else the guarantee and

liability will be terminated. The remaining lifetime after the first moment of indication is

generally several days up to some weeks.

Fig. 4: Example of low-battery alarm.

▪Range error

As soon as the input value is 5% outside the calibrated measurement range, the piegraph

starts flashing. Meanwhile, the calibrated value as well as “LO RANGE” or “HI RANGE” will be

displayed.

▪Alarm 01-03

When "ALARM" is displayed, press the SELECT key to display the reason of the alarm: 1-3.

Please consult Appendix B: problem solving.

FW-F050-A-M_v0403_04_EN.docx

Page 8

3. CONFIGURATION

3.1. INTRODUCTION

This and the following chapters are exclusively meant for electricians and non-operators. In these,

an extensive description of all software settings and hardware connections are provided.

▪Mounting, electrical installation, start-up and maintenance of the instrument may only

be carried out by trained personnel authorized by the operator of the facility. Personnel

must read and understand this Operating Manual before carrying out its instructions.

▪The F050-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

▪Ensure that the measuring system is correctly wired up according to the wiring

diagrams. The housing may only be opened by trained personnel.

▪Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

3.2. PROGRAMMING SETUP-LEVEL

3.2.1. GENERAL

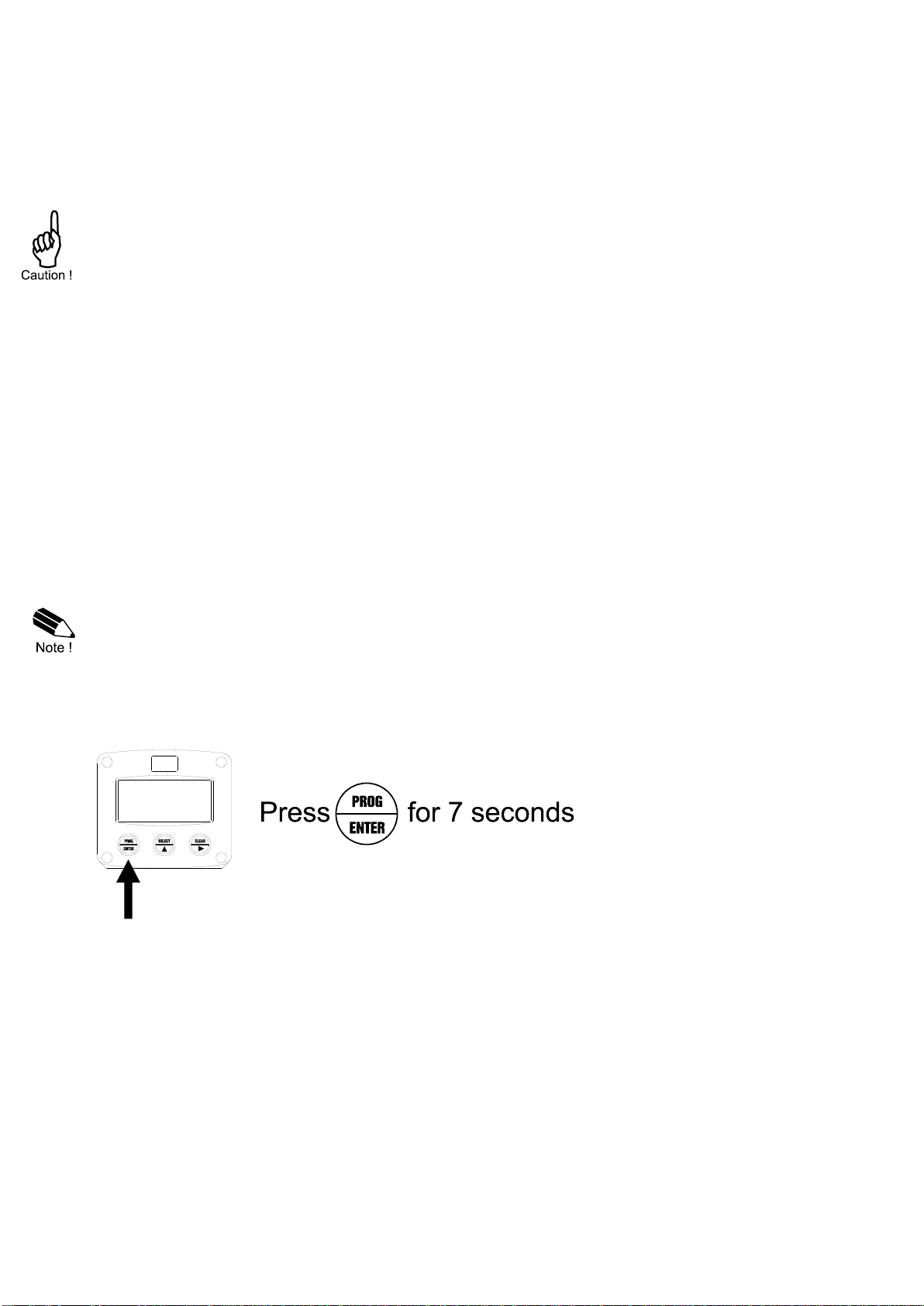

Configuration of the F050-A is done at SETUP-level. SETUP-level is reached by pressing the

PROG/ENTER key for 7 seconds; at which time, both arrows will be displayed. In order to return

to the operator level, PROG will have to be pressed for three seconds. Alternatively, if no keys are

pressed for 2 minutes, the unit will exit SETUP automatically.

SETUP can be reached at all times while the F050-A remains fully operational.

Note: A pass code may be required to enter SETUP. Without this pass code access to SETUP is

denied.

To enter SETUP-level:

FW-F050-A-M_v0403_04_EN.docx

Page 9

Matrix structure SETUP-level:

SCROLLING THROUGH SETUP-LEVEL

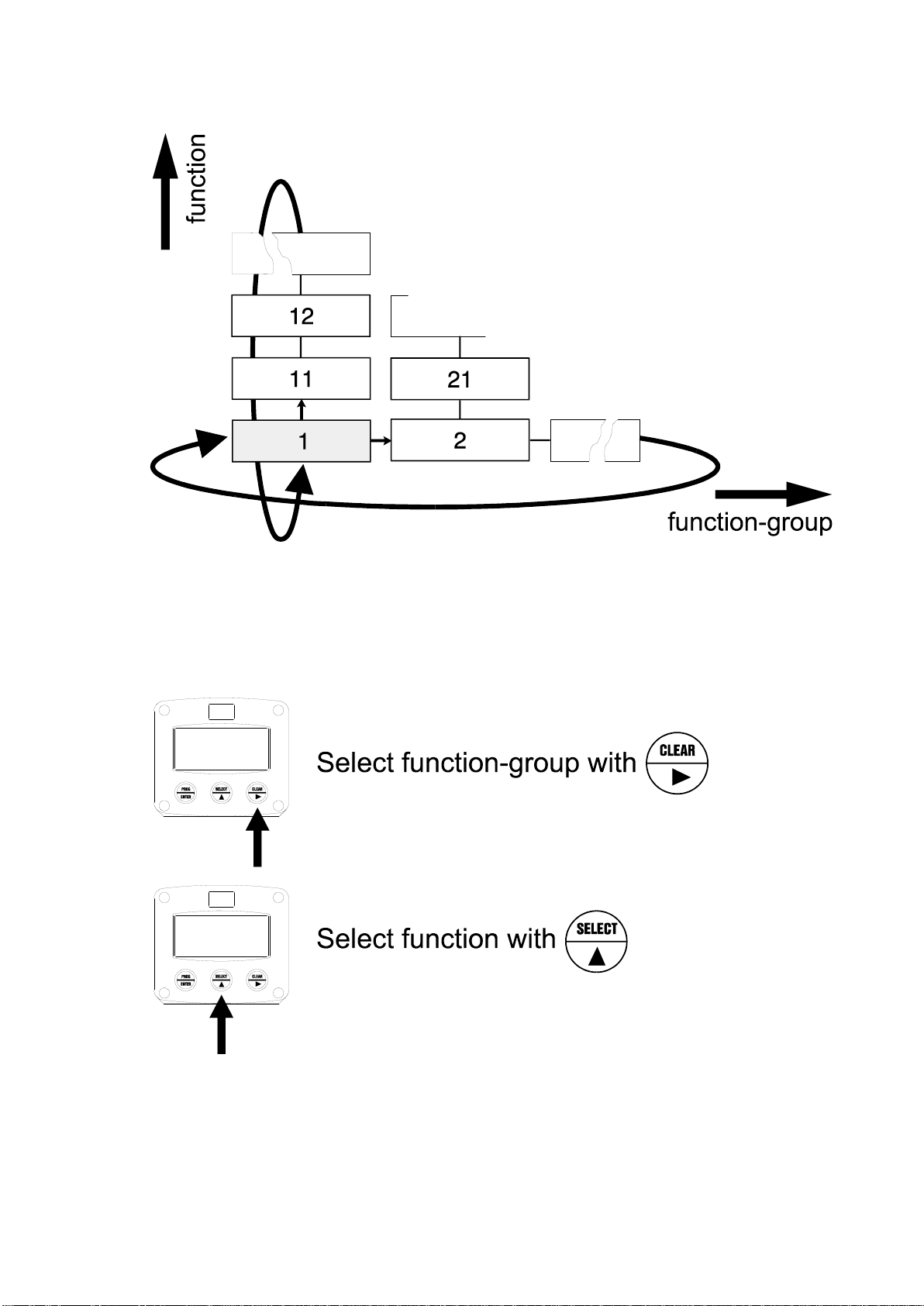

Selection of function-group and function:

SETUP is divided into several function groups and functions.

Each function has a unique number, which is displayed below the word "SETUP" at the bottom of

the display. The number is a combination of two figures. The first figure indicates the function-group

and the second figure the sub-function. Additionally, each function is expressed with a keyword.

After selecting a sub-function, the next main function is selected by scrolling through all "active" sub-

functions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.). The “CLEAR” button can be used

to jump a step back if you missed the desired function.

FW-F050-A-M_v0403_04_EN.docx

Page 10

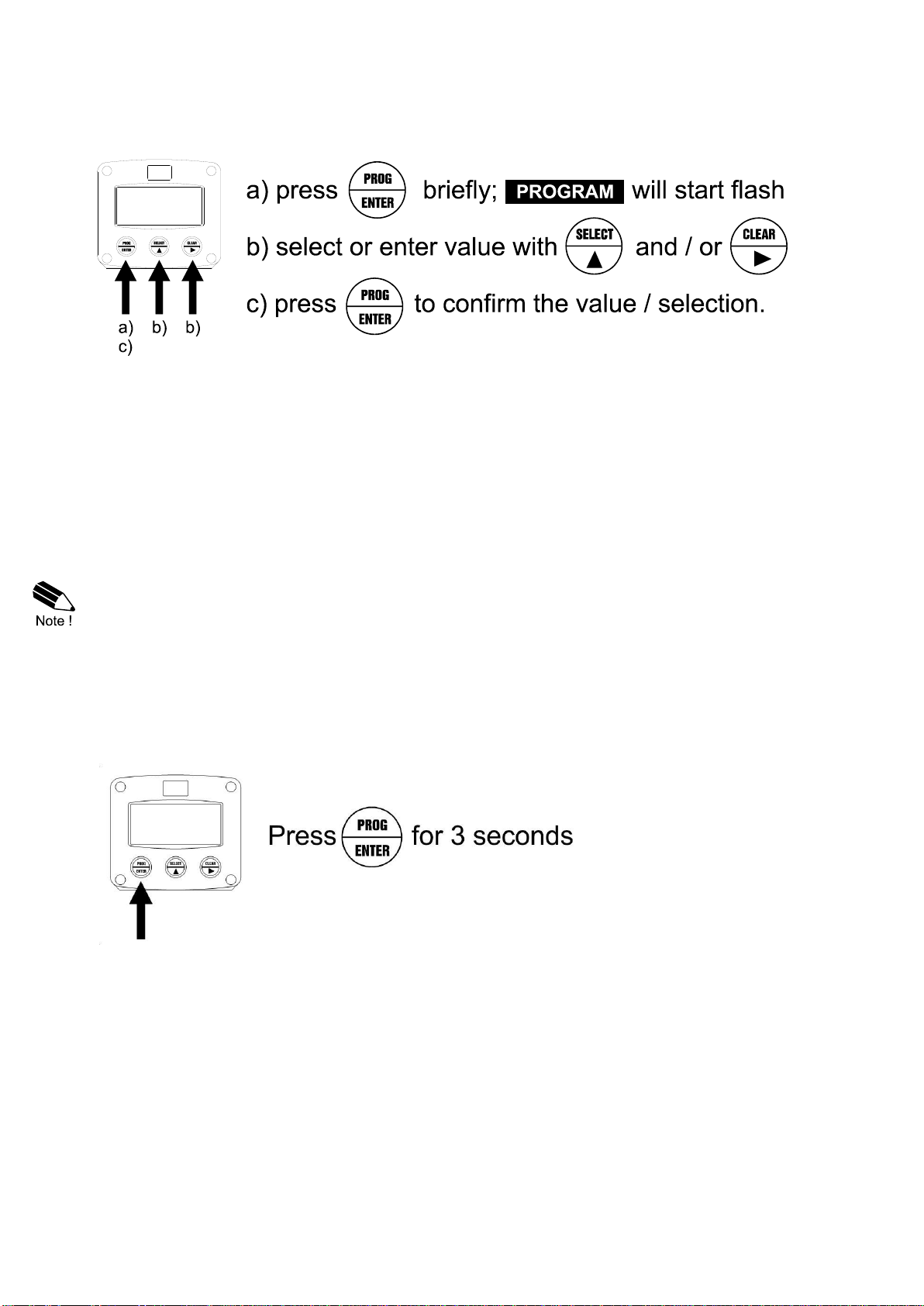

To change or select a value:

To change a value, use to select the digits and to increase that value.

If the new value is invalid, the increase signor decrease-signwill be displayed while you are

programming.

To select a setting, is used to select in one direction and can be used to select in the other

direction.

When data is altered but ENTER is not pressed, then the alteration can still be cancelled by waiting

for 20 seconds or by pressing ENTER for three seconds: the PROG-procedure will be left

automatically and the former value reinstated.

Note: alterations will only be set after ENTER has been pressed!

To return to OPERATOR-level:

In order to return to the operator level, PROG will have to be pressed for three seconds. Also, when

no keys are pressed for 2 minutes, SETUP will be left automatically.

Autres manuels pour F Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fluidwell Instrument de mesure

Fluidwell

Fluidwell E115-P Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell F018-P Manuel utilisateur

Fluidwell

Fluidwell E Series Instructions de fonctionnement

Fluidwell

Fluidwell F013-P Manuel utilisateur

Fluidwell

Fluidwell F011-A Manuel utilisateur

Fluidwell

Fluidwell F113-P-PD-OS Manuel utilisateur

Fluidwell

Fluidwell F116-P Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell B Series Manuel utilisateur

Fluidwell

Fluidwell D Series Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell F053-A Manuel utilisateur

Fluidwell

Fluidwell F115-P Manuel utilisateur

Fluidwell

Fluidwell F011-P Manuel utilisateur

Fluidwell

Fluidwell F190-A-OS Manuel utilisateur

Fluidwell

Fluidwell F173-A-OS-PD Manuel utilisateur

Fluidwell

Fluidwell F1-A-PD-OS Series Manuel utilisateur

Fluidwell

Fluidwell F127-P-EL-TP Manuel utilisateur

Fluidwell

Fluidwell F070 Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell F Series Manuel utilisateur

Fluidwell

Fluidwell F126-P-EL-TP Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
