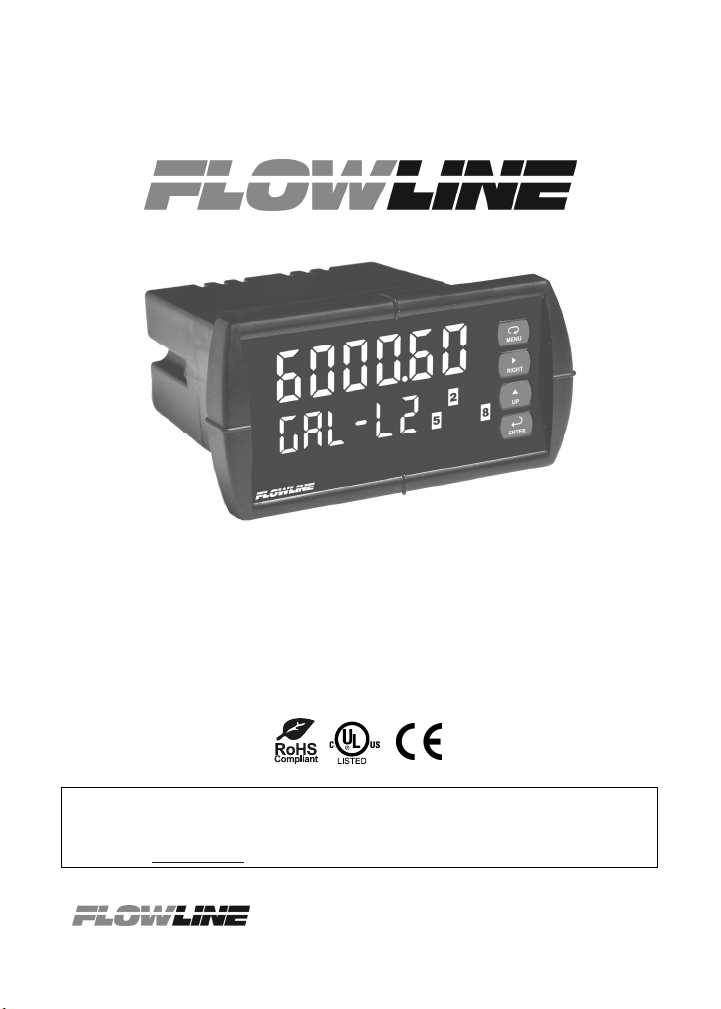

FlowLine DataView LI55 Manuel utilisateur

www.flowline.com

10500 Humbolt St. • Los Alamitos CA 90720 USA

Tel (562) 598-3015 • Fax (562) 431-8507

Model: LI55

DataView™ Level Controller

Quick Start

Welcome to the LI55 Quick Start

The LI55 Quick Start demonstrates the more common level solution setups with the LI55. If you run into an issue

that is not addressed in this quick start or wish to set up with a non-standard configuration, please address the

LI55 Manual at www.flowline.com

DataView™ LI55 Level Controller Quick Start

2| Page

Disclaimer

The information contained in this document is subject to change without

notice. Flowline makes no representations or warranties with respect to

the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for a particular purpose.

CAUTION: Read complete

instructions prior to installation

and operation of the meter.

WARNING: Risk of electric

shock or personal injury.

Warning!

This product is not recommended for life

support applications or applications where

malfunctioning could result in personal injury

or property loss. Anyone using this product for

such applications does so at his/her own risk.

Flowline, Inc. shall not be held liable for

damages resulting from such improper use.

Limited Warranty

Flowline, Inc. warrants this product against defects in material or

workmanship for the specified period under “Specifications” from the

date of shipment from the factory. Flowline’s liability under this limited

warranty shall not exceed the purchase value, repair, or replacement of

the defective unit.

Registered Trademarks

All trademarks mentioned in this document are the property of its

respective owners.

www.flowline.com

DataView™ LI55 Level Controller Quick Start

3| Page

We Do Your Level Best

Thank you for purchasing the Dataview™ Analog Input Display (LI55).

The LI55 Series is a multipurpose, easy to use digital process meter

ideal for level applications. It accepts current signals (4-20 mA) and has

four front panel buttons for configuration of the display.

A fully loaded LI55 Series meter has the following: four SPDT relays,

4-20 mA output, and two 24 VDC power supplies. The four relays can

be used for alarm indication or process control applications, such as

pump alternation control. The 4-20 mA isolated output, and digital I/O

options make the LI55 Series an excellent addition to any system.

Ordering Information

Standard Models

85-265 VAC

Model

12/24 VDC

Model Options Installed

LI55-1001 LI55-8001 No options

LI55-1201 LI55-8201 2 relays (LI56-1201*)

LI55-1011 LI55-8011 4-20 mA output (LI56-1011*)

LI55-1401 LI55-8401 4 relays (LI56-1401*)

LI55-1211 LI55-8211 2 relays & 4-20 mA output (LI56-1211*)

LI55-1411 LI55-8411 4 relays & 4-20 mA output (LI56-1411*)

*Model number for replacement option card.

Accessories

Model Description

LI56-1400 4 SPST (Form A) relays

LI56-1000 Meter copy cable

LM91-1001 Single Display NEMA 4X Enclosure

LM91-2001 Dual Display NEMA 4X Enclosure

DataView™ LI55 Level Controller Quick Start

4| Page

Installing the DataView™

For most users, installation can be done without opening the case. It will

only require opening when changing from a mA to voltage configuration

(refer to the full manual found on-line at www.flowline.com).

When unpacking the Dataview, thoroughly inspect the unit for any

damage that may have occurred during shipping. Be sure to report any

damage, as well as any missing parts or malfunctions to your supplier or

Flowline.

Mounting the Panel

When mounting the panel, first prepare a standard 1/8 DIN panel

cutout – 3.622" x 1.772" (92 mm x 45 mm), as shown below.

Allow at least 6.0" (152 mm) clearance behind the panel for wiring.

Be sure to maintain a minimum panel thickness of 0.04" - 0.25"

(1.0 mm - 6.4 mm) to maintain Type 4X rating. This would equal

0.06" (1.5 mm) for a steel panel and 0.16" (4.1 mm) plastic panel.

Remove the DataView's two mounting brackets. Back-off the two

screws so that there is ¼" (6.4 mm) or less through the bracket. Slide

the bracket toward the front of the case and remove.

Insert the DataView into the panel cutout.

Install mounting brackets and tighten the screws against the panel.

To achieve a proper seal, tighten the mounting bracket screws

evenly until meter is snug to the panel along its short side. DO NOT

OVER TIGHTEN, as the rear of the panel may be damaged.

Panel

Gasket

Mounting

Bracket

Mounting

Screw

Removable

Connectors

DataView Panel Cutout 1/8 DIN DataView Mounting Specs

3.622" (92 mm)

1.772"

(45mm) Panel Cutout

to DIN 43700

Square Corners to 0.060"

(1.5mm) Max Radius

Tolerances:

: +0.032 (+0.8mm)

-0.000 (-0.0mm)

B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

DataView™ LI55 Level Controller Quick Start

5| Page

Configuration for 12 or 24 VDC Power

The DataView allows for either a 12 or 24 VDC power option and comes

shipped from the factory ready to operate from 24 VDC. DO NOT

exceed these voltage ratings for the DataView.

To configure the DataView for 12 VDC power:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch to expose the board.

4. Configure the J9 jumper behind the power connector for the

desired power configuration as shown below.

MAIN BOARD

24 VDC

12 VDC

POWER

12 V 24 V

J9 CONFIGURATION

Factory

Default

M-LINK

DataView Power Jumper Settings

(Applies to LI55-8_ _1 version only)

DataView™ LI55 Level Controller Quick Start

6| Page

Transmitter Supply Voltage Selection (P+, P-)

All DataView models come shipped from the factory configured to

provide 24 VDC power for the transmitter or sensor. If the installation's

transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must

be configured accordingly.

To access the voltage selection jumper:

1. Remove all the wiring connectors.

2. Unscrew the back cover.

3. Slide out the back cover by about 1 inch.

4. Configure the J4 jumper, located behind the input signal

connector, for the desired excitation voltage as shown.

Transmitter Supply Voltage Selection

(Do not change if using a Flowline 4-20 mA transmitter)

DataView™ LI55 Level Controller Quick Start

7| Page

Connections

All connections are made by attaching wires onto removable screw

terminal connectors located at the rear of the DataView.

Copper wire with 60°C or 60/75°C insulation should be used for all line

voltage connections, observing all safety regulations. Electrical wiring

should be performed in accordance with all applicable national, state,

and local codes to prevent damage to the meter and ensure personnel

safety.

The connectors’ label shows the function of each of the connections,

such as POWER, RELAY, SIGNAL, etc. The RJ-45 M-LINK connection

is intended for Flowline expansion modules, cables, or meters ONLY.

Any other use of the DataView's RJ-45 connection may damage the

DataView and any equipment connected thereto. The different types of

connections are explained on the following pages.

DO NOT connect any equipment other than Flowline’s expansion

modules, cables, or meters to the RJ45 M-LINK connector. Otherwise

damage will occur to the equipment and the meter.

DataView Connections Labeled

DataView™ LI55 Level Controller Quick Start

8| Page

Power Connections

The external power source to DataView is connected through a two-

terminal connector labeled POWER. The DataView will operate

regardless of polarity connection. The + and - symbols are only a

suggested wiring convention.

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

DataView Power Connection

Refer to the product label on the display for the

DataView's power requirements.

The LI55-1__1 series operates from 95 to 265 VDC, 5-60 Hz.

The LI55-8__1 series operates at 12 to 24 VDC.

Signal Connections

Signal connections are made to a six-terminal connector labeled

SIGNAL. The COM (common) terminal is the return for the 4-20 mA and

the 10 V input signals.

The 2-wire connection is the most common for Flowline

products (EchoPod, EchoSonic II, EchoSpan, EchoSafe,

Echotouch (LU20 series only), DeltaSpan and FloaTek

series).

DataView™ LI55 Level Controller Quick Start

9| Page

Wiring for Current Inputs

The following figures show examples of current and voltage connections.

There are no switches or jumpers to set up for current and voltage inputs.

Setup and programming is performed through the front panel buttons.

Most common wiring

DataView 2-Wire

Transmitter Connection

DataView 3-Wire

Transmitter Connection

DataView Externally-Powered

Transmitter Connection

DataView Sel

-Powered

Transmitter Connection

The current input is protected against current overload by a resettable

fuse. The display may or may not show a fault condition depending on

the nature of the overload. The fuse limits the current to a safe level

when it detects a fault condition, and automatically resets itself when the

fault condition is removed.

DataView™ LI55 Level Controller Quick Start

10 | Page

Wiring for Current and Voltage Inputs

The figures shown below are examples of voltage connections. See the

section 'Transmitter Supply Voltage Selection' for possible jumper

setting with voltage connections. Current reception is protected against

overload by a resettable fuse. The display may or may not show a fault

condition depending on the nature of the overload. The fuse limits the

current to a safe level when it detects a fault condition, and

automatically resets itself when the fault condition is removed. The

DataView is capable of receiving any voltage ranging from -10 VDC to

+10 VDC.

DataView Voltage Input Connections

Relay Connections

Relay connections are made through two six-terminal connectors

labeled RELAY1 – RELAY4. Each relay’s "C" terminal is common only

to the normally open ("NO") and normally closed ("NC") contacts of the

corresponding relay. The relays’ "C" terminals should not be confused

with the COM (common) terminal of the INPUT SIGNAL connector.

CNONO NC NC C

RELAY4 RELAY3

4365 21

CNONO NC NC C

RELAY2 RELAY1

4365 21

DataView Relay Connections

Autres manuels pour DataView LI55

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels FlowLine Contrôleurs

FlowLine

FlowLine DataView LI55 Manuel utilisateur

FlowLine

FlowLine Commander LI90 Series Manuel utilisateur

FlowLine

FlowLine Switch-Pro LC4 Series Manuel utilisateur

FlowLine

FlowLine Switch-Pro LC90 Series Manuel utilisateur

FlowLine

FlowLine LC10 Series Manuel utilisateur

FlowLine

FlowLine Commander LI90 Series Manuel utilisateur

FlowLine

FlowLine LC30-1001 Manuel utilisateur

FlowLine

FlowLine Thermo-Flo LC30 Series Manuel utilisateur

FlowLine

FlowLine Smart-Trak AV23 Series Manuel utilisateur

FlowLine

FlowLine EchoSwitch II LU77 Series Manuel utilisateur

FlowLine

FlowLine Switch Pro A 1 Series Manuel utilisateur

FlowLine

FlowLine DataView LI55 Manuel utilisateur

FlowLine

FlowLine LC40 Series Manuel utilisateur

FlowLine

FlowLine DataPoint LC52-1001 Manuel utilisateur

FlowLine

FlowLine DataPoint LC52 Series Manuel utilisateur

FlowLine

FlowLine LC11 Series Manuel utilisateur

FlowLine

FlowLine Switch Pak A*13 series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
