FlowLine DataView LI55 Manuel utilisateur

Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 LIM6000FL_BX11

p562.598.3015 f562.431.8507 wflowline.com QS301033 Rev C1

LI55 Series Quick Start

DataView™))

Level)Controller

DataView™ LI55 Level Controller Quick Start

2QS301033 Rev C1

DISCLAIMER

The information contained in this document is subject to change without notice.

Flowline makes no representations or warranties with respect to the contents

hereof and specifically disclaims any implied warranties of merchantability or

fitness for a particular purpose.

Warning

This product is not recommended for life support applications or

applications where malfunctioning could result in personal injury

or property loss. Anyone using this product for such applications

does so at his/her own risk. Flowline, Inc. shall not be held liable

for damages resulting from such improper use.

REGISTERED TRADEMARKS

All trademarks in this document are the property of its respective owners.

CAUTION: Please read complete

instructions prior to installation and

operation of the controller.

WARNING: Risk of electric shock or

personal injury.

WELCOME TO THE DATAVIEW™ QUICK START

The DataView™ Quick Start provides basic setup and use instructions for getting

the LI55 up and running quickly. If you have a non-standard installation or setup

requirement that is not addressed here, please refer to the DataView™ manual or

support documentation at flowline.com.

DataView™ LI55 Level Controller Quick Start

QS301033 Rev C13

WE DO YOUR LEVEL BEST™

Thank you for purchasing Dataview™ which is offered in twelve models. The AC

or DC powered general purpose level controller displays level in engineering units

with one 4-20 mA input, and is available with optional 2 or 4 relays, and an

isolated 4-20 mA repeater. Note: Verify the part number of your controller and

follow the instructions accordingly.

Models

85-265 VAC

Part Number

12/24 VDC

Part Number

Options

Installed

Replacement

Part Number•

LI55-1001

LI55-8001

No options

N/A

LI55-1201

LI55-8201

2 relays

LI56-1201

LI55-1011

LI55-8011

4-20 mA repeater

LI56-1011

LI55-1401

LI55-8401

4 relays

LI56-1401

LI55-1211

LI55-8211

2 relays & 4-20 mA repeater

LI56-1211

LI55-1411

LI55-8411

4 relays & 4-20 mA repeater

LI56-1411

* Part number for replacement / expansion cards.

Accessories

Part Number

Description

LI56-1400

4 SPST (Form A) relays

LI56-1000

Controller copy cable

LM91-1002

Single indicator NEMA enclosure

LM91-2002

Two indicator NEMA enclosure

DataView™ LI55 Level Controller Quick Start

4QS301033 Rev C1

UNPACKING DATAVIEW™

When unpacking DataView™, inspect for any damage that may have occurred

during shipment. Report any damage, missing parts or malfunctions to your

distributor. Installation is normally done without opening the enclosure that’s

only required when changing the input from current to voltage.

MOUNTING DATAVIEW™

DataView™ is designed for panel installations, located within an instrument panel

or NEMA box enclosure. Follow the below steps to mount the controller.

1. To maintain the NEMA rating, select a panel with a thickness of 0.06”-

0.25” (1.5mm-6.4mm). The minimum thickness for steel panel is 0.06”

(1.5mm) or a plastic panel is 0.16” (4.1mm).

2. Prepare a standard 1/8” DIN cutout of 3.622” (92mm) W x 1.772”

(45mm) H in the panel at the desired mounting location with a minimum

of 6.0” (152mm) of clearance behind the panel for wiring.

3. Remove the two mounting brackets from the controller. To do so, back

off the mounting screws so they protrude ¼” (6.4mm) or less through

the bracket. Then, slide each bracket toward the front of the case and

remove them.

4. From the front side of the panel, insert the controller through the panel

cutout.

5. From the rear side of the panel, reinstall the two mounting brackets on

the controller and tighten the screws against the panel. Note: For a

proper seal, tighten the two mounting screws evenly against the panel

until they are snug. Be careful to not over tighten the brackets.

DataView™ LI55 Level Controller Quick Start

QS301033 Rev C15

12 OR 24 VDC SUPPLY VOLTAGE

If you purchased a 12/24 VDC model controller, it was configured for 24 VDC

supply as the factory default. Note: Do not exceed the controller supply voltage

rating. If you wish to reconfigure the controller for 12 VDC supply, follow the

below steps.

1. Remove all connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch to expose the board.

4. Configure the J9 jumper, located behind the power connector for the

desired voltage as shown below.

J9 Configuration

Note: Flowline transmitters require 24 VDC.

DataView™ LI55 Level Controller Quick Start

6QS301033 Rev C1

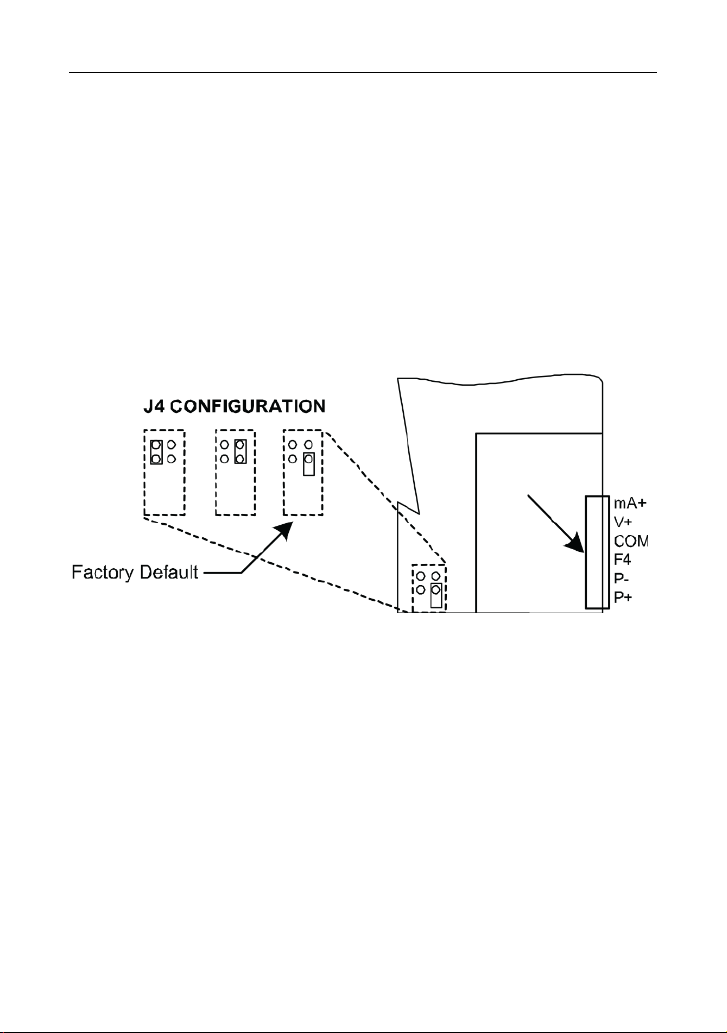

TRANSMITTER SUPPLY VOLTAGE (P+, P-)

DataView™ is factory configured to provide 24 VDC power to the sensor. If your

sensor requires 5 or 10 VDC excitation, follow the below steps to reconfigure the

J4 internal jumper accordingly.

1. Remove all connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch to expose the board.

4. Configure the J4 jumper, located behind the input signal connector for the

desired voltage as shown below.

Note: Flowline transmitters require 24 VDC.

DataView™ LI55 Level Controller Quick Start

QS301033 Rev C17

WIRING DATAVIEW™

All wiring connections are made by attaching wires onto removable screw

terminal connectors located at the rear of DataView™. Note: Copper wire with

60°C or 60/75°C insulation should be used for all line voltage connections, while

observing all safety regulations. Electrical wiring should be performed in

accordance with all applicable national, state, and local codes to prevent

damage to the controller and ensure personnel safety.

The connector label shows the function of each of the connections, such as

POWER, RELAY and SIGNAL. The RJ-45 M-LINK connection is intended for

Flowline expansion modules, cables and meters only. Any other use of the RJ-45

connection may damage DataView™ and connected equipment. The different

types of connections are explained on the following pages.

DataView™ LI55 Level Controller Quick Start

8QS301033 Rev C1

Power Connection

The power source is connected to DataView™ through the two-terminal

connector labeled POWER. DataView™ will operate regardless of the polarity

connection. The + and - symbols are only a suggested wiring convention.

Signal Connections

The sensor is connected to DataView™ through the six-terminal connector

labeled SIGNAL. The COM (common) terminal is the return for the 4-20 mA and

the ±10V input signals. Note: Most Flowline level sensors require 2 or 3-wire, 4-

20 mA signal connections.

Refer to the part number on the product label and

confirm the power requirements for your model.

●

LI55-1_ _1 operates on 95 to 265 VAC, 50-60 Hz.

●

LI55-8_ _1 operates on 12 to 24 VDC.

DataView™ LI55 Level Controller Quick Start

QS301033 Rev C19

Current Input Connection

Below are examples of typical wiring connections for current sensor inputs. There

are no switches or jumpers to set for current inputs. Note: The input is protected

against overload by a resettable fuse. The display may or may not show a fault

condition depending on the nature of the overload. The fuse limits the current

to a safe level when it detects a fault condition, and automatically resets itself

when the fault condition is removed.

INPUT SIGNAL

2-Wire

Sensor Connection

3-Wire

Sensor Connection

INPUT SIGNAL

Externally-Powered

2-Wire Sensor Connection

Self-Powered

2-Wire Sensor Connection

DataView™ LI55 Level Controller Quick Start

10 QS301033 Rev C1

Voltage Input Connection

Below are examples of typical wiring connections for voltage sensor inputs.

Note: See the Transmitter Supply Voltage section for optional jumper settings

associated with voltage inputs. The input is protected against overload by a

resettable fuse. The display may or may not show a fault condition depending

on the nature of the overload. The fuse limits the voltage to a safe level when it

detects a fault condition, and automatically resets itself when the fault

condition is removed.

INPUT SIGNAL

Relay Connection

Relay connections are made through two six-terminal connectors labeled

RELAY1-RELAY4. Each relay "C" terminal is common only to the normally

open ("NO") and normally closed ("NC") contacts of the corresponding relay.

Note: The relay "C" terminals should not be confused with the COM

(common) terminal of the INPUT SIGNAL connector.
