Flotec FP7100H-04 Manuel utilisateur

OWNER’S MANUAL

Pre-Charged Pressure and

HorizontalTanks and Fittings

NOTICE D’UTILISATION

Réservoirs horizontaux et à pression

préchargée,avec connexions

MANUAL DEL USUARIO

Tanques de presion precargada,

tanques horizontales y accesorios

P.O. Box 342, Delavan, WI 53115

Phone:

1-800-365-6832

Fax:

1-800-526-3757

E-Mail:

[email protected]

Web Site:

http://www.flotecwater.com

MODELS

FP7100-04

FP7100H-04

FP7110-04

FP7110T-04

FP7110TH-04

FP7120-04

FP7125-04*

FP7130-04*

*Models FP7125-04 and

FP7130-04 do not have the

pump mounting bracket.

Water

is Our

Business

Installation/Operation/Parts

For further operating,

installation, or maintenance

assistance:

Call 1-800-365-6832

English..................... Pages 2-7

Installation/Fonctionnement/Pièces

Pour plus de renseignements

concernant l’utilisation,

l’installation ou l’entretien,

Composer le

1 (800) 365-6832

Français ................ Pages 8-13

Instalación/Operación/Piezas

Para mayor información sobre

el funcionamiento, instalación

o mantenimiento de la bomba:

Llame al 1-800-365-6832

Español..............Paginas 14-19

Safety 2

READ AND FOLLOW

SAFETY INSTRUCTIONS!

This is the safety alert symbol. When you see

this symbol on your pump or in this manual,

look for one of the following signal words and be

alert to the potential for personal injury.

warns about hazards that will cause

serious personal injury, death or major property

damage if ignored.

warns about hazards that can cause

serious personal injury, death or major property

damage if ignored.

warns about hazards that will or can

cause minor personal injury or property damage if

ignored.

The label NOTICE indicates special instructions

which are important but not related to hazards.

Carefully read and follow all safety instructions in

this manual and on pump.

Keep safety labels in good condition.

Replace missing or damaged safety labels.

1. Read this manual carefully. Failure to follow

these Instructions could cause serious bodily

injury and/or property damage.

2. Consult installer or licensed plumber for correct

relief valve. Install system according to local

codes.

3. Always test water from well for purity before

using. Check local health department for testing

procedure.

4. Before installing or servicing tank, BE SURE

pump electric power source is disconnected.

Release all water pressure before working on

tank or system. Release air pressure before

removing cover flange.

5. Install relief valve in pump supply line to tank,

as close to tank as possible.

6. BE SURE pump electrical circuit is properly

grounded.

7. Remove bleeder orifices, air volume controls or

other air charging devices in existing system.

8. DO NOT USE tank as a surge suppressor.

Hazardous pressure. To prevent pos-

sible serious or fatal injury and/or damage to

equipment, system pressure must be less than 100

pounds per square inch (PSI) (689kPa) under any

circumstances. Failure to follow instruction can

result in tank blowup. If system discharge pressure

can exceed 100 PSI (689kPa), install a relief valve

capable of passing the full pump volume at 100

PSI (689kPa).

Do not allow pump, tank, or piping

system to freeze. Freezing can severely damage

equipment and may lead to tank explosion and

serious injury. Allowing tank to freeze voids tank

warranty.

FLOTEC warrants to the original consumer purchaser (“Purchaser”) of

its products that they are free from defects in material or workmanship.

If within twelve (12) months from the date of the original consumer

purchase any such product shall prove to be defective, it shall be

repaired or replaced at FLOTEC’s option, subject to the terms and con-

ditions set forth below. Your dated proof of purchase will be used to

determine warranty eligibility.

Exceptions to the Twelve (12) Month Warranty

Ninety (90) Day Warranty:

If within ninety (90) days from original consumer purchase any Drill

Pump or In-Line Water Filter Cartridge shall prove to be defective, it

shall be replaced, subject to the terms set forth below.

Three (3) Year Warranty:

If within three (3) years from original consumer purchase any 4”

Submersible Well Pump shall prove to be defective, it shall be

repaired or replaced at FLOTEC’s option, subject to the terms set forth

below.

Five (5) Year Warranty:

If within five (5) years from original consumer purchase any Pre-

Charge water system tank shall prove to be defective, it shall be

repaired or replaced at FLOTEC’s option, subject to the terms and

conditions set forth below.

General Terms and Conditions

Purchaser must pay all labor and shipping charges necessary to replace

product covered by this warranty. This warranty shall not apply to acts

of God, nor shall it apply to products which, in the sole judgement of

FLOTEC, have been subject to negligence, abuse, accident, misappli-

cation, tampering, alteration; nor due to improper installation, opera-

tion, maintenance or storage; nor to other than normal application, use

of service, including but not limited to, operational failures caused by

corrosion, rust or other foreign materials in the system, or operation at

pressures in excess of recommended maximums.

Requests for service under this warranty shall be made by returning the

defective product to the Retail outlet or to FLOTEC as soon as possible

after the discovery of any alleged defect. FLOTEC will subsequently

take corrective action as promptly as reasonably possible. No requests

for service under this warranty will be accepted if received more than

30 days after the term of the warranty.

This warranty sets forth FLOTEC’s sole obligation and purchaser’s

exclusive remedy for defective products.

FLOTEC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCI-

DENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF

ALL OTHER EXPRESS WARRANTIES, IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL NOT EXTEND BEYOND THE DURATION OF THE APPLICA-

BLE EXPRESS WARRANTIES PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warran-

ty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have

other rights which vary from state to state.

FLOTEC • P.O. Box 342 • Delavan, WI U.S.A. 53115

Phone: 1-800-365-6832 • Fax: 1-800-526-3757 • E-Mail: [email protected] • Web Site: http://www.flotecwater.com

ATTACH ORIGINAL RECEIPT HERE FORWARRANTY CONSIDERATION.

Flotec LimitedWarranty

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

General Information 3

GENERAL INFORMATION

Tanks listed below are pre-charged, or filled with

air at the factory, to 40 pounds per square inch

(PSI) (276kPa). When installing tank, set tank pres-

sure according to Chart 1. To do this, bleed air from

or add air to tank through valve on top of tank.

NOTICE: Always set or check tank pre-charge with

NO WATER in tank or water pressure in system. If

you have already pumped water before setting or

checking pre-charge pressure, turn pump off. Open

faucet until there is no more water pressure. Set

pre-charge in tank according to Chart 1, then close

faucet and turn pump back on.

NOTICE: Replace and tighten air valve cap after

pressure is adjusted correctly. Failure to replace air

cap may allow loss of air pressure and lead to tank

waterlogging and bladder failure.

CHART I

(The first number on the pressure switch is the

pump on setting; the second number is the pump

off setting.)

Pre-charged storage tanks can be connected togeth-

er to increase the drawdown. Drawdown is the

actual amount of usable water available from when

the tank is full to when the pump turns on.

Installing two tanks of same size will double the

drawdown supply, three tanks will triple the draw-

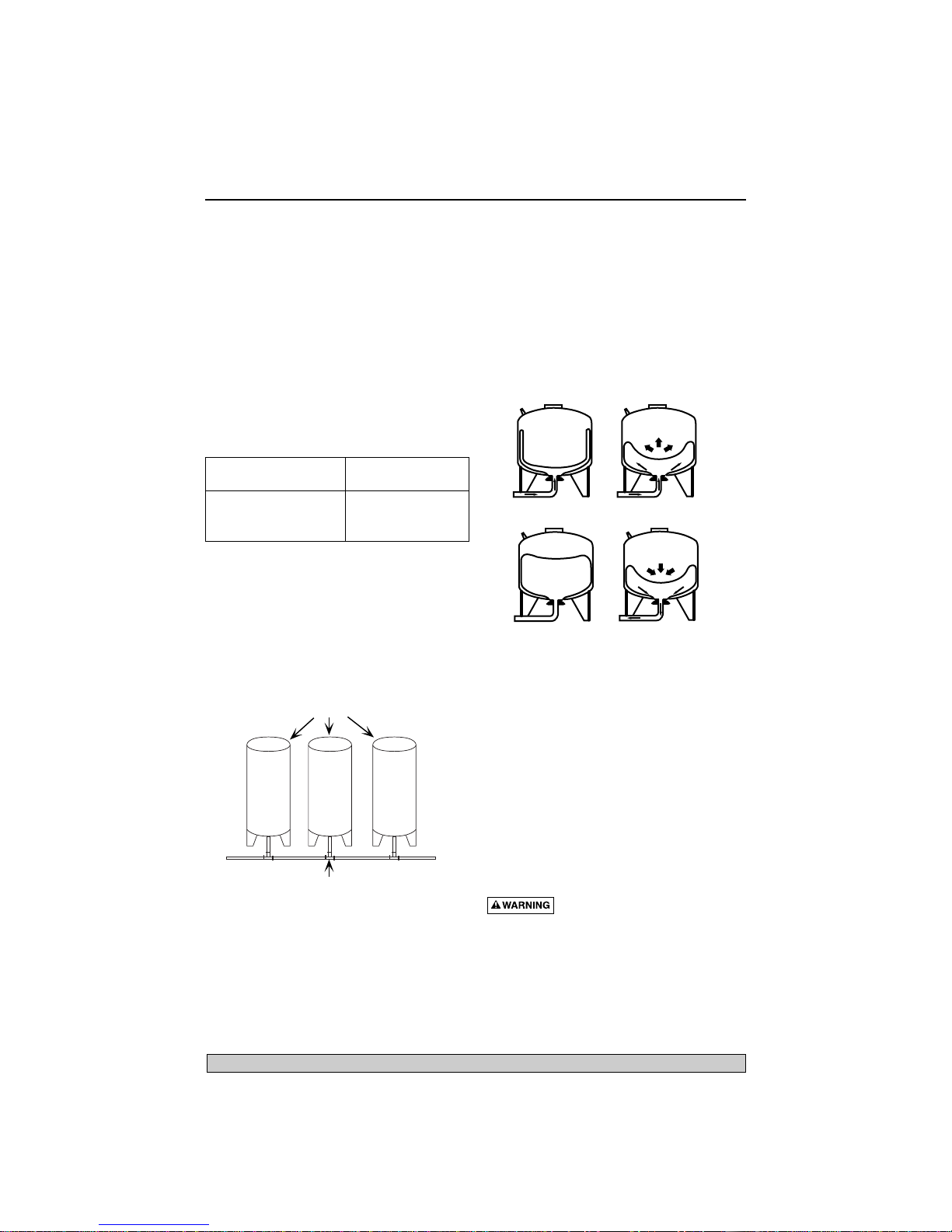

down supply, (Figure 1). Locate pressure switch as

shown. Tank and pressure switch cannot be more

than 10’ (3M) apart.

NOTICE: Tank capacity is different than drawdown.

Tank capacity is the actual physical volume of the

sheet metal that makes up the tank.

OPERATING CYCLE (FIGURE 2)

Step 1. Tank nearly empty – air expands filling area

above bladder (Figure A).

Step 2. Water enters tank – air is compressed

above bladder as it fills with water (Figure

B).

Step 3. Pump-up cycle completed – air compressed

to OFF setting of pressure switch (Figure C).

Step 4. Water drawn from tank – compressed tank

air forces water out of bladder (Figure D).

Step 5. Bladder empty – new cycle ready to begin

(Figure A).

Connect discharge pipe from pump to a tee.

Connect one side of tee to tank flange and the

other side of tee to service. Use plastic or steel pipe

as required. To prevent leaks, use Teflon tape or

Plasto-Joint Stik1on male threads of all threaded

connections to tank.

STANDARD TANK

REPLACEMENT

When replacing standard tank in a water system

with pre-charged tank, no bleeder orifices or Air

Volume Control (AVC) are required. When sizing a

pre-charged tank to replace a standard tank, the

tanks should have equivilant drawdowns. For

example, model FP7110T-04 precharged tank has a

drawdown of 5.8 gallons (22L) and is equivalent to

a 42 gallon standard tank that has a drawdown of

4.3 gallons (16.3L).

Hazardous voltage and hazardous

pressure. Disconnect all power to pump and bleed

all pressure from system before working on pump,

tank, or piping.

1Lake Chemical Co., Chicago, Illinois

When Pressure Switch Reduce Tank

Setting Is Precharge (PSI) To

20-40 PSI (138-276 kPa) 18 (124 kPa)

30-50 PSI (207-345 kPa) 28 (193 kPa)

40-60 PSI (276-414 kPa) 38 (262 kPa)

To service

piping

From

Well

Tanks

Pressure switch 909 0993

Figure 1

Figure 2

WATER

A B

WATER WATER

C D

Installation 4

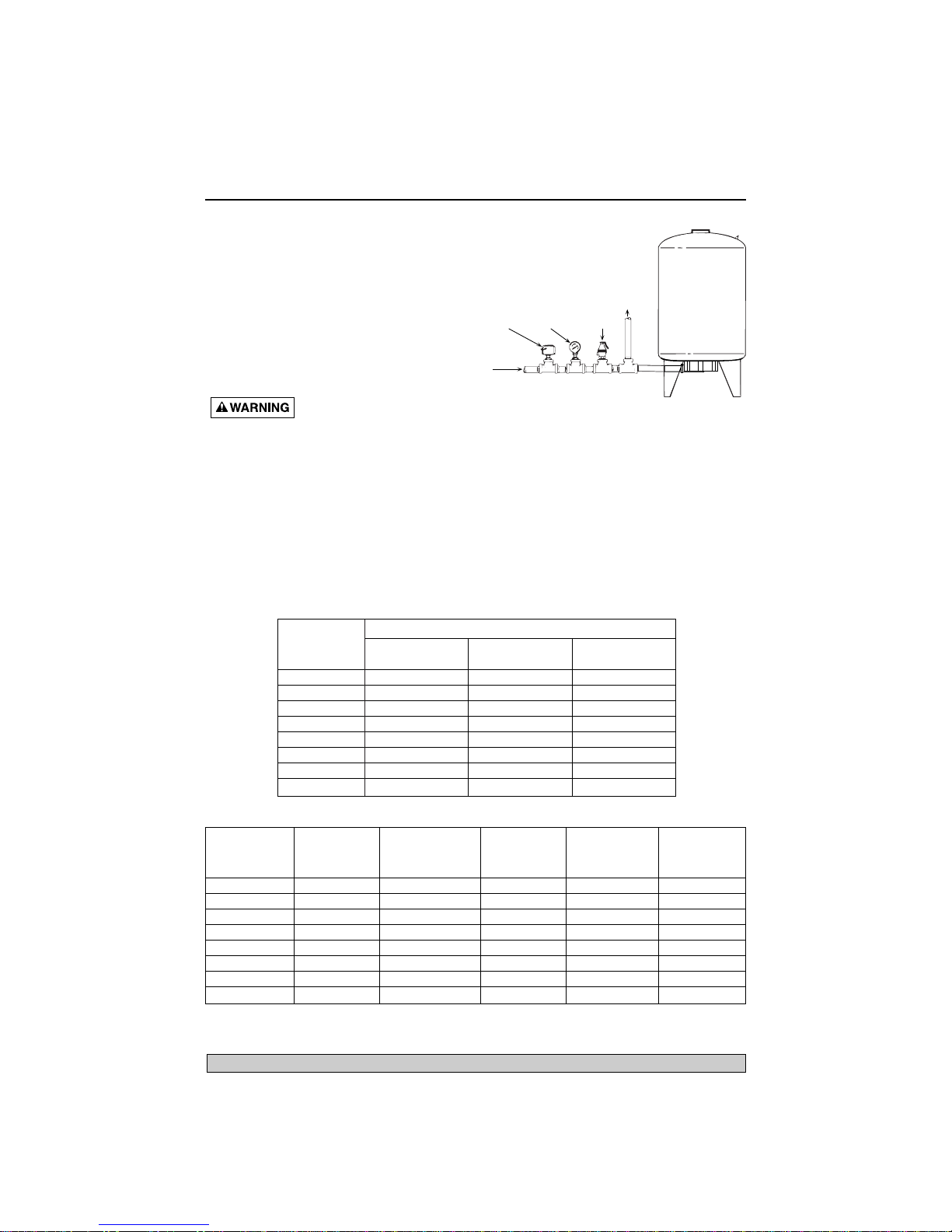

For jet pump installation, remove AVC tube from

port in pump body or jet body and plug port (see

Figure 3). New pumps come with plug installed.

NOTICE: When working on submersible pumps in

wells be sure safety rope is solidly connected to

pump and to secure anchor at the well head at all

times. Do not drop the pump down the well!

NOTICE: For submersible pump installations, there

may be bleeder orifices in the vertical discharge

pipe. When the bleeder orifices are functioning

correctly, they add air to the water in the system.

They must be removed and the tees plugged when

a pre-charged tank is installed in the system. To do

this, raise the pump and discharge piping enough

to bring the bleeder orifices clear of the well.

Remove the bleeder orifices from tees and replace

with plugs (see Figure 4). Bleeder orifices may be

any of several sizes. Have a pair each of 1/2”, 3/4”,

and 1” plugs available. Replace pump and recon-

nect the discharge pipe.

NOTICE: To be sure joint is not cross-threaded and

threads are clean, make connections by hand (with-

out sealer) first. When threads are clean, remove

pipe, add Teflon tape or Plasto-Joint Stik, and

remake connection. Tighten by hand first; finish

with pipe wrench.

In areas where temperature is high for long periods

of time, tank pre-charge pressure may increase.

This may reduce tank drawdown (amount of water

available per cycle). If this occurs, adjust pre-

charge pressure according to Chart 1, page 3.

Flush all air out of piping system and water reser-

voir portion of pre-charged tank. Required on: new

installations, pumps requiring repriming, and

pumps disassembled for service. Do as follows:

Step 1. Open faucets furthest from tank and run

pump.

Step 2. Run pump until sputtering stops and steady

stream of water flows.

Step 3. Open and close faucets repeatedly until all

air has been removed.

Step 4. If stream does not become steady, air may

be leaking into system; check for leaks in

piping on suction side of pump.

NOTICE: To prevent waterlogging, check tank air

charge annually.

TO CHECK TANK AIR CHARGE

If drawdown decreases significantly, check as fol-

lows:

Step 1. To check air charge in tank, shut off electric

power to pump, open faucet near tank, and

drain completely.

Step 2. At air valve, check tank air pressure with

tire gauge. See Chart 1, page 3, for correct

pressure setting. If needed, adjust tank pres-

sure up or down.

Step 3. Use soap or liquid detergent to check for

air leaks around air valve. Continuous bub-

bling indicates leak. If necessary, release air

pressure and install new core in air valve,

(same as used for automobile tubeless tires.)

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

148 0893

Figure 3: Plug AVC Port when installing

pre-charged tank on existing pumps.New

pumps come with plug Installed.

Pitless

adaptor

Check valve

Bleeder orifice

& tee

Pipe coupling

Tape cable

to pipe

Pump

Ventilated

well cap

Submersible

cable

2 ft.

(.6m)

,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,

158 0893

Figure 4

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

Installation 5

TESTING FOR BLADDER

LEAKAGE

Step 1. Disconnect power to pump.

Step 2. Drain water from tank bladder by opening

faucet closest to tank.

Step 3. Remove valve cap and release all pressure

by depressing valve core. When air stops

coming from valve, remove valve core to

release remaining pressure.

Step 4. Disconnect piping from elbow on tank

cover flange.

Step 5. Carefully turn tank upside down or lay on

its side.

Retained water in tank may

cause sudden weight shift when lowering. Support

tank so it cannot fall when being lowered or

inverted.

Step 6. If bladder leaks, water will run out of valve.

If so, replace bladder.

Step 7. If replacing bladder, be sure air and water

pressures are relieved before removing

cover flange. When reassembling cover

flange, do not tighten nuts or mounting

studs more than 85 in-lbs. (9.6 Nm).

NOTICE: When using metal pipe with plastic fit-

tings use only Teflon tape or Plasto-Joint Stik1on

male threads.

NOTICE: Most standard tanks have separate inlet

and outlet ports. Pre-charge tanks have one port

serving both functions. When replacing standard

tank with a pre-charge tank, run pipe from pump

into a tee as shown. 2nd leg of tee goes to tank

elbow; 3rd leg goes to existing service.

To service

Pressure

Relief Valve

Pressure

Gauge

Pressure

Switch

From Well

160 0893

Figure 5: Typical installation with vertical

pre-charge tank and submersible well

pumps

Maximum Equivalent Tank Tank Tank

Catalog Capacity to Standard Diameter Height Discharge

Number US Gals (L) Tank US Gals (L) (mm) (mm) Tapping

FP7100-04 6 (23) 15 (57) 12" (305) *16-1/2" (419) 3/4"

FP7100H-04 6 (23) 15 (57) 12" (305) *16-1/2" (419) 3/4"

FP7110T-04 19 (72) 42 (159) 16" (406) 30-1/8" (765) 1"

FP7110TH-04 19 (72) 42 (159) 16" (406) *24-5/8" (625) 1"

FP7110-04 19 (72) 42 (159) 20" (508) 22-3/4" (578) 1"

FP7120-04 35 (132) 82 (310) 20" (508) 36-1/4" (921) 1"

FP7125-04 50 (189) 120 (454) 24" (610) 34-3/4" (883) 1-1/4"

FP7130-04 85 (322) 220 (833) 24" (610) 54" (1372) 1-1/4"

Drawdown - Gals (L)

Catalog 20-40 PSI 30-50 PSI 40-60 PSI

Number (138-276kPa) (207-345kPa) (276-414kPa)

FP7100-04 2.2 (8.3) 1.8 (6.8) 1.6 (6.1)

FP7100H-04 2.2 (8.3) 1.8 (6.8) 1.6 (6.1)

FP7110T-04 6.9 (26.1) 5.8 (22) 5.0 (18.9)

FP7110TH-04 6.9 (26.1) 5.8 (22) 5.0 (18.9)

FP7110-04 6.9 (26.1) 5.8 (22) 5.0 (18.9)

FP7120-04 12.7 (48.1) 10.7 (40.5) 9.3 (35.2)

FP7125-04 18.3 (69.3) 15.5 (58.7) 13.4 (50.7)

FP7130-04 30.0 (113.6) 26.0 (98.4) 22.0 (83.3)

* Length overall; this model is a horizontal tank.

Product Information – Pre-Charged Tanks

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

Repair Parts 6

2880 0797 RTL

Model

FP7100-04

Model FP7100H-04

Key Part No.

No. Description Used FP7100H-04 FP7100-04

1Bladder - Vinyl 1 U20-7 U20-7

2 Cover Flange 1 U31-442P U31-442P

3† Flanged Nut - 5/16 - 18 Hex. 6 U36-202BT U36-202BT

4 Air Valve with Cap 1 U212-160 U212-160

REPAIR PARTS LIST

† Standard hardware items, may be purchased locally.

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

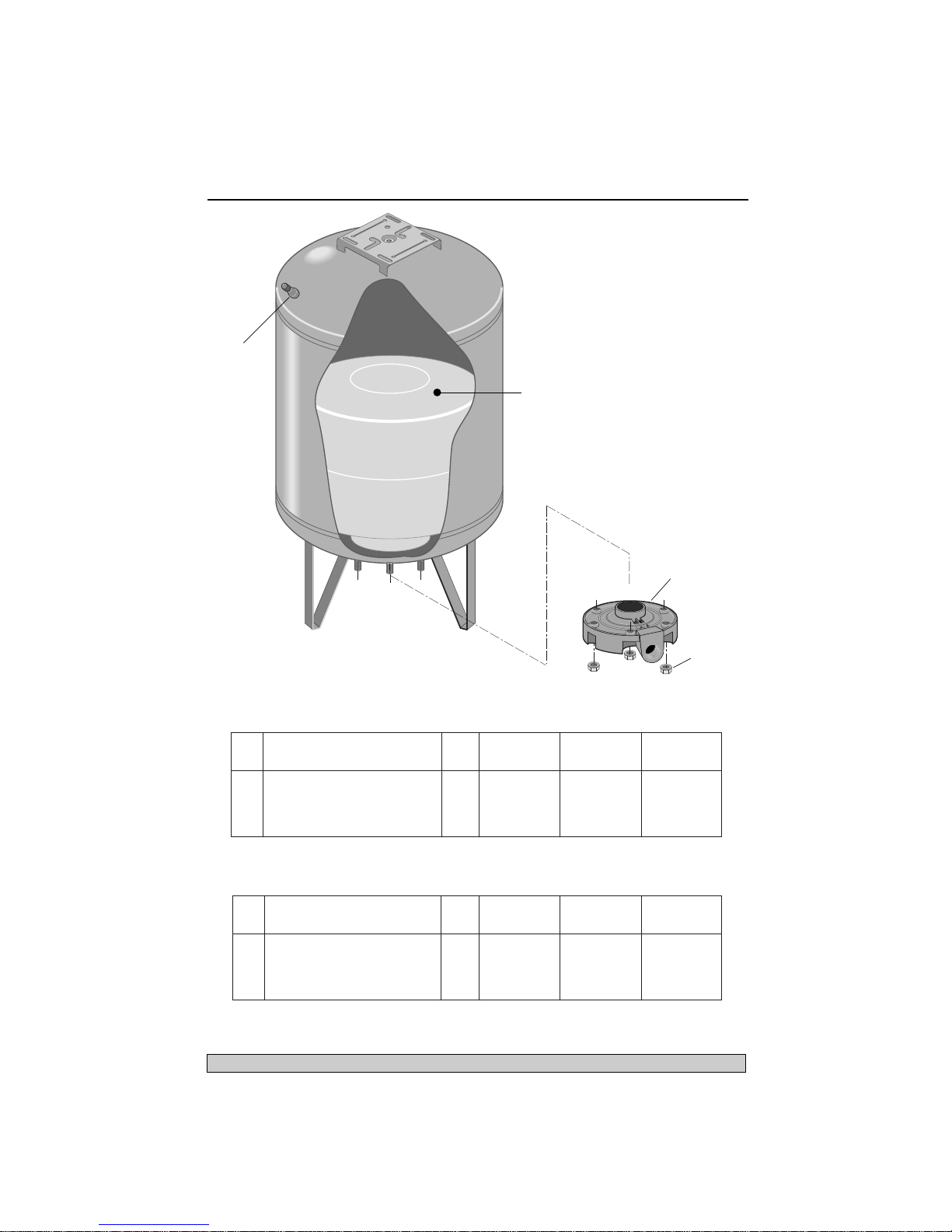

Repair Parts 7

2399 0496SRS

REPAIR PARTS LIST

Key Part No.

No. Description Used FP7110-04 FP7110T-04 FP7110TH-04

1 Bladder - Vinyl 1 U20-8 U20-13 U20-13

2 Cover Flange and Elbow 1 U31-446P U31-446P U31-446P

3 Flanged Nut - 5/16 - 18 Hex 6 U36-202BT U36-202BT U36-202BT

4 Air Valve with Cap 1 U212-160 U212-160 U212-160

Key Part No.

No. Description Used FP7120-04 FP7125-04 FP7130-04

1 Bladder - Vinyl 1 U20-9 U20-14 U20-14

2 Cover Flange 1 U31-446P U31-447P U31-447P

3 Flanged Nut - 5/16 - 18 Hex 6 U36-202BT U36-202BT U36-202BT

4 Air Valve with Cap 1 U212-160 U212-160 U212-160

Models

FP7110-04

FP7110T-04

FP7110TH-04

FP7120-04

FP7125-04

FP7130-04

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Flotec Chaudière

Flotec

Flotec FP7105-08 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
