NxtG-V Install Manual
1.Product Overview
1.1. Check Parts List
Before starting, check whether all the following items have been included with
your NxtG-V.If anything is missing, please contact your supplier.

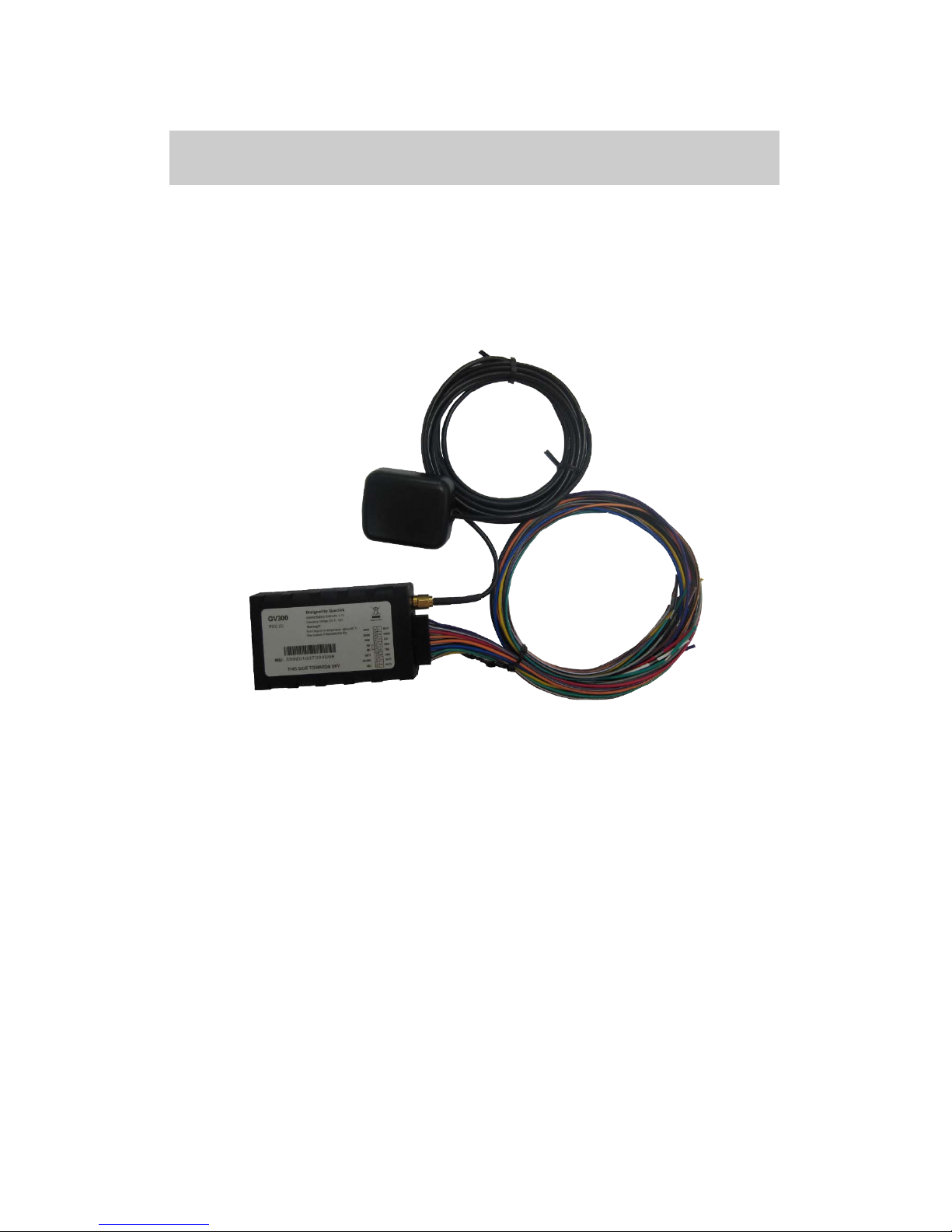

Figure 1. Appearance of NxtG-V
1.2. Parts List
Parts List
Name Picture
User Cable
GPS Antenna
1.3. Interface Definition
The NxtG-V has a 16 PIN interface connector which contains the connections for power,
I/O, RS232, microphone, speaker, etc. The sequence and definition of the 16PIN connector
are shown in the following figure:
The 16PIN Connector on the NxtG-V
Descriptionof16PIN Connections
Index Description Comment
1 N/C N/C
2 AGND Analog ground
3 IGN Ignition input, positive trigger
4 RXD UART RXD, RS232
5 TXD UART TXD, RS232
6 GND Power and digital ground
7 OUT3 Open drain, 150 mA max
8 OUT2 Open drain, 150 mA max
9 N/C N/C
10 N/C
11 PWR External DC power input, 8-32V
12 IN2 Digital input, negative trigger
13 IN1 Digital input, negative trigger
14 OUT1 Open drain, 150 mA max ,with latch circuit
15 AD1/IN3 Multifunction input, analog or digital input
0-16V
16 AD2 Analog input 0.3-16V
1.4. NxtG-V User Cable Colour
User Cable Color Definition
Definition Color PIN
No Cable PIN
No Color Definition
OUT2 Yellow 8 16 Brown/White AD2
OUT3 Brown 7 15 Green A D 1/ I N 3
GND Black 6 14 Blue OUT1
TXD White/Black 5 13 Orange IN1
RXD Green or Pink 4 12 Orange/Black IN2
IGN White 3 11 Red PWR
AGND Gray/Black 2 10 Purple/White N/C
N/C Gray 1 9 Purple N/C
2. Get Started
2.1. Open the Case
Open the Case
Insert the triangular-pry-opener into the gapof the case asshown above,and push the
opener upuntil the case is unsnapped.
2.2. Close the Case
Close the Case
Place the cover onthe bottom inthe position asshown inthe figure above.Slide the cover
against the direction ofthearrow until it snaps.
2.3. Install a SIM Card
Open the case and ensure the unit is not powered (unplug the 16Pin cable and switch the
internal battery to the OFF position). Slide the holder right to open the SIM card holder.
Insert the SIM card into the holder as shown below with the gold-colored contact area facing
down. Take care to align the cut mark. Close the SIM card holder. Close the case.
SIM Card Installation
2.4. Install the Internal Backup Battery
Backup Battery Installation
NxtG-V has an internal backup Li-ion battery.
2.5. Switch on the Backup Battery
To use the NxtG-V backup battery, the switch must be in the ONposition. The switch on
the case and the ON/OFF position are shown below.
Switch and ON/OFF Position
Note:
1. The switch must bein the “OFF” position when the NxtG-V isshipped on an aircraft.
2. When the switch isin the “OFF” position, the battery cannot becharged or discharged.
2.6. Install the External GPSAntenna
There isa SMA GPS antenna connector on NxtG-V. The NxtG-V will automatically detect
and use an external antenna when connected.
GPS Antenna ofNxtG-V
2.6.1. GPS Antenna Specification
GPS Antenna Specification
GPS antenna Frequency: 1575.42 MHz
Bandwidth >5 MHz
Beam width >120 deg
Supply voltage 2.7V-3.3V
Polarization RHCP
Gain Passive: 0 dBi min
Active: 15 dB
Impedance 50Ω
VSWR <2
Noise figure <3
2.7. Power Connection
PWR (PIN11)/GND (PIN6) is the power input pin. The input voltage range for this device is
from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V
systems without the need for external transformers.
Typical Power Connection
2.8. Ignition Detection
Electrical Characteristics ofIgnition Detection
Logical status Electrical characteristics
Active 5.0V to 32V
Inactive 0V to 3V or open
Typical Ignition Detection
IGN (Pin3) is used for ignition detection. Itisstrongly recommended toconnect this pin to
ignition key “RUN” position as shown above.
An alternative toconnecting to the ignition switch isto find a non-permanent power source
that is only available when the vehicle isrunning,for example, the power source for the FM
radio.
IGN signal can beconfigured tostart transmitting information tothe backend server when
ignition ison,and enter the power saving mode when ignition is off.
2.9. Digital Inputs
There are three general purpose digital inputs onNxtG-V.They are all negative triggers.
Electrical Characteristics of the Digital Inputs
Logical status Electrical characteristics
Active 0V to 0.6V
Inactive Open
The following diagram shows the recommended connection of a digital input.
