FiveStar TTN537-7BSW Manuel utilisateur

INSTALLATION INSTRUCTIONS

PROFESSIONAL RANGE MODELS

48” DUAL FUEL,CONVECTION,SELF-CLEAN WITH SEALED BURNERS**

48” NATURAL GAS MODELS

*TN537-7BW

*TN537-7W

**THESE MODELS ARE NOT FIELD CONVERITBLE FOR LP/PROPANE GAS.THEY MUST BE

ORDERED FROM THE FACTORY SET FOR NATURAL OR LP/PROPANE GAS.**

48” LP/PROPANE GAS MODELS

*PN537-7BW

*PN537-7W

**THESE MODELS ARE NOT FIELD CONVERTIBLE FOR NATURAL GAS.THEY MUST BE

ORDERED FROM THE FACTORY SET FOR NATURAL OR LP/PROPANE GAS.**

IF YOU HAVE QUESTIONS,CALL 800-251-7224, 8AM TO 5PM EASTERN TIME,OR VISIT OUR

WEBSITE,WWW.FIVESTARRANGE.COM.

Installation Instructions

BEFORE YOU BEGIN CAUTION:

Read these instructions completely and

carefully.

THESE RANGES SHOULD BE INSTALLED IN

CONJUNCTION WITH A SUITABLE

OVERHEAD

VENT HOOD. Due to the high heat capacity of this unit,

• IMPORTANT -Save these instructions for local particular attention should be paid to the hood and duct

inspector's use. work installation to assure it meets local building codes.

• IMPORTANT - Observe all governing codes and Standard countertop installations:

ordinances.

A 1200 CFM hood is recommended for 48" & 60" ranges.

A 600 CFM hood is recommended for 30" & 36" ranges.

• Note to Installer - Be sure to leave these instructions

with the Consumer. Hoods should be 24" min. deep and at least the same width

as the cooktop.

• Note to Consumer - Keep these instructions for future

reference. Check local building codes for the proper method of gas

range installation. Local codes vary. Installation, electrical

• FiveStar recommends this product be installed by a connections and grounding must comply with applicable

licensed professional. codes. In the absence of local codes, the gas range should

be installed in accordance with the National Fuel Gas Code

• Product failure due to improper installation is not ANSI 223.1, latest edition and National Electrical Code

covered under the Warranty. ANSI/NFPA 70, latest edition

WARNING: CAUTION:

This appliance must be properly grounded. These ranges weigh up to 510 pounds. Some

disassembly will reduce the weight considerably. Due to

In the Commonwealth of Massachusetts: the weight and size of the range and to reduce the risk of

• This product must be installed by a licensed plumber personal injury or damage to the product and/or damage

or gas fitter. to the floor, TWO PEOPLE ARE REQUIRED FOR PROPER

INSTALLATION.

• When using ball type gas shut-off valves, they shall

be T handle type.

• A flexible gas connector, when used, must not

exceed 3 feet.

INSTALLATION INSTRUCTIONS

Please read these instructions

before attempting to install this

range

Inspection and Unpacking

Check the range carton for visible

damage. If there is damage or even

creases in the carton, contact the

carrier, request an inspection and file

the appropriate freight claim. Do not

refuse shipment. Responsibility for

shipping damage is with the carrier

and the dealer or end user. Cut the

shipping straps, then carefully lift the

carton up from the range. This will

help eliminate possible damage to the

backguard that is packed in the top of

the range carton.

Remove, unwrap and temporarily lay

aside any parts that are not attached

to the range. Make sure no parts are

left in the carton for accidental

disposal. Carefully inspect the range

for damage.

STEP 1

REMOVE PACKAGING

Before moving the range indoors:

Remove outer carton and packing material from the

shipping base. The range is now ready for removal

from the wooden base.

STEP 2

Due to the weight of these ranges, use a dolly with

soft wheels to move this range.

Lift the range onto the dolly and move indoors.

The range should be placed onto sliders to

prevent damage to the floor.

STEP 3

To simplify handling and to reduce the weight of

the range:

Remove the grates and the drawers below the

Knobs (on grill and griddle models).

Remove grill or griddle.

Remove the broiler pans, racks and literature

Package from inside oven(s).

STEP 5

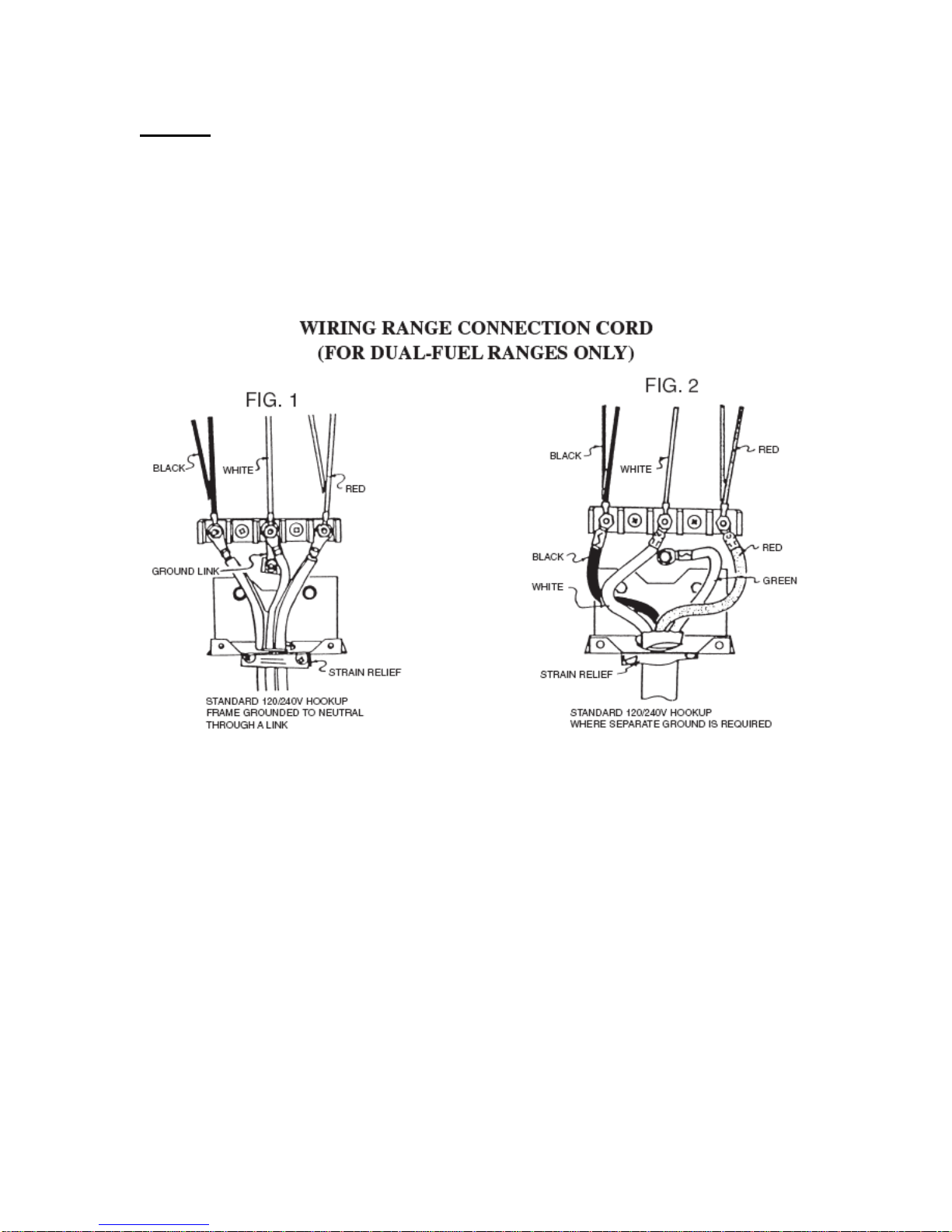

CONNECTING THE RANGE TO ELECTRIC

WARNING:

THIS APPLIANCE MUST BE CONNECTED AS SHOWN IN FIGURE 1 OR 2. IF

THE CORD IS REPLACED IT MUST BE RATED AT 250 VOLTS, 40 AMPERES

AND CERTIFIED FOR USE ON HOUSEHOLD RANGES.

STEP 7

INSTALLING THE BACKGUARD –SEALED BURNER MODELS

NOTE:PLEASE READ ALL INSTRUCTIONS BEFORE STARTING INSTALLATION.

7-1

Remove the burner grates, griddle/grill and housing.

7-2

From the front of the range, remove the Phillip screws in the rear of each burner pan (black pan

where the top burners are located).

7-3

From the rear of the range, remove two screws from the rear of the side panels, the upper most

screw on each side. You will need a 5/16” nut-driver or 5/16” socket to remove these screws. (Tools

with a magnetized tip will be helpful in replacing the backguard screws.)

7-4

From the rear of the range, locate the upper wire cover with tab slots. Remove two 5/16” mounting

screws. This cover will be reinstalled once the backguard is installed.

7-5

Screws are installed in the backguard, at the Factory for assembly to the backguard support. It is

important that you locate and remove these four screws from the backguard before you attempt to

install the backguard to the range backguard support.

7-6

Remove the vinyl protective covering from the front of the backguard.

7-7

The front of the backguard should fit between the back burner pans and the rear support. If the

burner pan and rear support have a tight tolerance, place a thin bladed screw driver at either end,

between the burner pan and rear support, to start placement of the backguard. Slide the backguard

over the exhaust vent(s). Align the slots in the front of the backguard with the rear support bar

locator studs.

7-8

With the backguard in position, secure the backguard to the rear backguard support using the four

5/16” screws removed in step 7-4, re-install the screws in the edge of the side panels and replace

the screws in the back of each burner pan. Re-install griddle/grill housing. Do not re-install the

grates at this point.

7-9

Reinstall the upper wire cover that was removed in Step 7-4. Place the cover into position with

the lower backguard panel fitting into the tab slots. Reinstall the two 5/16” mounting cover screws.

DIAGRAM FOR STEP 7

STEP 8

LEVEL THE RANGE

1. Remove shipping tape from the leveling

legs.

2. Carefully slide the range into position.

Be careful not to damage the floor or

entangle power cord and gas flexible

tubing.

3. To adjust leveling legs, turn counter-

clockwise to raise the range; clockwise

to lower. “Channel-lock” type pliers are

recommended. Avoid using a pipe wrench

which can scar the legs.

IMPORTANT: The range should always be

installed at countertop height or higher. DO

NOT INSTALL THE RANGE LOWER THAN

ADJACENT COUNTERTOP HEIGHT, DUE

TO RISK OF A FIRE HAZARD

STEP 11

OVEN OPERATION

GAS OVEN

•Turn oven thermostat knob counter clockwise to 350°.

•The oven burner should light within 60 seconds.

ELECTRIC OVEN

•Turn oven thermostat knob counter clockwise to 350°

in bake position. It will take a couple of minutes before

a change in color will occur to the lower element.

•Turn oven thermostat knob to broil position. It will take

a couple of minutes before a change in color will occur

to the upper element.

GRIDDLE OPERATION

•Turn griddle thermostat knob counter clockwise to 350°.

•The griddle burner should light within 60 seconds.

STEP 12

GAS & ELECTRIC SUPPLY

•Turn gas supply “on”.

•Turn electric supply “on”.
