Using your gas cooktop

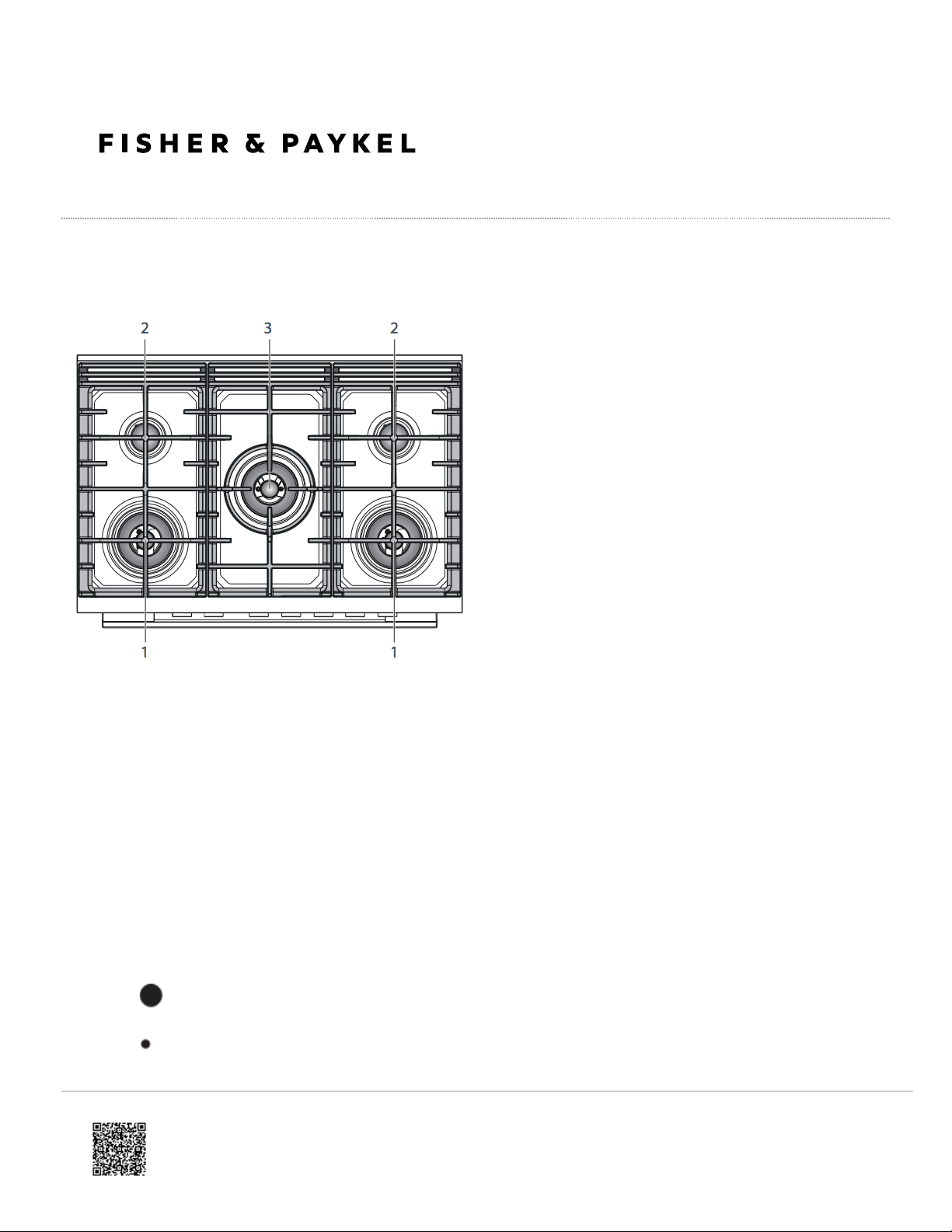

Fig 27 Cooktop layout
1. Triple-ring wok burner
2. Semi-rapid burner
3. Dual burner
Gas burners
The dial controls the flow of gas through the safety valve.
Semi-rapid and triple-ring wok burners
•o= closed valve (OFF)
• = maximum flow of semi-rapid and triple-ring burner burners
• = minimum flow of semi-rapid and triple-ring burner burners
You can choose to cook at any heat between
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
1
and
, but never between
and o(OFF).
Dual burner
•o= closed valve (OFF)
• = maximum flow of inner crown only (turn dial clockwise)
• = minimum flow of inner crown only (turn dial clockwise)
• = minimum flow of inner & crowns (turn dial anticlockwise)
You can choose to cook at any heat between
and
or between
and
, but never between
and o(OFF) or between
and o(OFF).
Before using your cooktop
Before using your new cooktop, please:
• Read this user guide, taking special note of the ‘Safety and warnings’ section.
• Make sure all burner control dials are turned off.
• Turn the power to the cooker on at the wall.
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
2
Using the gas burners
1. Choose the control dial for the burner you want to use.
2. Semi-rapid and triple-ring burners: press the dial in gently and turn it anticlockwise to the
position. The ignitors on all the burners will spark.
Dual burner: press the dial in gently and turn it anticlockwise to the
position (to ignite the inner and outer crowns) or press the dial it gently and turn it clockwise to the
position (to ignite the inner crown only). The ignitors on all the burners will spark.
Hold in the dial for approximately 10 seconds after the burner has lit. Releasing the dial too soon will
extinguish the flame
3. Adjust the flame anywhere between
and
or
and
or
and
positions. Do not adjust the flame between
or
or
and o(OFF).
If the burner does not light within 15 seconds, turn the control dial off and wait at least
one minute before trying again.
4. To turn the burner off, turn the dial clockwise (semi-rapid and triple-ring burners or dual burner when using
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
3
both crowns) or anticlockwise (dual burner when using the inner crown only) to o(OFF) until you hear the
safety click.
5. After use, always turn the dials to the o(OFF) position.
Flame failure safety feature
The flame failure probe cuts off the gas supply to the burner if the flame is blown out. When lighting the burner on
flame failure models, hold down the dial for approximately 10 seconds after the burner has lit. Releasing the dial
too soon will extinguish the flame. If the flames are accidentally extinguished, turn off the burner and do not try to
light it again for at least one minute (to allow the gas to disperse).
If a burner does not light
Check that:
• The cooker is plugged in and the electricity is switched on.
• The gas is turned on.
• The gas bottle is not empty (if you are using bottled gas).
• You have held down the dial for at least 10 seconds
• The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them with a
toothbrush and methylated spirits, as shown in Fig.28.

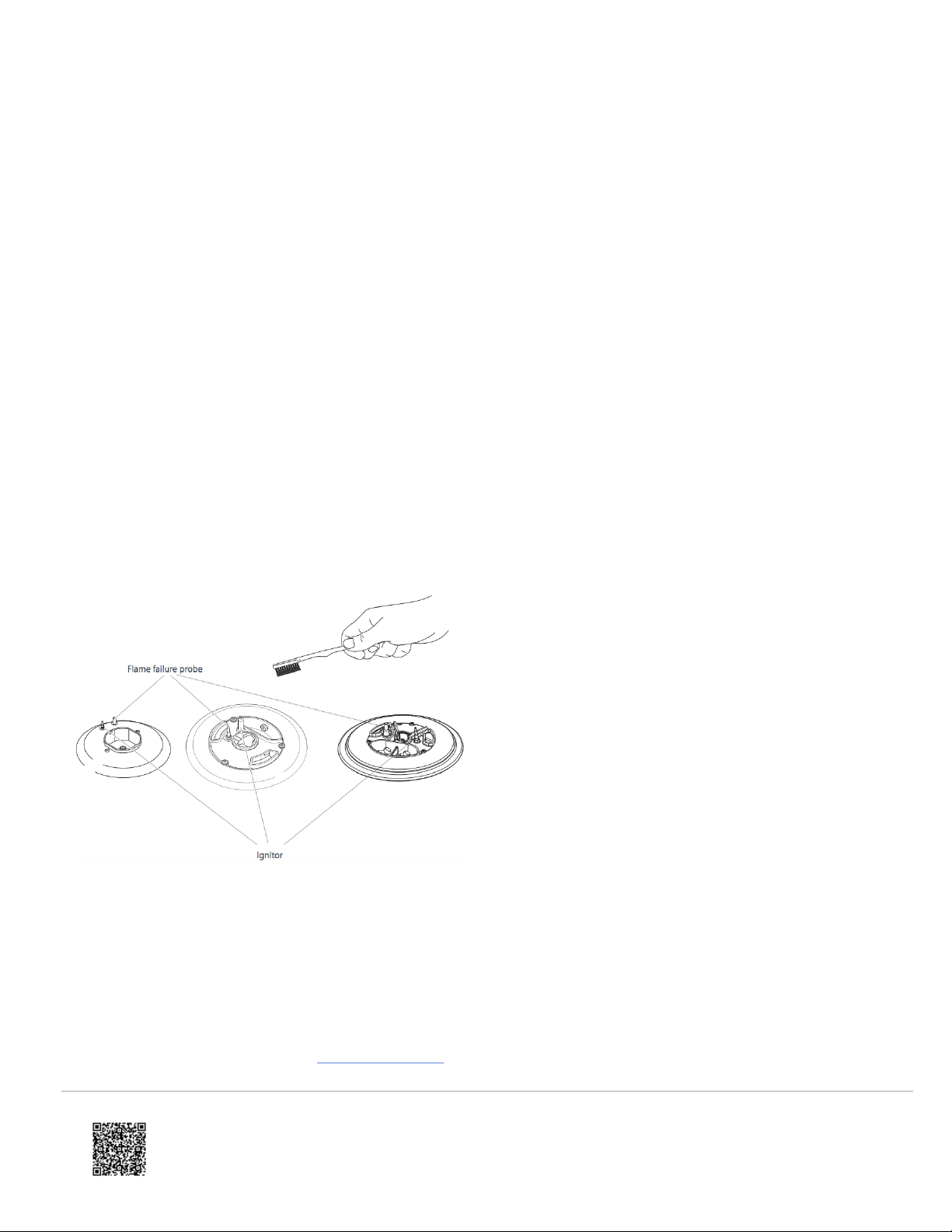

Fig. 28 Cleaning the probe and ignitor
If the flame is irregular
If the flame is yellow or irregular, check that the burner parts, including the burner cap, are:
• clean and dry.
• positioned correctly. See ‘Care and cleaning’.
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
4
• See also ‘Cooktop troubleshooting’.
Matching cookware to burner
Use flat-bottomed pans, and make sure they match the size of the burner, as shown in the following table. A
small pot on a large burner is not efficient.
Diameters of pans which may be used on the cooktop
Minimum Burner Maximum Burner
Semi-rapid 10 cm 24 cm
Triple-ring wok
26 cm 28 cm
Maximum diameter for woks 36 cm
Dual (inner crown only) 12 cm 14 cm
Dual (inner and outer crowns)
26 cm 28 cm
Maximum diameter for woks 36 cm

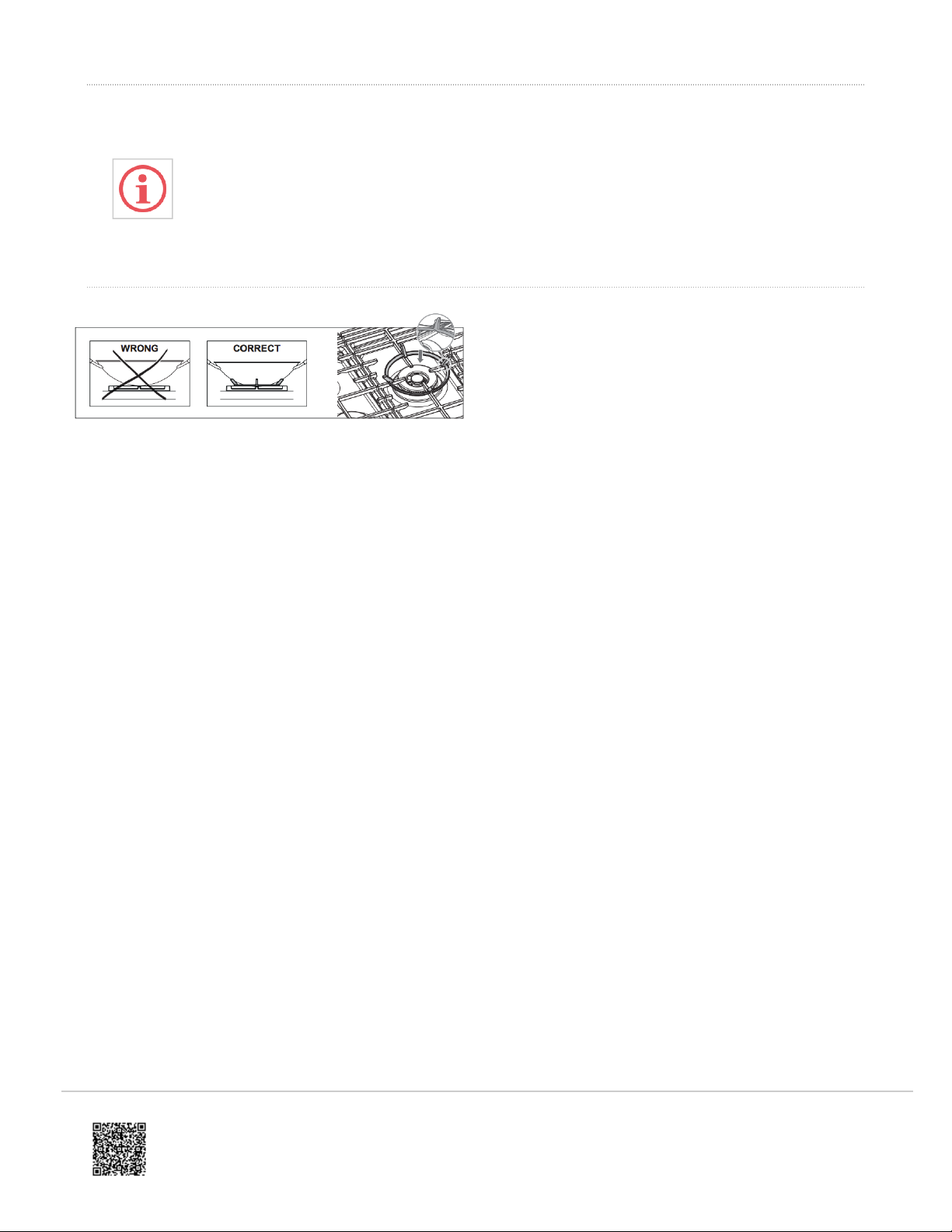

Fig. 29 Correct and incorrect matching of cookware
and burner size
Fig. 30 Efficient and inefficient saucepan bottoms
Wok stand
The wok stand fits over the dual or triple ring burner pan support.
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
5
• Using a wok without the stand may cause the wok to tip or the triple ring or dual burner to
operate incorrectly.
• Do not use the stand for ordinary, flat-bottomed saucepans.
• The wok stand MUST BE PLACED ONLY over the pan support for the triple ring or dual burner.
• The cooktop becomes very hot during operation. Keep children well out of reach.
Fig. 31 Correct placement of wok stand
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX3/User_Guide_OR90SDBGFX…
Updated: Sat, 18 Feb 2023 23:02:06 GMT
Powered by
6
