Fisher & Paykel OR30SCG4R1 Manuel utilisateur

Gas Conversion

Conversion to LP/Propane Gas

• This range can be used with NATURAL or LP/PROPANE gas. It is shipped from the factory adjusted for use with

NATURAL gas.

• Any conversion required must be performed by your dealer, a qualified licensed technician or gas service

company. Provide the service person with this manual before any work is started on the range. (Gas

conversions are the responsibility of the dealer or end user.)

• The range is supplied with a set of injectors required for converting the range burners.

• Refer to the following table to select the appropriate size injector. The nozzle diameters (hundredths of a

millimetre) are marked on the body of each injector.

• After converting the range repeat manifold pressure testing.

• If the range has been disconnected and re-connected to the gas supply line repeat leak testing.

• After conversion to LP/PROPANE gas affix the supplied conversion label near the data plate on

the product, as well as at the beginning of this manual

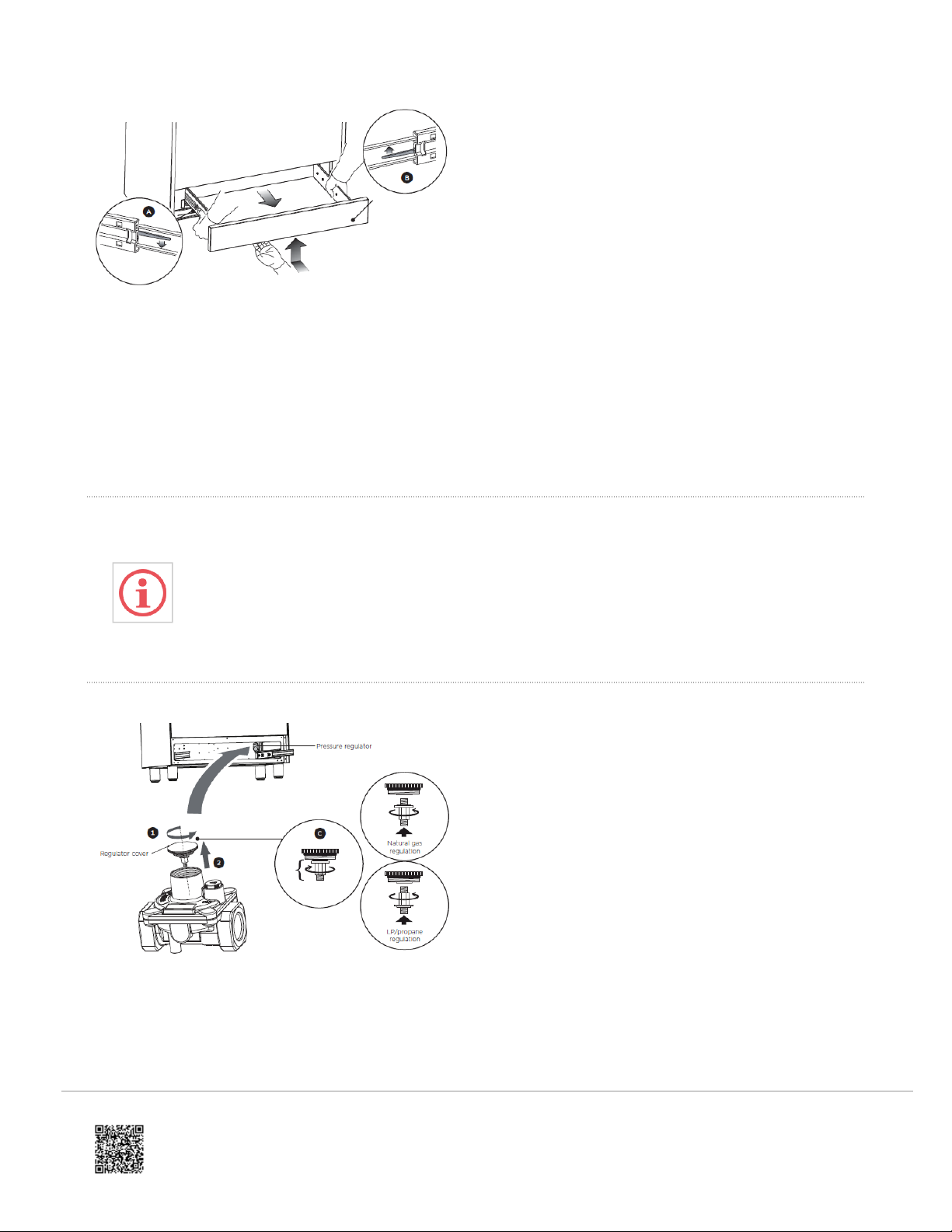

Setting the Pressure Regulator

The pressure regulator is accessible by removing the storage/warmer drawer; the pressure regulator is positioned on the

rear right side of the range C.

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

To remove the Storage/Warming Drawer

1. Open the storage/warming drawer completely.

2. Move down the lever of left guide Aand up the lever of right guide B.

3. Remove the drawer holding the levers in the same position.

• Do not remove storage/warming drawer while hot.

• Do not remove storage/warming drawer during operation.

• Be sure storage/warming drawer is empty before removing.

• Always position your hand below the front panel to open/close the drawer.

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

To set the Pressure Regulator

1. Unscrew the regulator cover.

2. Unscrew the Ccomponent, reverse and screw it according to the LP/PROPANE (or NATURAL GAS)

regulation.

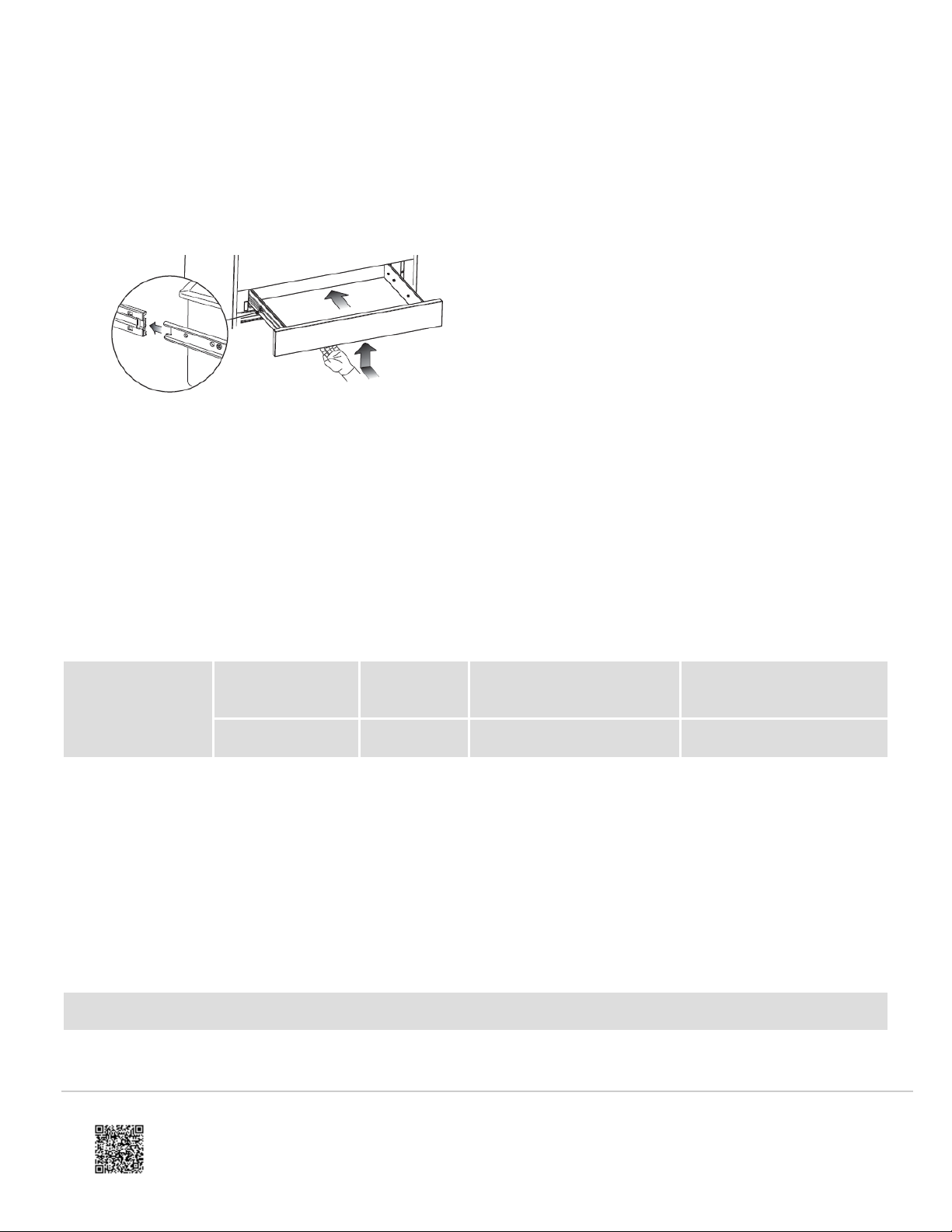

To Replace the Storage/Warming Drawer

1. Insert the storage/warming drawer guides into the range guides.

2. Gently close the drawer completely; the safety catches will automatically hook into place.

Injectors Table

Burners

Nominal Power Reduced

Power

LP/Propane 11”

(279.4mm) W.C.P

Natural Gas 4”

(101.6mm) W.C.P.

BTU/HR BTU/HR Ø Injector [1/100 MM] Ø Injector [1/100 MM]

Semirapid (SR)

7600 (LP/

Propane Gas) 1800 78 -

8000 (Natural

Gas) 1800 - 136

Dual

(D)

Inner

crown 2800111001473803

Full

burner 1800026500279 (x2)4135 (x2)4

OR30 Gas Models Only

Oven burner 14000 2400 109 190

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

Broil burner 11000 - 100 170

1Power calculated only with inner crown operating

2Power calculated with inner and outer crown operating

3Inner crown injector

4Outer crown injector

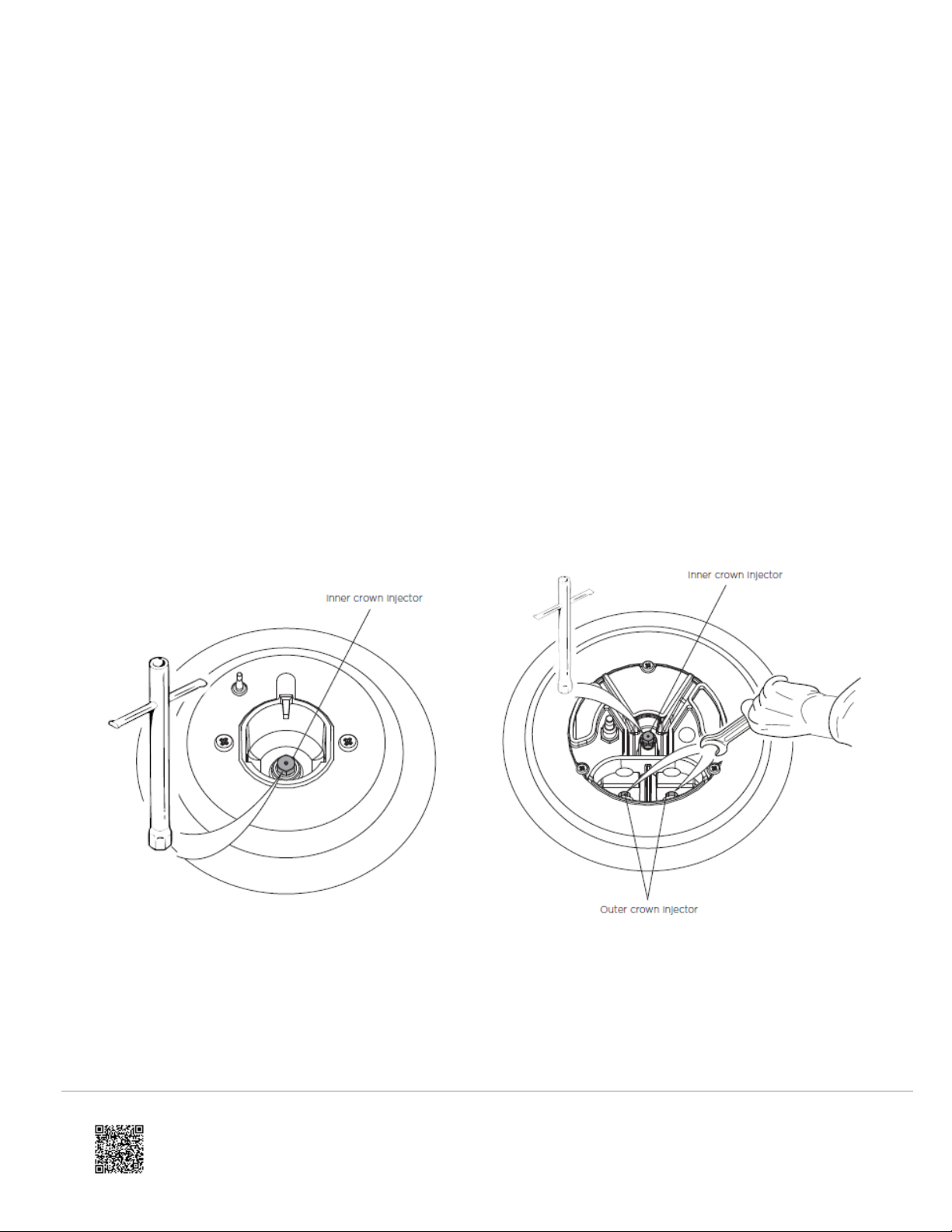

Replacing the Cooktop Burner Injectors

• Remove the pan supports, the burner caps and the flame spreaders.

• Using a wrench substitute the nozzle injectors with those most suitable for the kind of gas for which it is to be

used.

• Refit the flame spreaders, the burner caps and the pan supports.

The burners are designed so that no regulation of the primary air is required.

Semi-rapid burner Dual burner

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

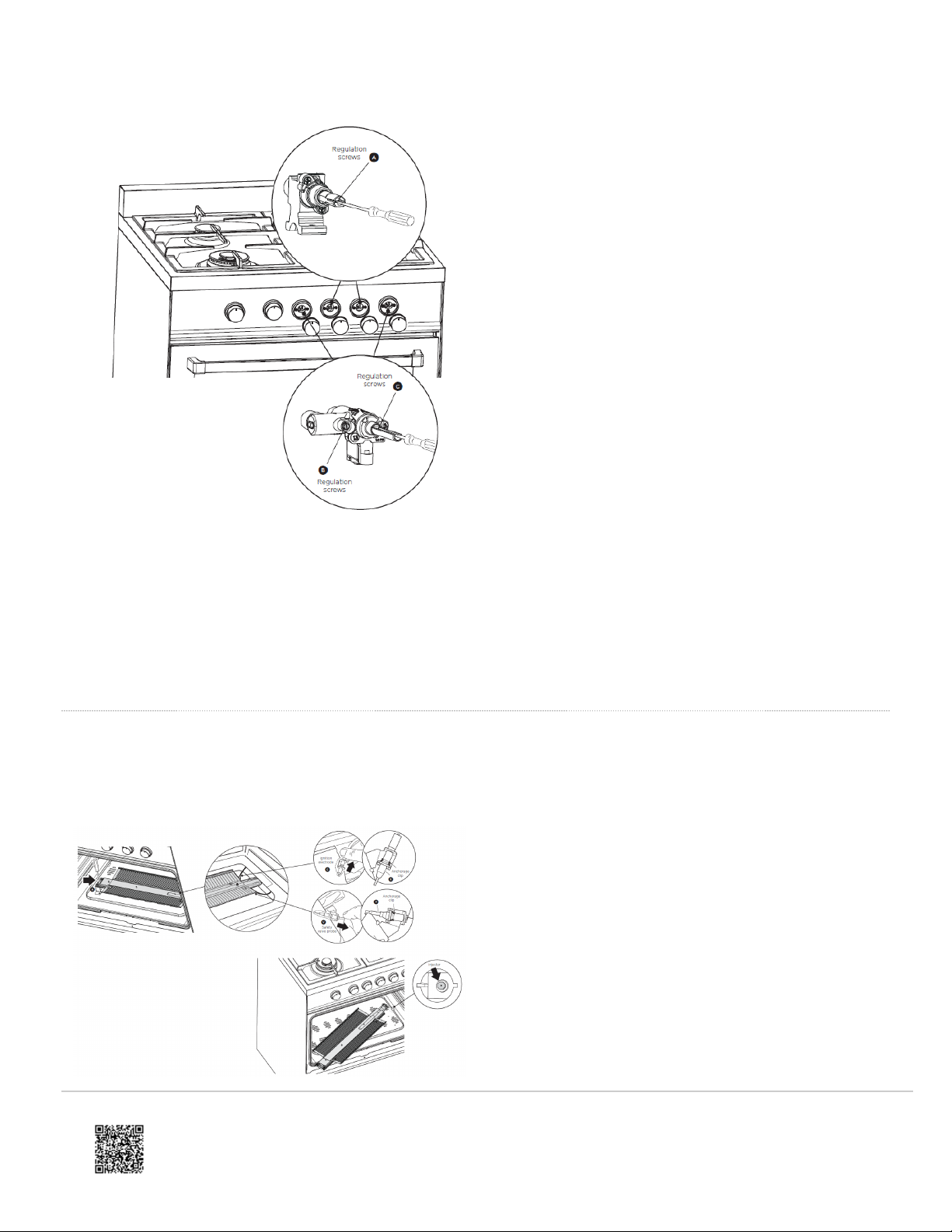

Adjusting the Cooktop Burner Minimums

When switching from one type of gas to another, the minimum flow rate must also be correct:

• The flame should not go out even when passing suddenly from maximum to minimum flame.

To regulate the flame follow these instructions:

Semi-rapid Burner (A)

• Light the burner.

• Set the gas valve to LO position (minimum rate).

• Remove the dial.

• With a thin screwdriver, turn the regulation screw inside the tap rod until adjustment is correct.

Inside Crown of DUAL Burner (B)

• Light the DUAL burner.

• Set the gas valve to

LO position (minimum rate of inner crown).

• Remove the dial.

• With a thin screwdriver, turn the regulation screw until adjustment is correct. The screw is accessible via a hole

in the microswitch.

Outside Crown of DUAL Burner (C)

• Light the DUAL burner.

• Set the gas valve to

LO position (minimum rate of outer crown and maximum rate of inner crown).

• Remove the dial.

• With a thin screwdriver, turn the regulation screw inside the tap rod until adjustment is correct.

For LP/PROPANE gas, tighten the adjustment screws completely

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

A Regulation screw (Semi-Rapid burner)

B Regulation screw (Inner crown of dual burner)

C Regulation screw (Outer crown of dual burner)

Gas Conversion (gas gas models only)

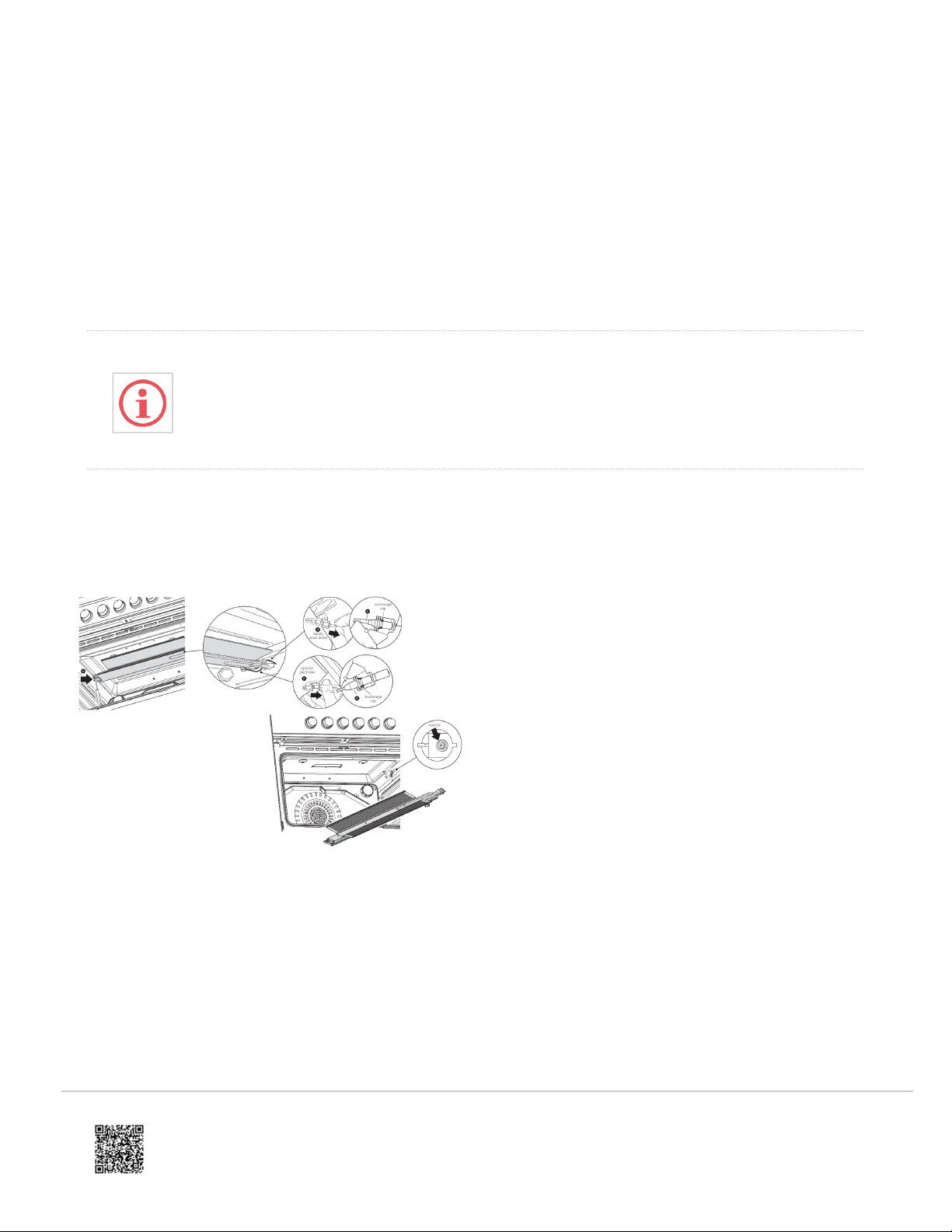

Replacing the Lower Oven Burner Injector

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

1. Lift and remove the lower panel inside the oven.

2. Gently unlock, the safety valve probe (V) and the ignition electrode (E) from the burner. Take care not to

damage the probe and the ignition electrode.

3. Unscrew and remove the burner securing screws (A).

4. Withdraw the burner as shown.

5. Using a 9/32” (7mm) box spanner, unscrew the injector and replace it with a new one selected in accordance

with the ‘Injectors table’.

6. Replace the burner and other components.

• Ensure the safety valve probe (V) and the ignition electrode (E) are replaced correctly.

• Check the correct operation of the safety valve and the ignition electrode.

Replacing the Oven Broil Burner Injector

1. Gently unlock, the safety valve probe (V) and the ignition electrode (E) from the burner. Take care not to

damage the probe and the ignition electrode.

2. Unscrew and remove the burner securing screw (A).

3. Withdraw the burner as shown beside.

4. Using a 9/32” (7mm) box spanner, unscrew the injector and replace it with a new one selected in accordance

with the ‘Injectors table’.

5. Replace the burner and other components.

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT

Ensure the safety valve probe (V) and the ignition electrode (E) are replaced correctly.

Check the correct operation of the safety valve and the ignition electrode.

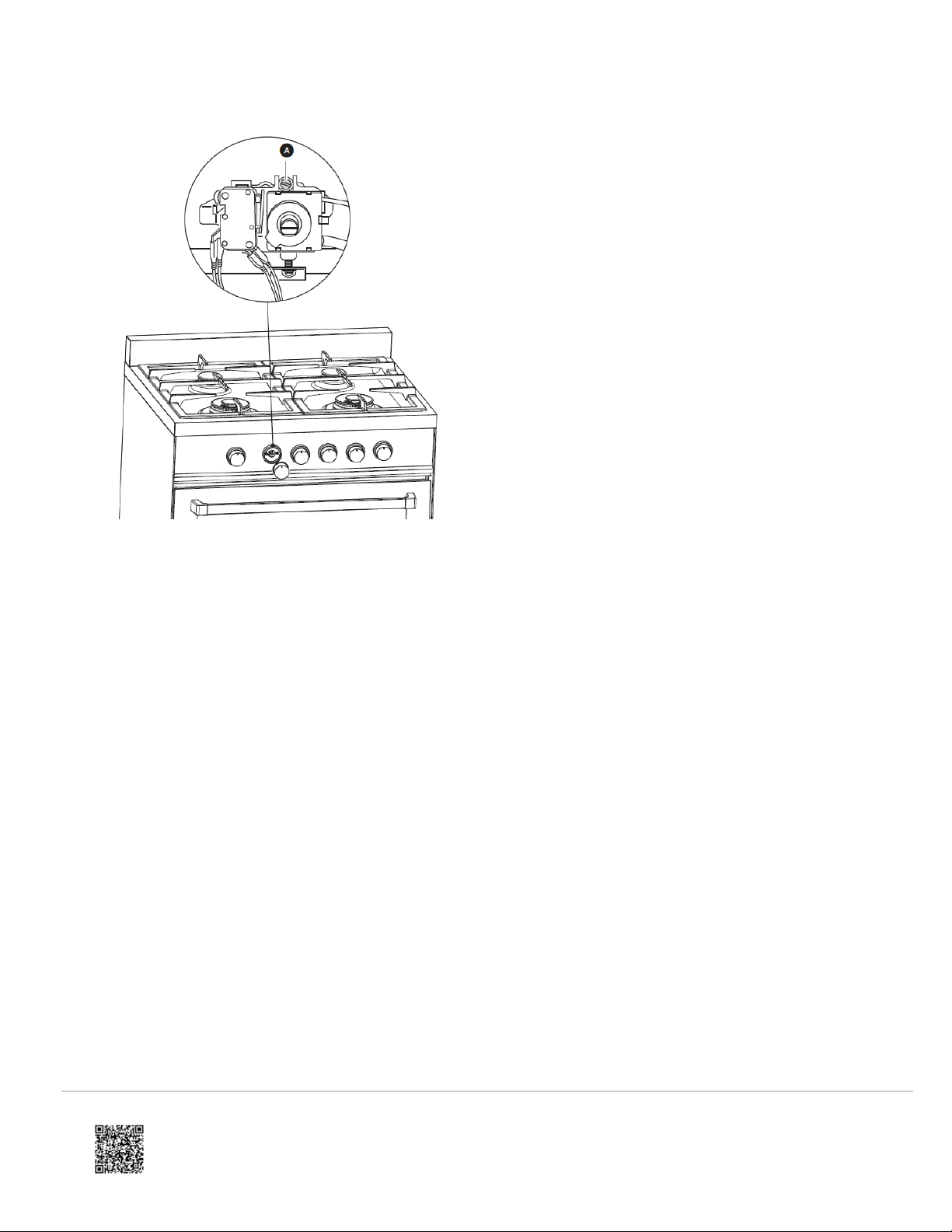

Adjusting the Lower Oven Burner Minimum

1. Turn on the burner by setting the oven dial the highest temperature setting.

2. Remove the dial and unscrew the by-pass screw (A) about three times by passing a small flat screwdriver (Ø1/

8” (3mm) blade, 3 15/16” (100mm) length) through the panel opening.

3. Re-mount the dial and let the oven heat up for about 10 minutes, then bring the dial to the lowest temperature

setting. to operate the thermostat by-pass.

4. Remove the dial again. Taking care not to turn the tap rod, slowly screw the by-pass screws (A) until you obtain

a flame of 1/8–5/32” (3–4mm) in height. The flame should not go out even when passing suddenly from

maximum to minimum flame.

For LP/PROPANE gas the by-pass screw must be fixed thoroughly.

https://producthelp.fisherpaykel.com/us/Cook/Ranges/Gas/OR30SCG4R1/Installation_Guide_OR30SCG4R1/19_Gas_Conver…

Updated: Thu, 02 Dec 2021 09:44:40 GMT
