Care and cleaning
Before any cleaning or maintenance, always:
• turn all burners off.
• switch the power to the cooktop off at the wall.
• make sure that the cooktop and its parts are a safe temperature to touch.
General advice
• Clean the cooktop regularly—do not let stains become burnt on, as they may become very difficult to remove.
• Do not use abrasive cleaners, cloths or pads to clean any part of your cooktop. Some nylon scourers may also
scratch. Check the label.
• Clean up spillages as soon as possible. If left to dry on, food residue may clog the flame ports, causing an
uneven flame pattern.
• Make sure that no cleaner residue is left on any cooktop part; when heated, these could stain the cooktop.
• See the following pages for instructions on replacing the pan supports and reassembling the burners correctly
after cleaning.
• Do not clean cooktop parts in a self-cleaning oven.
• Do not use a steam cleaner.
What?
How Often? How? Important!
Stainless
steel base
After every
use
1. Soak any stubborn stains under a hot soapy cloth.
2. Wipe the soiling off with a cloth using a mild
household detergent or stainless steel cleaner.
3. Wipe with a clean damp cloth.
4. Wipe the surface dry with a microfibre cloth.
•Do not use abrasive cleaners,
steel soap pads or sharp
objects on stainless steel.
•Always read the label to make
sure that your stainless steel
cleaner does not contain
https://producthelp.fisherpaykel.com/nz/Cook/Cooktops/Gas/Steel/Five_Burners/CG905CNGX2/User_Guide_CG905CNGX2/…
Updated: Mon, 15 May 2023 23:24:23 GMT
Powered by
1
What?
How Often? How? Important!
5. For extra shine, use a suitable stainless steel
polish.
• Hard water spots can be removed with
household white vinegar.
chlorine compounds as these
are corrosive and may damage
the appearance of your
cooktop.
•Always rub the stainless steel
in the direction of the grain.
•The graphics are etched onto
the steel by laser and will not
rub off.
Control
dials
As needed
1. Wipe with a damp cloth and mild detergent.
Stainless steel cleaner can be used on the top
surface of the dials only.
2. Dry thoroughly with a soft cloth.
•Do not use oven cleaner on
the dials, as doing so may
damage their coating.
Burner caps
and rings,
flame
spreaders,
pan
supports,
wok stand
As needed,
but at least
once a
month
1. Remove the parts that you wish to clean. See the
the illustrations following this chart.
2. Soak stubborn stains in a solution of biological
clothes washing detergent or powdered
dishwasher detergent.

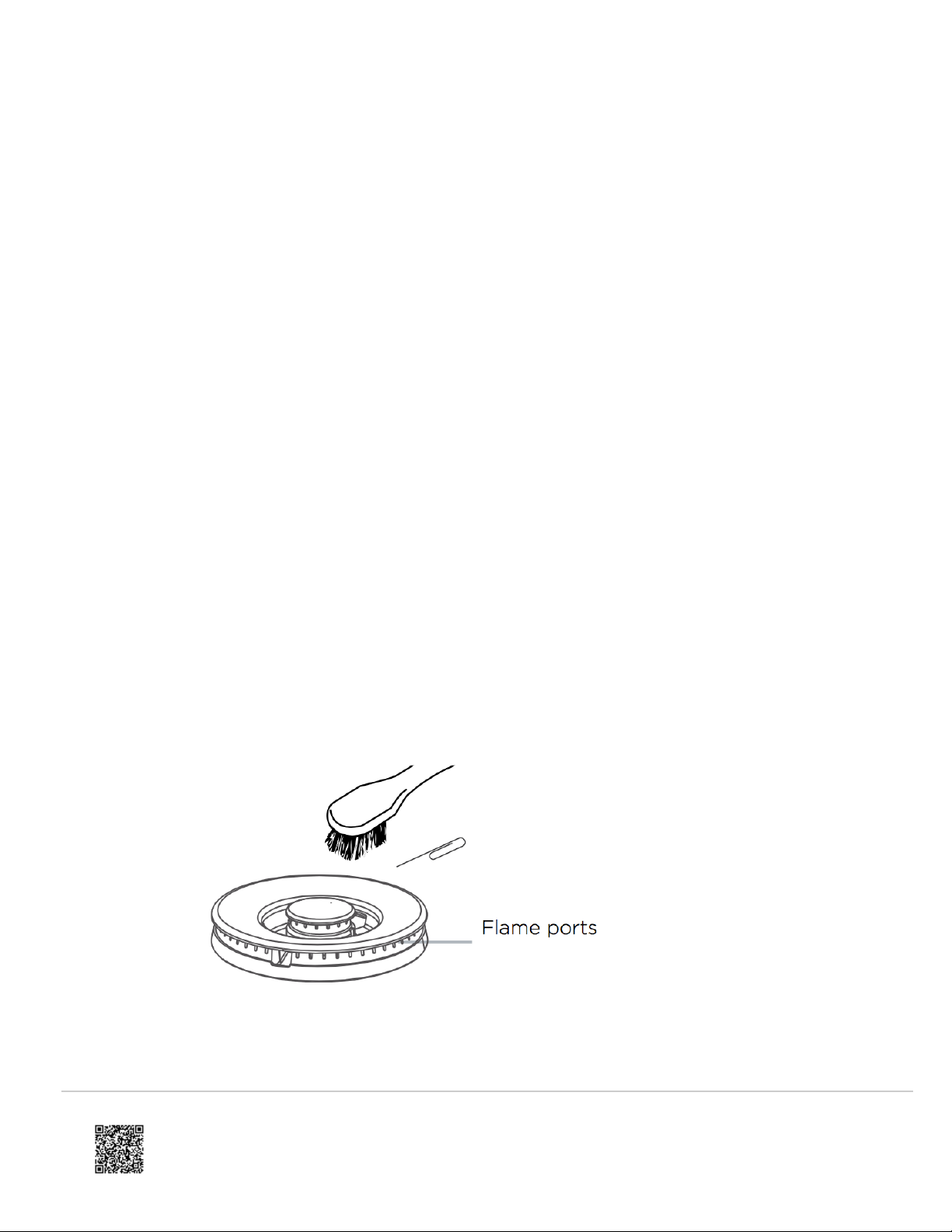

3. Clean the parts in hot soapy water. Use a stiff
nylon brush or straight-ended paper clip to clear
the flame ports.
4. Rinse in warm water.
5. Dry thoroughly.
•Make sure you keep the flame
ports clear. Soiling from food
spillage may clog these and
cause ignition problems or
uneven flame patterns.
•Remove stains left by food or
spillovers as soon as possible.
If left to burn on, they may be
difficult to remove or even
permanently discolor these
parts.
•Before replacing the burner
parts, make sure that they are
completely dry. Wet burner
parts may result in an irregular
flame.
•Before lighting a burner you
have reassembled, check that
all of its parts have been
positioned correctly. Incorrect
assembly can cause
dangerous irregular flames
and ignition problems.
https://producthelp.fisherpaykel.com/nz/Cook/Cooktops/Gas/Steel/Five_Burners/CG905CNGX2/User_Guide_CG905CNGX2/…
Updated: Mon, 15 May 2023 23:24:23 GMT
Powered by
2
What?
How Often? How? Important!
6. Replace the parts correctly, as shown in the
drawings following this chart.

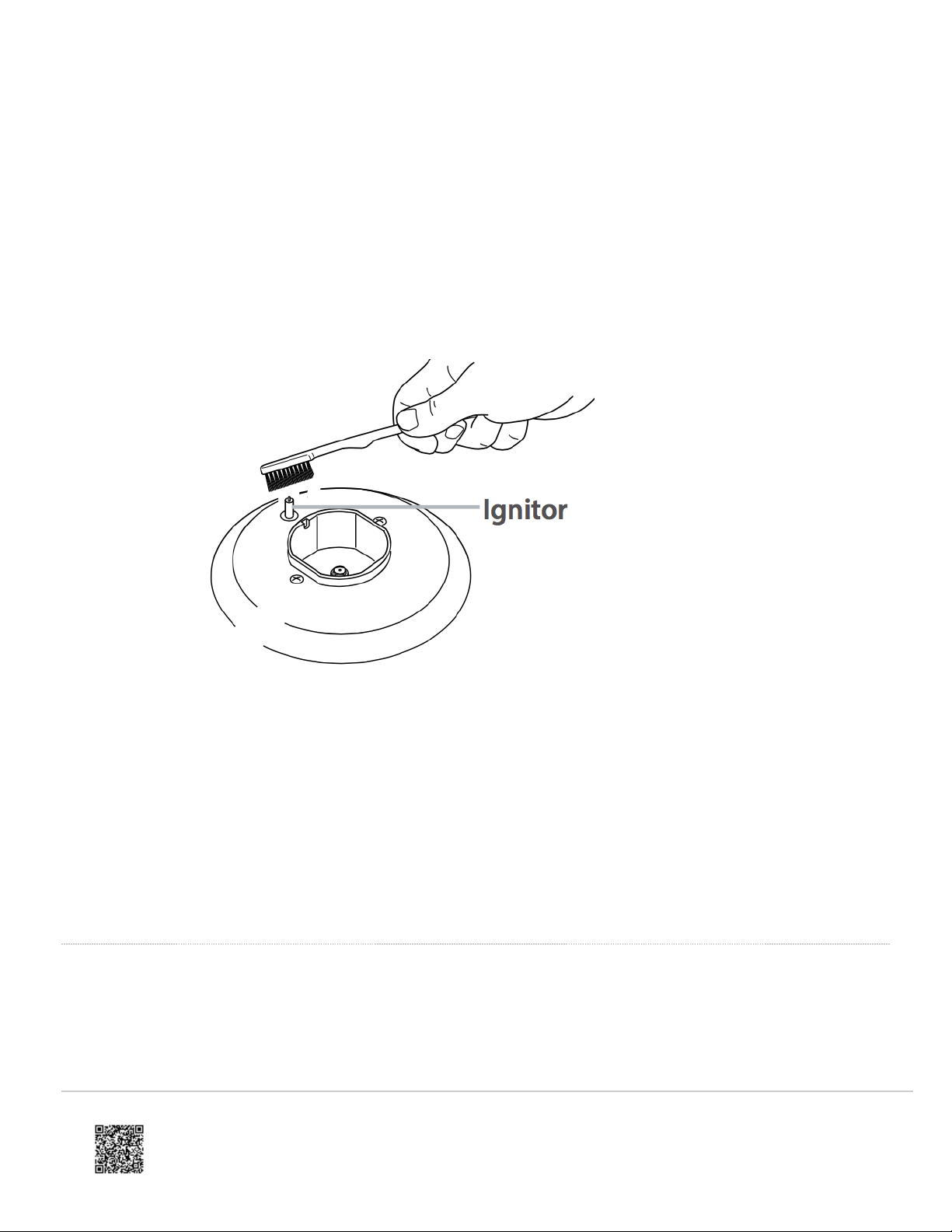

Ignitor
At least once
a month
Clean these very carefully using a toothbrush dipped into
denatured alcohol.
•A clean ignitor ensures
trouble-free sparking. Check
the ignitor regularly to make
sure it is clean.
All gas
components
of the
cooktop
Once every
3-4 years
• Contact your local Authorised Repairer to perform a
thorough check on all gas components of the
cooktop.
• For Authorised Repairer details, see your Service &
warranty book or contact Customer Care.
•All checking and maintenance
must be performed by a
suitably qualified person.
•If the gas is connected with a
flexible hose, checking should
include inspecting the entire
length of the flexible hose
assembly for any sign of wear
or damage.

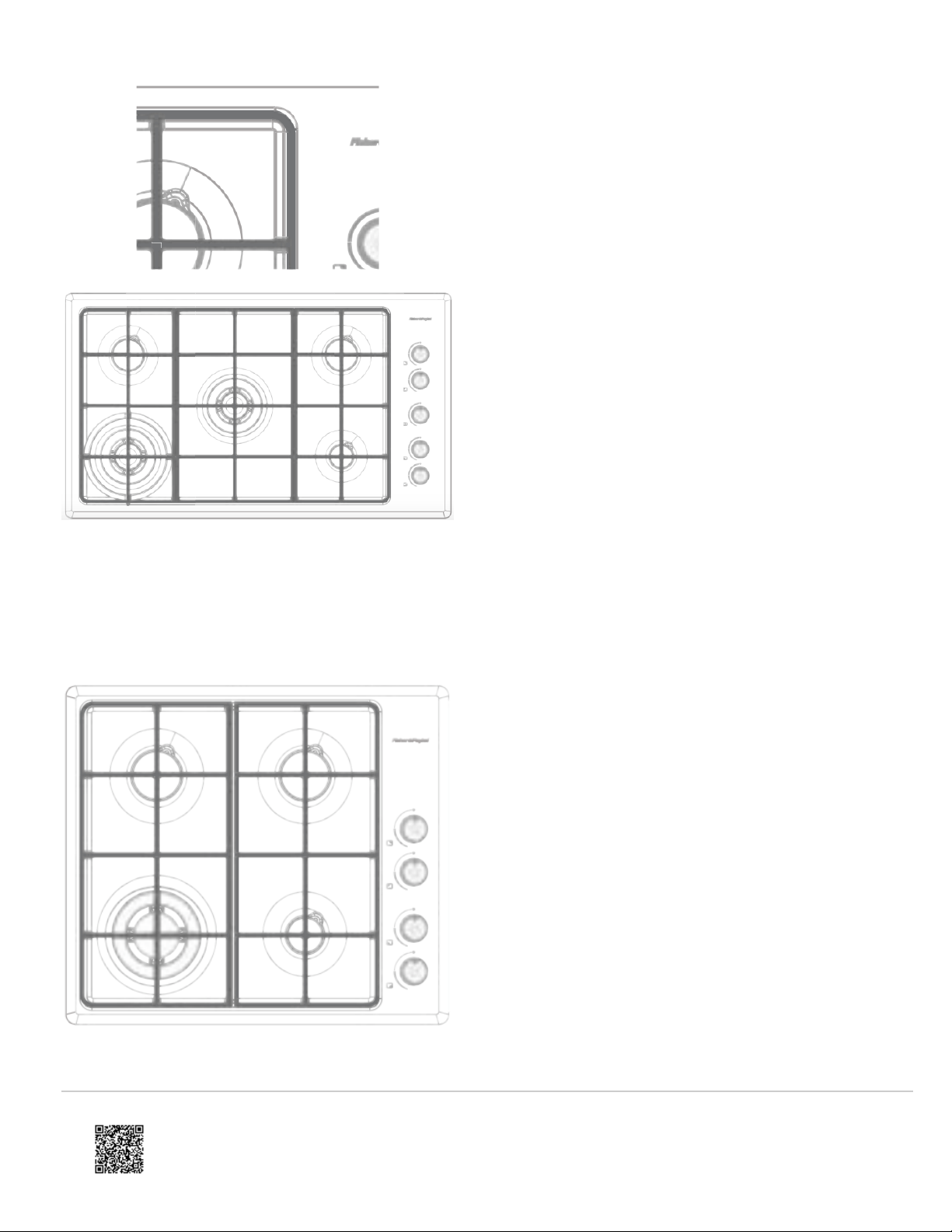

Replacing the pan supports correctly
CG905C models
The wok support goes in the centre, over the wok burner. The other two pan supports are interchangeable, but
need to be rotated to match the rounded corners of the cooktop base.
https://producthelp.fisherpaykel.com/nz/Cook/Cooktops/Gas/Steel/Five_Burners/CG905CNGX2/User_Guide_CG905CNGX2/…
Updated: Mon, 15 May 2023 23:24:23 GMT
Powered by
3
Correct positioning of pan supports (CG905C models)
CG604C models
The pan supports are interchangeable, but they can only be placed as shown and need to be rotated to match the
rounded corners of the cooktop base.
Correct positioning of pan supports (CG604C models)
https://producthelp.fisherpaykel.com/nz/Cook/Cooktops/Gas/Steel/Five_Burners/CG905CNGX2/User_Guide_CG905CNGX2/…
Updated: Mon, 15 May 2023 23:24:23 GMT
Powered by
4
Replacing the burner parts correctly

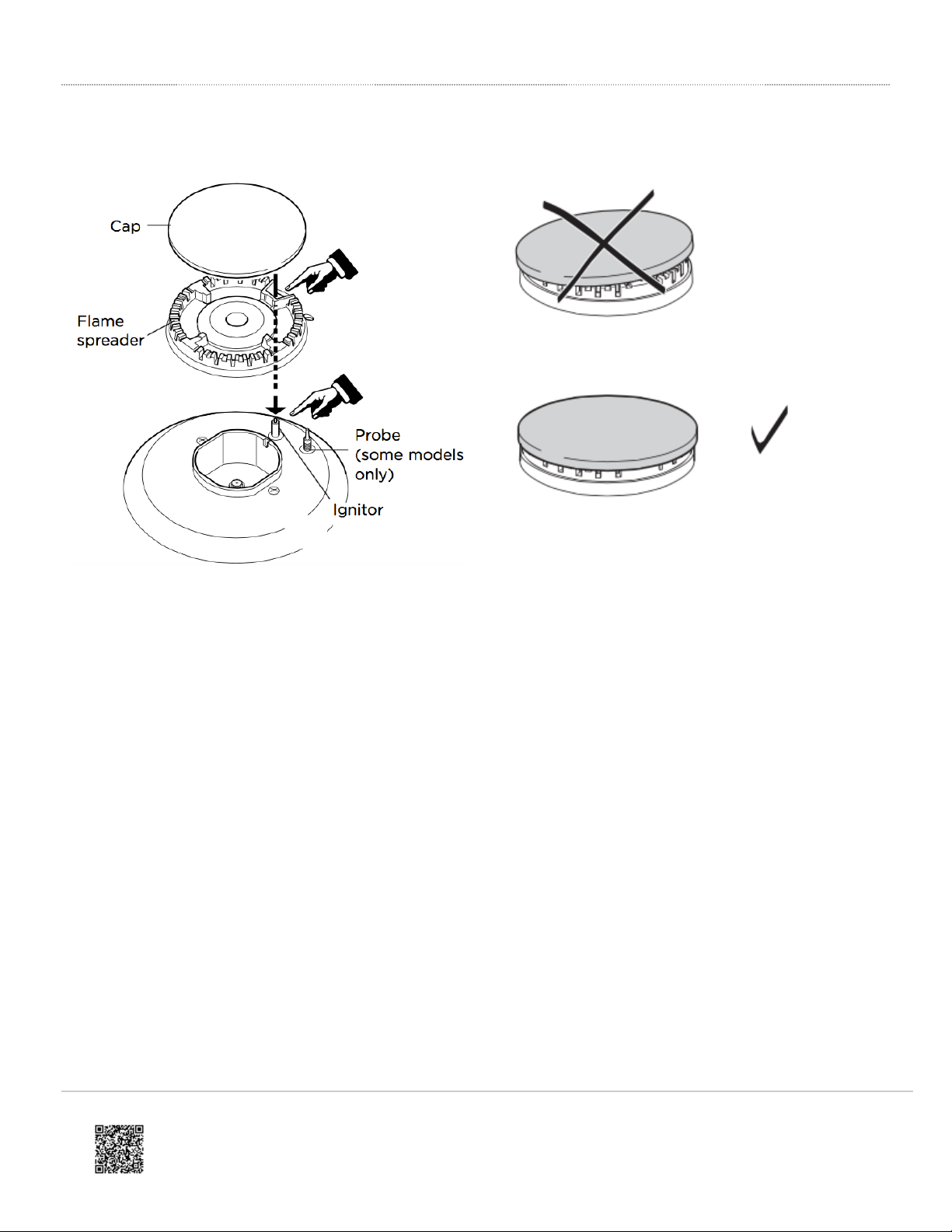

Semi-rapid and auxiliary burners
Correct positioning of semi-rapid, rapid, and
auxiliary burner parts

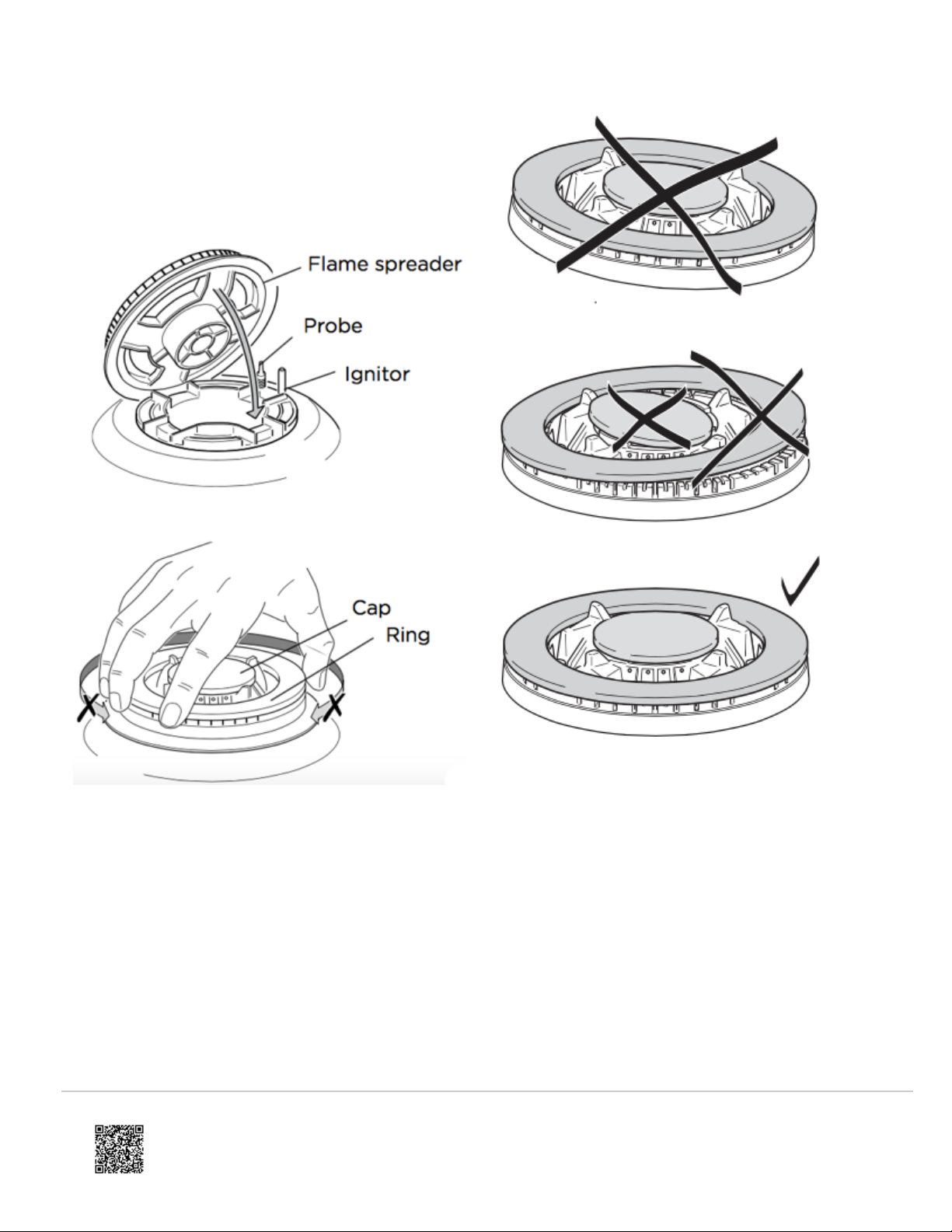

Wok burner with cast iron cap and ring
Fit the flame spreader to the housing as shown by the arrow following. Make sure the burner is not able to rotate.
https://producthelp.fisherpaykel.com/nz/Cook/Cooktops/Gas/Steel/Five_Burners/CG905CNGX2/User_Guide_CG905CNGX2/…
Updated: Mon, 15 May 2023 23:24:23 GMT
Powered by
5
