FEATURES AND CONTROLS
Control Panel
7. 120/240V, 50A – (NEMA 14-50R) (Not GFCI protected)
A maximum of 31.3 Amps current for 240 Volts or two independent 120 Volt loads at 31.3 Amps current each.
8. 120/240V, 30A Twist Lock – (NEMA L14-30R) (Not GFCI protected)
NOTICETotal power drawn from all receptacles must not exceed the data decal rating.
A maximum of 30 Amps current for 240 Volts or two independent 120 Volt loads at 30 Amps current each.
9. 120V, 30A Twist Lock – NEMA L5-30R(Not GFCI protected)
A maximum of 30 Amps current may be drawn from this receptacle.
10. 120V, 20A Duplex GFCI (Ground Fault Circuit Interrupter)- NEMA 5-20R
A maximum of 20 Amps current may be drawn from this duplex receptacle.
1. Engine Start Switch 1 – Flip switch 1 to the RUN (I) position. The fuel pump will operate for about 8 seconds
injecting fuel into the combustion chamber.
4. Intelligauge with LCD Screen – The screen can show the Voltage, Hertz, Power , running hours, Fault
alarm, regular maintenance and low oil alarm.
11. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
5. Remote Start Indicator Light - The light will light or flash depending on the status of the remote start
system.
6. Remote Start Program Button - Use this button along with the remote control to program the
generator to be started remotely. Your remote control is already programmed at the factory for
your convenience. If remote start control is ever replaced you may need to program. Contact
FIRMAN customer service.
12. Outlet Cover - Protects the receptacles from dust and debris.
13. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept within the
portable generator data decal rating.
2345910
11
16
78
12
12
14

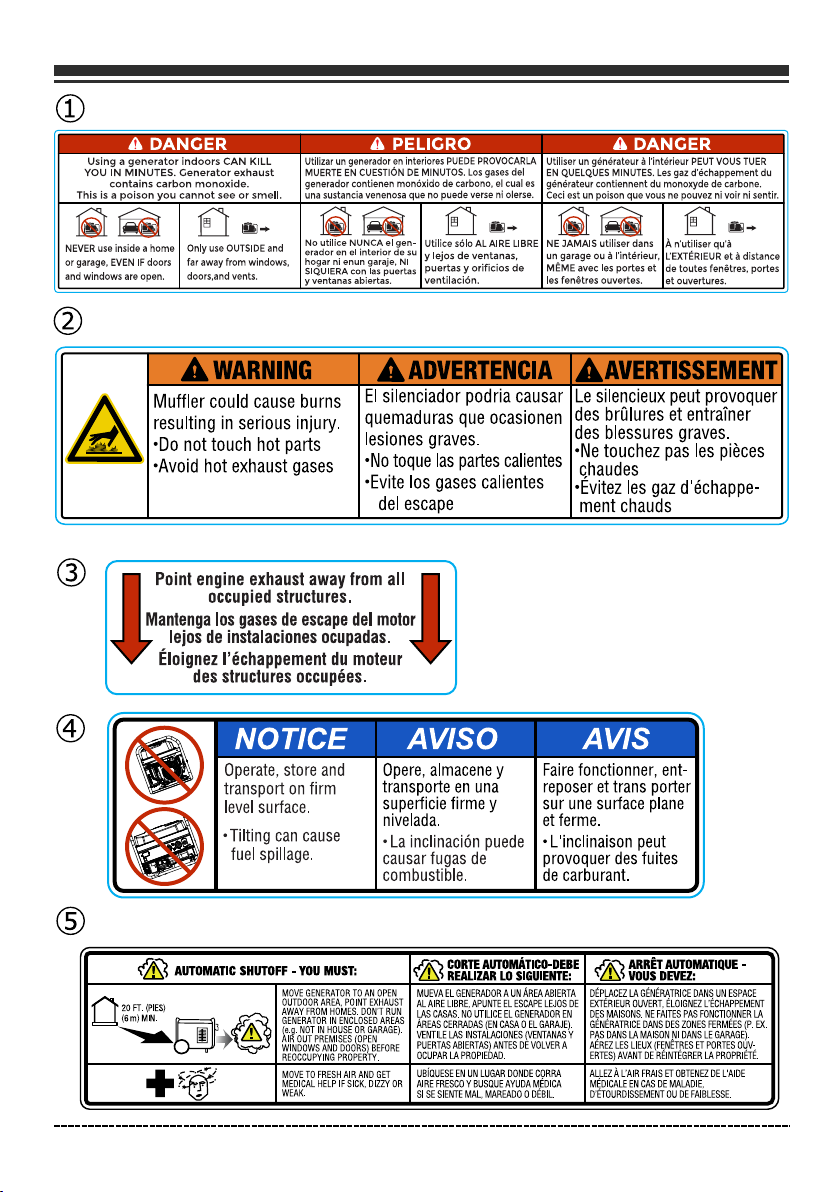

14. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
2. Engine Start Switch 2 – To start engine, press and hold the switch , the engine will crank and attempt to
start. When the engine starts, release the switch .
3. Idle Switch – Activating the idle switch allows for reduced engine speed during times of no electrical
output minimizing fuel consumption and reducing noise. The engine speed returns to normal when an
electrical load is connected.
13
13
NOTICE Before using any high-power device (about 4500W or greater) turn idle switch "OFF" (O).
