4V CORDLESS NAIL GUN USER’S MANUAL

Contents 5

4V Cordless Nail Gun

USER'S MANUAL

Thank you for purchasing this Cordless Screwdriver with ﬂashlight. Before you start using

it, please carefully read this user's manual and save it for possible future use.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS..........................................................................................................................6

2. SYMBOLS...........................................................................................................................................................................7

3. DESCRIPTION...................................................................................................................................................................8

4. OPERATION......................................................................................................................................................................8

5. MAINTENANCE.............................................................................................................................................................10

6. TECHNICAL DATA........................................................................................................................................................ 11

7. OPERATING INSTRUCTIONS....................................................................................................................................12

8. MAINTENANCE AND STORAGE............................................................................................................................15

9. DISPOSAL ........................................................................................................................................................................17

EN 6General safety instructions

FDN 3025-A

1. GENERAL SAFETY INSTRUCTIONS

WARNING!

Carefully read the instruction manual before use.

Important safety warnings

Unpack the product carefully and be sure not to throw away any part of the package before having found all

components of the product.

Keep the product in a dry place out of reach of children.

Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in

an accident, ﬁre and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore

it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize

with operating elements and the proper use of the device. Keep the manual in a safe place for future reference.

We recommend keeping the original package including the inner packaging materials, cash voucher and

guarantee card for a period of warranty at minimum.

For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring

a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note:

If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached

instructions for use is a precondition for the proper use of the machine. The operation manual includes also

instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting

from the failure to adhere to this manual.

4V CORDLESS NAIL GUN USER’S MANUAL

Symbols 7

2. SYMBOLS

The product complies with the applicable

standards and regulations.

Read the Instruction Manual attentively

prior to use.

Use eyes protective equipment

Use ears protective equipment

EN 8Description

FDN 3025-A

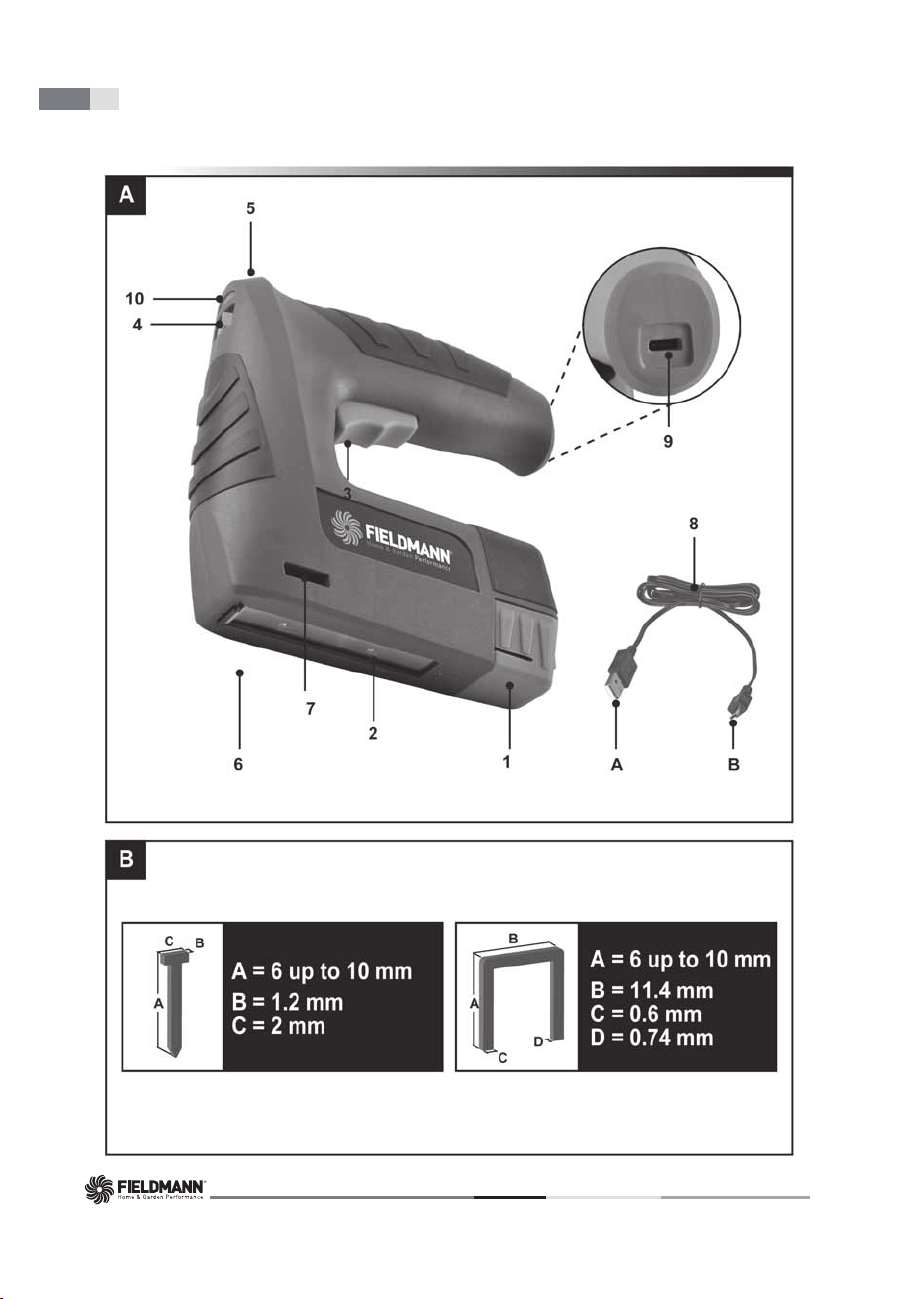

3. DESCRIPTION

The numbers in the text refer to the diagrams on pages 2 - 4.

1. Reload lever

2. Cartridge shaft

3. Switch

4. “0/1” switch

5. Top

6. Safety pin

7. Cartridge ﬁlling level window

8. Charger cable

9. Charging socket

10. Battery indication light

4. OPERATION

Charging the device (Fig. A)

Plug the charger cable (8) (included) into an adapter (not included).

Plug the charger cable (8) into the machine. (Fig. E)

Plug the charger plug into an electrical outlet and wait for a while. The charger indication light (10) will

lighten up and show the charging status.

LED Charger status

Red Battery charging in progress.

Green Battery charging ﬁnished, battery fully charged.

After the battery is fully charged remove the charger plug from the outlet and remove the small plug from the

device.

Fully charging the battery may take up to 2-3 hours.

If the red LED charging indicator starts glowing during operation, this indicates that the battery will soon be

empty

Application (Fig. B)

For this tool, use one of the following lenght for staples or nails:

Staples: 6 up to 10 mm

Nails: 6 up to 10 mm

Loading the nails or staples (Fig. C)

Choose the correct nail or staple for the job.

Hold the tacker with bottom upwards.

4V CORDLESS NAIL GUN USER’S MANUAL

Operation 9

Open de cartridge shaft (2) by slightly pressing the reload lever (1).

Pull the reload lever backwards to open the cartridge shaft (2).

For nails:

Place the nails upside down against the left side of the cartridge shaft (2). The left side also shows a nail-

symbol on the cartridge shaft, see ﬁg.D.

For staples:

Place the staples upside down in the cartridge shaft (2).

Push the reload lever to fully close the cartridge shaft.

Before loading the tacker, make sure the machine is in “0” position.

Never load staples and nail at the same time.

Checking the cartridge shaft

The cartridge ﬁlling level window (7) indicates the amount of staples/nails inside the cartridge shaft.

Using the tacker

After every load test the machine on a piece of scrape.

Press the “0/I” switch (4) to “I” to unlock the machine.

Press the “0/I” switch (4) to “0” to lock the machine.

Note: When not in use, press the “0/I” switch to “0” to lock the machine.

Note: Always store in Lock on “0” position.

Placing the tool

1. Place the tool on workpiece at the spot where the staple or nail should be located.

2. Press the tool down ﬁrmly by pressing the machine on the top (5) with one hand.

3. Use your other hand to operate the switch (3).

4. By pressing the machine down ﬁrmly you lift the safety of the machine.

WARNING!

The safety of the machine will be lifted when pressure is applied to the safety pin (6) on

the bottom of the machine. Always make sure the tacker mouth is in direct contact with

the material when pressing the switch.

Stapling

Press the switch (3).

The tool will cause a rebound because of the impact it operates with. Keep this in mind. For long nails and

staples this can cause wrong stapling or nailing. When backpressure is applied wrong stapling or nailing

can be avoided.

EN 10 Maintenance

FDN 3025-A

5. MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the

motor.

This machine has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Malfunction

Should the machine fail to function correctly, a number of possible causes and theappropriate solutions are given

below:

In case a staple or nail is jammed in the tool, follow the procedure below:

Place the machine in “0” position (4).

Open the cartridge shaft (2) by pulling the reload lever (1) and let the jammednails/staples fall out.

Reload the machine, see chapter “ Loading the nails or staples” for instructions.

Test the machine on a piece of scrap.

Cleaning

Regularly clean the device’s casing with a soft cloth, preferably after each use. Keep the fan slits free of dust and

dirt. Remove tough dirt using a soft cloth, dampened with soapy water. Do not use solvents such as benzene,

alcohol, ammonia, etc., which might damage the plastic parts.

For the charger

Intended use

This tacker has an integrated lithium-ion battery, which you can charge with the included USB charging cable

(USB-mains adapter not included).

a) The appliance is not to be used by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction.

b) Children being supervised not to play with the appliance.

c) Do not recharge non-rechargeable batteries!

d) During charging, batteries must be placed in a well ventilated area!

e) Integrated batteries may only be removed for disposal by qualiﬁed personnel.

Opening the housing shell can destroy the power tool. To remove the battery from the power tool, press

the On/Off switch (4) until the battery is fully discharged. Unscrew the screws on the housing and remove

the housing shell in order to remove the battery. To prevent a short circuit, disconnect the connectors on

the battery one at a time and then isolate the poles. Even when fully discharged, the battery still contains a

residual capacity, which can be released in case of a short circuit.
