Fidelity Electronics 19eA Manuel utilisateur

19eA & 19eS

Multi-Function Indicator

Operation Manual (Full Version)

PLEASE READ THIS MANUAL VERY CAREFULLY

BEFORE OPERATING THIS INSTRUMENT

Specifications subject to change without prior notice

V113 January 2021

Content
REMINDERS.................................................................................................................................................................7
1 METROLOGICAL LEGISLATION .....................................................................................................................................7
2 SEAL & SERIAL NUMBER.............................................................................................................................................7
3 WARM UP TIME..........................................................................................................................................................7
4 PLACING THE WEIGHING PLATFORM ............................................................................................................................7
5 CAUTIONS..................................................................................................................................................................7
6 SUPPORT & SERVICE .................................................................................................................................................7
SPECIFICATIONS ........................................................................................................................................................8
KEYS, DISPLAY & CONNECTION POINTS................................................................................................................8

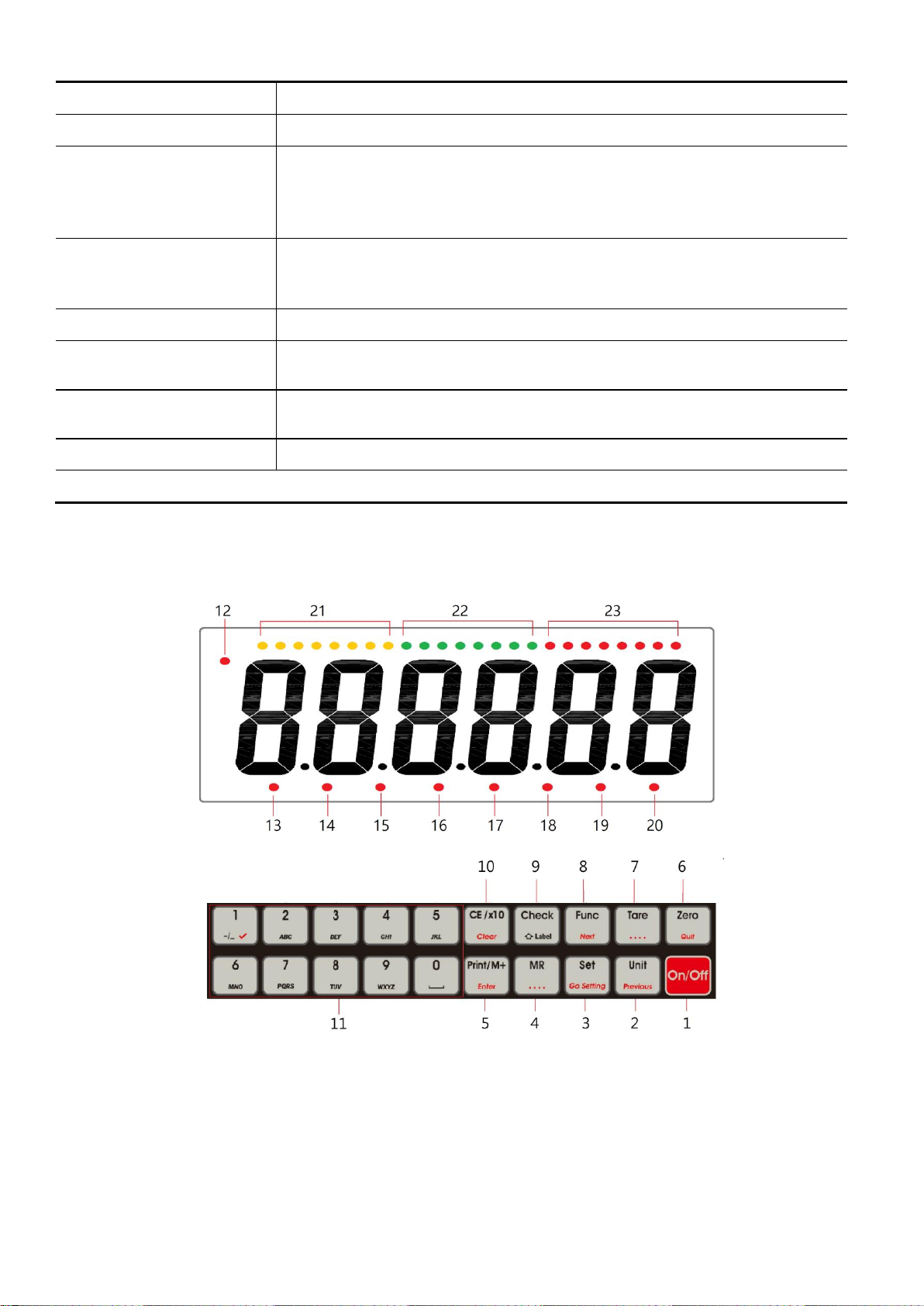

1 KEYS & DISPLAY INDICATORS......................................................................................................................................8
2 CONNECTION POINTS ...............................................................................................................................................11
POWER & CONNECTIONS .......................................................................................................................................12
1 POWER ADAPTOR ....................................................................................................................................................12
2 BUILT-IN RECHARGEABLE BATTERY...........................................................................................................................12
3 CONNECT WITH WEIGHING PLATFORM OR LOAD CELL JUNCTION BOX.........................................................................12
3.1 Load cell connector pin assignment ...............................................................................................................12
4 COMPORTS ON INSTRUMENT.....................................................................................................................................12
5 COMPORTS PIN ASSIGNMENT ...................................................................................................................................12
INITIAL SETUP...........................................................................................................................................................13
1 INTERNAL FUNCTIONS & SETTINGS ...........................................................................................................................13
2 HOW TO ENTER & SELECT INTERNAL FUNCTION ........................................................................................................13
3 KEY FUNCTION UNDER INTERNAL FUNCTION MODE ....................................................................................................13
4 INTERNAL FUNCTION TABLE ......................................................................................................................................14
5 SETTING COMPORT 1 & COMPORT 2.........................................................................................................................18
5.1 When comport is set as PC ............................................................................................................................18
5.2 When comport is set as CMD .........................................................................................................................18
5.3 When comport is set as Manual .....................................................................................................................18
5.4 When comport is set as Auto (Auto 1~3) ........................................................................................................18
5.5 When Comport 1 is set as Scanner ................................................................................................................18
6 OPTICAL KEY ...........................................................................................................................................................18
BASIC OPERATIONS ................................................................................................................................................18
1 POWER ON, INPUTTING OPERATOR NUMBER & POWER OFF ......................................................................................18
2 WARM UP TIME & SET WEIGHT TO ZERO WHEN UNLOADED ........................................................................................18
3 KEYBOARD LOCK .....................................................................................................................................................18
4 TARE MODES...........................................................................................................................................................18
4.1 Manual Tare ....................................................................................................................................................19
4.2 Auto Tare (F12) ...............................................................................................................................................19
4.3 Repetitive Tare (F13) ......................................................................................................................................19
4.4 Preset Tare (F63) ............................................................................................................................................19
5 SELECT THE PREFERRED FUNCTION MODE ...............................................................................................................20
6 WEIGHT UNITS.........................................................................................................................................................20
6.1 Weight unit gram (g) .......................................................................................................................................20
6.2 Select the preferred weight unit ......................................................................................................................20

7 MEMORY ACCUMULATION .........................................................................................................................................20
7.1 Automatic Accumulation..................................................................................................................................21
7.2 Manual Accumulation......................................................................................................................................21
7.3 When data is accumulated to memory   .........................................................................................................21
7.4 Memory recall and clearance..........................................................................................................................21
8 EXTENDED DISPLAY MODE.......................................................................................................................................21
9. AUTO POWER OFF, DISPLAY BRIGHTNESS................................................................................................................22
9.1 When powered by external power adaptor .....................................................................................................22
9.2 When instrument is powered by rechargeable battery ...................................................................................22
10 CUSTOMER & PRODUCT CODE ...............................................................................................................................22
10.1 Enter a customer & product code manually..................................................................................................22
10.2 Enter a customer & product code by scanner ..............................................................................................23
10.3 Clear a customer & product code entered ....................................................................................................23
10.4 Print a customer & product code entered .....................................................................................................23
11 QUICK ACCESS PLU ..............................................................................................................................................23
11.1 Weight limits PLUs ........................................................................................................................................23
11.2 Quantity limits PLUs......................................................................................................................................24
11.3 Preset Tare PLUs ..........................................................................................................................................24
11.4 Customer / product code PLUs .....................................................................................................................25
12 Enter a Key Command by Scanner .................................................................................................................26
WEIGHING MODE ......................................................................................................................................................26
PIECE COUNT MODE................................................................................................................................................27
1 AUTO UNIT PIECE WEIGHT ENHANCEMENT FUNCTION................................................................................................27
2 SHIFT AMONG QUANTITY, AVERAGE PIECE WEIGHT AND WEIGHT INFO........................................................................27
3 RECALL THE AVERAGE PIECE WEIGHT BEFORE POWERED OFF ..................................................................................27
ACTION-TARE-MEMORY (ATM)................................................................................................................................28
1 DESCRIPTION OF ATM MODE....................................................................................................................................28
2 BASIC ATM SETTINGS..............................................................................................................................................28
3 START USING ATM ...................................................................................................................................................28
3.1 Weight Check Control for ATM .......................................................................................................................28
PEAK HOLD MODE .................................................................................................................................................29
1 DESCRIPTION OF PEAK HOLD MODE .......................................................................................................................29
2 COMPORT SETTINGS FOR PEAK HOLD MODE...........................................................................................................29
3 START USING PEAK HOLD ......................................................................................................................................29
ANIMAL WEIGHING MODE .....................................................................................................................................30
1 DESCRIPTION OF ANIMAL WEIGHING MODE..............................................................................................................30
2 BASIC ANIMAL WEIGHING SETTINGS........................................................................................................................30
3 START USING ANIMAL WEIGHING .............................................................................................................................30
STATIC CHECK FUNCTION     ................................................................................................................................31
1 SET LO& HI LIMIT..................................................................................................................................................31
2 HINTS FOR ENTERING LO AND HI LIMITS .................................................................................................................31
3 TO CANCEL CHECK FUNCTION................................................................................................................................31
4 TRI-COLOR CHECK RESULT LIGHT BAR ...................................................................................................................31

4.1 Setting Light Bar working mode....................................................................................................................31
4.2 Light Bar action when result is negative .......................................................................................................32
DYNAMIC CHECK MODE........................................................................................................................................32
1 NEAR ZERO FUNCTION DESCRIPTION......................................................................................................................32
2 NEAR ZERO VALUE ILLUSTRATION DIAGRAM............................................................................................................32
COMMUNICATION & OUTPUTS .............................................................................................................................33
1 PRINT OUTPUT & FORMATS ....................................................................................................................................33
2 AUTO 1~3 OUTPUT & FORMATS ..............................................................................................................................33
3 PC OUTPUT & PROTOCOL ......................................................................................................................................33
3.1 Predefined output protocols..........................................................................................................................33
3.2 Custom output Protocol ................................................................................................................................33
4 SENDING KEYBOARD COMMANDS FROM COMPUTER ................................................................................................33
5 REQUESTING OPERATION RESULTS & SYSTEM PARAMETERS BY COMPUTER ............................................................33
6 PC SOFTWARE (RATHOHAN 19E-II END USER PROGRAM)........................................................................................33
7 IOS AND ANDROID APPS.........................................................................................................................................34
7.1 Connecting Transmission Devices to Instrument .........................................................................................34
7.2 Running App on a Smart Device...................................................................................................................34
PRINTING FORMATS ..............................................................................................................................................35
1 LAB 1 PRINT FORMAT .............................................................................................................................................35
1 WEIGHING, ATM & ANIMAL MODE ILLUSTRATION .....................................................................................................35
2 PIECE COUNT MODE ILLUSTRATION.........................................................................................................................35
2 STANDARD LAB 2 PRINT FORMAT ............................................................................................................................36
2.1 Standard Lab 2 print format for Weighing & ATM mode ...............................................................................36
2.2 Standard Lab 2 print format for Piece Count mode ......................................................................................36
2.3 Standard Lab 2 print format for Peak Hold mode .........................................................................................37
2.4 Standard Lab 2 print format for Animal Weighing mode...............................................................................37
3 CUSTOMIZING LAB 2 PRINT FORMAT........................................................................................................................37
3.1 Print output format variants table..................................................................................................................38
3.2 To edit custom Lab 2 print output format ......................................................................................................38
4 LAB 3 DATA BASE OUTPUT FORMAT ........................................................................................................................39
5 LAB 4 PRINT FORMAT .............................................................................................................................................40
6 LAB 5 PRINT FORMAT .............................................................................................................................................40
LABEL PRINTING ....................................................................................................................................................41
1 LABEL FORMAT GROUPS & LABEL FILE NAMES ........................................................................................................41
1.1 FL1 (Label Format Group 1) .........................................................................................................................41
1.2 FL2 (Label Format Group 2) .........................................................................................................................41
2 LABEL PROGRAMMING............................................................................................................................................42
2.1 Label programing information table ..............................................................................................................42
2.2 Label programming sample ..........................................................................................................................43
2.3 Sample Labels ..............................................................................................................................................43
3 QUICK ACCESS TO LABEL SETTINGS .......................................................................................................................44
4 REPETITIVE PRINTOUT............................................................................................................................................44
BUILT-IN BATTERY & RECHARGING ....................................................................................................................44
1 BATTERY OPERATION TIME .....................................................................................................................................44

17.2 SYMBOLS & REMAINING POWER .............................................................................................................................44
17.3 BATTERY CHARGING STATUS ..................................................................................................................................44
18. ERROR CODES .......................................................................................................................................................45
19. DAILY CARE & MAINTENANCE .............................................................................................................................45
APPENDIX A: - KEYBOARD COMMANDS...................................................................................................................46
APPENDIX B1: - PREDEFINED PC OUTPUT PROTOCOLS.......................................................................................47
APPENDIX B2: - CUSTOM PC OUTPUT PROTOCOL.................................................................................................50
APPENDIX C: - OPERATION RESULT COMMANDS...................................................................................................52
APPENDIX D: - SYSTEM PARAMETER INQUIRY COMMANDS.................................................................................53
APPENDIX E: - TSC PRINTER INSTALLATION, SETUP & LABEL UPLOAD PROCEDURES .................................56
E.1 BEFORE INSTALLATION .............................................................................................................................................56
E.2 PRINTER INSTALLATION ............................................................................................................................................56
E.3 UPLOADING TCF FILE TO PRINTER ...........................................................................................................................56
E.4 CREATE & UPLOAD LABEL TO TSC PRINTER .............................................................................................................57
E.4.1 Selecting the Correct Edition for Bartender Software ....................................................................................57
E.4.2 Adding Information from Instrument to Label & Uploading to a TSC Printer..................................................57
E.5 SAMPLE LABEL ........................................................................................................................................................58
APPENDIX F: - SBARCO PRINTER INSTALLATION, SETUP & LABEL UPLOAD PROCEDURES .........................59
F.1 GET THE BELOW READY BEFORE PRINTER INSTALLATION ............................................................................................59
F.2 BARDRAWER SOFTWARE & PRINTER DRIVER INSTALLATION .......................................................................................59
F.3 CREATE & UPLOAD LABEL TO SBARCO PRINTER ........................................................................................................60


1. Reminders

1.1 Metrological Legislation

Because of metrological legislation, some metrological parameter settings are limited to be done by authorized

personnel only. Do not attempt to change any parameters under internal function number F60 ~ F99. Contact your

dealer for installation and technical assistance.

1.2 Seal & Serial Number

This instrument is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt

to break the seal (or stamp) or serial number affixed to this instrument. No warranty service will be provided if the seal

(or stamp) or data plate affixed to this instrument is damaged or removed. Always contact your dealer for after sales

service.

1.3 Warm Up Time

Allow warm up period of not less than 60 seconds before calibration and usage. The higher the setup resolution of

the scale, the longer the warm up period is required. In most cases, 120 seconds is a safe warm up period for all

applications. This warm up period is needed to energy all components to reach a stable status.

The internal count value is deemed stable when the internal AD count varies less than 3 counts within 2 seconds.

To read the internal AD count value, enter internal function F1. The internal AD count value of a not yet fully

energized PCB will go up continuously.

1.4 Placing the Weighing Platform

In order to obtain an accurate weighing result, the weighing platform must be placed on a strong and level surface. Avoid

using the platform and this instrument and the weighing platform in any environment where excessive wind flow, vibration

and extreme temperature change exist.

1.5 Cautions

a. The instrument is not an explosion proof device.

b. The instrument is not a water proof device.

c. Do not open the instrument, no user serviceable parts inside. Always contact your dealer for service.

d. Do not place this instrument in where shock, excessive vibration or extremes of temperature (before or after

installation) exist.

1.6 Support & Service

Always contact your dealer for product information, after sales service and questions when in doubt.

2. Specifications

Capacity and Readability

Free Setting

Weighing Range

Single Range, Dual Range, Dual Interval

Load Cell Connection

Excitation Voltage = 5V DC

Support both 4-wire & 6-wire Load Cells

Maximum Load Cell Connection = 12 x 350Ω Load Cells or 24 x 700Ω Load

Cells

A/D Converter &

& Internal Resolution

24 bit Low-Noise Delta to Sigma (Δ-Σ)

4,000,000 Counts at 20 mV

Minimum input per d = 0.05µV

Max. Tare Range

-Max or -Max1 (Subtractive Tare)

Power Source

Built-in Rechargeable Battery = 6V, 4AH

External Power Adaptor = DC 12V, 1A

Accessories

Pillar Mount Holder (ψ35~38mm), Built-in Rechargeable Battery, Universal

Power Adaptor, Dust Cover

Operation Environment

-10 ~ 40oC. Non-condensed. R.H.≦ 85%

In the interest of improvement, specifications may change prior to notice

3. Keys, Display & Connection Points

3.1 Keys & Display Indicators

1. On/Off Key

Press this key to turn this instrument on or off.

2. Unit Key

Press this key to shift among various weight units (if weight unit conversation is enabled).

3. Set Key

Press this key: -

•When in weighing mode: - to access internal function setting mode (F1~F32) or to prompt/introduce an operation

parameter/value during piece count, auto tare accumulation and animal weighing mode.

•During power on countdown process: - to access internal function mode (F1~F99)

4. MR Key

Press this key to recall total stored transactions.

5. Print/M+ Key

Press this key to send print data out and/or accumulate current value to memory

6. Zero Key

Press this key to set weight displayed to zero when unloaded.

7. Tare Key

Press this key to tare off the weight of a container.

8. Function Key

Press this key to shift between weighing, piece count, auto tare accumulation, peak hold, animal weighing

and PCd

mode.

9. Check Function Key

•When in operation mode: - Press this key to start check function and to enter value for LO and HI Limit.

•When in Setting Mode: - Quick access to label file settings

•When in Customer & Product Code Entry Mode: - Shift between Upper and Lower case letter.

10. CE/x10 Key

Press this key to: -

• clear value entered during setting process, or

• trigger the extended display mode

11. Numeric Keys

•During Setting Mode: - Numeric keys 0~9.

•When in Customer & Product Code Entry Mode: - Shift between numeric number or letter/symbol marked below

the key.

12. Charge Status Indicator

•Red color: Recharging battery,

•Green color: Charging completed.

Refer to F9 on how to enable/disable weight units.

F60~F99 requests password or jumper to access.

Refer to F16 and F17 settings for details.

Depends on F11 setting.

When LP50 or TSC is selected in F16 or F17

When F68 = OIML or NTEP.

13. Zero Indicator

Visible when instrument is at zero status.

14. Net Indicator

Visible when net result is being displayed.

15. Weight (kg) / Stable Indicator

Visible when weight unit is = kg.

•Flashing = Weight unstable

•Lit on = Weight stable

16. Weight (g) / Stable Indicator

Visible when weight unit is = g.

•Flashing = Weight unstable

•Lit on = Weight stable

17. Weight (lb) / Stable Indicator

Visible when weight unit is = lb.

•Flashing = Weight unstable

•Lit on = Weight stable

18. Count Function Indicator

Visible when instrument is in Piece Count mode.

•PCS Indicator only = Value being displayed is number of pieces.

•PCS Indicator + any Weight Indicator = Value being displayed is unit piece weight.

19. M+ Indicator

Visible when memory contains of accumulated data.

20. Lo Battery Indicator

•Flashing: - Battery level is low. Apply power adaptor to recharge battery as soon as possible.

•Lit on: - Battery level is at extreme low. Apply power adaptor to recharge battery immediately otherwise instrument

will power off automatically shortly.

21. LO Light Bar

Visible when check result is = LO.

22. OK Light Bar

Visible when check result is = OK.

23. HI Light Bar

Visible when check result is = HI.

Light Bar is only visible when Check Function is employed.
