FIBERNET LADY Mode d'emploi

Blowing machine

mod. Lady

User & maintenance manual

Ver.2.2 –August 04 2022

Fibernet srl

Connectivity Solutions

www.fibernet.it

INDEX
GENERAL ........................................................................................................................................................................ 4
TECHNICAL CHARACTERISTICS ............................................................................................................................... 5
1. PRODUCT CONFIGURATION .................................................................................................................................6
2. ACCESSORY KIT ..........................................................................................................................................................7
OPERATING INSTRUCTION ....................................................................................................................................... 9
1. PRELIMINARY OPERATIONS ................................................................................................................................... 9
2. POSING PROCEDURE WITHOUT COMPRESSED AIR.................................................................................. 10
2.1. CABLE AND DUCT POSITIONING........................................................................................................... 10
3. POSING PROCEDURE WITH COMPRESSED AIR ........................................................................................... 12
3.1. CABLE AND DUCT POSITIONING........................................................................................................... 12
3.2. AIR COMPRESSOR CONNECTION .......................................................................................................... 15
4. CABLE POSING ......................................................................................................................................................... 15
5. CABLE POSING IN AN INTERMEDIATE STOP................................................................................................. 17
6. DISPLAY INFORMATION ....................................................................................................................................... 21
7. DRIVE BELTS HANDLING ...................................................................................................................................... 22
8. METER COUNTER PULLEY HANDLING............................................................................................................ 23
MAINTENANCE ...........................................................................................................................................................24
1. CLEANING .................................................................................................................................................................. 24
2. DRIVE BELTS SUBSTITUTION .............................................................................................................................. 24
3. SEAL ADAPTER GASKETS SUBSTITUTION ...................................................................................................... 26
4. BATTERY RECHARGING ........................................................................................................................................ 29



FIBERNET SRL

Headquarters: Via degli Olmetti,18 –00060 Formello (RM) - Italy

Share Capital € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

SAFETY RULES

Before operating, make sure to have set and fixed the device on a solid surface.

Check that the blowing machine is correctly connected to the minitube and that

the cable is properly positioned between the two drive belts.

Air pressure shall never exceed the limit indicated in this user manual.

To avoid possible finger injury, make sure not to touch the cable when it is close to

the working device; also ensure that the cable doesn’t tangle up, causing hazard

situations to the personnel involved.

Make sure

Before performing any type of alteration and/or maintenance make sure to have

previously disconnected the machine from all energy sources such as air compressor

and USB port.

Do not remove the plexiglass protections during posing operations (it could cause

injuries to the hands).

Before getting started, ensure that nobody is placed near the cable spools to avoid

possible risks.

Do not open the lids of the blowing machine while operating with air compressor.

FIBERNET SRL

Sede Operativa: Via degli Olmetti,18 –00060 Formello (RM) - Italia

Capitale € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

1. GENERAL

Lady is a blowing machine entirely designed and developed by Fibernet Srl to blow cables inside

minitubes.

The device is provided with a polypropylene waterproof case for a safe and easy transport and an

accessory kit.

The machine is designed to be actuated by an external electric screwdriver equipped with a clutch (or

an electric battery motor or even a pneumatic motor). To ease the blowing operation, the device can

use the help of compressed air.

Figure 1: Fibernet blowing machine –Lady model.

FIBERNET SRL

Headquarters: Via degli Olmetti,18 –00060 Formello (RM) - Italy

Share Capital € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

2. TECHNICAL CHARACTERISTICS

Lady blowing machine can be actuated by an external battery screwdriver equipped with a clutch, that

operates the internal rubber belts transmission mechanism (LINATEX) specifically contoured to

increase friction with the cable.

In case of electric, battery or pneumatic motor use, please refer to the specific supplied guides.

The main features of the Lady blowing machine are listed below:

•Weight: approximately 6 kg

•Compact dimensions: 253 x 243 x 130 mm

•Use temperature -10 °C / +60 °C

•Digital display with operative information (blow direction, speed, meter counter, compressed

air pressure)

•Drive belt protection screens

•Cable diameters: 1,2 ÷ 10 mm

•Minitubes diameters: 5 ÷ 16 mm

Figure 2: Lady –External dimensions.

Do not use electric screwdriver at a higher speed of 550 rpm/min.

Do not use drilling machine to operate the machine.

FIBERNET SRL

Sede Operativa: Via degli Olmetti,18 –00060 Formello (RM) - Italia

Capitale € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

2.1. PRODUCT CONFIGURATION

To ensure greater sturdiness and reliability, the device is made of only two anticorodal aluminum bodies

designed to contain all the mechanic and the electronic parts required for a proper functioning.

Below listed the main blowing machine constituent parts (Figure 3.)

Figure 3: list of parts.

Number

Elements’ name

Air lid

LCD Display

Cable entry adapter fixing lever

Cable entry

4.a

Upper cable entry adapter

4.b

Lower cable entry adapter

Meter counter wheel opening

knob

Drive belts pressure regulation

knob

Compressed air connector

Electric screwdriver connector

USB plug

Adjustable pin

Minitube adapter kit

11.a

Upper minitube adapter

11.b

Lower minitube adapter

11.c

Minitube fixing adapter

Minitube fixing clamp

Cable adapter kit

13.a

Upper cable adapter

13.b

Lower cable adapter

FIBERNET SRL

Headquarters: Via degli Olmetti,18 –00060 Formello (RM) - Italy

Share Capital € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

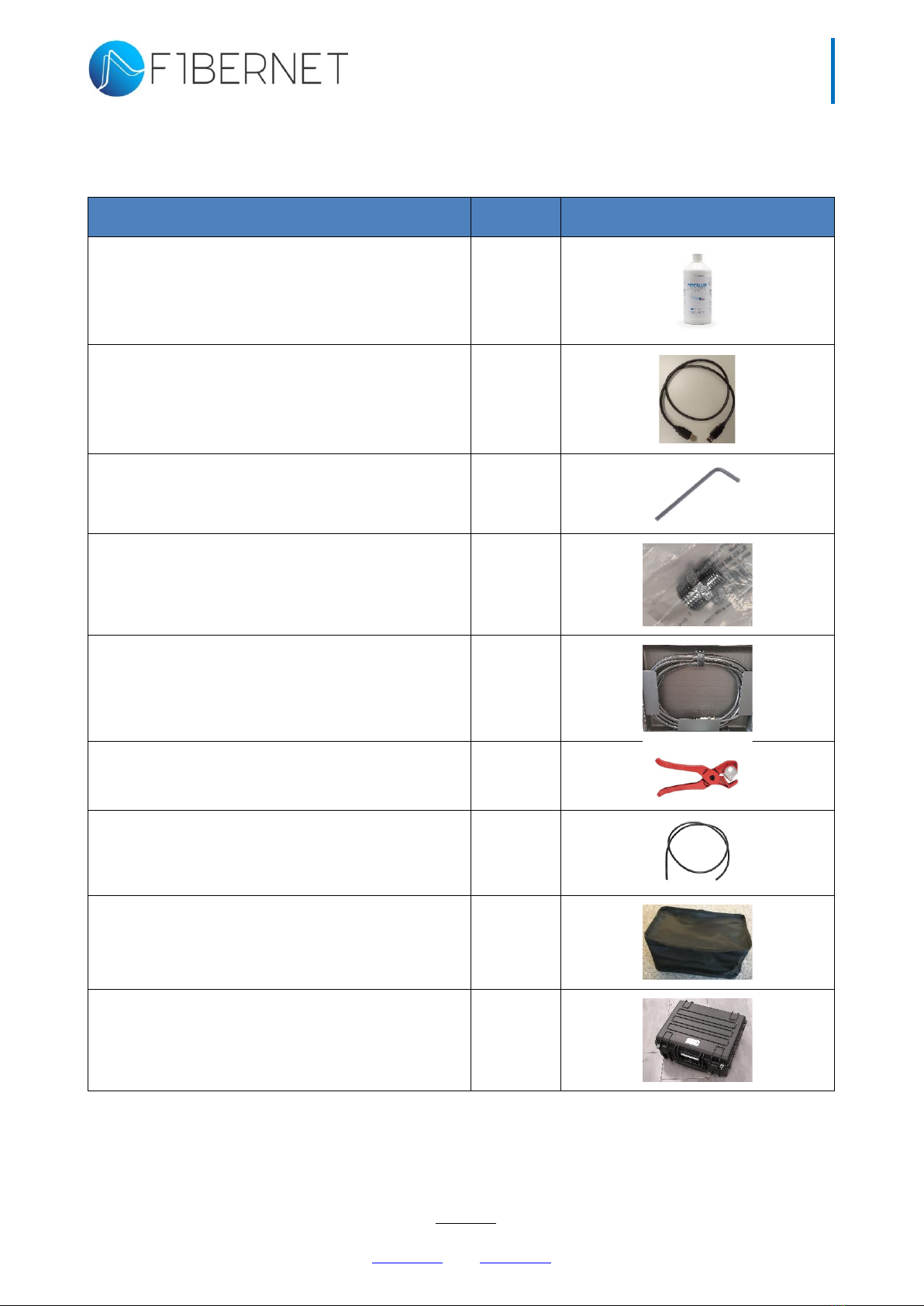

2.2. ACCESSORY KIT

The device is provided with the following accessories:

Description

Quantity

Pictures

Lubricant for minitubes

1 L

USB cable

3 mm and 8 mm hex wrenches

½” to 3/8” junction

Air hose

Microduct cutter

Linear gasket Ø 3 mm

0,5 m

Utensil bag

Waterproof polipropylene case

FIBERNET SRL

Sede Operativa: Via degli Olmetti,18 –00060 Formello (RM) - Italia

Capitale € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

Adapters kit:

Description

Quantity

Pictures

Duct adapters kit at customer’s choice (included in

Lady’s price)

1+1+1

5 mm duct gasket

7 mm duct gasket

8 mm duct gasket

10 mm duct gasket

12 mm duct gasket

14 mm duct gasket

16 mm duct gasket

1 Set

Cable adapters at customer’s choice

(included in Lady’s price)

1+1

1-10 mm cable gasket

1 Set

Cable entry adapters

1+1

Other adapters kits are to be required separately

See “Accessories list & spare parts”

Table 1: accessories kit.

FIBERNET SRL

Headquarters: Via degli Olmetti,18 –00060 Formello (RM) - Italy

Share Capital € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

3. OPERATING INSTRUCTION

Listed below procedures to follow for a proper machine use.

They are devided in:

•3.1 Preliminary operations

•3.2 Posing procedure without compressed air

•3.3 Posing procedure with compressed air

•3.4 Cable posing

•3.5 Cable posing in an intermediate stop

3.1. PRELIMINARY OPERATIONS

Before getting started it is recommended to verify that the minitube is clean and dry in the inside

(for this purpose we recommend to use compressed air inside the tube to eliminate any solid or liquid

residues).

To ease the blowing operation, use the lubricant (provided among the accessories kit) following the

amounts listed in Table 2 shown below:

internal diameter of minitube [mm]

Lubricant approximate quantity per 1000 m

Volume [ml]

Minitube filling height [cm]

78 ÷ 82

35 ÷ 38

29 ÷ 32

24 ÷ 26

Table 2: correspondence between minitube diameter and lubricant quantity

Figure 4: minitube lubricant filling example.

Rubber foam

Minitube filling amount

➢Insert inside the minitube a small piece of rubber foam

(length 1 cm);

➢pour the recommended amount of lubricant depending

on the minitube diameter

➢Insert a second piece of rubber foam (length 1 cm);

➢Use compressed air to move the foams inside the tube

and lubricate it

➢utilizzare l’aria compressa per far scorrere il sistema

all’interno del tubo.

FIBERNET SRL

Sede Operativa: Via degli Olmetti,18 –00060 Formello (RM) - Italia

Capitale € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039, +39 06 90400349 –Fax +39 06 90409266

www.fibernet.it; E mail: info@fibernet.it

USER MANUAL

LADY

3.2. POSING PROCEDURE WITHOUT COMPRESSED AIR

To blow short length cables, the mechanical drive belts will be sufficient. Cable flow will be easier if

the path doesn’t have curves. To reduce friction, obtain better performances and reach greater

distances, however, it is recommended to use compressed air.

3.2.1. CABLE AND DUCT POSITIONING

Procedure to connect the minitube to the machine:

a. Lift the “minitube fixing clamp” (12) and the “air lid” (1). Set the minitube onto the “lower minitube

adapter”(11.b) making sure that it is properly inserted till the end.

Figure 5: minitube proper positioning.

b. Close the “minitube fixing adapter”(11.c) using the “minitube fixing clamp” (12).

Figure 6: closing the minitube fixing clamp

Minitube

stop

Minitube

stop
