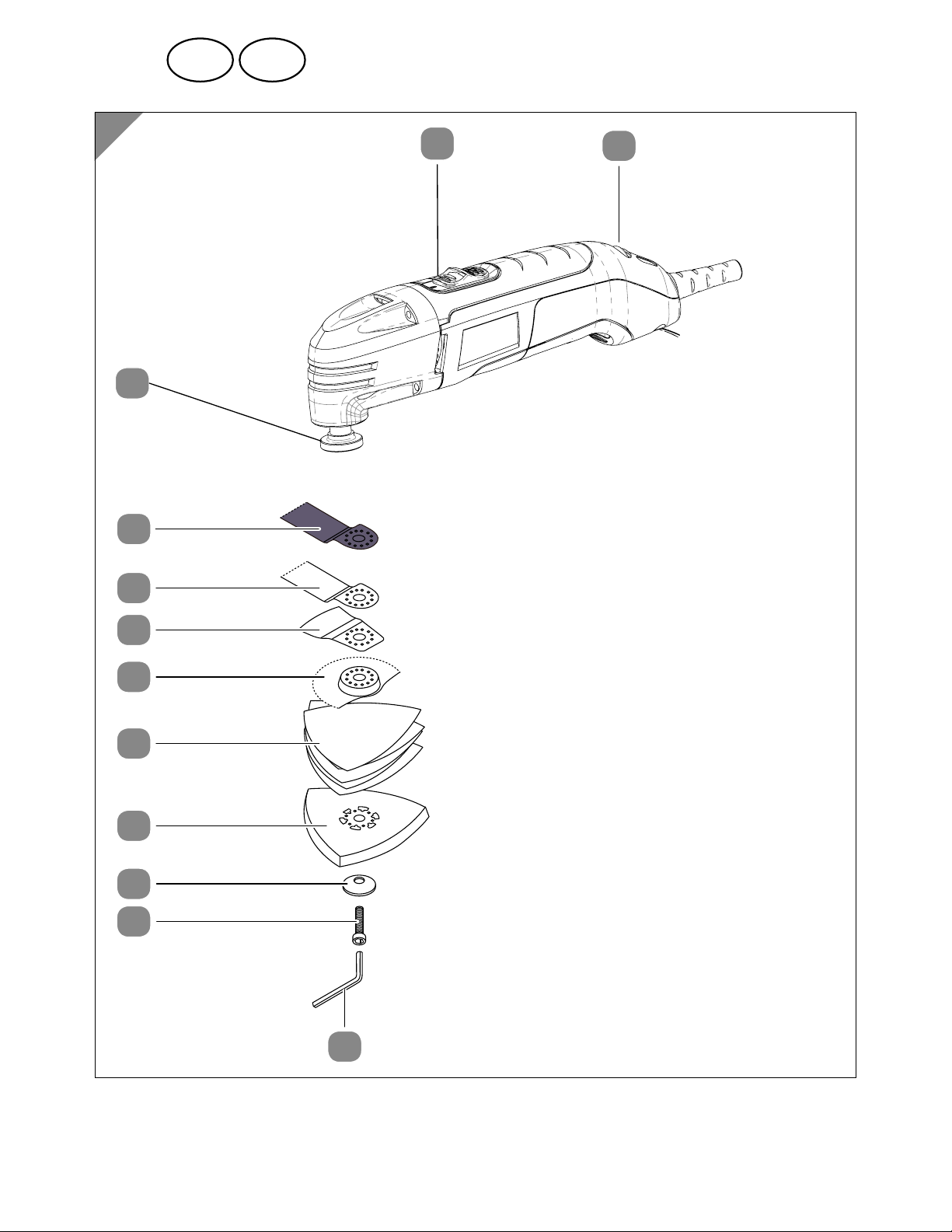

Pack contents⁄device parts

1On/Off switch

Speed control

Holder

Allen wrench

Allen head screw

10 Washer

Sanding plate

Sanding sheet, 9x (various grain sizes)

Segment saw blade

Scraper

Plunge-cut saw blade for metal

Plunge-cut saw blade for wood

General information

300W multifunction-tool

GB IRE

General information

Reading and storing the user manual

This user manual accompanies this 300W multifunction-tool. It contains

important information on start-up and handling.

For improved readability, the 300W multifunction-tool will be referred to

only as the “multifunction-tool” below.

Before using the multifunction-tool, read the user manual carefully. This particularly

applies to the safety notes. Failure to heed this user manual may result in severe injury

or damage to the multifunction-tool.

The user manual is based on the standards and rules in force in the European Union.

When abroad, you must also observe country-speciﬁc guidelines and laws.

Store the user manual for future use. Make sure to include this user manual when

passing the multifunction-tool on to third parties.

Explanation of symbols

The following symbols and signal words are used in this user manual, on the

multifunction-tool or on the packaging.

WARNING! This signal symbol/word designates a hazard with

moderate risk, which may result in death or severe

injury if not avoided.

CAUTION! This signal symbol/word designates a hazard with

low risk that, if not avoided, may result in minor or

moderate injury.

NOTICE! This signal word warns against potential damages to

property.

Declaration of conformity (see chapter “Declaration of conformity”):

Products marked with this symbol meet all applicable Community

regulations for the European Economic Area.

Wear protective goggles.

www.coreservice.co.uk

AFTER SALES SUPPORT

IRE

GB 01904 727506 01247 5150

Safety 300W multifunction-tool

GB IRE

Wear a dust mask.

Wear ear protection.

Wear suitable protective gloves.

Read the user manual!

The multifunction-tool complies with protection class II.

Safety

Proper use

The multifunction-tool is only designed for private users in connection with hobby

and DIY projects for the following purposes:

•sawing, cutting, scraping and sanding various materials in hard-to-reach

areas.

Any other applications are expressly prohibited and are deemed improper use.

Neither the manufacturer nor the retailer can accept any responsibility for injury,

loss or damage caused by misuse of this product of any kind.Examples of misuse are

given in the following non-exhaustive list:

•Using the multifunction-tool for other than the intended purposes;

•Failure to observe the safety instructions and warnings as well as the

assembly, operating, maintenance and cleaning instructions contained in this

user manual;

•Failure to comply with any regulations relating to accident prevention,

occupational medicine or safety, which speciﬁcally and/or generally apply to

the use of this multifunction-tool;

•Use of accessories and spare parts not intended for the multifunction-tool;

•Modiﬁcations to the multifunction-tool;

•Repairs of the multifunction-tool performed by parties other than the

manufacturer or a qualiﬁed professional;

www.coreservice.co.uk

AFTER SALES SUPPORT

IRE

GB 01904 727506 01247 5150

Safety

300W multifunction-tool

GB IRE

•Use of the multifunction-tool for commercial or industrial applications as well

as in connection with the trades;

•Operation or maintenance of the multifunction-tool by persons not familiar

with how to handle the multifunction-tool and/or who are not aware of the

related risks.

Residual risks

Despite proper use, inconspicuous residual risks cannot be completely ruled out.

The following risks may arise due to the nature of the multifunction-tool:

•Projection of parts or breakage of the sanding surface, the ﬁtted tool or the material

being processed pose a risk of severe injury or blindness if the prescribed protective

goggles are not worn,

•Contact with sharp or hot parts of the work piece or the ﬁtted tool during operation

or while performing maintenance,

•Damage to hearing if the prescribed hear prr otection is not worn,

•Inhalation of particles produced whilst sanding the material as well as the surface

being sanded or polished.

General power tool safety instructions

WARNING Read all safety instructions and instructions.

Failure to follow the safety instructions and instructions may result in an

electric shock, ﬁre and/or severe injury.

The term “power tool” used in the safety instructions refers to mains-operated

power tools (with a power cable) and battery-powered power tools (cordless).

Work area safety

a) Keep your work area clean and well lit.

Cluttered or dark areas invite

accidents.

b) Do not operate power tools in explosive atmospheres, such as in the

presence of ﬂammable liquids, gases or dust.

Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

www.coreservice.co.uk

AFTER SALES SUPPORT

IRE

GB 01904 727506 01247 5150

Safety 300W multifunction-tool

GB IRE

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any

way. Do not use any adapter plugs with earthed (grounded) power

tools.

Unmodiﬁed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes,

radiators, ranges and refrigerators.

There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a

power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp

edges or moving parts.

Damaged or entangled cords increase the risk of

electric shock.

e) When operating a power tool outdoors, use an extension cord suitable

for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of

electric shock.

f) If operating a power tool in a damp location is unavoidable, use a

residual current device (RCD) protected supply.

Use of an RCD reduces

the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired

or under the inﬂuence of drugs, alcohol or medication.

A moment of

inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat,

or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position

before connecting to power source and/or battery pack, picking up or

carrying the tool.

Carrying power tools with your ﬁnger on the switch or

energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result

in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

www.coreservice.co.uk

AFTER SALES SUPPORT

IRE

GB 01904 727506 01247 5150

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts.

Safety

300W multifunction-tool

GB IRE

g) If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your

application.

The correct power tool will do the job better and safer at the

rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and

must be repaired.

c) Disconnect the plug from the power source and/or remove the battery

pack, if detachable, from the power tool before making any adjustments,

changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to operate

the power tool.

Power tools are dangerous in the hands of untrained users.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and ﬁtted tools etc. in accordance with

these instructions, taking into account the working conditions and the

work to be performed.

Use of the power tool for operations different from

those intended could result in a hazardous situation.

www.coreservice.co.uk

AFTER SALES SUPPORT

IRE

GB 01904 727506 01247 5150

h) Do not let familiarity gained from frequent use of tools allow you to

become complacent and ignore tool safety principles. A careless action

can cause severe injury within a fraction of a second.

e) Maintain power tools and accessories. Check for misalignment or

binding of moving parts, breakage of parts and any other condition

that may affect the power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents are caused by poorly

maintained power tools.

h) Keep handles and grasping surfaces dry, clean and free from oil and

grease. Slippery handles and grasping surfaces do not allow for safe

handling and control of the tool in unexpected situations.

Service

a) Have your power tool serviced by a qualiﬁed repair person using only

identical replacement parts.

Table des matières

Autres manuels FERREX Outils électriques

FERREX

FERREX FM300 Manuel utilisateur

FERREX

FERREX Z1G-DS-65H Fiche d'information produit

FERREX

FERREX DC-180E-1 Manuel utilisateur

FERREX

FERREX FAPS 20-I Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
