SMARTFLOW INSTALLATION GUIDE
INSTALLATION GUIDE
TATE
Digital Thermostatic Shower Mixer
2
FELTON
3
SMARTFLOW INSTALLATION GUIDE
Control Unit Installation 7
Measurements 5
Tools Required 4
Notice 4
Scope of Application 6
Digital Mixer Installation 11
Operational Test 17
CONTENTS
Connecting the Flow Controller 14
Troubleshooting 18
Warranty 19
4
FELTON
WATER PATH
Input 2 × M10 × 1
Output 1/2˝ BSP
Flow max. 22 l/min at 300kPa
Pressure range Min 150kPa - Max 500kPa
Dierence of pressure Max. 100kPa/14.5psi
Maximum outlet temperature 45°C
Hot inlet temp range 55°C - 85°C
Cold inlet temp range 5°C - 25°C
ELECTRONICS
Power supply 100V-240V AC/50-60Hz
Power consumption Standby <0.5 W, max. 18W
PLEASE READ THE MANUAL CAREFULLY BEFORE STARTING THE INSTALLATION. AFTER COMMISSIONING AND TESTING THE
SYSTEMS FUNCTIONALITY, THIS DOCUMENT MUST BE GIVEN TO THE END USER OF THE SYSTEM.
PRODUCT TO BE DISCONNECTED BEFORE LINE TEST
In case of a power cut, the unit will remain inactive until the power is back on.
GENERAL
This installation manual contains instructions for the correct installation of the Tate Digital Controller. The warranty will be invalidated
if the product is not installed according to these instructions.
Installation must be carried out by qualified installers in accordance to this installation manual. AS/NZS3500 standards, rules and safety
regulations do apply.
PLACE OF INSTALLATION
The Tate Digital Controller must be installed in an accessible place and in accordance to this installation manual. This ensures a
problem-free service and maintenance procedure.
NOTICE
TOOLS REQUIRED
7. Drill
4. Torx screwdriver
(included in box 1)
3. Phillips screwdriver
2. Drill bit ø 5mm
1. Pencil
5. ø 30mm hole saw
8. Spirit level6. Utility knife
DANGER OF ELECTRIC SHOCK!
ELECTRICAL INSTALLATION
Before opening the housing, the mains connection must be switched o. Work on electrical parts and connections must be
carried out by qualified electrician. Country-specific standards and regulations do apply.
PRECAUTIONS
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. This appliance contains battery that are only replaceable by skilled persons.
5. An electronic copy of the installation and user guides are available on the Felton website – please visit www.felton.co.nz
MAINTENANCE
Felton products are made of high quality materials and require only minimal maintenance. The following maintenance tips help to preserve the
surface and prevent damage through incorrect cleaning. Fittings and control parts should be wiped dry after used. Only use mild cleaning products
that contain soap. The following must not be used: Scourers, abrasive sponges, hydrochloric acid, lime, plaster or cement removers, solutions or
cleaning agents containing acid (pH ≤ 4), lime scale remover or vinegar-based cleaner – and cleaning agents where the chemical solution is not
known which may be sold as special cleaner for fittings.
5
SMARTFLOW INSTALLATION GUIDE
BOX 1
DIGITAL MIXER
BOX 2
CONTROL UNIT
1. Control Mounting Tube
4. Cable Tie
5. Control Sleeve
8. Foam Seal
6. Control Wheel
7. Control Housing
2. Screw
MEASUREMENTS
155mm
55mm
115mm
1. Temperature Control Unit
4. Set of Screws: 2x 5x50mm
2. 12V AC Adaptor (Cable length: 1m)
*3. Flow Control Unit
*Supplied with Shower Mixer or
available as an optional purchase
5. Adaptor set 6. 2x M10 Hose 450mm (supplied)
3. Control Data Cable 10m
6
FELTON
Warning: Please ensure that all electrical
installations are installed by a registered
electrician and complies with the Electrical
(Safety) Regulations of NZ.
Important: The Digital Mixer must have an
access panel.
SCOPE OF APPLICATION
A Ceiling Mounted (Recommended)
B Wall Mounted
Important: The Digital Mixer must
be accessible and should not be
sealed in the wall
Control Unit
Digital Mixer
Cable length
10m max.
Handset
outlet
Cold in
Hot in
Access
panel
Pipework in
Control cable
Pipework out
Note: The Control
Wheel can be fitted
anywhere in the
showering area.
Digital Mixer
Cable length
10m max. Handset
outlet
Pipework in
Control cable
Pipework out
Control Unit
Cold inHot in
Note: The Control
Wheel can be fitted
anywhere in the
showering area.
Note: The Digital
Mixer must not be
fitted upside down.
Wire and Data Cable
must be installed prior
to the wall lining.
It is recommended
that the Data Cable is
installed in conduit for
ease of maintenance.
Wire and Data Cable
must be installed prior
to the wall lining.
It is recommended
that the Data Cable is
installed in conduit for
ease of maintenance.
7
SMARTFLOW INSTALLATION GUIDE
1
CONTROL UNIT INSTALLATION
2
Fig. 2
Tightening lugs
Cutting slot
75mm
Min.
55mm
1 - 18mm
Wall
Mounting tube
ø 30mm
Please note: The Data Cable is 10 metres in length and therefore the Control Unit and Digital
Unit need to be positioned accordingly within this distance. It is recommended that the Data
Cable is installed in conduit for ease of maintenance. The Control Tube can be reduced in
length if required by cutting along the cutting slot (see Fig. 2).
Prepare a Ø30mm hole in the
finished wall, deck or counter/
vanity. Position the drill/hole
saw where the Control Unit is
to be located.
Conduit
Data Cable
Cut Position
Drill
Hole
saw
Data Cable must be
installed prior to the
wall lining.
It is recommended
that the Data Cable is
installed in conduit for
ease of maintenance.
*This Control Unit can also be installed as a Wall Mounted unit or a Deck Mounted unit
8
FELTON
3
4
Using the Data Cable, thread the end with the small connector through the hole and Control
Mounting Tube. This end of the cable is protected with a plastic sleeve, leave this on until later
in the installation.
Control Mounting Tube
Data Cable
Push the Control Mounting
Tube into the hole until the
front flange sits against the
wall.
Apply a silicone bead on the
back of the Control Housing,
then push the Control Housing
into the Plastic Tube until it is
firmly fitted on the unit.
Foam Seal
Control Housing
CLICK
9
SMARTFLOW INSTALLATION GUIDE
5
Tighten the screw inside the
Control Housing and ensure the
screw is aligned with the Plastic
Mounting Tube.
This tightens the lugs on the
inside of the wall. Tighten until
there is no rotation of the
Control Housing.
6
7
Pull the red strip to release
the connector from the plastic
sleeve.
Push the four pin connector
into the socket on the back of
the Control Wheel.
Control Wheel
Data Cable
10
FELTON

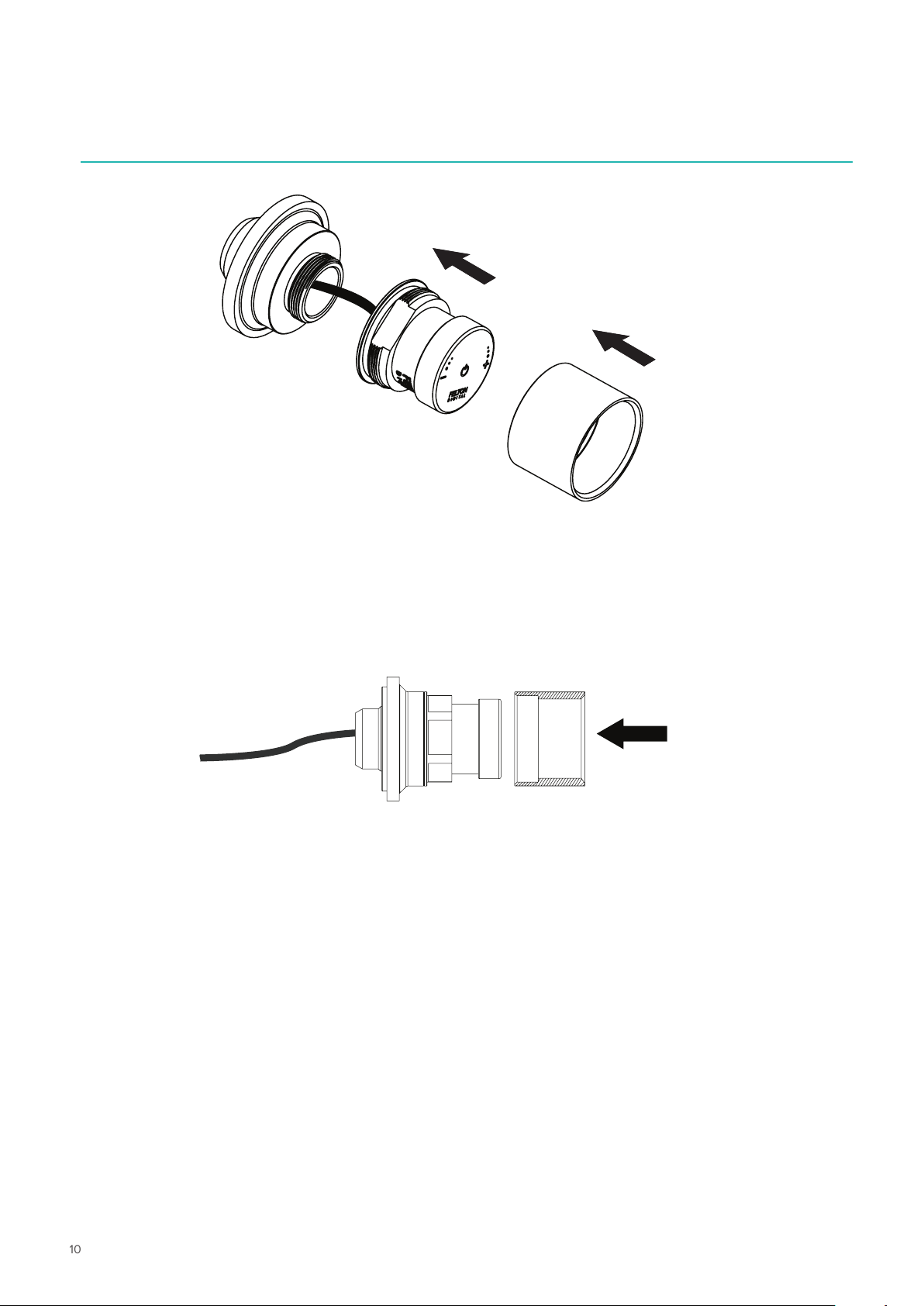

8
Thread in the cable and fit the Control Wheel onto the Housing.
Fit the Control Sleeve onto the Control Wheel.
Ensure that you fit the Control Sleeve in the correct orientation.
SIDE VIEW
