Fein GHB 15-50 Guide de configuration
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
Repair instructions
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 1of 40
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
Contents
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 2of 40
1. Models described
2. Technical data
3. Notes and requirements
4. Tools required
5. Lubricants and auxiliary substances required
6. Removal
7. Fitting
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
1. Models described
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 3of 40
These repair instructions describe how to repair the following models:
Model Order number
GHB 15-50 7 903 01 .. .. .
GHB 15-50 Inox 7 903 02 .. .. .
GHB 15-50 (A) 7 903 21 .. .. .
GHB 15-50 Inox (A) 7 903 22 .. .. .
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
2. Technical data
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 4of 40
Technical data
All the technical data can be found in the operating instructions for the model.
Tests
Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides).
Lubricants / Auxiliary substances
The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet
(Customer Service → Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
3. Notes and requirements
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 5of 40
Please note
These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and
electrical training.
Only use original FEIN spare parts.
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in
serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when
commissioning.
The German Equipment and Product Safety Act [ProdSG] applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed.
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
4. Tools required
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 6of 40
Standard tools
Socket head wrenches 2.5 mm; 3 mm; 4 mm; 5 mm; 6 mm
Open-ended spanners 10 mm; 13 mm; 14 mm
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
5. Lubricants and auxiliary substances required
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 7of 40
Auxiliary substances
Thread-locking fluid medium
strength e.g. Loctite 243
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
6. Removal
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 8of 40

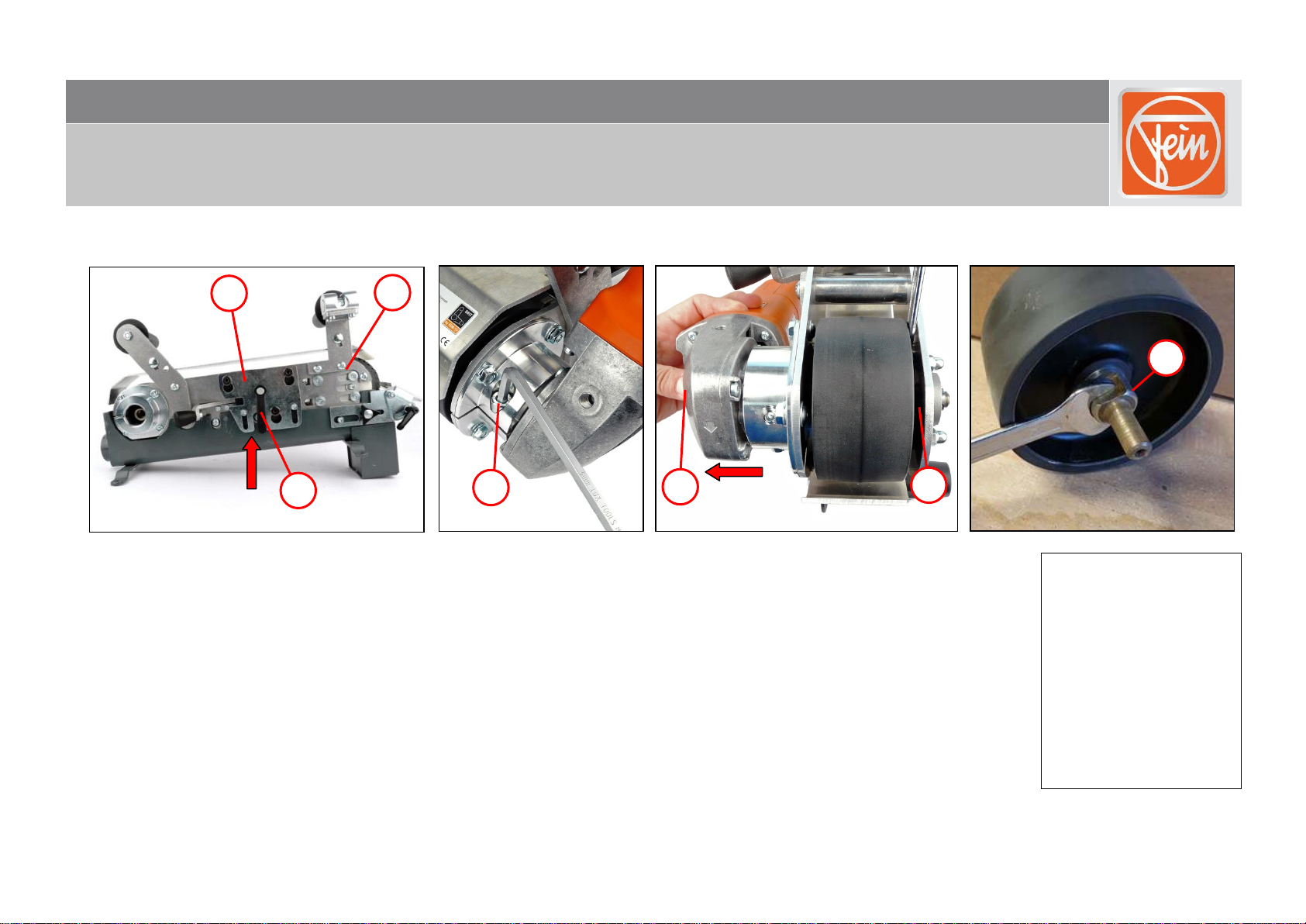

Removing the drive unit
1. Remove the grinding belt.
2. Unscrew the lever (1).
3. Slide the plate (2) in the direction of the arrow.
4. Take the belt grinder (3) out of the holder.
5. Unscrew the screw (4).
6. Press and hold the lock (5).
7. Turn the drive wheel using the spanner flat (6).
8. Remove the motor.
See repair instructions WSG 15 for a guide to repairing the motor.
Tools:
- Socket head wrench
6 mm
- Open-ended spanner
14 mm
6
5
6
4
2
1
3
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
6. Removal
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 9of 40
Removing the holder
1. Unscrew the two screws (1).
2. Unscrew the screw (2) and remove the holder.
3. Unscrew the screw (3).
4. Unscrew the handle (4).
5. Remove the spark box (5).
Tools:
- Socket head wrench
5 mm
1
2
3
4
5
GHB 15-50; GHB 15-50 Inox; GHB 15-50 (A); GHB 15-50 Inox (A)
6. Removal
C-SC_CSSM
Version 1.0
2016-06-03
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 40
Removing the holder
1. Unscrew the two screws (1) on each base frame.
2. Remove each base frame (2). Tools:
- Socket head wrench
5 mm
1
2
