Fein ASW 10-6 Guide de configuration
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 1/40
ASW 10-6, 10-10, 14-14
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 2/40
1. Models described
2. Technical data
3. Provisions
4. Tools required
5. Lubricants and auxiliary substances required
6. Disassembly
7. Assembly
8. Connection diagram
Contents
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 3/40
These instructions describe how to repair the following models:
Model Order no.
ASW 10-6 711240
ASW 10-6-2ST 711241
ASW 10-10 711242
ASW 10-10-2ST 711243
ASW 10-10-250 711244
ASW 14-14 711245
1. Models described
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 4/40
2. Technical data
Technical data
The complete technical data can be found in the operating instructions for the model.
Test data
Up-to-date test data for all models can be found on the FEIN Extranet.
Lubricants
Lubricants and container sizes available from FEIN can be found on the FEIN Extranet.
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 5/40
3. Provisions
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained
electrician, as improper repair can result in serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
Only use original FEIN spare parts!
The relevant accident prevention regulations of the employers’ liability insurance associations are
to be observed when commissioning.
The German Equipment and Product SafetyAct applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed!
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 6/40
4. Tools required
Standard tools
Torx 10 and 15 screwdrivers
Small slotted screwdriver
Cable hooks
Circlip pliers
Circlip pliers (ground)
Open-ended spanner 26 mm
Flat-nose pliers
Feeler gauge
Special tools
Torque wrench (supplied)
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 7/40
5. Lubricants and auxiliary substances required
Lubricants
Grease 0 40 123 01000 3.5 g
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 8/40
6. Disassembly
1. Undo the retainer nut.
2. Remove angled head and take out drive.
3. Prise off the coloured ring.
Tools:
-Open-ended spanner 26 mm
- Slotted screwdriver
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 9/40
6. Disassembly

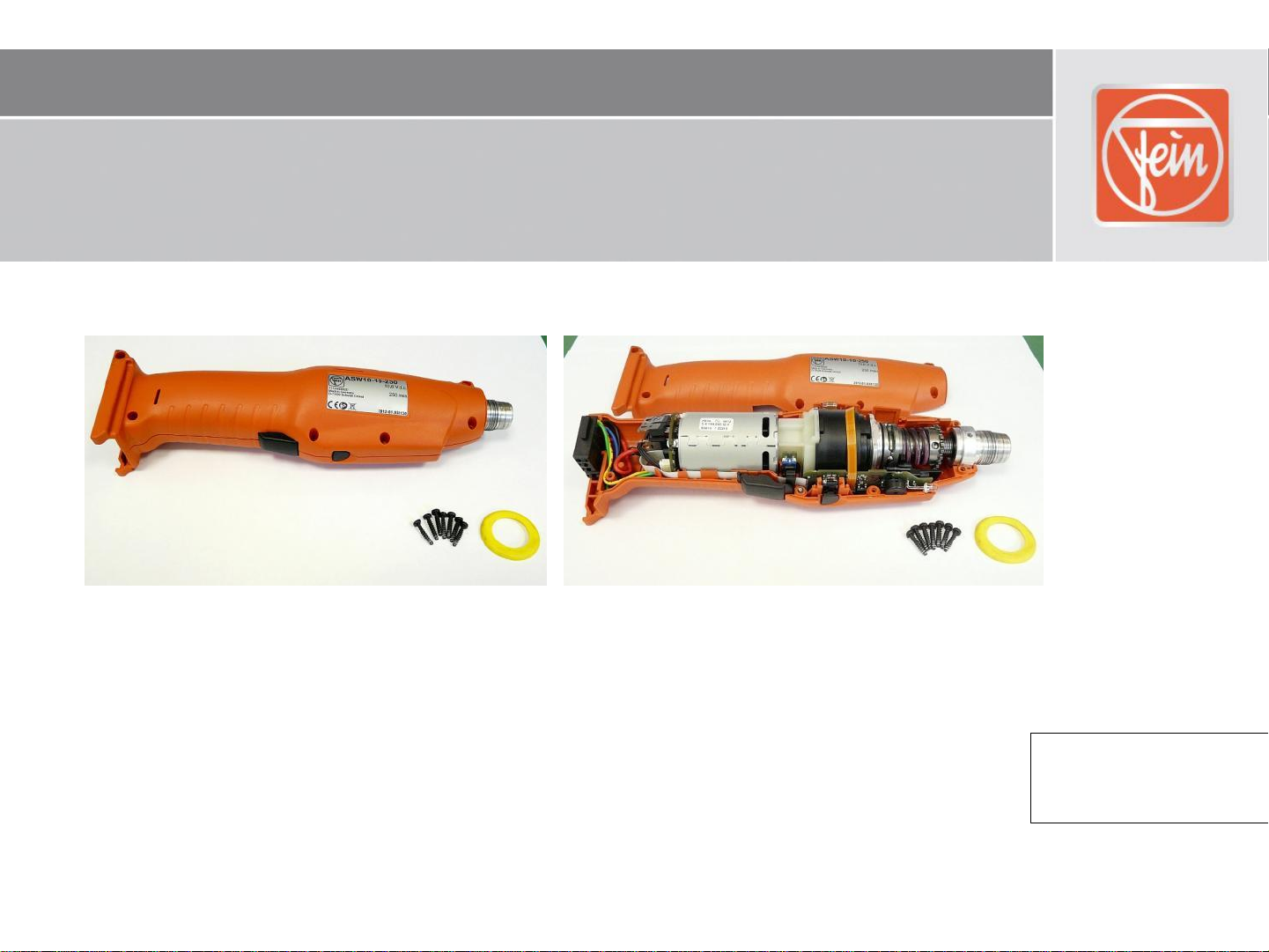

1. Loosen screws and take off upper housing section.
Tool:
-Torx 15 screwdriver
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. C-SC_CSSM 2012.07 10/40
1. Carefully remove the electronic strip.
2. Use a screwdriver to lift up the clutch slightly.
NOTE
The small spring can easily fall out when the slide switch is dismantled.
3. Remove the slide switch.
4. Remove the spring.
6. Disassembly
Tools:
-Slotted screwdriver
-Flat-nose pliers
