KBB 38 X
Repair instructions
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 1of 56
KBB 38 X
Contents
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 2of 56
1. Models described
2. Technical data
3. Notes and requirements
4. Tools required
5. Lubricants and auxiliary substances required
6. Removal
7. Fitting
8. Troubleshooting
9. Connection diagram
KBB 38 X
1. Models described
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 3of 56
These repair instructions describe how to repair the following models:
Model Order number
KBB 38 X 7 272 12 .. .. .
KBB 38 X
2. Technical data
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 4of 56
Technical data
All the technical data can be found in the operating instructions for the model.
Test data
Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service →Repair Guides).
Lubricants
The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
KBB 38 X
3. Notes and requirements
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 5of 56
Please note
These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and
electrical training.
Only use original FEIN spare parts.
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in
serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when
commissioning.
The German Equipment and Product Safety Act [ProdSG] applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed.
KBB 38 X
4. Tools required
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 6of 56
Standard tools Special tools
Arbor press Chuck cone 22 mm 6 41 07 022 00 1
Cross-tip screwdriver PH2 Chuck cone 28 mm 6 41 07 028 00 2
Socket head wrenches 2.5 mm/3 mm/4 mm/5 mm Drawing-off socket cap 6 41 04 150 00 8
Open-ended spanner WAF 10/14
Circlip pliers
Slotted screwdriver
Flat-nose pliers
Plastic hammer
Sleeve 38 mm inner diameter
25 mm outer diameter
15 mm inner diameter
40 mm outer diameter
18 mm inner diameter
35 mm outer diameter
28 mm inner diameter
KBB 38 X
4. Tools required
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 7of 56
Standard tools
Press-in bolt 10 mm diameter/25 mm diameter/28 mm diameter
Ball bearing support 22 mm
KBB 38 X
5. Lubricants and auxiliary substances required
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 8of 56
Lubricants
Grease 0 40 127 0100 0 80 g Housing
KBB 38 X
6. Removal
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 9of 56

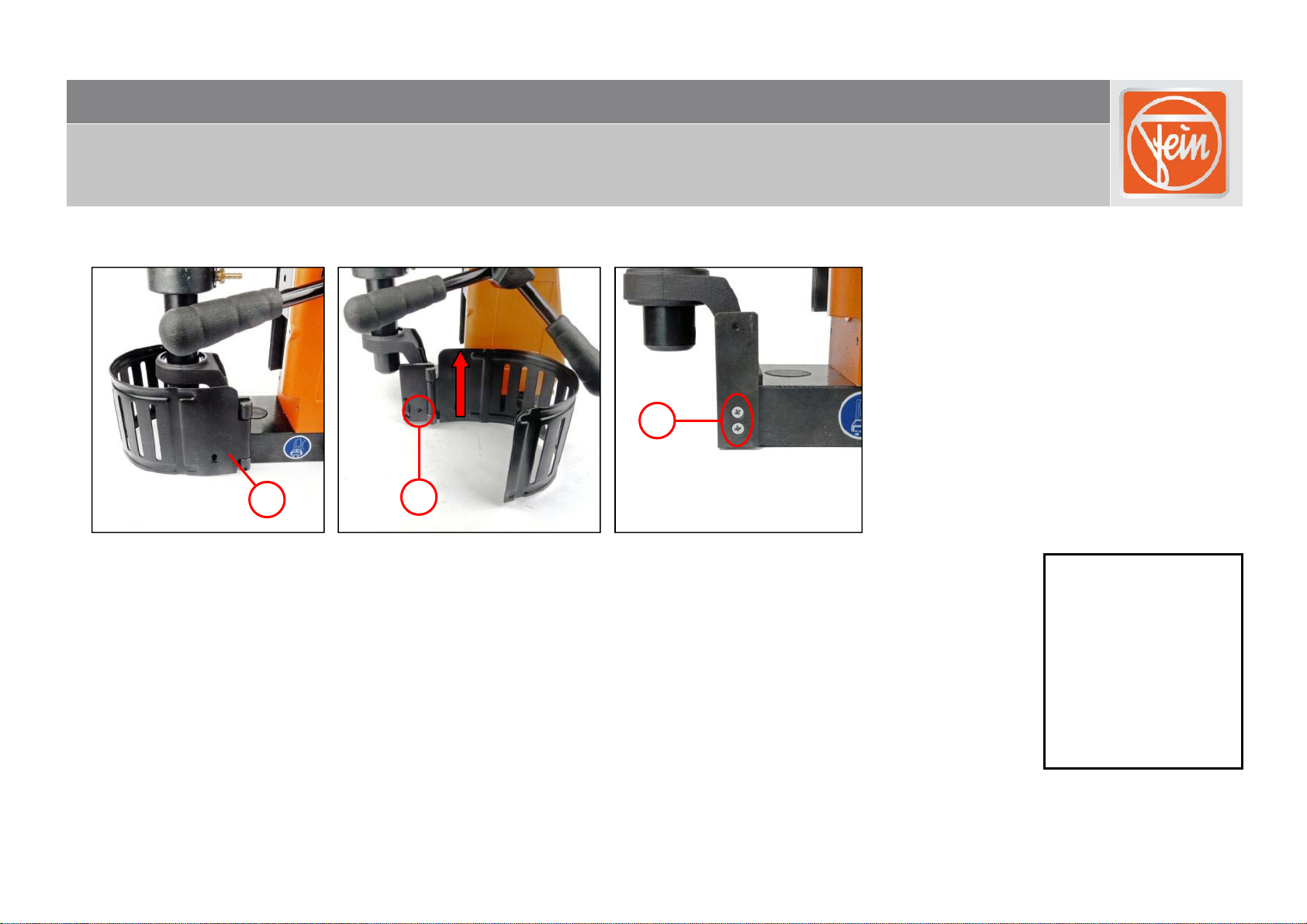

Removing the swarf guard and coolant tank
1. Open the protective grille (1).
2. Loosen the set screw (2).
3. Remove the protective grille.
4. Unscrew the two screws (3).
5. Remove the guide (4).
Tools:
- Socket head
wrench 2.5 mm
- PH2 cross-tip
screwdriver
3
1
2
KBB 38 X
6. Removal
C-SC_CSSM Version 1.0 2015-08-25 All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 56
Removing the swarf guard and coolant tank
1. Remove the hose (1).
Empty the tank and pipe first.
2. Remove the tank (2).
1
2
