Feig Electronic OBID i-scan UHF Manuel utilisateur

INSTALLATION

final – public (B

2012-08-09 – M20711-0e-ID-B.docx

ID ISC.MRU102-PoE / ID ISC.MRU102-USB

Housed Version

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 2 of 21 M20711-0e-ID-B.docx

Note

FEIG ELECTRONIC GmbH

Lange Strasse 4

D-35781 Weilburg

Tel.: +49 6471 3109-0

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be

changed without previous notice.

Copying of this document, and giving it to others and the use or communication of the contents thereof are

forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved

in the event of the grant of a patent or the registration of a utility model or design.

Composition of the information in this document has been done to the best of our knowledge. FEIG

ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this

manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,

despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC

GmbH does not give any guarantee promise for perfect function in cross environments and does not give

any guaranty for the functionality of the complete system which incorporates the subject of this document.

FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed

with components and testing methods for a level of reliability suitable for use in or in connection with surgical

implants or as critical components in any life support systems whose failure to perform can reasonably be

expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application

designer must take reasonably prudent steps to protect against system failures.

Use Exclusion in Transportation Market: Devices which are subject of this document may NOT be sold,

used, leased, offer for sale, or otherwise transferred, exported, and imported by anyone in the Transportation

Market. “Transportation Market” means (i) Electronic Toll and Traffic Management (ETTM), (ii) Public Sector

Vehicle Registration, Inspection and Licensing Programs, (iii) Railroad Locomotive and Wagon tracking, (iv)

airport based ground transportation management systems (GTMS) and taxi dispatch, (v) revenue based

parking, and (vi) vehicle initiated mobile payment applications, where the RFID sticker/tag is initially attached

to the vehicle but not incorporated at the point of vehicle manufacture.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-

ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does

not convey any license under its patent rights nor the rights of others.

OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 3 of 21 M20711-0e-ID-B.docx

General information's regarding this document

•The sign "" indicates extensions or changes of this manual compared with the former issue.

•If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or

for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this

may cause faulty operation of the reader.

•The following figure formats are used:

0...9: for decimal figures

0x00...0xFF: for hexadecimal figures,

b0...1 for binary figures.

•The hexadecimal value in brackets "[ ]" marks a control byte (command).

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 4 of 21 M20711-0e-ID-B.docx

Contents

1. Safety Instructions / Warning - Read before start-up ! 6

2. Performance Features of the Reader 7

2.1. Available Reader Types ....................................................................................................7

2.2. Optional Accessories........................................................................................................7

3. Assembly and Wiring 8

3.1. Housed Versions...............................................................................................................8

3.1.1. Dimensions..................................................................................................................8

4. Connections 9

4.1. Antenna Terminal ANT1..................................................................................................10

4.2. Internal Antenna ANT4....................................................................................................10

4.3. Power Supply...................................................................................................................11

4.3.1. Power Supply via X1..................................................................................................11

4.3.2. Power Supply via Power over Ethernet (PoE)............................................................12

4.4. Ethernet-Interface on X4 (10/100Tbase).........................................................................13

4.5. USB-Interface on X3 (Host Communication) .................................................................14

5. Control and Display Elements 15

5.1. LED...................................................................................................................................15

6. Technical Data 16

7. Radio Approvals 18

7.1. Europe (CE)......................................................................................................................18

7.2. Declaration of Conformity...............................................................................................19

ANNEX 20

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 5 of 21 M20711-0e-ID-B.docx

ANNEX A - Accessories.........................................................................................................20

ANNEX B – Wall Mounting Kit ID ISC.MS.MR/PR-A..............................................................21

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 6 of 21 M20711-0e-ID-B.docx

1. Safety Instructions / Warning - Read before start-up !

•The device may only be used for the intended purpose designed by for the manufacturer.

•The operation manual should be conveniently kept available at all times for each user.

•Unauthorized changes and the use of spare parts and additional devices which have not been

sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such

unauthorized measures shall exclude any liability by the manufacturer.

•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid

for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,

or omissions in the manual or automatically set parameters for a device or for an incorrect

application of a device.

•Repairs may only be executed by the manufacturer.

•Installation, operation, and maintenance procedures should only be carried out by qualified

personnel.

•Use of the device and its installation must be in accordance with national legal requirements

and local electrical codes .

•When working on devices the valid safety regulations must be observed.

•Special advice for carriers of cardiac pacemakers:

Although this device doesn't exceed the valid limits for electromagnetic fields you should keep

a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in

an immediate proximity of the device respective the antenna for some time.

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 7 of 21 M20711-0e-ID-B.docx

2. Performance Features of the Reader

The Reader ID ISC.MRU102 is designed for reading of passive data carriers, so-called „Smart La-

bels“ at an operating frequency in the UHF band between 860 MHz and 960 MHz. Transponders

according to EPC Class1 Gen2 are supported. Optional an Upgrade Code for the reading of ISO

18000-6-C transponders is available. The reader is designed for application with small tag popula-

tion.

The reader is equipped with 1 SMA connector for conduction of an external antenna (ANT1). Addi-

tional an integrated antenna (ANT4) is available.

The reader is designed for use in applications with small tag populations. Maximum 10 tags at the

same time into the antenna field can be processed.

The reader is available in two different versions. Depending on the used version a connection to

the Host-System can either be made via the USB or the Ethernet Interface.

2.1. Available Reader Types

The following reader types are currently available:

Reader type Description

ID ISC.MRU102-PoE Housed version with LAN Interface and Power over Ethernet (PoE)

ID ISC.MRU102-USB Housed version with USB Interface

Table 1: Reader types

2.2. Optional Accessories

Optional Accessories are listed in the appendix.

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 8 of 21 M20711-0e-ID-B.docx

3. Assembly and Wiring

3.1. Housed Versions

The Reader is designed for an office environment. It can be wall-mounted, in this case the wall-

mount kit should be ordered separately.

(see Appendix:ANNEX A1 – Wall Mounting Kit ID ISC.MS.MR/PR-A)

NOTE:

Before any installation the intended position of the reader should be tested for its suitabili-

ty.

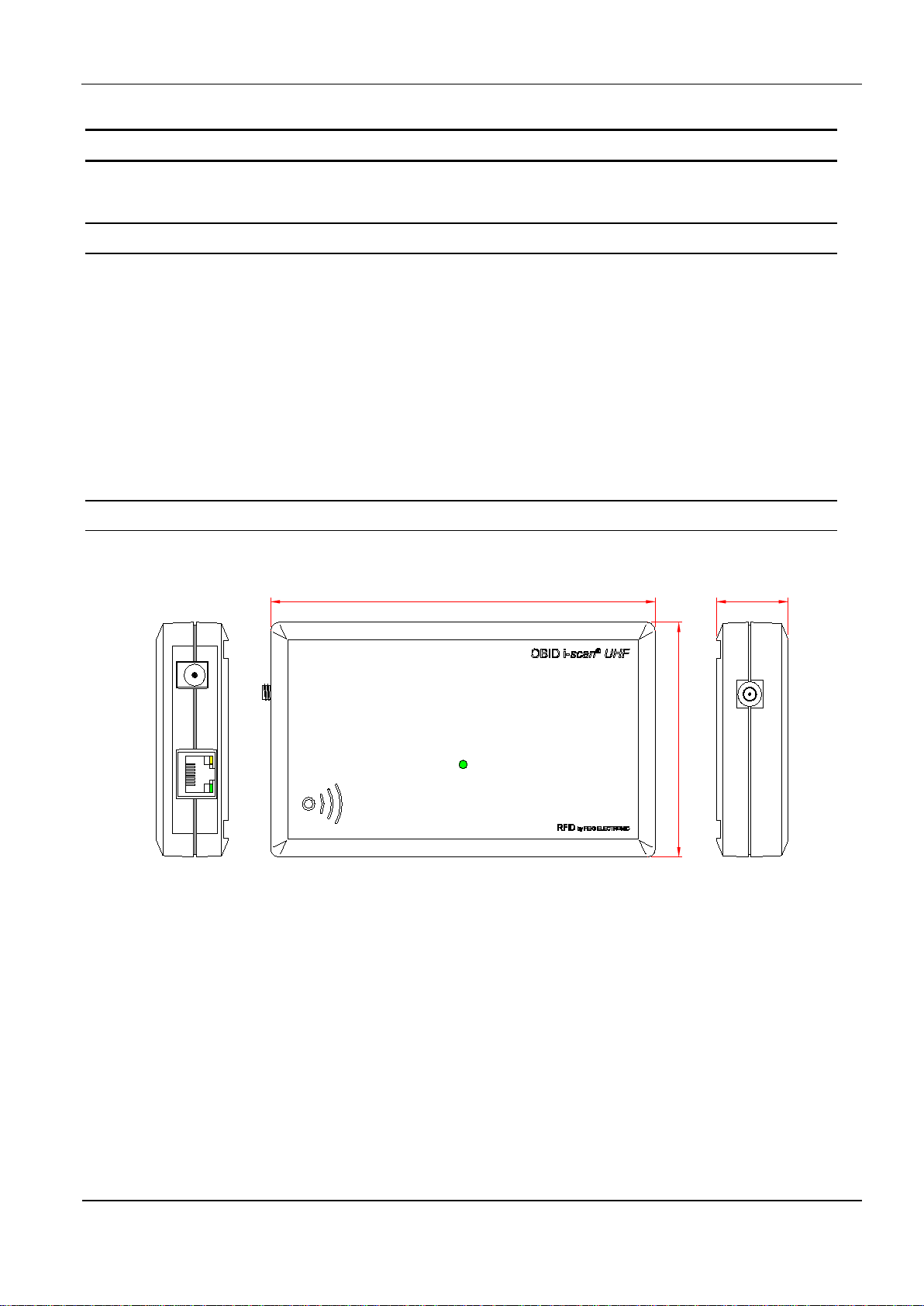

3.1.1. Dimensions

145

LED

Figure 1: Dimensions of the housing version (all dimensions are in mm)

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 9 of 21 M20711-0e-ID-B.docx

4. Connections

Depending on the reader variant different connectors are available. Figure 2: Connection overview

displays the arrangement and the Table 2: Connectors shows which connector can be used for the

different interface cable.

Figure 2: Connection overview

Connector Description

ANT 1 Antenna Terminal ANT1 (Impedance 50Ohm)

X1 Power supply 12 - 24VDC

X3 USB Interface

X4 10/100Tbase Ethernet interface with RJ-45 (PoE)

Table 2: Connectors

OBID

i-scan

UHF

Installation

ID ISC.MRU102-PoE/-USB

FEIG ELECTRONIC GmbH Page 10 of 21 M20711-0e-ID-B.docx

4.1. Antenna Terminal ANT1

A SMA socket (ANT1) is provided on the circuit board for connecting the external antenna. The

maximum tightening torque for the SMA socket is 0.45 Nm.

CAUTION:

Higher tightening torque will damage the connector.

Terminal Description

ANT1 Connecting the external antenna

(input impedance 50Ω)

Table 3: Connecting the external antenna

NOTE:

When connecting an antenna, ensure that it does not exceed the permissible limits pre-

scribed by the national regulations for radio frequency devices.

4.2. Internal Antenna ANT4

Additionally the reader is equipped with an internal antenna (ANT4). The internal antenna supports

far field transponders as well as near field transponders. The internal antenna is located in the bot-

tom left corner of the housing and is marked with an antenna symbol. The maximum read range of

the antenna in combination with a far field transponder is approx. 40 cm. In combination with a

near field transponder the maximum read range is approx. 5 cm.

Figure 3: Position of the internal antenna
