Fedora S7 Manuel utilisateur
Instruction manual
Contents
1. Safety precautions
2. Product components
3. Parts list
4. Assembly
Frame/wheels assembly
Seat/safety guard assembly
Seat/frame assembly
5. How to operate
Unfolding
Converting the seat
Adjusting the seat reclining
The brake
Front wheel lock
Safety belt (5-point harness)
Safety guard
Canopy
Foot rest
Detaching/attaching the shopping basket
Folding
6. Installation/ removal of the seat
7. Cleaning & maintenance
Warranty
1. Safety precautions
Please read through the instruction manual before using the product.
Type B is suitable for infants between 7months and 2 years of age. It is recommendable to limit the continuous use of the
product within one hour.
Do not put more baby than fixed number. Do not put the baby other place than hammock.
Make sure that safety belt (5-point harness) is fastened before using.
Do not let the baby stand alone in the center of the stroller.
Do not lift or move the stroller with the baby in the stroller.
Tighten the safety belt to fit the baby in order to prevent the baby from falling out.
It is important to make sure that the stroller is completely unfolded and stretched, and the safety locking device is perfectly
locked every time seating the baby in the stroller.
Keep the speed of the stroller within walking speed of the protector.
Do not run at the cross road with traffic signals. Do not run even on the flatland.
Do not put toys or objects with strings around the baby in the seat of the stroller.
Take the baby out of the stroller at uneven land including the heel, slope, stairs and escalator and move the stroller separately.
Protector’
Care needs to be taken so the baby’s fingers or toes are not caught in the gap when reclining the backrest.
converting the handle and operating the canopy.
Stroller may be overturned by the change of center of gravity, if the baby in the stroller moves too much towards shoulders,
right, left, forward or backward.
Caution: This seat is unsuitable for babies under six months of age.
Do not place hot or heavy object on the tray.
Danger
Warning
Caution
Caution
Improper handling may cause the user high level of danger including death or heavy injury and an absolute emergence.
Improper handling may cause the user high risk of danger including death or heavy injury.
Improper handling may cause the user the risk of injury or property damage.
Please keep the instruction manual in the safe place for continuous safe use of the product.
For infant below 6 months of age, fasten crotch belt in addition to waist belt for use.
special care is required even on the mild slope.
·Make sure that baby is taken out before starting such adjustments.
s
Danger “Warning” and “caution” signs are classified in accordance with the expected danger in case of failure of meeting
safety precautions. Therefore, it is important to follow the instructions.
“”
,
2. Product components
Frame Seat
Rear wheel (left, right) Front wheel (left, right)
Safety guard
Brake assay
Manual
3. Parts list
Safety lock device
Folding button
Seat reclining
lever
Seat release button
Brake
Basket
Swivel front
wheel lever
Footrest
Safety belt
Safety guard
Canopy
(5 point harness)
Shopping
4. Assembly
1. Frame/wheel assembly
1. Front wheel assembly: insert the front wheel bar in the arrow direction into the A part (in the left and
right sides of the frame) as shown in the picture ① until there is a clicking sound.
2. Rear wheel assembly : Press the release button in the middle of the rear wheel as in the picture ①
and combine with the axle of rear wheel as in the picture ②. Follow the same way for the other side
of wheel.
Warning
Check once again to make sure that the wheels are properly combined with wheel axle and the axle is
properly combined with the frame.
4. Assembly
2. Seat / Safety guard assembly
Seat Safety guard
3. Frame/ Seat assembly
1. Insert the guard into A position in the left and right of the seat in arrow direction until there is a clicking
sound.
Seat
Frame
Clicking
1. Combine by inserting the seat into the frame holes in the right and left of the frame until there is a
clicking sound.
Warning
Check once again to make sure of correct installation to prevent safety accident.
5. How to operate
1. Unfolding

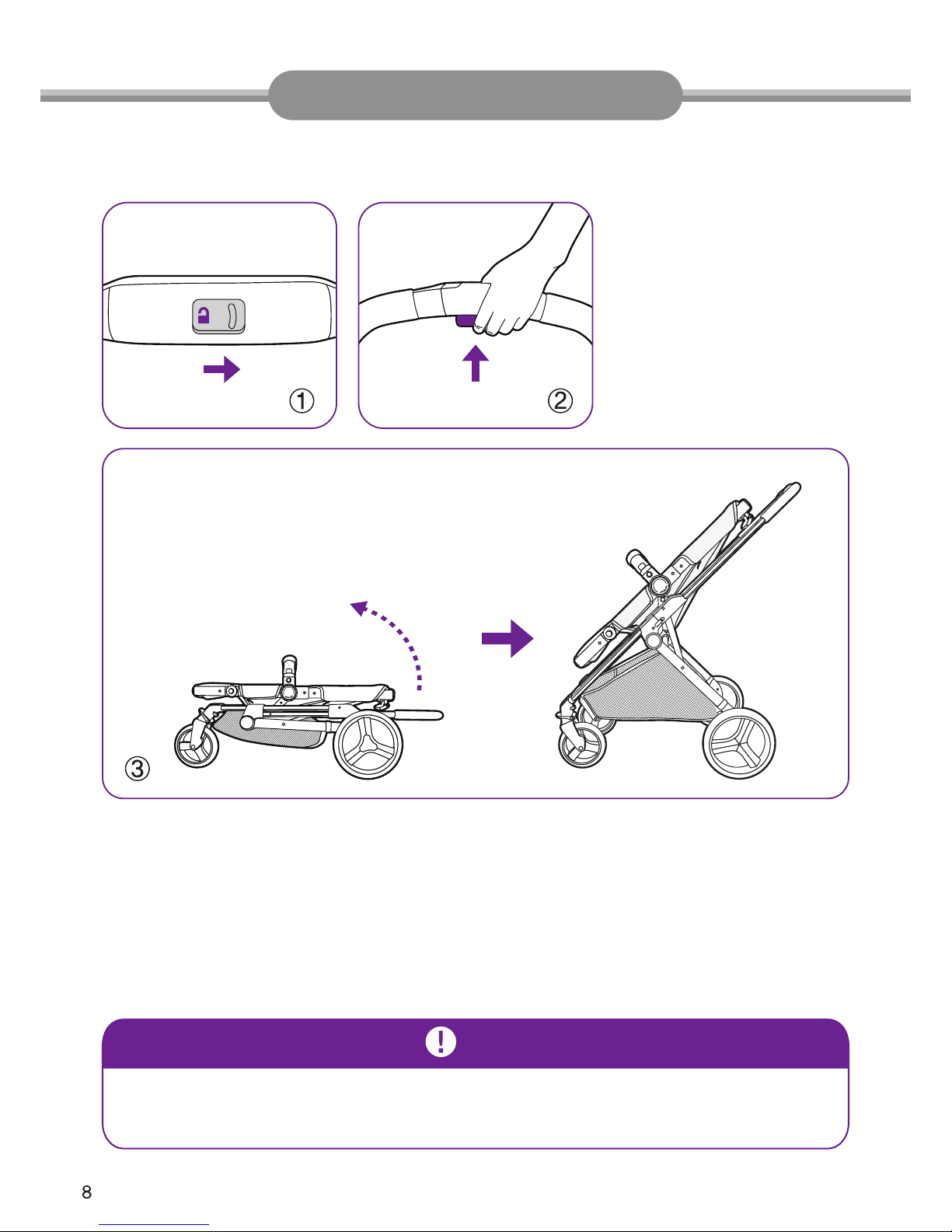

1. Push the safety lock device on the upper part of handle to the arrow direction as in the picture ① to
indicate unlock signal.
2. With the folding button pulled to the arrow direction as shown in the picture ②.
3. lift the handle to the arrow direction as shown in the picture ③.
4. When unfolding the stroller, pull the handle fully and unfold until there is a clicking sound.
5. Make sure the safety line (in green color) is shown after unfolding. Safety line should be seen before
using.
6. When using the stroller, push the safety lock device to the opposite direction of the arrow (picture ①)
so that the lock indicator appears.
Warning
Do not press the folding button while driving to avoid safety accident caused by releasing the lock device.
Using the stroller without showing the safety line (green) may cause accident. Therefore, make sure that the
stroller is correctly unfolded before using.
2. Converting the seat
5. How to operate
1. Press the attaching/detaching/converting buttons (one each on the right and left as shown in the
picture ①) and lift the seat from the frame holes to the arrow direction.
2. Change the seat direction as shown in the picture ② and combine as shown in the picture ③ for use.
Make sure that the seat is clear without baby before converting the seat direction.
Make sure that baby is taken out before converting the seat.
5. How to operate
3. Adjusting the seat angle
1. Lower the back plate with the seat adjusting
lever on the back plate lifted.
3 steps are available for angle adjustment. Warning
4. The Brake
Locking the brake Unlocking the brake
1. Press down the brake lever fully to lock the brake and lift the brake lever to unlock the brake.
Danger
Do not leave the baby alone in the stroller even if the brake is locked, in order to avoid any accident.
Use the product after checking whether the brake is locked or unlocked.
Make sure that baby is taken out before adjusting the
seat angle.
