FCC BBQ Performer 4.1S Manuel utilisateur

FCC-G-202113-41 /GD4843S-AC

Sare  u  cookin!

MANUAL

Installation, use, maintenance and safety

! OUTDOORUSEONLY

READTHEMANUAL, FOLLOWTHE

ASSEMBLYINSTRUCTIONSSTEPBY

STEP. GETTOKNOWYOURGRILL

ANDTHESAFETYINSTRUCTIONS

BEFOREUSINGTHEAPPLIANCE! fccbbq.com

Contents

Warnings .................................................................................................................................3

Technical Data ......................................................................................................................4

Read before assembly ..................................................................................5

Parts list .....................................................................................................................................6

Exploded Drawing ...............................................................................................................7

Hardware ..................................................................................................................................7

Assembly instructions ........................................................................................................8

Connecting gas .................................................................................................................18

Gas leak test .........................................................................................................................19

Lastcheck .............................................................................................................................20

Lighting instructions ........................................................................................................21

Maintenance ......................................................................................................................22

Advice, tips and safety ....................................................................................................24

Troubleshooting ................................................................................................................25

Consumer Contact ........................................................................................................28

fccbbq.com

WARNINGS!

●ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT

DURING USE. KEEP CHILDREN AND OTHERS WHO NEED

SUPERVISION AT A SAFE DISTANCE.

●THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL-

VENTILATED AREAS.

●LEAK TESTS (SEE PAGE 19) MUST ALWAYS BE CARRIED OUT

BEFORE THE GRILL IS USED AND WHEN REPLACING THE

GAS CONTAINER. ALSO PERFORM A LEAK TEST IF THE

PRODUCT HAS NOT BEEN IN USE FOR A LONG TIME AND IN

ADVANCE OF A NEW BARBECUE SEASON. ALWAYS CHECK

THE GAS HOSE FOR DAMAGE AND CRACKS BEFORE USING

THE BARBECUE.

●NEVER BARBECUE IN CLOSED ROOMS OR UNDER ROOFS,

AS THIS MAY LEAD TO A LACK OF OXYGEN.

●FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN

IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND

FIXED INSTALLATIONS.

●REBUILDING / MODIFYING THE BARBECUE CAN CAUSE

DANGER AND WILL INVALIDATE THE WARRANTY.

●ALWAYS SUPERVISE THE BARBECUE DURING USE AND KEEP

SUITABLE EXTINGUISHING EQUIPMENT WITHIN REACH.

THE GRILL SHOULD NOT BE OPERATED BY INTOXICATED

PERSONS.

●THE BARBECUE MUST NOT BE USED IN PLACES THAT ARE

BELOW NORMAL GROUND LEVEL. GAS CAN ACCUMULATE

AND REPRESENT A DANGER OF EXPLOSION. GAS

ACCUMULATION CAN ALSO CAUSE OXYGEN DEFICIENCY.

●THE BARBECUE MUST BE CLEANED REGULARLY AND

THOROUGHLY TO PREVENT UNCONTROLLED GREASE FIRE.

READ MORE ABOUT GREASE FIRE ON PAGE 22.

ALSO READ PAGE 24 FOR MORE ADVICE AND TIPS ON GRILLING AND SAFETY.

WARNINGS!

Width: 146 cm

Height: 120 cm

The product is manufactured in accordance with European Gas Appliances Regulation (EU) 2016/426

2531-20

LU,NL,DK,FI,SE,

CY,CZ,EE,LT, LV,MT,SK,SI,

BG,IS,NO,TR,

HR,RO,IT,HU

G30 (butan), G31(propan)

and their mixtures, LPG

28~30 mbar

I3B/P(30)

DESTINATION OF

COUNTRIES TO USE

GAS TYPEVALVE SIZE GAS CATEGORY

. mm (main burner)

. mm (side burner)

ONLY THE GAS TYPE AND GAS CATEGORY LISTED IN

THE RATING LABEL IS TO BE USED ON YOUR APPLIANCE.

Technical information

Total Heat input: 17.2 kW (main

burner 14 kW + side burner 3.2

kW).

Gas consumption: 1253 gram/

hour (main burner: 1020 g/h + side

burner: 233 g/h)

Gascylinder (not included): Use

standard cylinder approved for use

in the Nordic Region.

Even though butane and propane

gas can be used, we recommend

propane for use in the Nordic

Region. Approved hoses and

regulators are available from most

outlets selling gas equipment.

NB! Gas hoses used for this

product must not exceed 120 cm in

length.

fccbbq.com

Make sure that all parts and screws are in the box before

mounting the product, please note that some parts may be

placed in the styrofoam in the side walls of the packaging.

Compare the parts list with the contents of the box.

Do not mount this grill if parts are missing, contact your

dealer or support@fccproducts.no.

Remove all packaging material and any plastic wrap from the

grill.

●FOLLOW THE ORDER IN THIS MANUAL TO AVOID ERROR

ASSEMBLY. PARTS OF THE ASSEMBLY WILL REQUIRE HEAVY LIFTS

WHICH SHOULD BE CARRIED OUT BY TWO PERSONS TOGETHER.

SOME METAL PARTS MAY BE SHARP, USE PROTECTIVE GLOVES.

●POWER TOOLS SHOULD NOT BE USED FOR INSTALLATION AS

THIS MAY DAMAGE THE SURFACE TREATMENT ON SCREWS AND

LOOSEN PRE-MOUNTED NUTS.

FOLLOW THESE INSTRUCTIONS CAREFULLY

TO AVOID SERIOUS DAMAGE TO YOUR GRILL

AND AVOID CAUSING INJURY.

Read before assenbly

CODE hard ware QTY

AM x  BOLT 

BDOORAXE 

DMxBOLT 

CODE DESCRIPTION QTY

BODYASSEMBLY 

FMETAMER 

WARMINGRACK 

CASTIRONGRILL 

MULTIFUNCTIONCASTIRONCOOKINGGRILL 

MULTIFUNCTIONCASTIRONROUNDCOOKINGGRILL 

SIDEBURNERWELDASSEMBLY 

 IDEBURNERDECORATIONBOARD 

 DECORATIONRING 

 SIDEBURNER 

 SIDEBURNERVALVEASSEMBLY 

 SIDEBURNERBRACKET 

 KNOBSASSEMBLY 

 LEFTSIDEPANEL 

 GREASETRAY 

 LEFTSTATOROFOILTRAY 

 GREASECUP 

 RIGHTSTATOROFOILTRAY 

 DOORGIRDER 

 CABINETSTIFFENINGBOARD 

 BACKBOARD 

 CABINETSTIFFENINGSCUTE 

 BOTTOMPANELWELDASSEMBLY 

 DOORASSEMBLY 

 CASTORS 

 CASTORSWITHBREAK 

 RIGHTSIDEPANEL 

 LIGHTINGCANDLEASSEMBLY 

 RIGHTSHELFWELDASSEMBLY 

 RIGHTSHELFDECORATIONBOARD 

 MAGNET 

Parts List

fccbbq.com

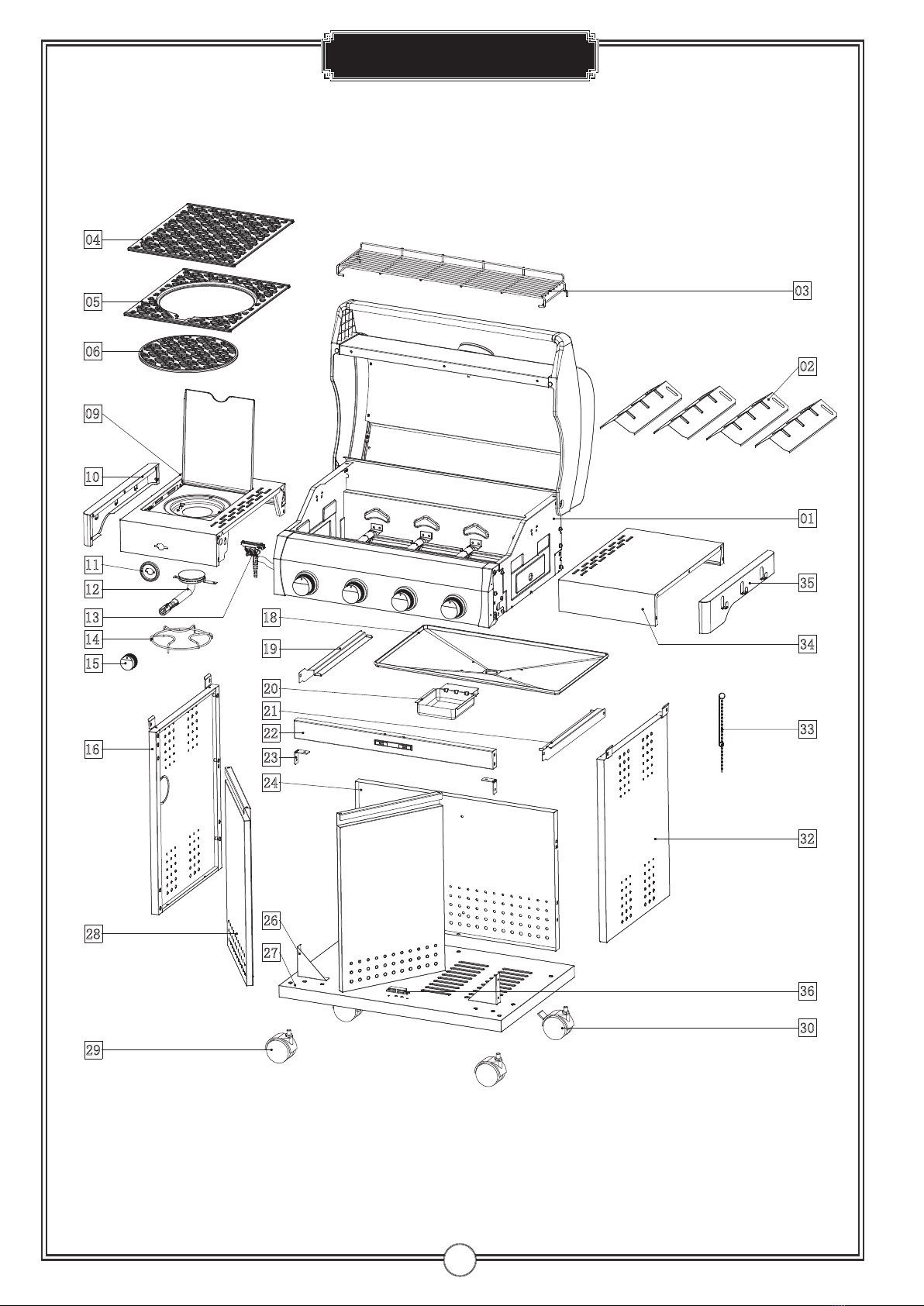

Exploded drawing

4PCS

2PCS

1. To assemble 4 castors (number 30 & 29, 2 with break and 2 without) on

the bottom panel, please tighten up the screws.

2. Use screw A to assemble left side panel (16) and right side panel (32) to the

bottom panel(27), and assembly the pivot(B) assembly on the bottom as well.

Assembly

fccbbq.com

5PCS

6PCS

3. Use screw (A) to assemble back panel (24) to left side panel (16) and right side

panel (32) and bottom panel (27)

4. Firstly use the screw (A) to ﬁx the door girder to the left side side panel (16)

and right side panel (32), then use screw (A) to ﬁx the left stator of oil tray (19)

on the left side panel (16), use screw (A) to ﬁx the right stator of oil

tray (21) to the right side panel (32), shown in the illustration above.

Assembly

4PCS

8PCS

26 A26

27 27

5. Use screw A to assemble the cabinet stiﬀening board (23) upper to the door

girder (22) and left side weld assembly (16); use the screw to assemble the cabinet

stiﬀening board (23) upper to the door girder (22) and right side weld assembly (32).

6. Use screw A to assemble the cabinet stiﬀening scute (26) upper the bottom (27)

and left side assembly (16); Use screw A to assemble cabinet stiﬀening scute (26)

upper the bottom (27) and right side assembly (32), shown as below picture.

Assembly
