FatShark PREDATOR V2 CE Manuel utilisateur

Fat Shark RC Vision Systems

For more product information, please visit:

www.fatshark.com

Weitere Informationen erhalten Sie auf der Webseite:

www.fatshark.com

PREDATOR V2 CE

RTF FPV KIT

USER MANUAL

PREDATOR V2 CE

RTF FPV KIT

BEDIENUNGSANLEITUNG

Fat Shark RC Vision Systems

Contents

Product contents....................................................................................................... 4

Controls Diagram...................................................................................................... 5

Controls .................................................................................................................... 6

Downlink Overview (Camera, TX, Power) ............................................................... 6

Transmitter ......................................................................................................... 7

Camera .............................................................................................................. 7

Power (via discharge lter supply) ..................................................................... 7

AV in/out Port............................................................................................................ 8

Recording Video................................................................................................. 8

Using an external receiver: ................................................................................ 8

Battery Charging....................................................................................................... 8

Accessories .............................................................................................................. 9

Diopter lens........................................................................................................ 9

Tiny Telemetry from ImmersionRC................................................................... 10

Specications ......................................................................................................... 10

Headset Specications..................................................................................... 10

Camera Specications ..................................................................................... 11

Transmitter Specications................................................................................ 12

Downlink Kit ..................................................................................................... 12

Operational advice.................................................................................................. 12

Trouble shooting..................................................................................................... 13

Warranty ................................................................................................................. 14

Fat Shark RC Vision Systems

Introduction

Congratulations on purchasing the Fat Shark Predator RTF FPV video piloting

system with goggles, transmitter and camera. To ensure your continued enjoyment,

please take the time to thoroughly read through this operating manual before using.

Product Compatibility

The Predator has been designed to adhere to established video standards and is

compatible with any product also adhering to accepted video standards. Due to

the high number of different manufacturers and variation in quality, it’s impossible

to for us to have tested with every product combination and some troubleshooting

may be required if mix/matching components. The Predator has been thoroughly

tested with ImmersionRC gear. For best results and no compatibility issues, Fat

Shark recommends ImmersionRC gear for your accessory products.

IMPORTANT!!!! Product Warning!!!!!

DO NOT LEAVE HEADSET EXPOSED TO DIRECT

SUNLIGHT. SUNLIGHT WILL MAGNIFY THROUGH THE

OPTICS AND BURN HOLES IN THE LCD COLOR FILTER

THIS WILL NOT BE COVERED BY WARRANTY. KEEP

GOGGLES IN PROTECTIVE CASE WHEN NOT IN USE.

Fat Shark RC Vision Systems

Product contents

Carry case

Predator Headset

FPV Downlink

(camera, TX, lter)

AV cable

5G8 Antenna (2p)

(headset and transmitter)

Battery

(with discharge adapter)

Manual

Fat Shark RC Vision Systems

Controls Diagram

Fat Shark RC Vision Systems

Controls

Brightness/contrast control: pressing left and right increases/decreases display

contrast. Press forward/back increases/decreases brightness.

RX power switch: The receiver module power is controlled by this switch. If

viewing video source via the AV cable; the RX module needs to be turned off to

avoid image conict.

Channel select: Pressing channel up/down buttons will cause the channel to

incrementally increase/decrease. Audio beep sounds on channel change. A long

beep sounds on channel top and bottom limits.

Note: Fat Shark only guarantees compatibility with Fat Shark or ImmersionRC

transmitters.

CH1: 5740 MHz CH2: 5760 MHz CH3: 5780 MHz CH4: 5800 MHz

CH5: 5820 MHz CH6: 5840 MHz CH7: 5860 MHz

Low battery warning: Audio warning if input voltage drops below 6.8 V

Volume control: each press of button increments volume up or down. Standard

earphones can be used with the Predator (not included).

Downlink Overview (Camera, TX, Power)

Downlink system comes preassembled and tested for plug/play with your aircraft.

Simply connect the balance lead of your 2S to 4S (7 V - 25 V) RC battery to

provide power to your Fat Shark Downlink and you are ready to y.

The handy balance lead lters RC servo and motor noise from your RC pack for a

crisp, clear image.

Fat Shark RC Vision Systems

Transmitter

Channel select chart:

1 2 3 4

Ch1 5740 MHz On On On N/A

Ch2 5760 MHz Off On On N/A

Ch3 5780 MHz On Off On N/A

Ch4 5800 MHz Off Off On N/A

Ch5 5820 MHz On On Off N/A

Ch6 5840 MHz Off On Off N/A

Ch7 5860 MHz On Off Off N/A

Small white connector on back of transmitter is for ImmersionRC Tiny Telemetry.

See accessories.

Camera

2.8 mm lens for wide angle 100 degree FOV; ideal for xed camera piloting.

Camera is NTSC/PAL selectable (NTSC default, remove jumper on back for PAL).

Plugs camera directly into TX via included cable (pre assembled).

Power (via discharge lter supply)

The discharge lter supply allows you to power your downlink equipment from your

onboard RC pack. Connect as shown below:

Fat Shark RC Vision Systems

AV in/out Port

RCA Connector:

Yellow: Video, White: Audio Left,

Red: Audio Right

Recording Video

Connect AV cable to AV out port on right side of headset. Connect recording

device to cables and set up as per manufacturer directions.

Note: Cables pins are not all the same (see above chart), be sure to connect to

headset using the included cable.

Using an external receiver:

Use the AV cable to connect headset to

the RCA AV port of external devices.

To share the base station power supply

with your goggles, pick up a 3m Dominator

AV cable accessory from your retailer.

Note; internal receiver must be shut off to

properly display external AV.

Battery Charging

The 1000 mAh 7.4 V lithium polymer

batery pack is equipped with a 3 pole

balance charger lead that allows the

battery to be charged off standard RC battery pack chargers (not included). Follow

your charger instructions for setting up for 760 mA, 7.4 V Li-Po. Some chargers

require the discharge cable to be connected. Use the enclosed discharge lead

adapter for these types of chargers.

Fat Shark RC Vision Systems

Note (1): If the charger fails to announce charge complete, but is showing battery

voltage at 8.4 V, the charge can be considered nished.

DO NOT LEAVE BATTERY ATTACHED TO CHARGER WHEN CHARGER IS

NOT PLUGGED IN.

Note (2): If battery becomes fully discharged or shorted an internal safety circuit

will trip. To reset the battery, tap 9 V direct to the barrel connector via the discharge

adapter cable’s banana connector. This will instantly reset the battery and it can

be recharged as normal.

Accessories

Diopter lens

For near sighted users, diopter lens insert sets are available that include -2, -4 and

-6 dpt. See below insert instructions. Lens orientation is not critical.

Fat Shark RC Vision Systems

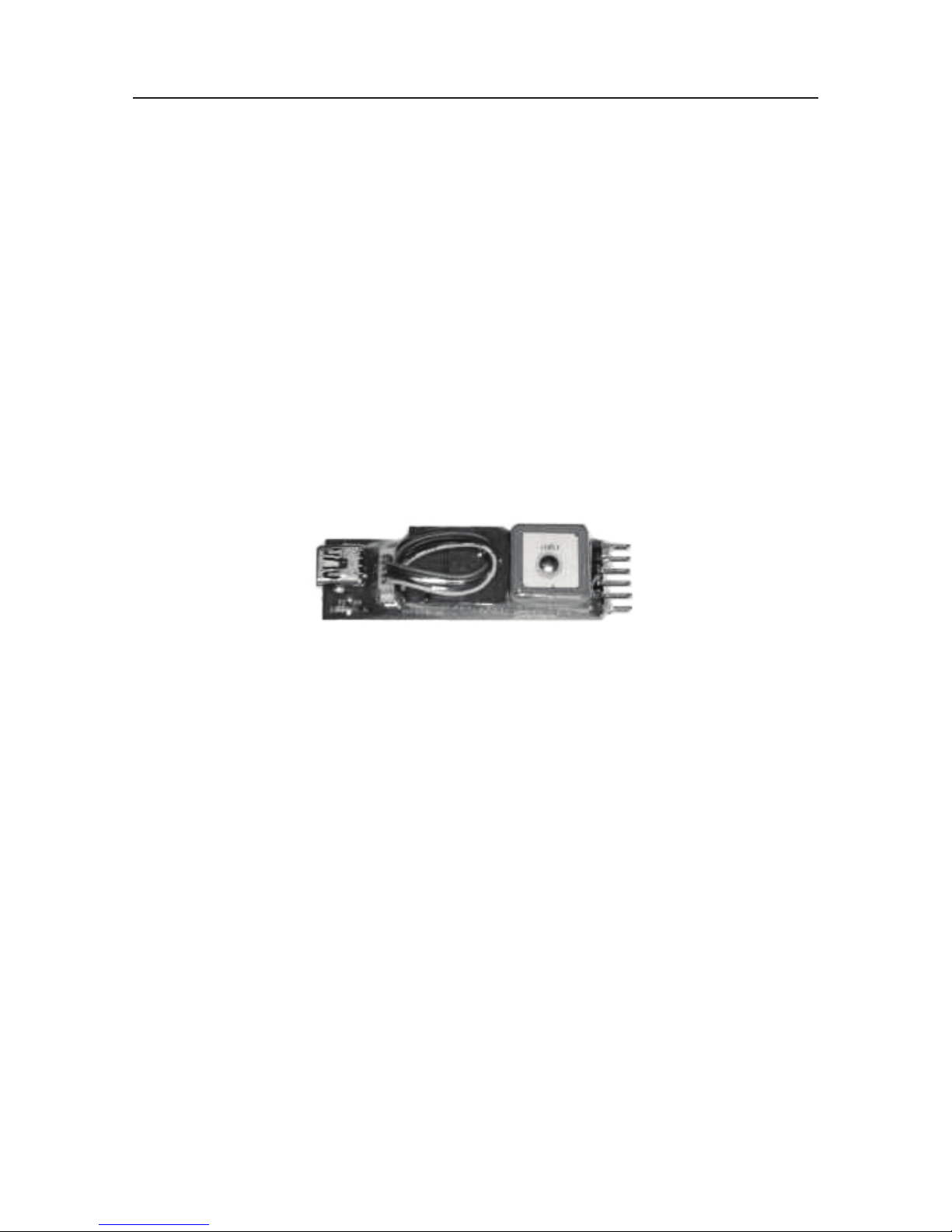

Tiny Telemetry from ImmersionRC

Conventional OSDs offer a host of features, some of which you don’t need if you’re

just ying FPV around your local eld or have a small and light FPV plane that

can’t really carry a full OSD. All you really want in those cases is for your tracking

antenna to point at the plane accurately and have GPS positional data along with

vital statistics such as battery voltage and current consumption.

TinyTelemetry is a minimal GPS locator that sends EzTelemetry data for the

EzAntennaTracker down one of the audio channels on the audio/video transmitter.

The EzAntennaTracker will then track the plane and offer battery statistics on its

LCD display as well as other telemetry data such as positional info etc.

The new v2.0 EzAntennaTracker will also offer audible warnings for battery

voltage and total current consumption.

The Tiny Telemetry plugs into the transmitter’s dongle power supply located on the

back of the transmitter.

Specications

Headset Specications

Optics:

• FOV 25 degrees diagonal

• Interpupillary (IPD) distance: 63.5 mm (xed)

• Optional diopter lens inserts available in -2, -4, -6 dpt

Audio:

• Stereo

User Controls:

• Channel selection

• Contrast/ brightness

• Volume adjustment

Electrical:

• Power supply, 7-13 V (2S/3S supply)

• Power consumption: 200/350 mA (direct/wireless)

Battery:

• 7.4 V, 1000 mAh lithium polymer with safety circuit.
