Liberator-V100 / V1000

User Manual

Revision 03v12p4

Firmware –v02.01.03.12

Page 2 FBN Doc #: FBN-0098_03v12p4

Document Type

User Manual

Project

Liberator-V100 / V1000

Date

20 July 2015

Title

V100 / V1000 Installation & User Manual

Document Number

FBN-0098_03v12p4

Version

Date

Description

03v01

17 Dec 2014

Release 02.01.03.01

03v12

20 July 2015

Release 02.01.03.12

Liberator-V100 / V1000 User Manual Rev 03v12p4

Page 3 FBN Doc #: FBN-0098_03v12p4

1 INTRODUCTION ...............................................................................................................................4

1.1 Revision...................................................................................................................................................4

1.2 Intended Users & Software Version .....................................................................................................4

1.3 Safety Information..................................................................................................................................4

1.4 Warranty..................................................................................................................................................4

1.5 Copyright / Disclaimer ...........................................................................................................................4

2 SYSTEM OVERVIEW..........................................................................................................................5

2.1 Top Level Description............................................................................................................................5

2.2 Ethernet switch.......................................................................................................................................6

2.3 Package contents...................................................................................................................................7

2.4 Accessories and Spares (available to order as additional parts) ...................................................10

4 Installation ....................................................................................................................................11

4.1 Terminal installation ............................................................................................................................11

4.2 Grounding .............................................................................................................................................11

4.3 Alignment Procedure...........................................................................................................................12

4.4 Factory-Defaulting a Terminal.............................................................................................................14

5. Web Management Interface .........................................................................................................15

5.1 Login Page ............................................................................................................................................15

5.2 Home Page............................................................................................................................................16

5.3 Operation...............................................................................................................................................17

5.4 Administration......................................................................................................................................18

5.5 Maintenance..........................................................................................................................................23

5.6 Logout ...................................................................................................................................................25

Figure 34 - User Account Logout Page...................................................................................................25

A TECHNICAL INFORMATION ............................................................................................................26

A.1 Specifications ......................................................................................................................................26

B REGULATORY INFORMATION .........................................................................................................28

B.1.1 FCC statement ..................................................................................................................................28

B.1.2 ETSI Conformity................................................................................................................................29

C CONTACTS.................................................................................................................................30

C.1 Technical assistance...........................................................................................................................30

C.2 Sales & General Product Information................................................................................................30

Page 4 FBN Doc #: FBN-0098_03v12p4

1 INTRODUCTION

1.1 Revision

Fastback Networks & Sub10 Systems reserve the right to revise this documentation periodically without any

obligation to provide notification of such revision or changes.

1.2 Intended Users & Software Version

This manual is intended for all installation and service personnel who are involved in the planning, installation,

operation and maintenance of the Liberator-V100 and V1000 equipment.

This Manual refers to Liberator-V100 running Software Version 01.01.01.17, and Liberator-V1000 running Software

Version 02.01.03.12. Please ensure that the software on the radio terminals is the latest version on the Fastback

Networks website: http://www.fastbacknetworks.com

1.3 Safety Information

1.3.1 Grounding

The V1000 radio terminal (outdoor unit) must be properly grounded to protect against lightning strikes. It is the

user’s responsibility to ensure that the equipment is installed in accordance with national regulations:

USA: Articles 810 & 830 of the National Electric Code ANSI/NFPA No.70-1984

Other countries may require different regulations.

1.3.2 Power Supply

The Sub10 Systems PoE++ power injector should always be used to power the Liberator-V100 / V1000. The

installer must ensure that a mains voltage supply cable approved for the country of installation is used.

1.3.3 Maintenance and Servicing

•Always disconnect the primary power source before undertaking maintenance/repair of the radio

terminal (Outdoor Unit).

•At least once per year, each radio terminal (Outdoor Unit) must be inspected for signs of corrosion.

1.4 Warranty

Sub10 Systems warrants to the original end user (purchaser) that this product is free from any defects in

materials or workmanship for a period of up to 24 months (2 years) from the date of shipment to the end

user.

1.5 Copyright / Disclaimer

Liberator-V100 / V1000 User Manual Rev 03v12p4

Page 5 FBN Doc #: FBN-0098_03v12p4

2 SYSTEM OVERVIEW

2.1 Top Level Description

The Liberator-V100 and V1000 systems operate in the unlicensed 60 GHz

band between 57 GHz and 64 GHz. The antenna radome face measures

only 18cm x 18cm (7” x 7”), making it ideal for unobtrusive urban

deployments.

2.1.1 Benefits

•Network performance –Full-duplex data rate 100Mbps (V100), and up to 1Gbps (V1000).

•Licence-free operation –The system has been approved and can be operated in many countries without

needing an individual regulatory licence for each link.

•System administration –The user can manage the link either via the HTML user interface or by integrating it

into a network management tool via SNMP.

•Security –Data traffic is very secure due to signal absorption by atmospheric oxygen and the high

gain/narrow beamwidth antennas.

2.1.2 Applications

•LAN extension

•Redundant access

•Campus connectivity

•Disaster recovery

•Wireless backhaul

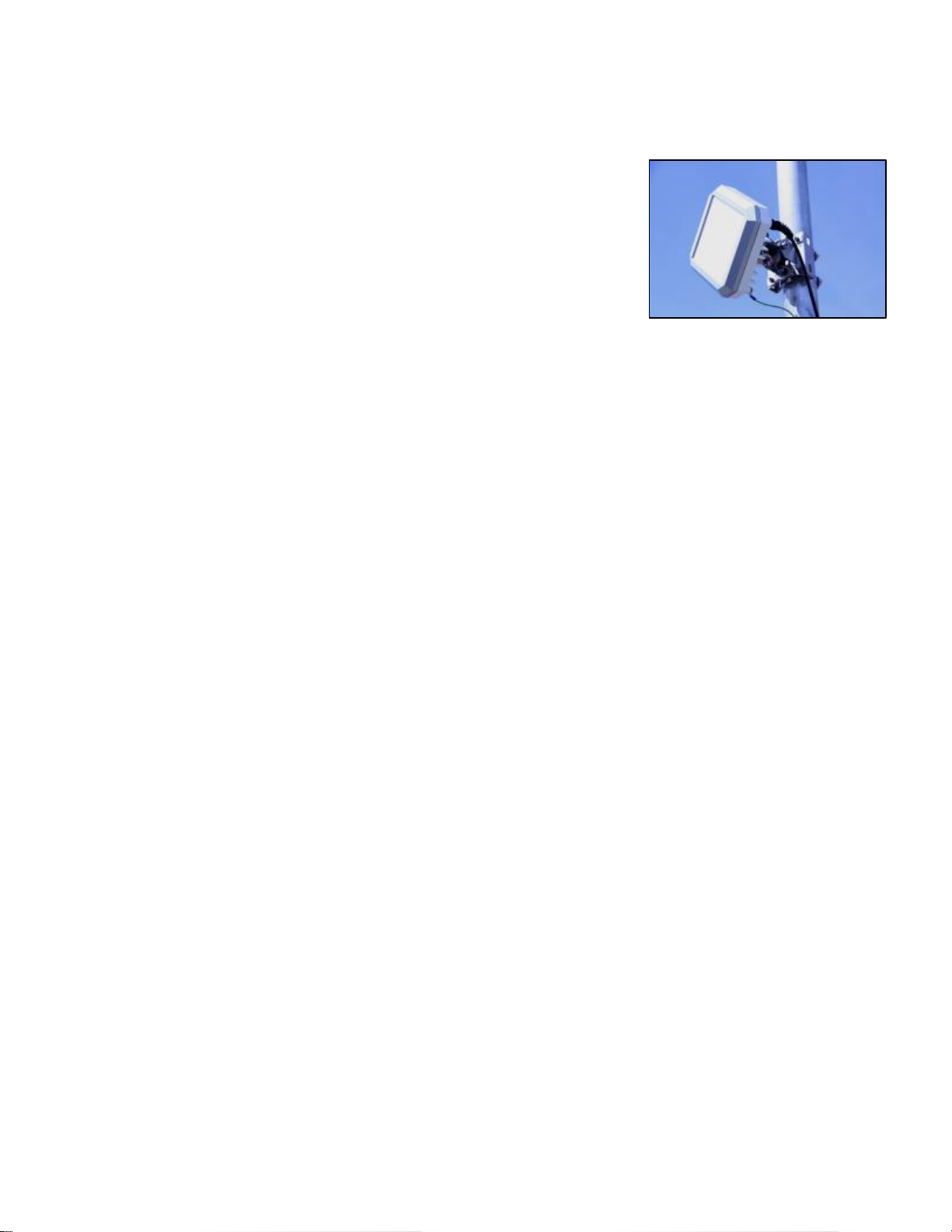

Figure 1 - V1000 radio terminal

Page 6 FBN Doc #: FBN-0098_03v12p4

2.2 Ethernet switch

Each radio terminal includes an Ethernet switch.

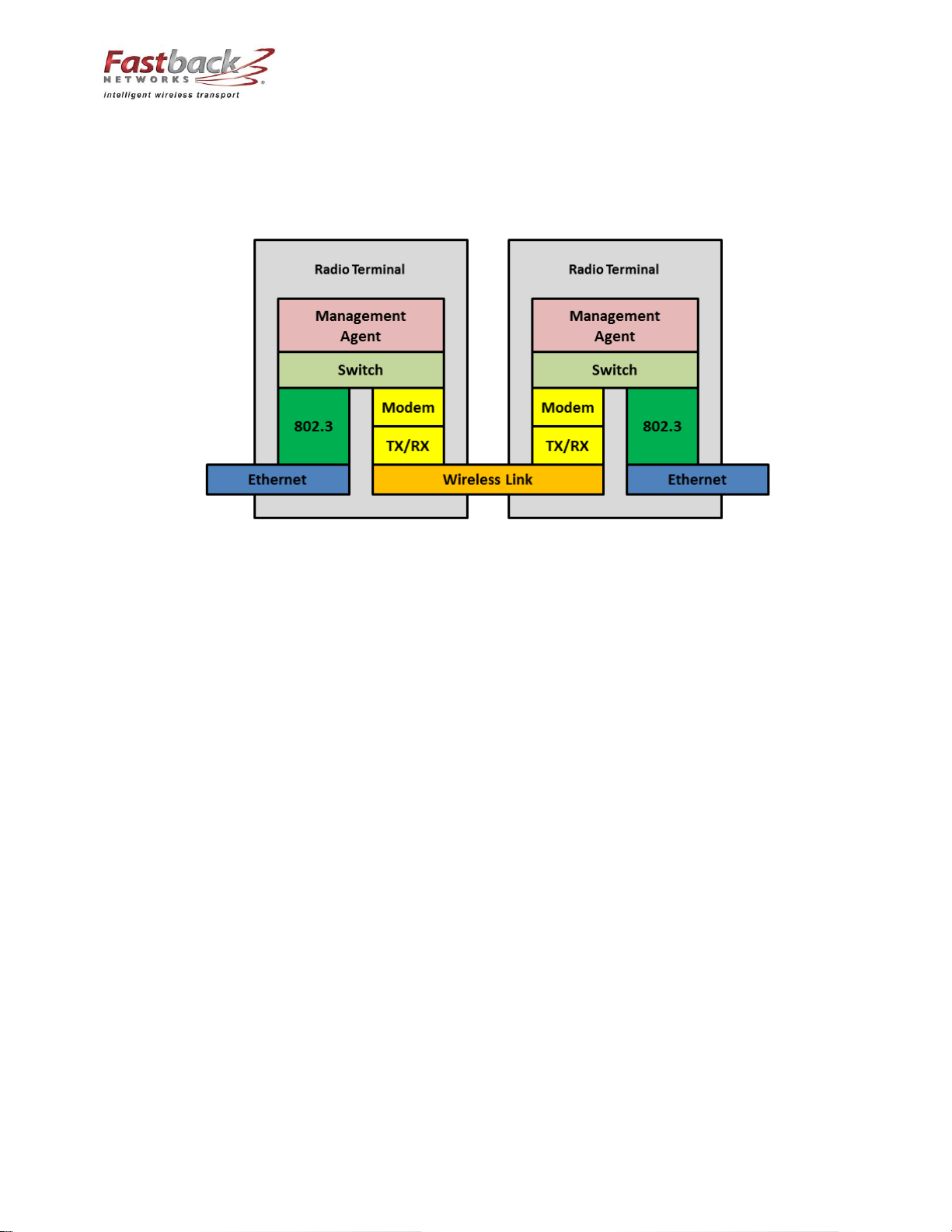

Figure 2 - Network layers of the V100 / V1000 system

Liberator-V100 / V1000 User Manual Rev 03v12p4

Page 7 FBN Doc #: FBN-0098_03v12p4

2.3 Package contents

A complete link is packed in one box, which contains:

•Terminal A

•Terminal B

•Adjustable Alignment Brackets

•Mast brackets

•Sealed Ethernet connectors

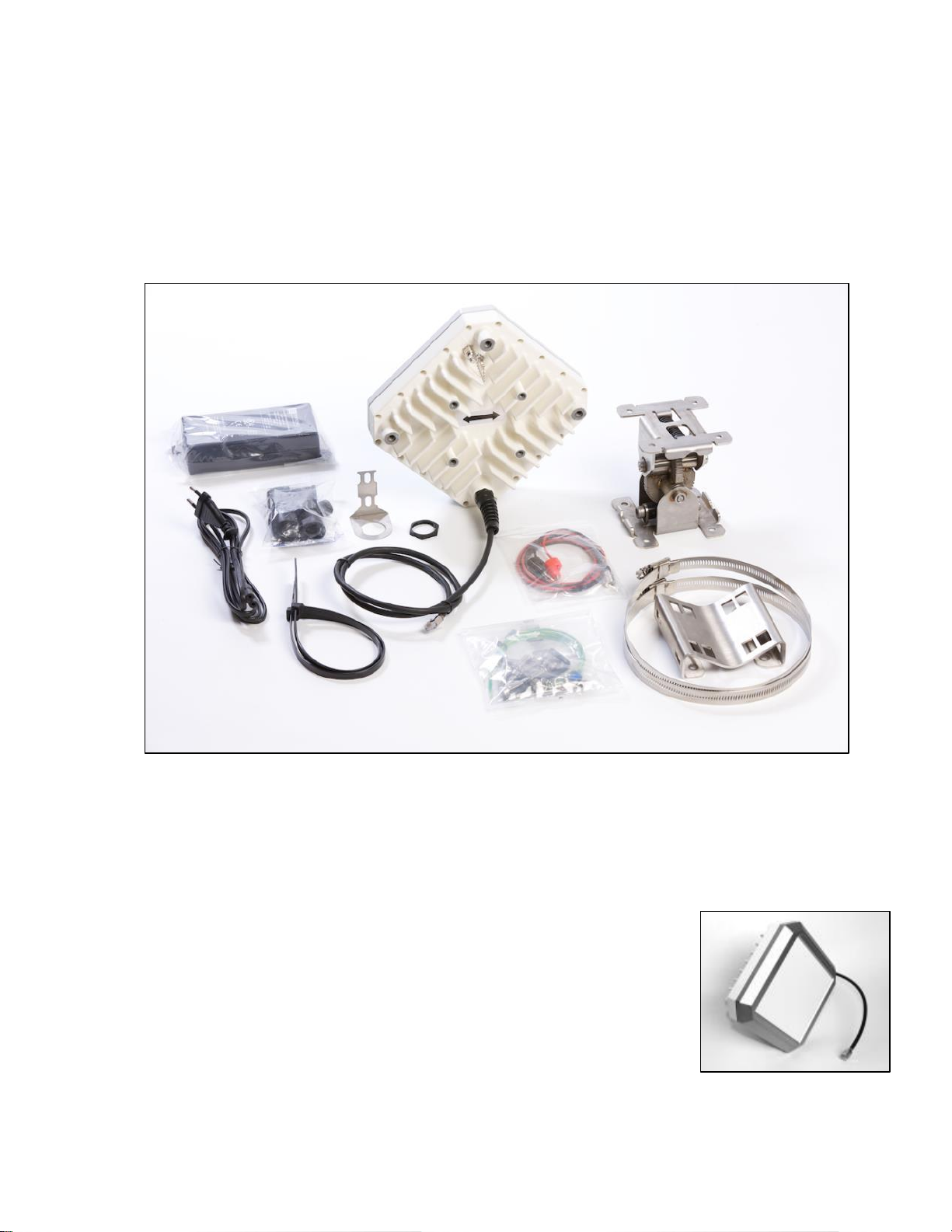

Figure 3 –Contents of V100 / V1000 Link Kit (EU mains plug version), showing parts for one end of the link

NOTE: - In the USA, the PoE power supply may be ordered separately from the rest of the link kit. Please check

the ordering guide for more information.

2.3.1 Terminals

Each terminal is connected to the network via an Ethernet cable with RJ-45 connectors. Power is supplied to the

terminal through the Ethernet cable.

•Ice bridges /Sun-shields

•PoE++ mains power injectors and leads

•Fixing and accessory kit

•Quick Start Guide

Figure 4 - V100 / V1000 terminal

Page 8 FBN Doc #: FBN-0098_03v12p4

2.3.2 Alignment Bracket

The alignment bracket is very simple to use and has locking nuts.

2.3.3 PoE++ Injector

The Power-over-Ethernet power (PoE) supply conforms to “PoE++” specifications. It is recommended that the

Sub10 Systems PoE++ power injector should always be used to power the Liberator-V100 / V1000. The installer

must use a mains voltage supply cable approved for the country of installation.

Figure 5 - Alignment bracket

Figure 6 (a) SL Power PENT 1040B PoE++ power injector and (b) PhiHong POE61W PoE++ power injector

Liberator-V100 / V1000 User Manual Rev 03v12p4

Page 9 FBN Doc #: FBN-0098_03v12p4

2.3.4 Mast Bracket

The mast bracket is used to mount the bracket onto a mast from 50 mm to 115 mm diameter.

2.3.5 Ice Bridge/Sun-Shield

The ice bridge protects the terminal against rain, snow and ice.

2.3.6 RJ45 Seal Kit

The RJ45 seal kit connects the Ethernet tail from the ODU to a CAT 5e drop cable, and includes a rain hood.

Figure 7 - Mast bracket

Figure 8 - Ice bridge mounted on V1000

Figure 9(a) - RJ45 Seal kit Figure 9(b) - Rain cover for RJ45 seal kit

Page 10 FBN Doc #: FBN-0098_03v12p4

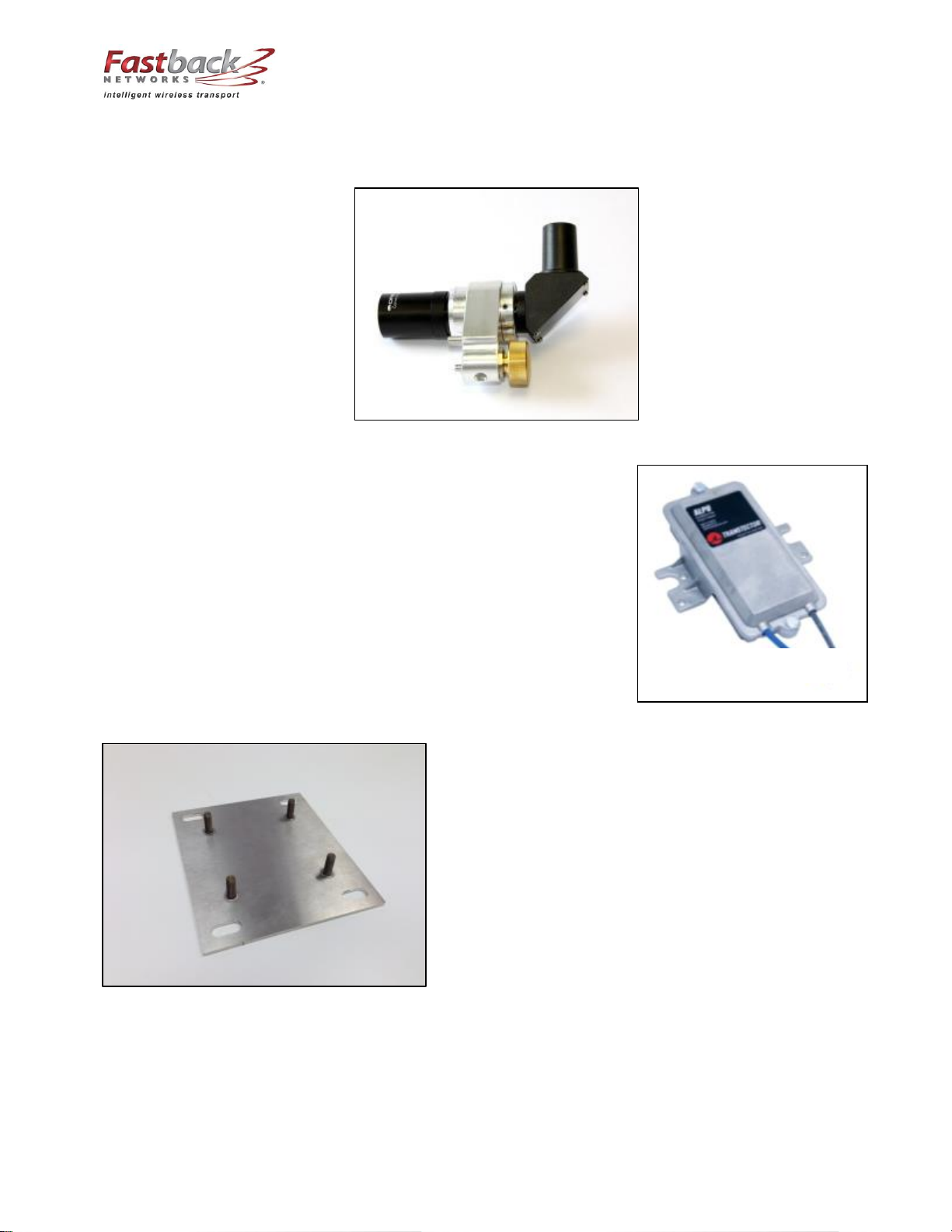

2.4 Accessories and Spares (available to order as additional parts)

2.4.1 Optical Alignment Scope

The optical scope screws onto the back of the ODU.

2.4.2 Surge Arrestor

The surge arrestor is placed between the ODU and the Ethernet cable

connecting to the PoE.

2.4.3 Wall-mount bracket

The wall-mount bracket allows the alignment bracket to be mounted directly onto a flat surface.

Figure 12 - Wall-mount plate (bracket)

Figure 10 - Optical alignment scope

Figure 11 - Surge arrestor
