SOUND LEVEL METER
INSTRUCTION MANUAL
REC
FAST
A/C
2
1. SAFETY INFORMATION
Read the following safety information carefully before
attempting to operate or service the meter.
Use the meter only as specified in this manual:
Environment conditions
①Altitude lower than 2000 meters
②Relatively humidity ≤90％RH
③Operation Ambient 0 ~ 40°C
Maintenance & Clearing
①Repair or servicing not covered in this manual
should be performed by qualified personnel.
②Periodically wipe the case with a dry cloth. Do not
use solvents or eradicator on this instrument.
Safety symbols
Comply with EMC
2.FUNCTIONS DESCRIPTION
This Sound Level Meter is designed for noise project;
quality control; illness prevention and cure and all kinds of
environmental sounds measurement. It is applied to the
sounds measurement at factory; school; office; traffic
access and household, etc.
This unit confirms to the IEC61672-1 CLASS2 for
Sound Level Meters.
MAX & MIN measurements
Over range display
Under range display
A & C Weighting
3
FAST & SLOW response
Analog AC/DC outputs for connection to frequency
analyzer or X-Y shaft recorder
3. SPECIFICATION
Standard applied: IEC61672 -1 CLASS2
Accuracy:±1.4dB
Frequency range:31.5HZ ~ 8KHZ
Dynamic range:50dB
Memory:32700
Level ranges: LO:30dB~80dB
Med:50dB~100dB
Hi:80dB~130dB
Auto:30dB~130dB
Frequency weighting: A/C
Time weighting: FAST ( 125ms ), SLOW ( 1s )
Microphone: 1/2 inch electret condenser microphone
Display: 4 digits LCD display with a resolution of 0.1dB
Display Update: 2 times/sec.
MAX hold: Hold the Maximum reading
MIN hold: Hold the Minimum reading
HOLD: Hold the readings
Alarm function: “OVER”is when input is more than upper
limit of range.“UNDER”is when input is
less than lower limit of range.
Analog output: AC/DC outputs from earphone outlet
AC=1Vrms ,DC=10mV/dB
Data output: USB data traffic
4
Auto power off:Meter automatically shuts down after
approx. 15 minutes of inactivity.
Power supply: One 9V battery, 006P or NEDA1604 or
IEC 6F22.
Power life: About 30hours
Operation temperature and humidity:
0°C~40°C,10％RH~90％RH
Storage temperature and temperature:
-10°C ~+60°C，10％RH~75％RH
Dimension: 278 (L) x 76 (W) x 50(H) mm
Weight : 350g
Accessories: Instruction manual, battery, screwdriver,
￠3.5mm earphone plug, windscreen,
software, USB cable.
4.NAME AND FUNCTIONS
①Windscreen
②LCD：
12
13
14
15
16
17
18
DC 9V
OUTPUT
CAL
REC
FAST
A/C
1
2
3
4
5
8
6
7
10
9
11
5
SYMBOL
FUNCTION
LCD
4 digits
MAX
Maximum hold
MIN
Minimum hold
OVER
over range
UNDER
under range
FAST
Fast response
SLOW
Slow response
dBA
A-Weighting(responseto human sense)
dBC
C-Weighting(response to machine monitor)
30—130
Range indicate
REC
Recording data into computer
AUTO
Auto level range selection
FULL
Memory full
HOLD
Data hold function
AutopoweroffPress the ”SETUP“ button to
disable power off
Low battery indicate
③REC button
6
3.0 DATALOGGER function
Press “REC”button after it power on, the display will show
“REC”to start Data Recording，press the button again to exit
the record (Note: In order to avoid data error, please don‟t
power it off under REC condition, when the REC function is
deleted then it can power off).
3.1 Adjusting DATALOGGER response
Press the button continuously before power it on，then
press ,it will be displayed as following: Press ‟LEVEL‟
button to adjust memory time,press „HOLD‟button to hold
the setup；
3.2 Data zero function
Press the button continuously before power it on，loosen the
button when the display showing‟CLR‟after the meter
power on,which indicates that the data in DATALOGGER
has been deleted.
④SETUP button
4.0. The time chip adjustment
Press‘SETUP’button and then power it on，when‘TIME’
symbol displays then loosen‘SETUP’， the meter will be
under time adjustment mode，at the time the display will
7
show the date as following:
Press the‘SETUP’button second time, the display showing：
The display showing “minute”adjustment mode, press
„LEVEL‟to make the adjustment，press „HOLD‟to keep the
setup；
Press the‘SETUP’button third time, the display showing：
The display showing “hour”adjustment mode, press
(h-P=P.M,h-A=A.M)
„LEVEL‟to make the adjustment，press‘HOLD’to keep the
setup；
Press the‘SETUP’button fourth time, the display showing
8
The display showing “date”adjustment mode, press
„LEVEL‟to make the adjustment，press‟HOLD‟to keep the
setup；
Press the „SETUP‟button fifth time, the display showing：
The display showing “month”adjustment mode, press
„LEVEL‟to make the adjustment，press „HOLD‟to keep
the setup；
Press the „SETUP‟button sixth time, the display showing：
The display showing “year”adjustment mode, press
„LEVEL‟to make the adjustment，press „HOLD‟to keep the
setup；
Press the ‟SETUP‟button seventh time, the display showing:
The display showing initialization of the time chip，press
„HOLD‟to keep the setup；time and date have returned to
factory setup. When the battery is exhausted or replaced, if
the time can‟t be adjusted then please initialize the time chip
first.
9
4.1. USB communications setting:
Turn on the meter, connect the meter with the computer
correctly, choose the software COM3（COM4）,hen press
„ETUP‟, „„disappears from the display to indicate and
disable auto power off, that the USB data is transmitting.
⑤FAST/SLOW button:
Time weighting selection
FAST: st sampling measurement, 1 time per 125mS.
SLOW:Slow sampling measurement, 1 time per second.
⑥MAX/MIN button:
Maximum and Minimum hold Press this button for one
time to enter MAX/MIN measurement, „MAX‟will appear
on LCD, maximum sound level will be captured and held
until higher sound level is captured. Press the button again,
„MIN‟will appear on LCD and minimum sound level will be
captured and held until new lower sound level is captured.
Press the button one more time to exit MAX/MIN
measurement.
⑦LEVEL button: Level range selection
Each time you press “LEVEL” button, the level range will
change between „Lo‟ level, „Med‟ level, „Hi‟ level and „Auto‟
level in the circular.
10

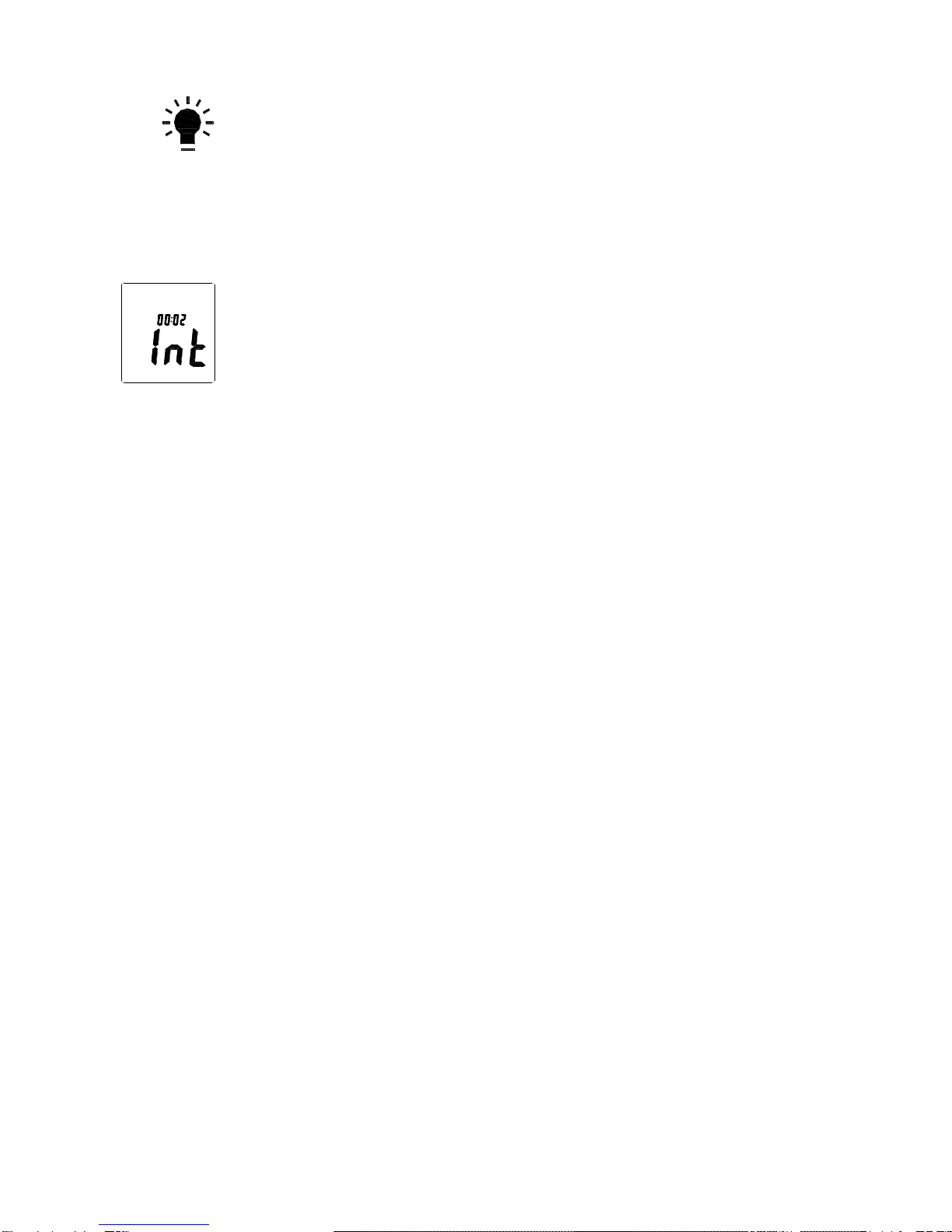

⑧Backlight button
8.0．Turn the backlight on/off
8.1．DATALOGGERresponse setting;
press the button continuously until‘INT’symbol appears
after the meter turn on, press‘LEVEL’to set up the data
memory response, then press‘HOLD’to keep the setting.
⑨Frequency weighting select button
A：A-Weighting
C：C-Weighting
⑩HOLD button:
Press “HOLD”button, The hold function freezes the
reading in the display.
⑾Power button
Turn the meter power ON/OFF
⑿External DC 9V power supply terminal
For connection with DC 9V power supply.
Aperture size: external diameter: 3.5mm, internal
diameter: 1.35mm
