Fanvil C60 Manuel utilisateur

http://www.elastix.org

Fanvil C60 and Elastix Server

Setup Guide

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single IP Phone Fanvil C60 configuration. The phone is

setup as a SIP telephony device.

Figure 1-1. Setup Diagram

2.0 Host PC Environment

Table 2-1. Host Server Environment Details

Description

Hardware Type

Elastix Appliance ELX-Series

Hardware Version

ELX-3000

Software Type

Elastix

Software Version

2.3

3.0 Test Setup Equipment

Table 3-1. Test Setup Equipment

Equipment

Model

Version

IP (SIP) Phone

N/A

Fanvil IP Phone

C60

2.2.36.12

Switch

N/A

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

4.0 Setup Procedure

To set up the Elastix Server for the Fanvil C60,

1. Go to the web address of the Elastix Server Login page. The web address is

determined by the customer, for this guide we have used the IP address

192.168.1.75

2. On the Login page, type the username and password for an administrative user into

the Username and Password fields, see Figure 4-1. The username and password are

determined by the customer.

Figure 4-1. Login

3. Press Enter or click on the Submit button to go to Elastix‟s Dashboard

4. Once inside, click on the PBX tab on the menu at the top of the screen

Figure 4-2. Dashboard

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

5. Click on the Submit button to add an extension, see Figure 4-3. This will take you

to the Add SIP Extension page.

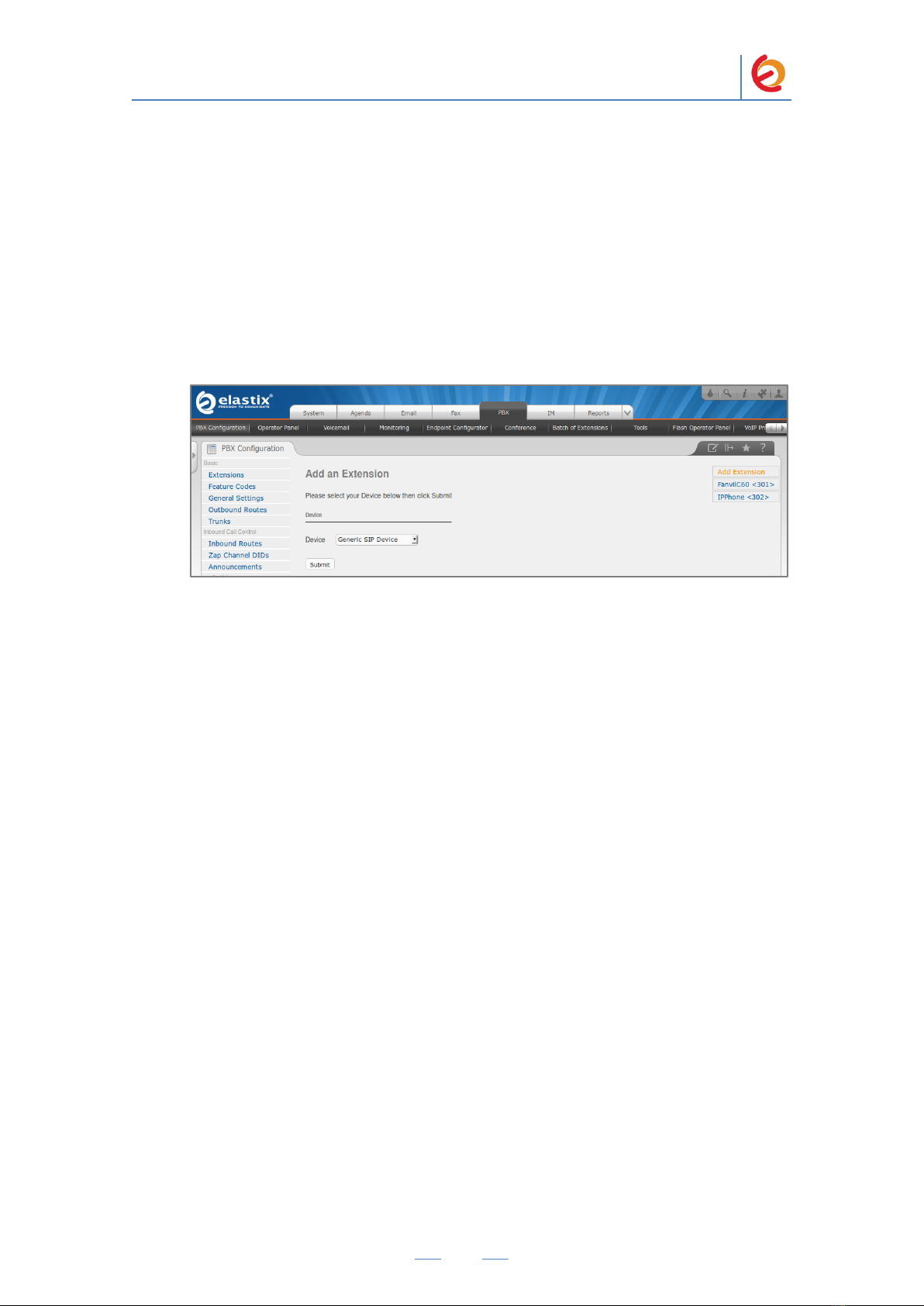

Figure 4-3. Add an Extension

6. On the Add SIP Extension page (Figure 4-4), fill in the following information:

• User Extension (301 in this example)

• Display Name („FanvilC60 in this example)

• secret („h7Dka3Rf9si0t‟in this example)

Figure 4-4. Add SIP Extension

7. Click on the „Submit‟ button at the end of the page. The extension will be created

and you will see the page on Figure 4-5 displaying the “Apply Configuration

Changes Here” pink ribbon on top of the screen.

8. Click in the “Apply Configuration Changes Here” link

Figure 4-5. Apply Configuration Changes Here

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

Note: If you want to add an IAX2 extension you have to select “Generic IAX2

Device” from Figure 4-3. Add the same information as SIP extension, submit and

apply changes. Then click on the created IAX2 extension and set requirecalltoken

to no.

9. With this you have just finished creating a SIP extension that will be used by the

Fanvil C60 to register with the Elastix Server. Repeat Steps 5 through 8 to similarly

create another extension (different values on Step 6) to be used by the IP (SIP)

Phone to register as well (extension 302 in this example). Once finished you will

see something similar to Figure 4-6

Figure 4-6. Fanvil and IP Phone extensions successfully created

10. To register the Fanvil Phone, you will need to enter the information from the

extension created on the Elastix Server into the Fanvil Phone by logging into the

Fanvil C60 WebUI.

To register the Fanvil Phone we have two methods: Manual Configuration and

AutoProvisioning using Elastix’s Endpoint Configurator (This phone supports this

feature in Elastix 2.4 or higher).

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

MANUAL CONFIGURATION

1. Log in to the Fanvil C60 WebUI by pointing your browser to the Fanvil‟s IP

address.

For the initial configuration of the Fanvil Phone, refer to the Fanvil C60‟s User

Manual which can be found in the Fanvil C60‟s product page at:

http://www.fanvil.com/List.asp?L-2593108621.html

Factory default settings

WAN

DHCP

LAN

192.168.10.1

Netmask

255.255.255.0

Web Access User Name

admin

Web Access Password

admin

2. When prompted, enter the Web Access Username and Web Access Password to

access the Fanvil C60 WebUI (Figure 4-7)

Figure 4-7. Fanvil C60 WebUI

3. Use the information from the Add SIP Extension page (Figure 4-4) to enter the

following necessary information on the “Account “ section for SIP extension

configuration of the Fanvil Phone WebUI (Figure 4-8):

Server Address: Elastix Server‟s IP Address (192.168.1.75 in this case)

Authentication User: (301 in this case)

Authentication Password: (‟ h7Dka3Rf9si0t‟ in this case)

SIP User: (301 in this case)

Display name: The local phone name showed on others phones when calling

(FanvilPhone in this case)

Enable Registration: Checked

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

Figure 4-8. SIP Information

Note: For IAX2 extension, go to “VOIP => IAX2” and set the same fields with the

correct values.

4. Once you have entered the required information, click on „Apply‟ button located at

the end of the page. You should see „Registered‟ in the Status field. If you don‟t,

make sure you‟ve entered the correct information from step 6. (See Figure 4-9).

Figure 4-9. Registered

5. Configure the other IP (SIP) Phone with the correct parameters.

6. To test the Fanvil C60, pick up the previously configured IP (SIP) Phone and call

the Fanvil C60‟s extension number (301 in this example). When the call is

established, speak into the phone and verify that the other IP (SIP) Phone can hear

your voice. Check this by calling from both ends.

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

AUTOPROVISIONING USING ELASTIX‟S ENDPOINT

CONFIGURATOR

Note: Find out the Fanvil C60‟s IP Address so you can easily identify the phone in the

next steps.

1. In the Elastix WebUI go to “PBX => Endpoint Configurator” (Figure 4-10).

Figure 4.10 Endpoint Configurator

2. Next to the “Discover Endpoints in this Network” button, type the address where

the phone is located and click the button. This will generate a list with all the

phones available in that network (Figure 4-11).

Figure 4.11 Endpoint Configurator

3. In the row where the phone you want to autoprovision is located (find it according

to either its MAC or IP Address):

Mark the checkbox

From the drop-down list, select the correct “Phone Type” (phone model) of the

phone

From the drop-down list, select the “User Extension” you want to assign to the

phone

PaloSanto Solutions

Fanvil C60 and Elastix Server Setup Guide

Figure 4.12 Endpoint Configurator

4. Click the “Set” button. This will reboot the phone. After the phone has finished

rebooting, it will be automatically configured with the selected User Extension.

5. Configure the other IP (SIP) Phone with the correct parameters.

6. To test the Fanvil C60, pick up the previously configured IP (SIP) Phone and call

the C60‟s extension number (301 in this example). When the call is established,

speak into the phone and verify that the other IP (SIP) Phone can hear your voice.

Check this by calling from both ends.
