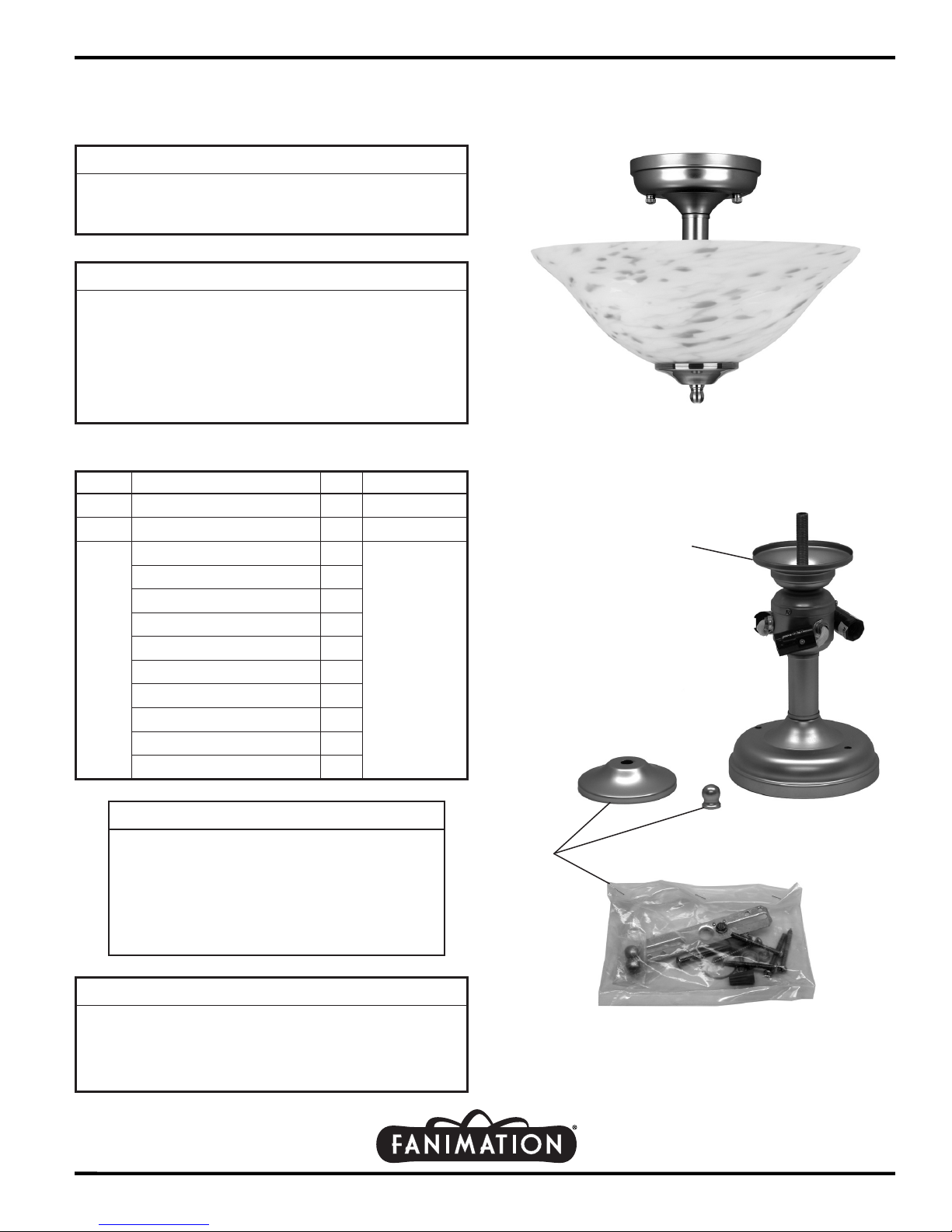

SF120 Semi-Flush Light Fixture Instructions Sheet

1. Before discarding packing materials, be certain all parts

have been removed.

CAUTION

Do not install or use fixture if any part is damaged or

missing. This product is designed to use only those

parts supplied with this product and/or any accessories

designated specifically for use with this product by

Fanimation. Substitution of parts or accessories not

designated for use with this product by Fanimation

could result in personal injury or property damage.

Contact your retail store for missing or damaged parts.

Electrical Requirements

Your new light fixture will require a grounded

electrical supply line of 120 volts AC, 60 Hz, 15

amp circuit.

Maintainance Requirements

Periodic light dusting of the light ﬁxture and glass is

recommended. A feather duster will work best. Avoid

using water, cleansers, or harsh rags, which can ruin

the ﬁnish and ﬁxture.

How To Order Parts

When ordering repair parts, always

give the following information:

• Part Number

• Part Description

• Fan Model Number

Contact your retail store for repair parts.

Item # Description Qty. Part #

1 Semi-Flush Fixture 1 SF120

2 Hardware Parts, contains 1 HDWSF120

Crossbar w/ Gnd Screw 1

Screw, junction box 2

Rod, Threaded 2

Rubber Washer 1

Hex Nut 1

Knurled Nut 2

Lockwasher 2

Bowl Cap 1

Finial Nut 1

Wire Connector 2

Parts List

NOTE: The illustration shown is not to scale or its actual

conﬁguration may vary

SF120PW with

G454 (sold seperately)

10983 Bennett Parkway

Zionsville, IN 46077

(888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website www.fanimation.com

1. Assemble two (provided) Threaded

Rods on the Crossbar. (Figure 1)

2. Mount assembled Crossbar to

junction box with screws (provided

with your junction box) (Figure 2).

3. Securely connect the bare copper

(Ground) wire to the (hex-head)

screw located on the Crossbar.

Securely connect the white lamp

wire to the white supply (neutral)

wire using wire nut supplied.

Securely connect the black lamp

wire wire to the black supply (hot)

wire using wire nut supplied.

(Figure 3)

5. Carefully fasten hex nut onto

the threaded rod while supporting

Rubber Washer and Glass Bowl

(sold seperately), do not over

tighten. (Figure 5)

Figure 1

Figure 2

Figure 3

Figure 6

Figure 5

Figure 4

4. After connections have been

made, carefully push leads into the

outlet box. Carefully fasten the

Fixture over the Threaded Rods

with the Lockwashers and Knurled

Nuts provided. Install light bulbs (not

included, 60 watt max each).

(Figure 4)

NOTE: Be sure that the electrical

wires are completely inside the

junction box and not pinched

7. You have now completed the

assembly of your Semi Flush ighting

fixture. Restore power and operate

your light fixture with your standard

on/off light switch.

6. Fasten Bowl Cap onto the

threaded rod with Finial Nut.

2004/12
