Fanaway LED EVO1 Manuel utilisateur

VER 1.0

FANAWAY LED EVO1

Retracting Blade Ceiling Fan and Light

INSTALLATION

OPERATION

MAINTENANCE

WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATION AND FAN OPERATION.

Fanaway LED EVO1 Installation Instructions

1 | P a g e V e r 1.0

CONTENTS

Installation instruction manual .......................................................................................... 2

Installationsanleitung ........................................................................................................12

Guide d’installation............................................................................................................23

Manual de instrucciones de instalación.............................................................................34

Manuale delle istruzioni di installazione............................................................................45

Installatiehandleiding.........................................................................................................56

Fanaway LED EVO1 Installation Instructions

2 | P a g e V e r 1.0

THANK YOU FOR YOUR PURCHASE

Thank you for purchasing this quality Fanaway product. To ensure correct function and safety, please read and save all

instructions before using the product.

SAFETY PRECAUTIONS

1) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance

shall not be undertaken by children without supervision.

2) Children should be supervised to ensure that they do not play with the appliance.

3) An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring rules.

AN ISOLATION SWITCH MUST BE INSTALLED WITH THIS FAN.

This is in accordance with Standard AS/NZS 3000:2007/Amendment 2:2012 Electrical

installations. Clause 4.13 Motors.

Please note warranty will be void if installed without an isolation switch.

4) Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available. If electrical appliances

are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food

chain, damaging your health and well-being.

5) The structure to which the fan is to be mounted must be capable of supporting a weight of 45kg.

6) The fan should be mounted so that the blades are at least 2.3 metres above the floor In Europe.

7) The fan should be mounted so that the blades are at least 2.1 metres above the floor In Australia.

8) This fan is suitable for indoor use only.

9) Only an authorized electrician should execute the installation.

Fanaway LED EVO1 Installation Instructions

3 | P a g e V e r 1.0

BEFORE INSTALLATION

Unpack your fan and check contents. You should have the following:

Fig. 1

Fanaway LED EVO1 Installation Instructions

4 | P a g e V e r 1.0

Mounting bracket x 1

Retraction mechanism x 1

Canopy screws x 4

Lamp base x 1

Canopy x 1

LED board x 1

Down rod x 1

Lamp shade x 1

Bolt x 1

Wooden screws x 2

Bolt & pin cover x 1

Plastic anchor x 1

Pin x 1

Balance tapes x 4

Top housing x 1

Wall switch x 1 set

Blades x 4

INSTALLING THE FAN

TOOLS REQUIRED:

- Phillips / flat head screwdriver

- Pair of pliers

- Adjustable spanner

- Step ladder

- Wire cutter

- Wiring, supply cable as required by local provincial and national wiring codes and regulations.

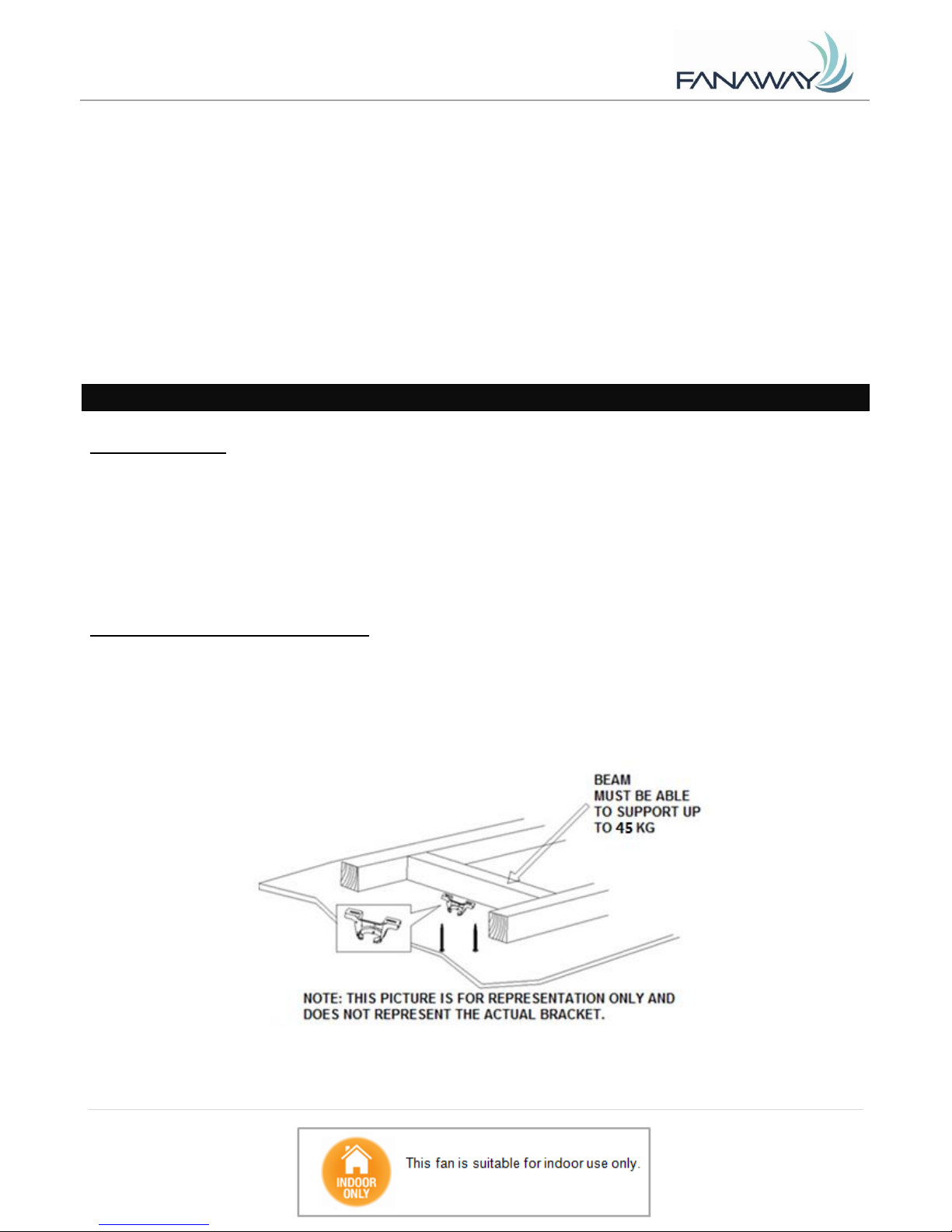

INSTALLING THE MOUNTING BRACKET

The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the

nearest objects or walls.

Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 45kg, with two

long screws provided. Ensure at least 30mm of the screw is threaded into the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures other than wood,

the appropriate screw type MUST be used.

Fig. 2

Fanaway LED EVO1 Installation Instructions

5 | P a g e V e r 1.0

ANGLED CEILING INSTALLATION

This fan hanging system supports a maximum 15 degree angled ceiling installation.

HANGING THE FAN

Installing the down rod

1) Feed the down rod (5) through the canopy (4) and the bolt and pin cover (6).

2) Remove the ball joint by loosening the set screw (3) and insert the motor wires through the down rod and then

secure the ball joint back to the down rod.

3) Insert the down rod to the coupling (7), line up the coupling holes with the down rod holes and insert the bolt (8).

Then insert the pin (9) to the end of the bolt.

4) Finally secure the down rod and coupling by tightening the two set screws (10) on the coupling. Fig. 4

5) Lift the fan assembly onto the mounting bracket (1). Fig. 5

6) Make sure the tab (2) on the mounting bracket socket is properly seated in the groove (3) in the ball joint. Fig. 5

LIGHT KIT INSTALLATION

1) Remove the lamp shade from the lamp base by turning it anti-clockwise.

2) Loosen the screw (1) from the base bracket (3). Align the two slot screws (2) with the keyhole slots of the lamp base

(4). Fig.6

3) Turn the lamp base counterclockwise until the slot screws are firmly at the end of the slots.

4) Secure screw 1 back to the base bracket. Tighten all three screws. Do not over-tighten.

Fig. 3

Fig. 4

Fig. 5

Fanaway LED EVO1 Installation Instructions

6 | P a g e V e r 1.0

5) Connect the upper plug (1) from the driver to the lower socket (1) in the LED board (3). Fig.7

6) Select the color temperature (3000K or 4000K) by sliding the switch (2).

7) Connect the upper connector from the motor to the lower connector (1) from the driver. Fig.8

8) Finally install the lamp shade to the lamp base by turning it clockwise (No.13 –Fig. 1).

Fig. 7

Fig. 6

Fig. 8

Fanaway LED EVO1 Installation Instructions

7 | P a g e V e r 1.0

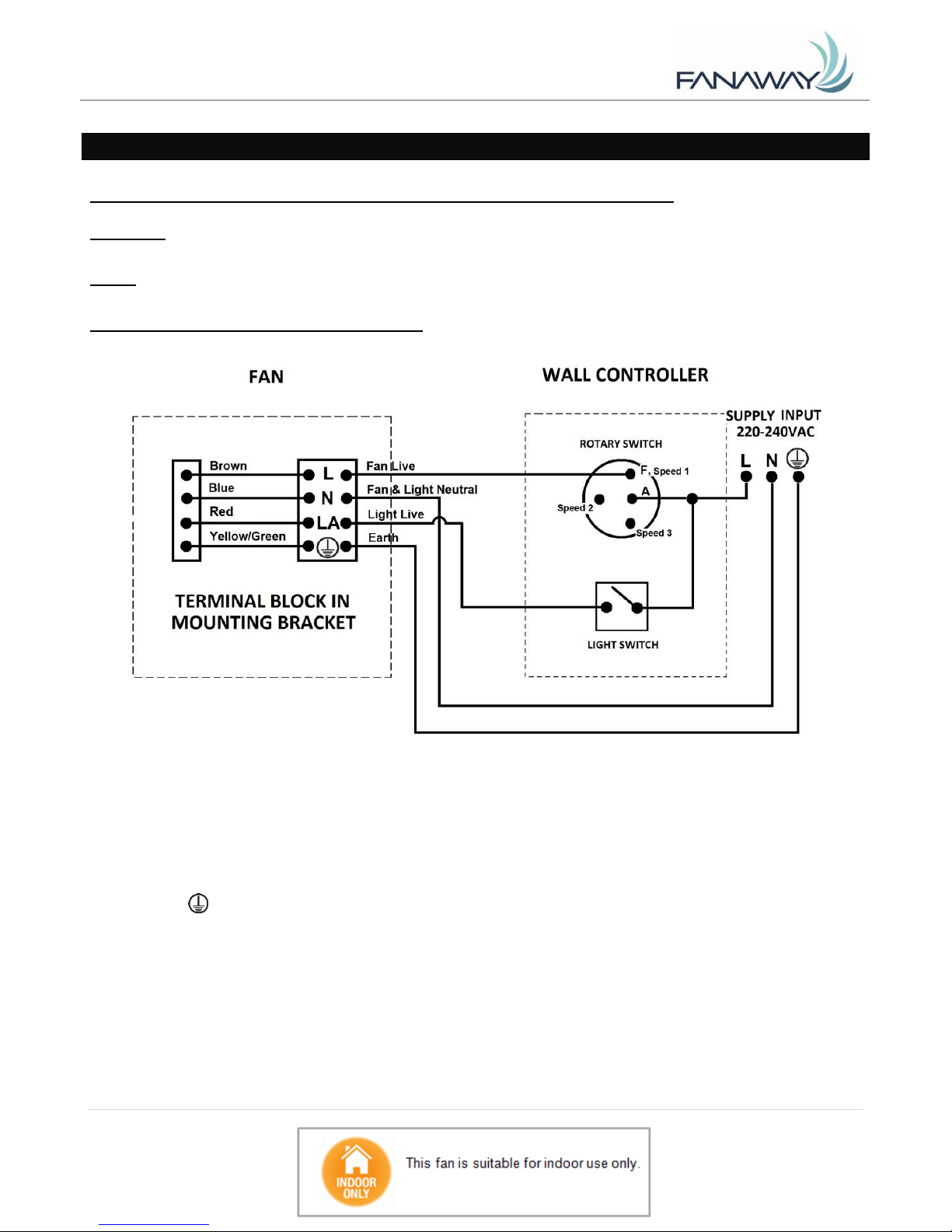

ELECTRICAL WIRING DIRAGRAM

PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 9)

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED

ELECTRICIAN.

NOTE: AN ADDITIONALALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.

USE WITH WALL SWITCH WIRING DIAGRAM:

Wiring requirement at the terminal block:

The switched active wire out from the rotary switch speed control “F” to the “L” terminal of the terminal block on the

mounting bracket.

The switched active wire out from wall controller “light” switch, to the “LA” terminal of the terminal block on the

mounting bracket.

Supply Neutral to “N” terminal of the terminal block on the mounting bracket.

Earth to “ ” terminal of the terminal block on the mounting bracket.

Fig. 9

Fanaway LED EVO1 Installation Instructions

8 | P a g e V e r 1.0

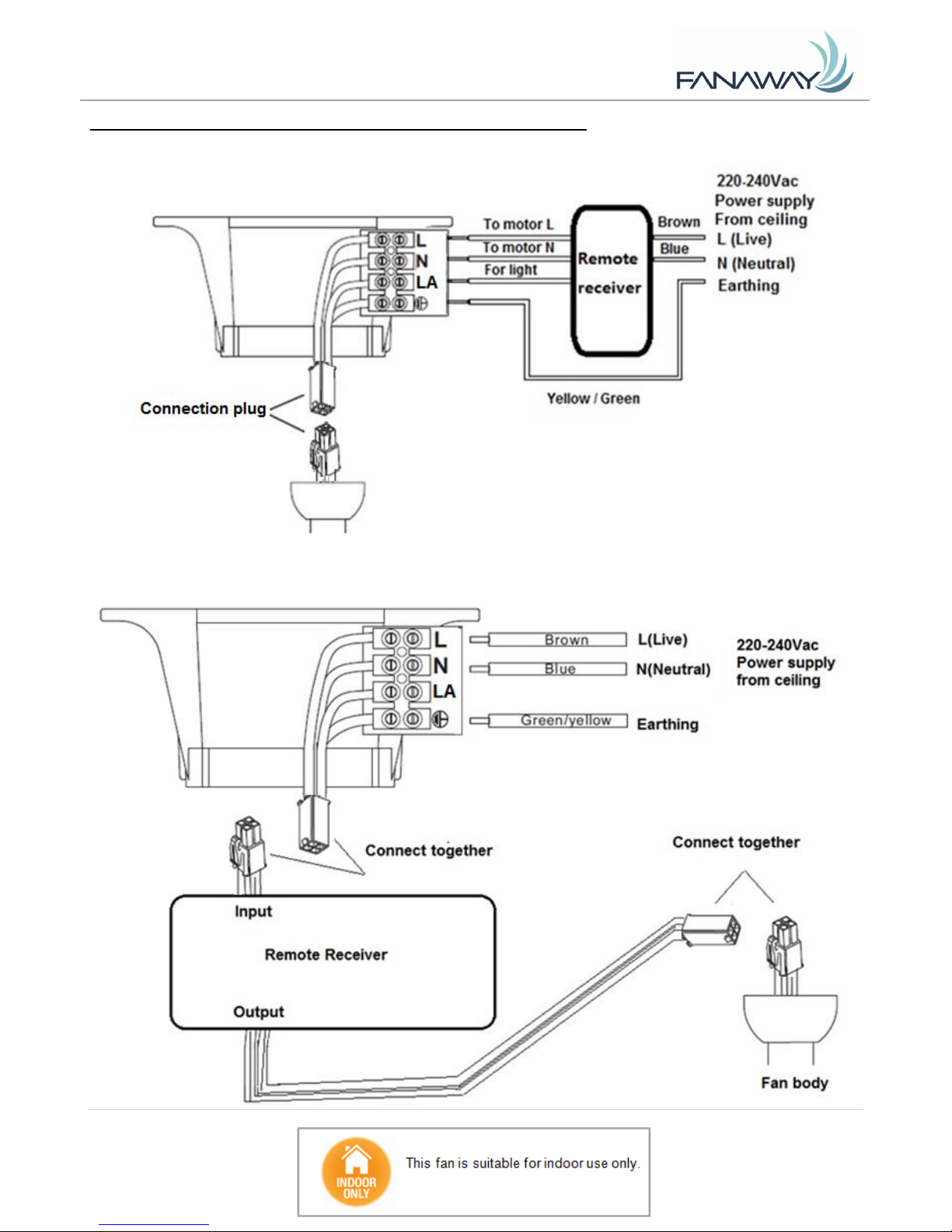

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)

1/ Remote without plugs

2/ Remote with plugs

Fig. 10

Fig. 11

Fanaway LED EVO1 Installation Instructions

9 | P a g e V e r 1.0

FINISH THE INSTALLATION

Connect the female plug (fan motor) and male plug (mounting bracket) together

(1 –Fig.12).

Slide the canopy (No.3–Fig. 1) onto the mounting bracket using the slotted holes.

Align the other 2 holes and then install the 2 other screws. Tighten all four screws

firmly. Avoid damaging the electrical wiring prepared previously.

USING YOUR CEILING FAN

FAN WALL CONTROL

Turn on the power and check the operation of the fan.

• OFF Position – fan off

• 3rd Position – low fan speed

• 2nd Position – medium fan speed

• 1st Position – high fan speed

Light Control

• Toggle switch –on/off

Using LED fitting with dimmer (not included)

WARNING:

FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED

ELECTRICIAN.

AN ISOLATION SWITCH MUST BE INSTALLED BEFORE DIMMER IN THE FIXED WIRING.

DO NOT use a remote control which has a dimming function to control this LED fitting.

This LED light kit is dimmable and has been tested with Clipsal 32E450TM, 32E450UDM and LUCCI SKU# 290998

dimmers only. The use of non-recommended dimmers will void warranty and may damage your LED light fitting.

NOTE: For use with LUCCI SKU# 290998 trailing edge dimmer, the best dimming performance is achieved by

adjusting the variable resistor at the minimum and maximum dimming position on this dimmer during the install.

NOTE: Dimming may cause buzzing sounds or a slight flicker. Slight delays with the lamp starting up and slight

uneven light performance can occur when more than one LED light fitting is linked together, switched ON and dimmed.

Fig. 12

Fig. 13
