FANATEC CSL DD Manuel utilisateur

Rev. 03

Manual

Thank you for choosing

To get the most out of your CSL DD, please read this manual before rst

use. It contains important health and safety information and should be

retained for future reference.

INDEX

1. General ................................................................................................................. 1-2

2. Compatibility........................................................................................................ 2

3. Package Contents .............................................................................................. 3

4. Assembly.............................................................................................................. 4-11

4.1 Plan Your Setup ........................................................................................... 4

4.2 Hard-Mounting ............................................................................................. 4-5

4.3 Table Clamp Assembly................................................................................ 6-7

4.4 Attaching a Steering Wheel ........................................................................ 8-9

4.5 Connections ................................................................................................. 10

4.6 Recommended Accessories ....................................................................... 11

5. Functions & Features.......................................................................................... 12-21

5.1 Firmware & Driver Update........................................................................... 12

5.2 Start-Up Procedure...................................................................................... 12

5.3 Modes ........................................................................................................... 13

5.4 Centre Calibration........................................................................................ 13

5.5 Shifter Calibration........................................................................................ 14-15

5.6 Tuning Menu................................................................................................. 15-22

6. Cleaning ............................................................................................................... 23

7. Troubleshooting .................................................................................................. 23-24

8. Video Manual ....................................................................................................... 25

9. Serial Number ...................................................................................................... 25

10. Trademarks ........................................................................................................ 25

11. Product Recycling ............................................................................................. 25

12. Compliance ........................................................................................................ 26

13. Warranty ............................................................................................................. 27

WARNING! Musculoskeletal disorders

Use of game controllers, keyboards, mice, or other electronic input devices may be linked

to serious injuries or disorders. When playing video games, as with many activities,

you may experience occasional discomfort in your hands, arms, shoulders, neck, or

other parts of your body. However, if you experience symptoms such as persistent or

recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation,

or sti󰀨ness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED

HEALTH PROFESSIONAL, even if symptoms occur when you are not playing a video game.

Symptoms such as these can be associated with painful and sometimes permanently

disabling injuries or disorders of the nerves, muscles, tendons, blood vessels, and

other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel

syndrome, tendonitis, tenosynovitis, vibration syndromes, and other conditions.

While researchers are not yet able to answer many questions about MSDs, there is general

agreement that many factors may be linked to their occurrence, including medical and

physical conditions, stress and how one copes with it, overall health, and how a person

positions and uses their body during work and other activities (including playing a video

game). Some studies suggest that the amount of time a person performs an activity may

also be a factor. If you have questions about how your own lifestyle, activities, or medical

or physical condition may be related to MSDs, see a qualied health professional.

WARNING! Photosensitive Seizures

A small percentage of people may experience a seizure when exposed to certain visual

images, including ashing lights or patterns that may appear in video games. Even people

who have no history of seizures or epilepsy may have an undiagnosed condition that

can cause these “photosensitive epileptic seizures” while watching video games. These

seizures may have a variety of symptoms, including light-headedness, altered vision, eye or

face twitching, jerking or shaking of arms or legs, disorientation, confusion, or momentary

loss of awareness. Seizures may also cause loss of consciousness or convulsions that

can lead to injury from falling down or striking nearby objects. Immediately stop playing

and consult a doctor if you experience any of these symptoms. Parents should watch for

or ask their children about the above symptoms – children and teenagers are more likely

than adults to experience these seizures. The risk of photosensitive epileptic seizures may

be reduced by taking the following precautions:

• Sit farther from the TV screen.

• Use a smaller TV screen.

• Play in a well-lit room.

• Do not play when you are drowsy or fatigued.

If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before

playing.

1 1

ATTENTION!

• The device must not be exposed to rain or humidity in order to avoid risk of re and /

or electric shock.

• Operating room temperature: 15°C - 35°C

• The recommended operation time with continuous force feedback activity is 1 hour.

• Excessive use may cause health risks. We recommend taking a 5 minute break after

every 20 minutes of use, and to not drive for more than 2 hours per day.

• Not intended for children under the age of 6 years old. Contains small pieces which

pose a choking hazard!

• Do not open the casing of the device.

• This device contains components that cannot be repaired by the user. Opening the

device casing will void the warranty.

WARNING! Electrical Safety:

• The CSL DD must be connected to an appropriate power source:

• Always connect the DC side of the power supply to the wheel base before

connecting the AC side of the power supply to your wall socket.

• Only original power supply units from FANATEC®may be used with the CSL DD.

Either the standard 90W PSU or the Boost Kit 180. The use of any third party power

supplies may cause damage to the CSL DD, connected peripherals, and present

a serious safety hazard to the user. The use of any third party power supplies will

void the CSL DD warranty and any connected Fanatec peripheral warranties!

• Use only the power cord that is included in the package contents with your CSL DD.

Replacements may only be issued from an authorised repair centre.

• Do not use non-standard power sources such as generators or inverters, even if

the voltage and frequency appear acceptable. Only use AC power provided by a

standard wall outlet.

• To avoid damage, do not expose your CSL DD to sources of heat.

• When connecting and / or disconnecting any steering wheel to / from the CSL DD, take

care of the pins inside the Quick Release.

• Only use Fanatec steering wheels with the CSL DD.

• Unplug the power cord of your CSL DD during storms or when unused for long periods

of time.

• If the CSL DD becomes damaged in any way, stop usage immediately and contact

Fanatec Customer Support: Fanatec.com/support/faq.

GENERAL

2 2

GENERAL NOTES

• All specications in this document are subject to change. The CSL DD rmware and /

or PC driver may be updated to implement new features or general improvements.

• Fanatec steering wheels which may be mentioned in this manual are not included

within the CSL DD package and sold separately. You can obtain them from the Fanatec

webshop: Fanatec.com

• Additional peripheral devices like shifters, pedals, LED displays and others which may

be mentioned in this manual are not included within the CSL DD package and are sold

separately. You can obtain them from the Fanatec Webshop: Fanatec.com

• This manual discusses assembly, connections, and functions related to Fanatec

steering wheels and other additional devices. This is not a replacement manual for the

other corresponding products! Read the quick guides or user manuals for the other

products as well!

• The warranty does not include defects that are due to commercial use of the product.

See chapter “Warranty” at the end of this user manual as well as the Terms &

Conditions on Fanatec.com for more details.

• To understand user behaviour with the CSL DD, and to help us improve this and future

products, the wheel base continuously logs the number of hours it has been used

on the standard power supply and Boost Kit 180. Logged data is product-related, not

user-related, and therefore anonymous.

The CSL DD can be used with a wide range of CSL, CSL Elite, ClubSport,

and Podium series steering wheels and hubs. Using di󰀨erent wheels

helps to create a more realistic feeling based on the type of vehicle being

simulated and your driving style. It’s up to you! Additional peripheral

devices from Fanatec such as pedals, shifters, and a handbrake are

fully compatible with the CSL DD. You can obtain them from the Fanatec

webshop: Fanatec.com

The CSL DD is compatible with Windows PC and with Xbox One and Xbox

Series X|S when used with an o󰀩cially licensed Xbox Fanatec steering

wheel. Check steering wheel compatibility for details.

IMPORTANT: CSL DD is fully usable out of the box. We always recommend

updating to the latest driver and rmware. See chapter 5.1 “Firmware &

Driver Update” for more details. A Windows PC and PC mode selected on

the wheel base is required to perform rmware updates.

COMPATIBILITY

3 3

PACKAGE CONTENTS

4x M6x8 mm Hard-Mounting T-Nut 1x USB Type-A to Type-C Cable

1x Power Supply 1x Power Cord

(Regional)

1x CSL DD Wheel Base

*Included PSU selected before purchase

4 4

To get started with using the CSL DD, decide on

whether you will hard-mount the wheel base or use the

CSL Table Clamp (not included), connect your steering

wheel via the Quick Release system, then connect the

CSL DD to your PC or Xbox console (Xbox licensed

steering wheel required) using the included USB cable.

It is important to follow the chapter sequence of this

manual for an e󰀨ective assembly and setup procedure.

ATTENTION: See chapter 4.5 “Connections” for which

type of peripheral devices must be connected to which

port at the rear of the CSL DD. All devices have to be

connected to the CSL DD before powering ON to allow

proper detection and operation. Only use the included

USB cable from your CSL DD package contents to

avoid damages! Ensure there is enough space around

the wheel base to allow for air to circulate. Passive air

circulation is su󰀩cient.

Insert the T-nuts

into the T-slots

found on the

underside of the

wheel base for

hard-mounting

from the bottom.

You can position the T-nuts in

any conguration to suit the

position of the holes on your

hard-mounting surface. The

examples above show optimal

T-nut positions.

ASSEMBLY

PLAN YOUR SETUP

HARD-MOUNTING

4.1

4.2

B B B

5 5

Insert the T-nuts into the T-slots found on the sides of the wheel base for

hard-mounting from the sides.

You can position the T-nuts in any conguration to suit the position of the

holes on your hard-mounting structure.

For optimum side-mounting, check out our optional PODIUM Mounting

Brackets at Fanatec.com. (M6 bolts and washers required.)

NOTE: Use only good

quality bolts when

hard-mounting.

Bolt specications:

M6x(10+X) mm

10 mm

6 6

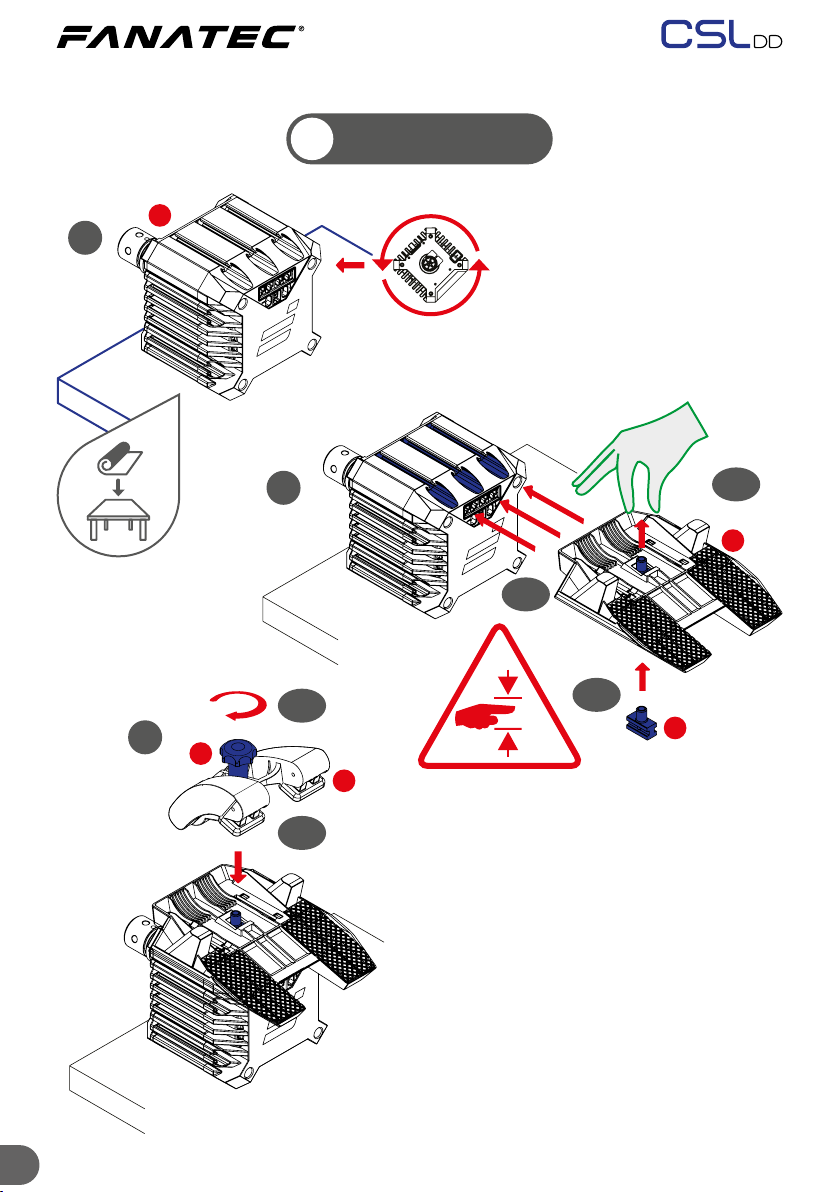

TABLE CLAMP

4.3

2.3

3.2 2.1

3.1

For easily-removable

mounting to a table or

desk, check out the

optional CSL Table

Clamp at Fanatec.com.

2.2

Autres manuels pour CSL DD

Table des matières

Autres manuels FANATEC Accessoires de jeux vidéo

FANATEC

FANATEC ClubSport Universal Hub For Xbox One Manuel utilisateur

FANATEC

FANATEC Clubsport Manuel utilisateur

FANATEC

FANATEC SPEEDSTER 3 FORCESHOCK Manuel utilisateur

FANATEC

FANATEC CSl Elite P1 Manuel utilisateur

FANATEC

FANATEC CSL Manuel utilisateur

FANATEC

FANATEC PWGT3RSV2 Manuel utilisateur

FANATEC

FANATEC CSL Elite V2 Manuel utilisateur

FANATEC

FANATEC Clubsport Manuel utilisateur

FANATEC

FANATEC ClubSport Formula Manuel utilisateur

FANATEC

FANATEC Sim Racing Manuel utilisateur

FANATEC

FANATEC CSL RP1X Manuel utilisateur

FANATEC

FANATEC CSR Elite Manuel utilisateur

FANATEC

FANATEC CSL Elite Racing Wheel Manuel utilisateur

FANATEC

FANATEC CSL Elite Wheel Base Manuel utilisateur

FANATEC

FANATEC CSL Pedals Manuel utilisateur

FANATEC

FANATEC CSL Elite Wheel Base + Manuel utilisateur

FANATEC

FANATEC PODIUM WHEEL BASE DD2 Manuel utilisateur

FANATEC

FANATEC Clubsport Manuel utilisateur

FANATEC

FANATEC CSL Elite Racing Wheel Manuel utilisateur

FANATEC

FANATEC ClubSport Pedals V3 inverted Manuel utilisateur

FANATEC

FANATEC Porsche 911 Turbo S Wheel Manuel utilisateur

FANATEC

FANATEC CSL Elite Wheel Base Manuel utilisateur

FANATEC

FANATEC Clubsport Manuel utilisateur

FANATEC

FANATEC Clubsport Manuel utilisateur

Manuels Accessoires de jeux vidéo populaires d'autres marques

VENOM

VENOM VS3057 Manuel utilisateur

LINK-MI

LINK-MI HDVC01 Manuel utilisateur

Thrustmaster

Thrustmaster T60 Manuel utilisateur

Avermedia

Avermedia C875 Manuel utilisateur

VENOM

VENOM VS2728 Manuel utilisateur

DGT

DGT 960 Manuel utilisateur

Sega

Sega Visual Memory Unit Manuel utilisateur

Datel

Datel Go-tcha Expedition Manuel utilisateur

TruGolf

TruGolf TruFlight 2 Manuel utilisateur

CH Products

CH Products CH PRO THROTTLE Manuel utilisateur

Thrustmaster

Thrustmaster T2PA Manuel utilisateur

Cube Controls

Cube Controls Mercedes-AMG - GT Edition SIM Wheel Manuel utilisateur

Hoffmann

Hoffmann Club Pro Manuel utilisateur

ardistel

ardistel ADT SpeedRacer Manuel utilisateur

Sven

Sven GC-W150 Manuel utilisateur

Deltaco Gaming

Deltaco Gaming GAM-131 Manuel utilisateur

Huffy

Huffy M731324 Manuel utilisateur

Ace Bayou

Ace Bayou X Rocker Manuel utilisateur
