Congratulations on the purchase of your new
FALCON - 4G COMBO
CONTENTS
3
Included in the box:
WHAT’S IN THE BOX
User Manual 12V DC charger (2m) 12V DC UK Charger (1m)
*EU plug in Europe
4G Router (2x) Antenna’s (2x) Suction Cups
• Check for any accessories hidden behind or in the packing materials when
opening the box.
• The item colours and shapes may vary depending on the models.
Please read the manual carefully.
If further support is required please contact us
United Kingdom enquiries
Website: www.falcontechnology.co.uk
Email: support@falcontechnology.co.uk
Telephone: +44 1928 759 239
Scan the QR code below to view the website:
4
ROUTER INPUTS
LAN Reset Power
SIM
QUICK SETUP GUIDE
Step 1: Insert your sim card (Requires preloaded data from your provider).
Step 2: Plug in the router to a power supply.
Step 3: Use your mobile phone, tablet, or computer to search and connect to the
network “Falcon4G”:
Step 4: Enter Password: F@1con_99
Step 5: Conrm signal by checking the 2 green bars on the side of the router:
Step 6: If you are connected without internet turn to
page 10 & page 11 on how to manually set up your Access Point Network (APN).
Step 7: Enjoy your internet experience.
*SIM slot requires a standard sim card or adaptor for micro or nano sim.
5
SPECIFICATION
• Antenna Gain: 2.4GHz - Internal, 2 x 2, build-in 5dBi
• LTE Antenna: 2 x External 5 dBi omnidirectional Antenna, SMA type
• Data Rate: 2.4GHz - 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
• LAN: 2x 10/100
• WAN: 10/100
• Max. Power Consumption: 8.5W
• Operating System Compatibility: Windows/iOS/Android
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -14°C to 80°C
• Power Input: DC 12v 1A & DC 24v 5A
• SIM Slot: 4G
• Support PoE: 24V/0.5A
• Dimensions: 78 x 42 x 313 (including antenna’s)
• Dimensions: 78 x 42 x 154 (excluding antenna’s)
• Weight: 185g (Router, antennas and suction cups)
• Weight: 400g (Boxed)
• Hardware Reset Button: Restore Factory Settings
Connector Description
DC IN DC 12V 1.0 A Power adaptor
LAN 2x 10/100M
WAN 1x 10/100M
Sim Card 4G
Reset Hard reset of router.
CONNECTION DESCRIPTIONS
6
ROUTER CUSTOM CONFIGURATION
Connecting to the Router:
Router default IP is 192.168.1.254 (we suggest you insert the SIM card before using
the power supply).
Open the browser and type“192.168.1.254”(note this can also be done by
connecting the ethernet cable).
Enter password as displayed below:
Basic Setting
1. System status
Display 4G, WAN, wireless 2.4G, DHCP server and system’s information
Falcon4G
7

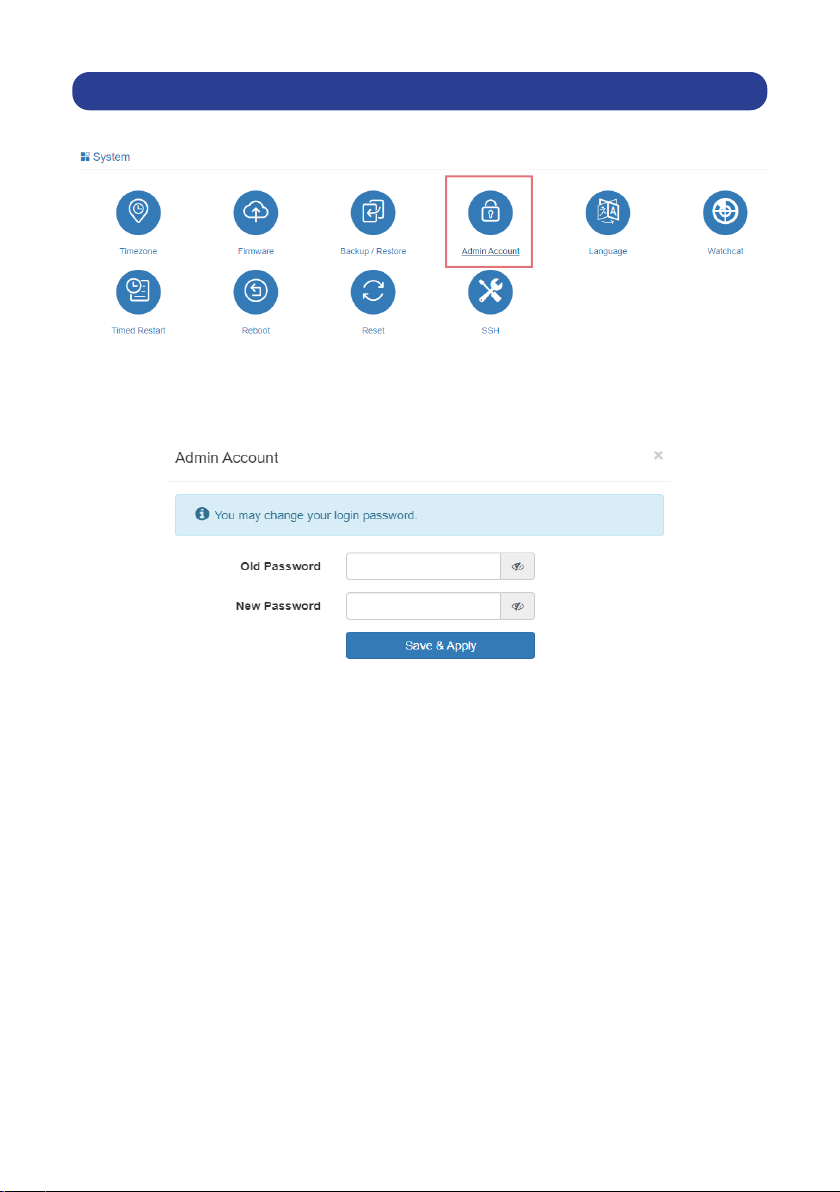

CHANGE ADMIN PASSWORD
Enter old password: F@1con_admin_99
Enter new password. Click Save. Write the new password down for
future reference.
You will be redirected to login as below:
F@1con_admin_99
8
WAN
Options to choose DHCP, Static (xed IP) or PPPoE
DHCP is the standard in this router and may change over time depending on your
internet service provider (ISP). Static is xed and will never change. PPPoE allows
the modem to be a part of the network that multiple users can utilize instead of
being connected directly to the computer. We suggest not changing these settings.
9
WIRELESS 2.4G
Wireless SSID and Password details:
Here you can change your password.You will be logged o so you will need to log in
again. Write your password down for future reference.
ADVANCED SETTING SET NETWORK, SECURITY & SYSTEM
Network:
IP pass-through: make WAN and LAN bridge.
LAN: modify router manage address.
DHCP server: modify LAN DHCP address pool.
PPTP/L2TP: support PPTP/L2TP client mode setting connect.
VLAN: the router can be divided to several VLAN and support computer’s direct
communication.
Port mirroring: set mirroring monitor port.
QOS: set upload and download speeds, dynamic DNS, static routing, and port
forwarding.
DMZ: assign LAN IP open to WAN and host name.
CAUTION: Please do not power o the unit during a rmware update. This may create a system
malfunction.
10
System:
Time zone, rmware update, backup/restore, router password, language (Auto,
English, and Chinese) time restarted (can set timed restart 00:23hour and
00:59miniute) reboot, reset.

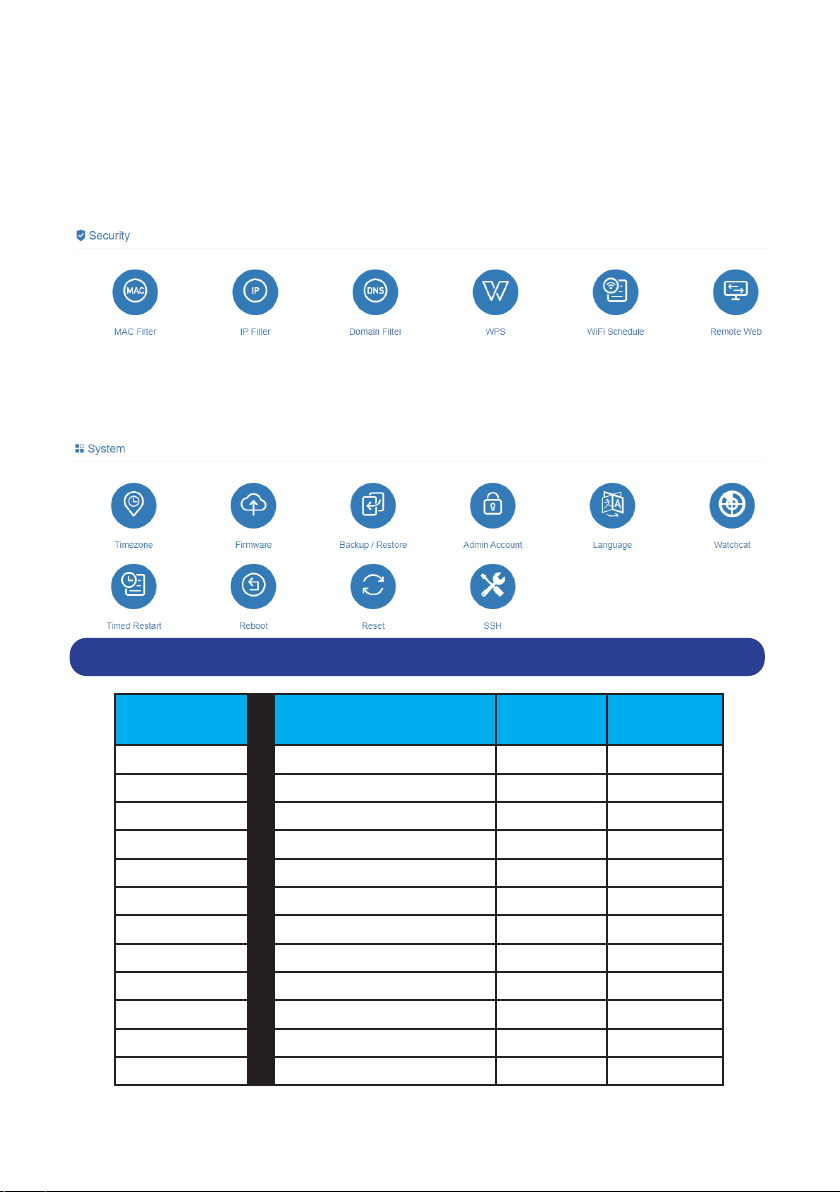

Security:
MAC address lter: set client MAC to visit internet.
IP address lter: set client IP to visit internet.
Domain lter: set domain which allow visit.
WPS/WIFI schedule: Set the time to open and close the wi .
Remote web: set listen IP.
At the time of printing all details are correct but for any discrepancies please check with your provider.
Access Point Name (APN)
D1
Username
D2
Password
D3
everywhere eesecure secure
giga.com gg p
mobile.o2.co.uk o2web password
mobile.sky
three.co.uk
pp.vodafone.co.uk wap wap
wap.vodafone.co.uk wap wap
talkmobile.co.uk wap wap
goto.virginmobile.uk
prepay.tesco-mobile.com tescowap password
mob.asm.net
uk.lebara.mobi wap wap
INTERNET SERVICE PROVIDER ISP DETAILS
Provider
EE
giga
O2
Sky Mobile
Three
Vodafone PAYG
Vodafone
Talkmobile
Virgin Mobile
Tesco Mobile
Smarty
Lebara Internet
