DISHWASHER

INSTALLATION AND FITTING

CONNECTION TO THE PLUMBING

aConnect the pipe to

the water inlet, tighten

the connection nut

and make sure it is

securely connected to

the appliance.

The water connection pipe is located on the back of the dishwasher:

UNPACKAGING

UNPACKAGING THE DISHWASHER

Remove the internal pro-

tection: polystyrene wed-

ges for holding the racks

firm.

Please refer to the specification label on the top edge of the door before making the electrical

connections. Make sure that the power voltage connected to the plug socket is as shown

on the label.

ELECTRICAL CONNECTION

Serial number

Model

The specifications label is on the top edge of the interior

of the door. This label must never be removed, since it

provides information about the exact model of the

dishwasher, required power supply, serial number and

warranty.

IMPORTANT

It is very important for

the dishwasher to be

connected to an earthed plug

socket. The electrical

installation, plug, socket,

fuses or circuit breaker and

meter must be capable of the

maximum power shown on

the specifications label. If the

power cable is damaged, it

must be replaced exclusively

by the manufacturers,

aftersales service (TAS) or

authorised personnel. If the

appliance is to be

recessmounted and

integrated, the plug must be

accessible after installation.

The hose must run

between the wall and

the bottom space at

the back of the

dishwasher (b1) so

that it is not squashed

or overstretched.

There should be a fixed

water outlet drain at a

distance of between 25 and

100 cm from the floor. Make

sure that the outlet pipe is

not too rigid, bent or

squashed.

If your dishwasher has a hot

water inlet, connect the pipe

to the hot water tap. In this

case, the maximum

temperature must not

exceed 60…C. Bear in

mind that this type of water

supply may affect the

washing and drying

capacity of the appliance.

max.

100 cm

min.

25 cm

It is very important for the bend pipe of the outlet hose is located securely in water outlet

so that it cannot disconnet. The operating water pressure (minimum and maximum) must

be between 0,5-10 bar (0,05-1 MPa).

IMPORTANT

b1 b2

LEVELLING AND POSITIONING

LEGS - LEVELLING

WORKTOP

If the worktop is

wooden, fit the plastic

protection onto it to

prevent the area from

being damaged by

steam.

Fit the front brackets to

the dishwasher so that

it can be fixed to

neighbouring units or

the work surface (see

point k, page 54).

To flush-mount the

dishwasher in a row of

kitchen fittings sharing

the same plinth, loosen

and remove the base

accessories.

Before fitting the

dishwasher into the

space, raise it up to

the height of the

worktop by turning the

rear legs until a space

of some 3 mm is left

from the top.

Then adjust the front

legs to the desired

height. Some

integrated models

include a rod for

levelling the rear legs

from the front.

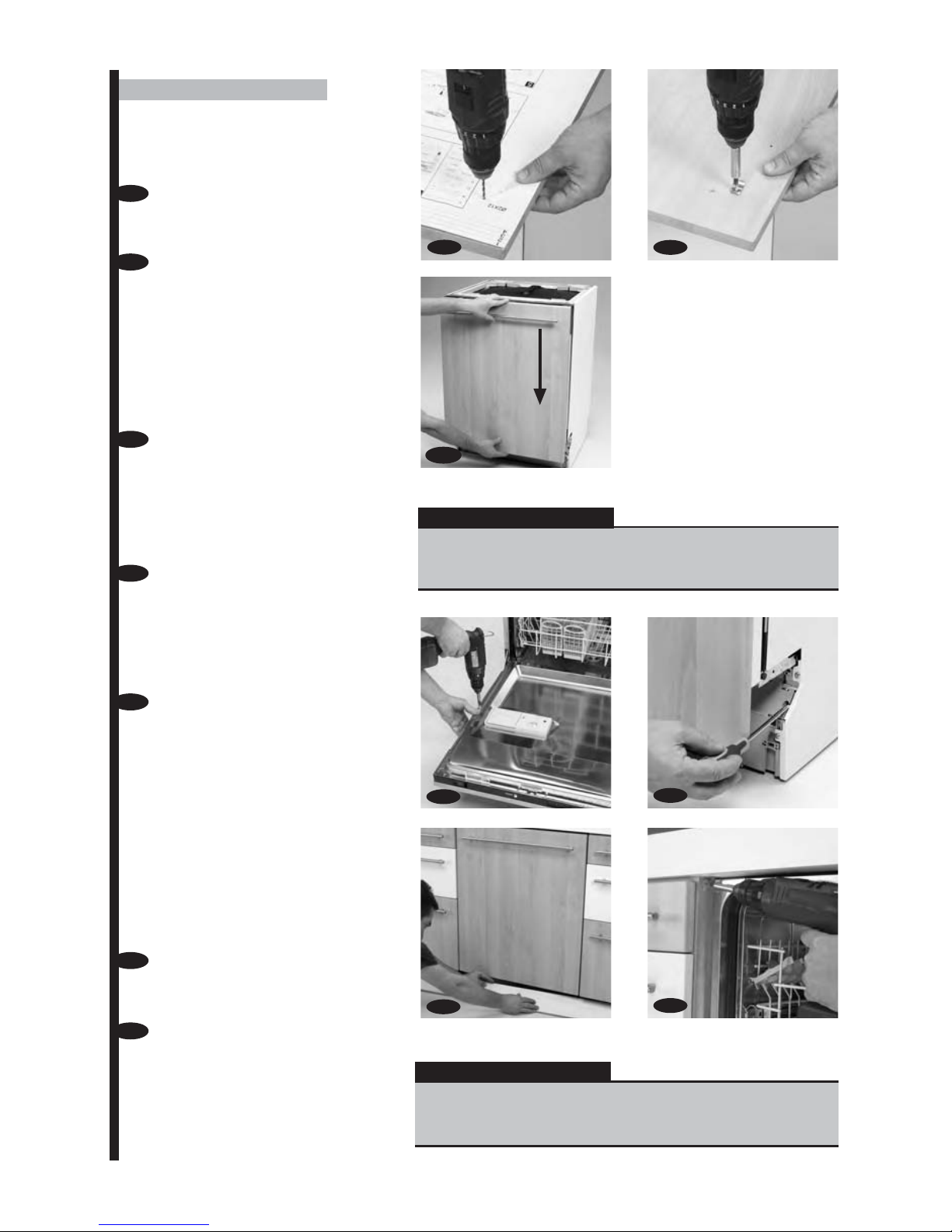

To install an integrated

dishwasher:

English

DOOR

An information template

is provided with the

assembly instructions.

Position the template, fix

it in place and mark the

position of the holes.

Drill the holes with a ﬂ

2.5 mm bit and screw the

supports to the panel with

the curved part facing

downwards.

Pick up the door panel and

fit the supports into the door

housing. Pull it downwards,

ensuring it is firmly fixed

and levelled with the top

part of the door.

Open the dishwasher door

slowly, holding the panel in

place, and then fix it with

the screws, ensuring the

panel is correctly aligned

with the door.

If the door springs are not

strong enough,

compensate the door

with the two additional

screws provided in the

accessories bag.

Fit the dishwasher into

the space. Adjust it to the

worktop until the top of

the dishwasher makes

contact with the bottom

of the kitchen fitting.

Fit the plinth in place,

sawing it to obtain the

desired measurement.

Fix the dishwasher to the

worktop, in the case of a

wooden worktop. If it is a

granite worktop, fix the

dishwasher to the

adjoining fittings.

The maximum and minimum recommended weights for

the door panel to be placed on the dishwasher

are:Maximum: 6.5 kg. Minimum: 3 kg.

IMPORTANT

A space of at least two millimetres must be left at the

sides between the kitchen fittings or electrical appliances

and the dishwasher.

IMPORTANT

gfg

An information template is

provided with the assembly

instructions.

Integrated beneath a worktop

Column-integrated

50 114 mm

600

min. 25

English

For integrated stainless steel models, the following installation instructions should be taken into

account:

Once the dishwasher has

been installed correctly, it

should be first used on

prewash programme:

Open the dishwasher

door.

Press the dishwasher

ON button.

Select programme 1

(prewash), with no

dishes or detergent.

Close the door. The

dishwasher will start

up automatically.

This is to check the

installation, the

connections and the drain

outlet, as well as to

completely wash the

interior before running a

wash pro-gramme

PROG

PRE-WASH

USING THE APPLIANCE - A FEW PRACTICAL TIPS

DISHWASHER

Before starting up the dishwasher, you will need to know the water hardness in

your area. You can find this out by either:

1… Consulting the local Water Board,

2… consulting the T.A.S. (Technical Assistance Service), or

3… using the Aquadur strip included in the accessories bag, following the instructions

below.

WATER HARDNESS, SALT, RINSE-AID AND DETERGENT

To find out the water hardness:

Place the strip in a glass of water

for one second, and then take it

out.

Shake it and wait for one minute.

The strip will show the water

hardness. Check the result of the

test against the table below. You

will probably need to adjust your

dishwasher.

If no salt needs to be added to your dishwasher, go straight on to the "rinse aid" section.

Water hardness adjustment. Water contains scale. The more scale, the harder the

water. To prevent the scale in the water from damaging the dishwasher, it is equipped

with a descaler to reduce the scale and leave it perfectly clean for washing. The descaler

uses salt to function.

1 min.

1 sec.

HF: Water hardness (French system) DH: Water hardness (German system).

Scale level (HF) 0-13 HF 14-38 HF 39-50 HF 51-63 HF Over 63 HF

Scale level (DH) 0-7DH 8-21 DH 22-28 DH 29-35 DH Over 35 DH

Test result

Green 1 Red stripe 2 Red stripes 3 Red stripes 4 Red stripes

No salt needed Position 1 Position 2 Position 3 Position 4

L0 L1 L2 L3 L4

Hardness Soft Standard Medium Hard Very hard

Dial

position

Manual

Electronic

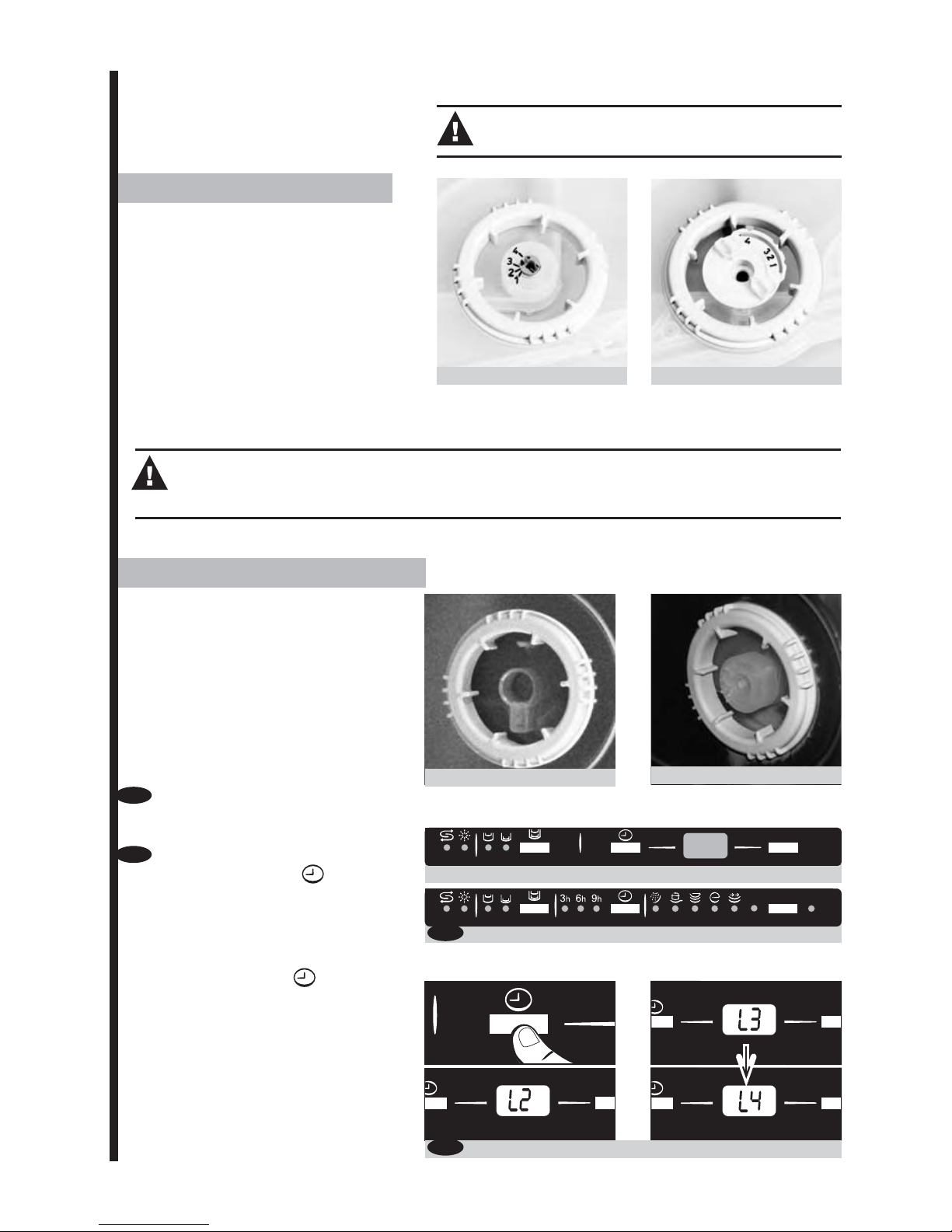

ELECTRONIC ADJUSTMENT

If there is a salt regulator inside

your dishwasher on the right,

e.g. Mod. C or Mod. D, you

should adjust the salt from the

control panel with the

dishwasher running pressing

the on/off button but with no

programmes running.

Identify your dishwasher:

Type A or Type B.

Type A models (display

models): Press the

button and hold it down

for 3 seconds. A number

with the letter L before it

(L2) will appear on the

display. Press the

button again to select the

salt regulator position

required.

Type A: display models

Type B: pilot light models

Mix

PROG STOP

50º 55º 50º

65º

70º

PROG

PRO

Display models

REGULATOR Model C REGULATOR Model D

MANUAL REGULATION

If there is a salt regulator like the

one shown in the photographs

(Mod. A-B) inside your dishwasher

on the right-hand side, turn it to the

number that corresponds to the

hardness of the water in your area

(see table).

To turn it to the correct position, use

a coin (Mod. A) or a screwdriver

(Mod. B).

Controlling the salt level

Depending on the model, dishwashers

will have a manual or electronic salt level

control.

This simple adjustment of your dishwasher is vital

for its correct functioning. Do not ignore it.

REGULATOR Model B

REGULATOR Model A

If you wish to use combined detergent tablets (3-in-1, 4-in-1), turn the dial to the

corresponding test result number. If you use traditional detergents after this, turn the

dial to the test result number again.
