TECHNICAL MANUAL

DISH WASHER

“ADVANCE”

CSI INSTALACIONES

Page 2 of 22

10/11/2009

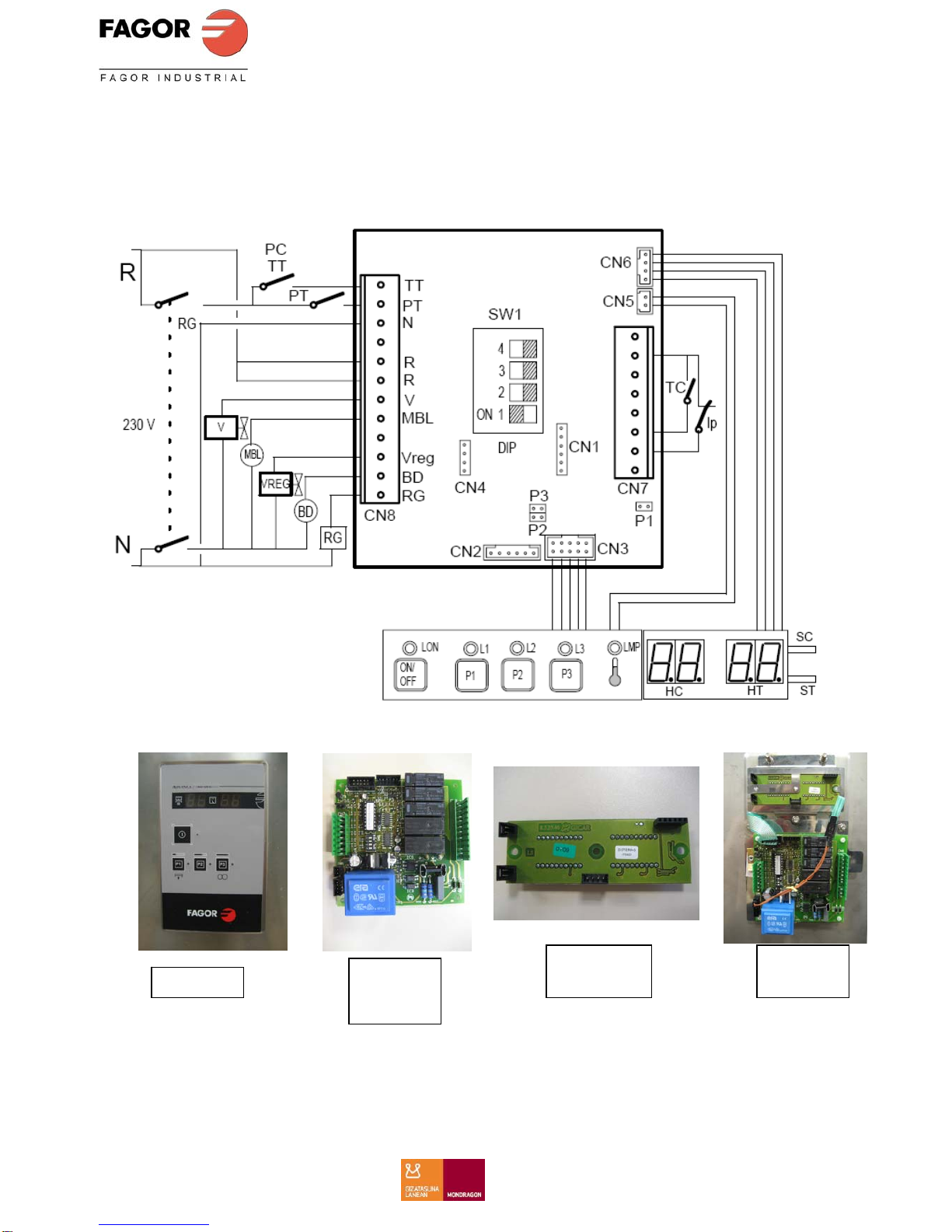

PLATFORM

The platform used for controlling the low range, ADVANCE dishwasher (front loading, top loading

and glasswasher) is shown below.

ADVANCE

Serigraphy Main

control

card

Temperature

Card Card

Assembly

CSI INSTALACIONES

Page 3 of 22

10/11/2009

As can be seen from the picture, the platform has 2 cards, the main controller card and the auxiliary

temperature card, in addition to a membrane keyboard with 4 buttons and 5 LEDs permitting

interaction with the appliance.

TEMPERATURE CARD

The temperature card is powered through the control card but does not have any communication

with this card. This card only displays the tank and boiler temperatures, making use of 2 external

thermostats linked to the card.

MAIN CONTROL CARD

The control card has 4 inputs and 5 outputs, in addition to 4 dip-switches for configuring the

appliance:

Inputs:

•TT / PC: Thermostat indicating whether the established tank temperature has been reached.

On the other hand, for a Clinic appliance, that is an appliance with break tank, this input

indicates the status of the boiler pressure switch

•PT Input displaying the status of the tank pressure switch

•TC: Displays the status of the boiler thermostat (CAUTION! The status of this input

signifies the opposite to that of the TT input)

•IP: Input indicating the status of the door

Outputs:

•V: Water inlet solenoid valve

•MBL: Wash pump

•Vreg: Regeneration solenoid valve. In a Clinic appliance, this valve is used to fill the boiler

•BD: Drainage pump

•RG: Main relay which disables the remaining outputs if not active

CSI INSTALACIONES

Page 4 of 22

10/11/2009

The configuration of the DIP-Switches is as follows:

oDIP1: Door

oIf DIP1=0

Glass washer and front loading. To begin a new wash cycle, select the

required programme, the appliance is on stand-by meanwhile

oIf DIP1=1

Top loading: To start a new wash cycle, just open and close the door, and

the last used programme is run

oDIP2: Regeneration

oIf DIP2=0

The appliance does not have descaler

oIf DIP2=1

The appliance has descaler Therefore, if B2 is pressed for 3 seconds, the

descaler cycle is activated

oDIP3: Time

oIf DIP1=0& DIP3=0

P1=90 / P2=120 / P3=180

oIf DIP1=0& DIP3=1

P1=60 / P2=90 / P3=180

oIf DIP1=1& DIP3=0

P1=90 / P2=120 / P3=180

oIf DIP1=1& DIP3=1

P1=55 / P2=80 / P3=120-∞

oDIP4: Clinic Line with break tank

oIf DIP4=0: This is not a clinic line appliance

oIf DIP4=1

Vreg (The output Vreg is used as a boiler filler valve)

For the thermostop, in addition to TC, TT should also be considered (PC in

this case). Do not end wash until TC=0 and TT=0

CSI INSTALACIONES

Page 5 of 22

10/11/2009

FAGOR ELECTRONIC ADVANCE MODEL DIP1 DIP2 DIP3 DIP4 CYCLE TIMES (s)

OTHER GLASSWASHER MODELS OFF OFF OFF OFF

AD-15 D , AD-21 D OFF ON OFF OFF P1=90 / P2= 120 / P3=180

OTHER GLASSWASHER MODELS A.F. OFF OFF ON OFF

AD-48 D, AD-64 D OFF ON ON OFF

AD-48 HY, AD-64 HY OFF OFF ON ON P1=60 / P2= 90 / P3=180

OTHER GLASSWASHER MODELS TOP LOADING

AD-90…. ON OFF OFF OFF P1=75 / P2= 120 / P3=180

OTHER GLASSWASHER MODELS TOP LOADING

AD-120... ON OFF ON OFF

AD-120 HY ON OFF ON ON P1=55 / P2= 80 / P3=120 - ∞

DIP1 = ON, when the door is closed or the cover lowered, the dishwasher starts.

DIP1= OFF, when the door is closed or the cover lowered, the dishwasher continues washing ONLY IF THE CYCLES HAS NOT

FINISHED.

DIP2 = ON, For models fitted with WATER SOFTENER, version “D”.

DIP2 = OFF, For models with DRAINAGE PUMP, versions “B”.

DIP1 + DIP3 , with the different posible combinations, we programme the cycle times

DIP4 = ON, For models “HY”

DIP4 = OFF, For models wich do NOT have Break Tank “HY”

CSI INSTALACIONES

Page 6 of 22

10/11/2009

DIPS

OFF

CSI INSTALACIONES

Page 7 of 22

10/11/2009

INTERFACE

One of the possible serigraphic combinations (membrane keyboard) is shown below. This has been

designed to interact with the 5 RELAY card.

These are the components of the above combination:

B1 (ON/OFF button)

oButton for switching appliance on/off. The button should be pressed for 2 seconds

L1 (ON/OFF LED)

oLED indicating whether the appliance is ON or OFF. If the appliance is running, the LED is lit,

otherwise it is off

Note: Depending on the model, this button may have the auxiliary function of descaler or drainage

pump

B2 (Button P1)

oIf this button is pressed once, the dishwasher will start to wash with programme 1, provided

the door is closed

oIf the button is pressed for 3 seconds, this activates the function corresponding to the right

icon (Descaler or drainage pump, depending upon the DIP2 configuration)

oIf DIP2=0: Drainage pump If the door is open (relief valve removed) the drainage

pump is activated for 2 minutes (As with the EDESA software)

oIf DIP2=1: Descaler: The regeneration cycle is run, as shown in the above graph.

CSI INSTALACIONES

Page 8 of 22

10/11/2009

L2 (LED P1)

oIf the appliance is washing, this LED remains lit. It is also lit if the appliance is in PAUSE

mode, i.e., if the door has been opened

oIf the descaler or drainage pump function is activated, the LED flashes

oIf the appliance is not washing, this LED is off.

B3 (Button P2)

oIf this button is pressed once, the dishwasher starts to wash with programme 2

L3 (LED P2)

oIf the appliance is washing, this LED remains lit. It is also lit if the appliance is in PAUSE

mode, i.e., if the door has been opened

oIf the appliance is not washing, this LED is off.

Note: Depending on the model, this button may have the auxiliary function of cold rinse or indefinite

cycle

CSI INSTALACIONES

Page 9 of 22

10/11/2009

B4 (Button P3)

oIf this button is pressed once, the dishwasher starts to wash with programme 3

oIf the button is pressed for 3 seconds, this activates the function corresponding to the right

icon (Cold rinse or indefinite cycle, depending upon the DIP1 configuration)

oIf DIP1=0 and DIP2=0: Cold rinse: The cold rinse solenoid valve remains on while

the button is pressed

oIf DIP1=1& DIP3=1: Indefinite cycle: The dishwasher remains on indefinitely. If the

indefinite cycle is active, pressing the button again for 3 seconds will deactivate it

L4 (LED P3)

oIf the appliance is washing, this LED remains lit. It is also lit if the appliance is in PAUSE

mode, i.e., if the door has been opened

oIf the cold rinse function or the indefinite cycle is on, the LED flashes

oIf the appliance is not washing, this LED is off.

Note: Depending on the model, this LED may or may not exist

L5 (LED Machine Ready)

oIf the tank thermostat has reached the programmed temperature, this LED lights up

oIf the tank thermostat has not reached the programmed temperature, this LED is OFF

The models without a machine ready LED, there are 2 displays.

Rinse temperature

Washing temperature

CSI INSTALACIONES

Page 10 of 22

10/11/2009

GENERAL OPERATION

To switch on the appliance, press button B1 (Button ON/OFF), when the required programme button

is pressed the dishwasher starts, provided that the tank has been filled with water.

When the programme is selected the machine starts and runs for the time established for this cycle,

starting the countdown to zero when the machine stops. If the door is opened at any moment, the

appliance and the countdown will PAUSE, and start operating normally again when the door is

stopped.

When a programmed cycle ends, the dishwasher remains in stand-by until:

•A new programme is selected in the case of a FRONT LOADING GLASSWASHER

•A new programme is selected or the door is opened or closed in the case of a TOP

LOADING DISHWASHER. In the latter case, the last used programme is run.
