INSTRUCTION MANUAL

Contents



1. Description of the controls_________________________________4

2. Troubleshooting ________________________________________9

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel.

1ON/OFF BUTTON

Pressing this button energises the appliance.

SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the occurrence of a fault

(troubleshooting).

3PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the desired program.

4SALT WARNING LIGHT (certain models only)

Illumination of this light signals that salt container is empty.

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to

the table below, which indicates the most appropriate program according

to dish type and degree of soiling.

User instructions



After using the table to identify the most appropriate washing program:

•press the

ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

•keep pressing the

PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

•close the door; after about 2" the program will start. While it is in

progress, the relative LIGHT will flash (indicating that the program is

being executed).

DURATION CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

1SOAK

Pans and dishes

awaiting

a further wash

Cold prewash 9' 5_

2DELICATE

Wash immediately

after use for dishes

with light dirt

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

59' 12 0,90

3ECO (*)

EN 50242

Wash immediately

after use for dishes

with normal dirt

Wash at 50°C

Cold rinse

Rinse at 65°C

Dry

125' 13 1,01

4NORMAL Dishes

with normal dirt

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

80' 17 1,20

5INTENSIVE

Very dirty pans and

dishes (except

delicate items)

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

105' 20 1,50

Only run the soak program with half loads.

(*) Reference program as per EN 50242 standard.

(–) Not present.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and

room temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program ECO

Load 10 place-settings

Type of detergent B

Amount of detergent 25 g

Rinse aid setting Depending on the model 3/4 or 4/6

1.2 Washing programs

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

CANCELLING THE CURRENT PROGRAM

•To cancel the currently selected program, open the door and hold

down the PROGRAM SELECTION (3) button for a few seconds

until the indicator lights for programs 4and 5illuminate

simultaneously (the word "end" is displayed on the window).

•Close the door.

•After approximately 1 minute the dishwasher will advance to the end

of cycle.

User instructions



CHANGING THE PROGRAM

To change the program in progress, simply open the door and select a

new program. When the door is closed the dishwasher will automatically

select the new program.

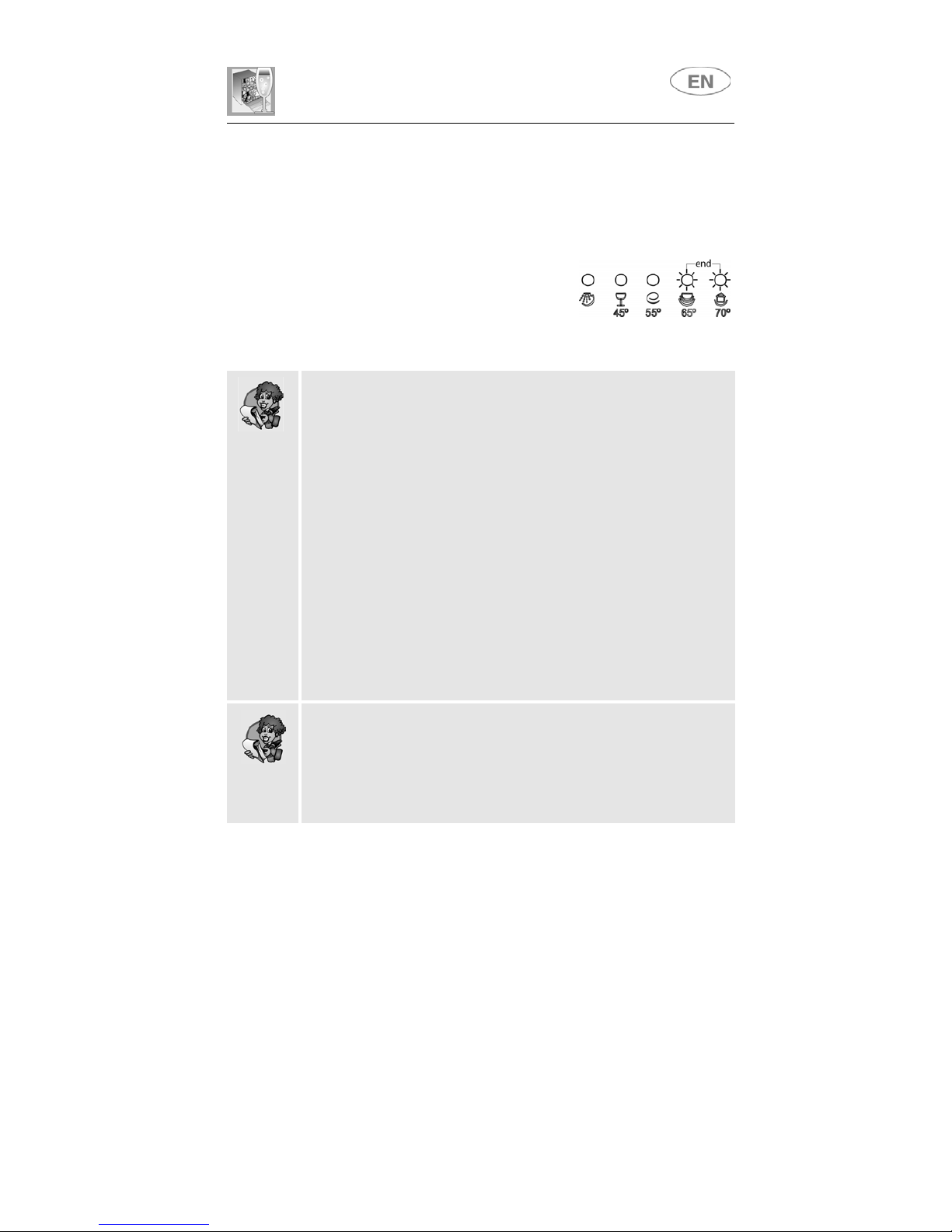

END OF CYCLE

At the end of the washing cycle the dishwasher

gives a short acustic signal and the program

indicators nr 4and 5start blinking (the word

"end" is displayed on the window).

To switch off the dishwasher, open the door and press the ON/OFF

button (1).

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to 60°C.

•When possible, disable the drying cycle and leave the door open at

the end of the washing cycle: the residual air and heat will dry the

dishes perfectly.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to save

on electricity, observe the following:

•separate the more delicate items from dishes that are more resistant

to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

If the door has to be opened while washing is in progress, the program

will be interrupted. The relative light will keep flashing and a beeper will

signal that the cycle has not been completed. You must wait about 1

minute before closing the door to restart the program. When the door is

closed the program will continue from where it was interrupted. This

operation should only be carried out if strictly necessary, because it

might cause problems in execution of the program.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an device for the user to adjust the

water softening system according to the hardness of the water supply.

The setting switch is inside the water softening system underneath the

cap, and offers a choice of 5 settings.

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



2. Troubleshooting

The dishwasher is capable of signalling a number of faults through the

simultaneous illumination of several indicator lights, with the following

meanings:

FAULT DESCRIPTION

Acquastop failure

The anti-flooding system has been activated (for the

relevant models only). The system is tripped in case

of water leaks. Contact the after-sales service.

Water heating malfunction

The water is not heated or the heating parameters

are not correct. Repeat the washing program; if the

problem persists, contact the after-sales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher.

Switch the dishwasher back on, program it again and

start the washing cycle. If the problem persists,

contact the after-sales service.

Water intake malfunction

The appliance does not take in water or does not do

so correctly. Check that the water connections are

correct, the water intake tap is turned on and the filter

is not fouled. If the problem persists, contact the

after-sales service.

Water pump-out malfunction

The appliance does not pump out the water or does

not do so correctly. Check that the drain hose is not

kinked or crushed and that the siphon and filter are

not fouled. If the problem persists, contact the after-

sales service.

Light off Light on Light flashing

User instructions



If an alarm occurs the appliance interrupts the program in progress and

signals a fault.

•Alarms

E1,E3,E4 interrupt the current program immediately.

•The

E5,E6 alarms interrupts the running program once the cause is

resolved, it will bring bach the execution of the program.

To “reset” an alarm is necessary:

•Open and close the door, or turn off and on the machine. At this

point is possible to program the dishwasher again.

If the malfunction persists, contact your authorised Service Centre.
