Dear Customer,

If you follow the recommendations

contained in this Instruction Manual, your

appliance will give you constant high

performance and will remain efficient for

many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS

CHARACTERISTICS

INSTALLATION

USE

MAINTENANCE

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

•The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

•The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

•Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

•For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

•Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

•Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

•If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas.Thekitchenmusthaveanopeningcommunicatingdirectlywith

the open air in order to guarantee the entry of clean air.

USE

•The extractor hood has been designed exclusively for domestic use

to eliminate kitchen smells. Never use the hood for purposes other

than for which it has ben designed.

•Never leave high naked flames under the hood when it is in

operation.

•Adjusttheflameintensityto directitonto thebottomof thepanonly,

making sure that it does not engulf the sides.

•Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

•The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

•Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

•Clean and/or replace the Filters after the specified time period.

•Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

CHARACTERISTICS

Dimensions

Components

Hoo Type 45 50 55 60 70 80 90

L448 498 548 598 698 798 898

Ref. Q.ty Pro uct Components

11Hood Body, com lete with: Controls, Light,

Blower, Filters

81Directional Air Outlet grille

20 1Closing element

Ref. Q.ty Installation Components

12a 4Screws 4,2 x 44,4

12e 2Screws 2,9 x 9,5

Q.ty Documentation

1Instruction Manual

0÷152

280

175

ø 120

0÷152

280

175

ø 120

12e

12a

13 GB

INSTALLATION

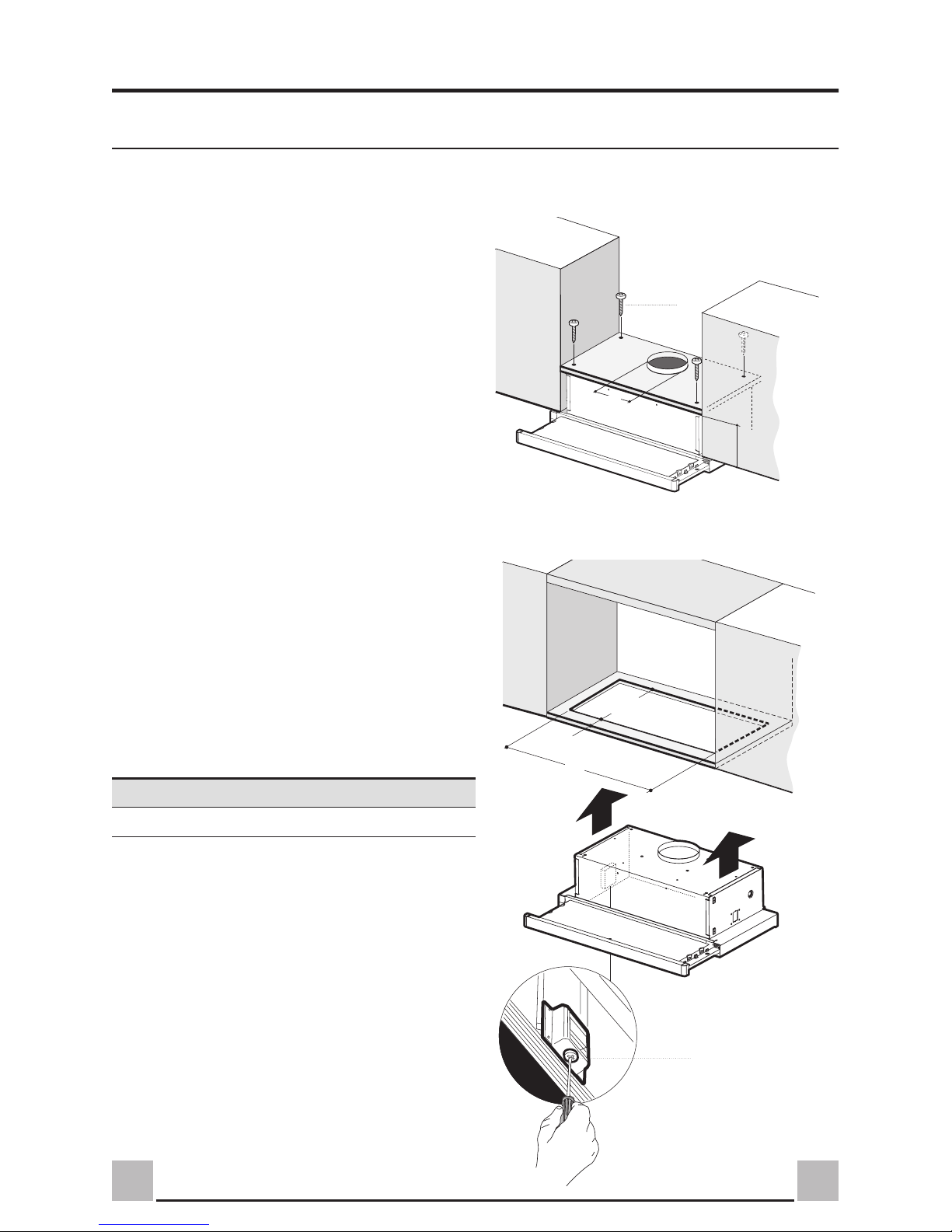

Drilling the Support surface and Fitting the Hood

SCREW FITTING

SNAP-ON FITTING

•Thehood supportsurface must be135 mmabove

the bottom surface of the wall units.

•Drill the support with a ø4.5 mm drill bit, using

the drilling template provided.

•Cut a hole ø125 mm in size on the support

surface, using the drilling template provided.

•Fix using the 4 screws 12a (4,2 x 44,4) provided.

•The hood can be installed either directly on the

bottom surface of the wall units (min. 650 mm

above the hob) using snap-on side supports.

•Cut a fitted opening in the bottom surface of the

wall unit, as shown.

•Insert the hood until the side supports snap into

place.

•Lock in position by tightening the screws Vf

from underneath the hood.

Hoo Type 45 50 55 60 70 80 90

L1 352 402 452 502 602 702 802

12a

135

125125

264

CLOSING ELEMENT

Connections

RECIRCULATION VERSION AIR OUTLET

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø120 mm, the choice of which is left to the installer.

•The space between the edge of the hood and the

rear wall can be closed by applying the element

20 provided, using the screws supplied for this

purpose.

•Cut a hole ø125 mm in the wall unit over the

hood.

•Connect the hood body outlet to the top part of

the wall unit using a rigid or flexible pipe ø120

mm, to be selected by the installer.

•Fix the pipe in position using sufficient pipe

clamps (not supplied).

•Fix the directional grille 8on the recirculation air

outletusingthe2 screws 12e (2,9 x 9,5) provided.

•Ensure that the activated charcoal filters have

been inserted.

•Fix the pipe in position using sufficient pipe

clamps (not supplied).

•Remove any activated charcoal filters.

12e

125125

ø 120

15 GB

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

•When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it

clicks.

USE

Control panel

LLight Switches the lighting system on

and off LLight Switches the lighting system on

and off

MMotor Switches the extractor motor on

and off MMotor Switches the extractor motor on

and off

VSpeed Sets the operating speed of the

extractor:

1. Low speed, used for a

continuous and silent air

change in the presence of

light cooking vapour.

2. Medium speed, suitable for

most operating conditions

giventhe optimumtreated air

flow/noise level ratio.

3. Maximum speed, used for

eliminating the highest

cooking vapour emission,

including long periods

VSpeed Sets the operating speed of the

extractor:

Low speed, used for a continuous

and silent air change in the

presence of light cooking vapour.

Maximum speed, used for

eliminating the highest cooking

vapour emission, including long

periods

M-V

M - V

MAINTENANCE

Grease filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

CLEANING MULTILAYER METAL GREASE FILTERS

REPLACING SYNTHETIC GREASE FILTER

•The filters must be cleaned every two months of

operation, or more frequently with heavy usage,

and can be washed in a dishwasher.

•Remove the filters one at a time, after

disconnecting the relative fastening elements.

•Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

•When refitting the filters, make sure that the

handle is visible on the outside.

•The filters must be cleaned every two months of

operation, or more frequently with heavy usage,

and can be washed in a dishwasher.

•Release the filter retaining grill using the lateral

sliding handles.

•Remove the filter retaining clips.

•Remove and wash the filters. Allow them to dry

before refitting.

•Replace the filters on the grill, fix them in

position using the filter retaining clips and close

the filter retaining grill.

•The filter is not washable and cannot be

regenerated,andmustbereplacedapproximately

everytwo monthsof use,or morefrequently with

heavy usage.

•Release the filter holder frame using the lateral

sliding handles.

•Remove the fIlter retaining clips.

•Replace the saturated synthetic filter.

•Fix the new synthetic filter using the retaining

clips and close the filter holder frame.

17 GB

Odour filters (Recirculation version)

REPLACING ACTIVATED CHARCOAL FILTERS

Lighting

LIGHT REPLACEMENT

•These filters are not washable and cannot be

regenerated,andmustbereplacedapproximately

every four months of operation, or more

frequently with heavy usage.

•Remove the metal grease filters, or open the

filter retaining grill.

•Remove the saturated activated carbon filters by

releasing the fixing hooks.

•Fit the new filters by hooking them into their

seating.

•Replace the metal grease filters, or close the

filter retaining grill.

• 20 W halogen light.

•Remove the 2 Screws fixing the Lighting

support, and pull it out of from the Hood.

•Extract the Lamp from the Support.

•Replace with another of the same type, making

sure that the two pins are properly inserted in the

lamp holder socket holes.

•Replace the Support, fixing it in place with the

two Screws removed as above.

• 40 W incandescent light

•Remove the metal grease filters, or open the

filter retaining grill.

•Unscrew the bulbs and replace them with new

ones having the same characteristics.

•Replace the metal grease filters, or close the

filter retaining grill.

4329663 03 - 020219

Quest’apparecchio èconforme alla norma europea sulla bassa tensione C.E.E. 73/23 relativa alla sicurezza elettrica e alle norme

europee: C.E.E. 89/336 relativa alla compatibilitàelettromagnetica e C.E.E. 93/68 relativa alla marcatura CE.

This appliance conforms to European Low Voltage Directive 75/23/CEE governing electrical safety, European Directive 89/336/

CEE on Electromagnetic Compatibility and Directive 93/68/CEE regarding CE Marking.

Cet appareil est conforme àla norme européenne en matière de basse tension C.E.E. 73/23 de sécuritéélectrique ainsi qu’aux

normes européennes : C.E.E. 89/336 en matière de compatibilitéélectromagnétique et C.E.E. 93/68 en matière de label CE.

Dieses Gerät entspricht folgenden EG-Richtlinien: Niederspannungsrichtlinie EWG 73/23 hinsichtlich elektrischer Sicherheit,

Richtlinie Elektromagnetische Verträglichkeit EWG 89/336 und Richtlinie EWG 93/68 hinsichtlich der CE-Kennzeichnung.

Dit apparaat voldoet aan de Europese laagspanningsnorm 73/23/EEG inzake de elektrische veiligheid en de Europese normen: 89/

336/EEG inzake de elektromagnetische compatibiliteit en 93/68/EEG inzake de CE-markering.
