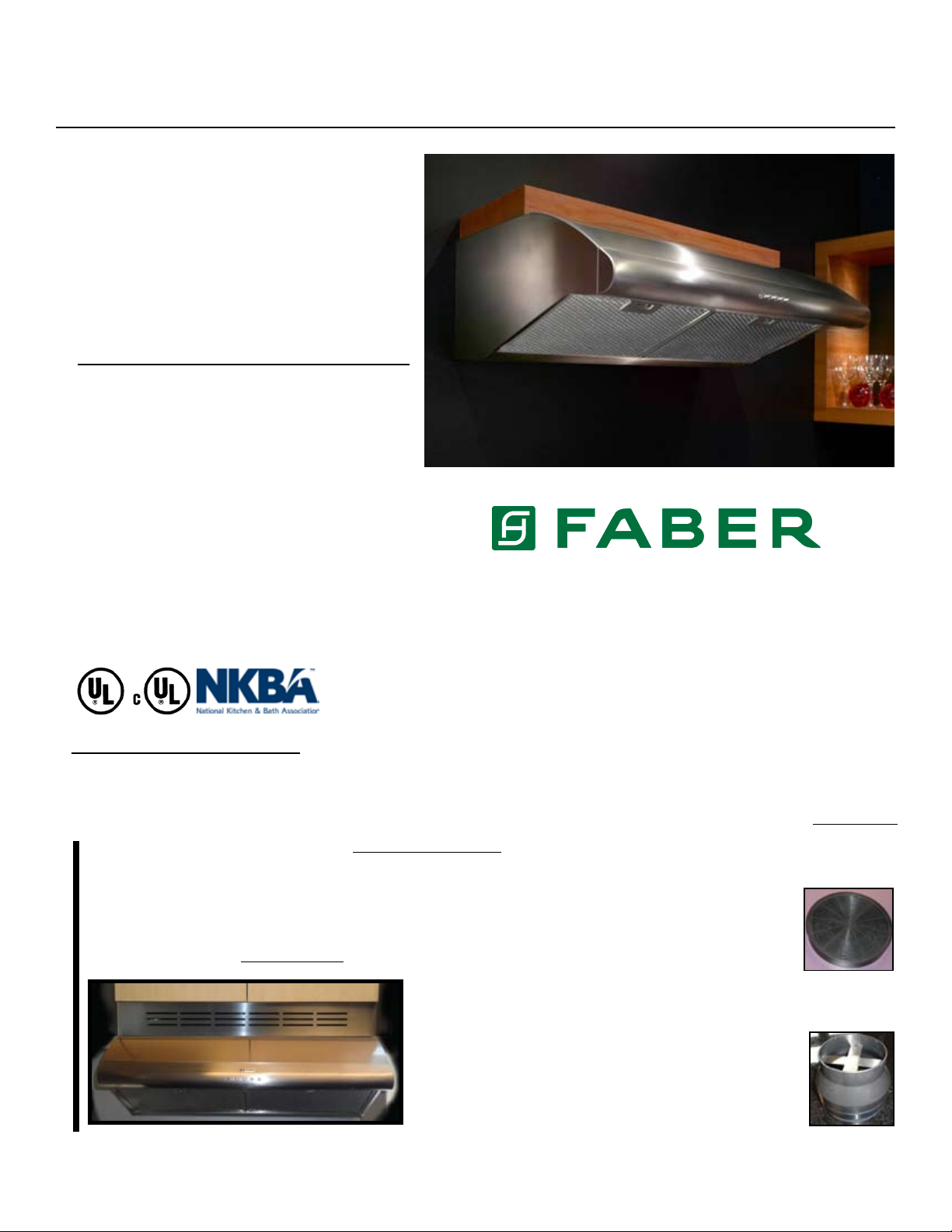

Faber 630003950 Manuel utilisateur

The Pellicano is an excellent

replacement hood for your

updated pro cooking. Installs

easily to the bottom of your

cabinet.

under cabinet rangehood

updated styling

600 cfm PRO motor

2 halogen lights

3 speed push button controls

dishwasher safe SS grease ﬁlters

convertible to recirculating*

New ductless kit available

top or direct rear venting

easy mounting system

sone range: 3.5 - 6.5

6” round duct

30 Stainless

36 Stainless

PELL30SS

PELL36SS

Pellicano

a modern take on the traditional rangehood

Size/Color/Model #

Professional Collection

p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com

* it is highly recommended that

professional style cooking always be

vented to the outside.

FILTER1

Replacement Charcoal Filters

For recirculating installations, high

quality, heavy duty lters ensure

the removal of smoke and odors

from the kitchen.

For use in make up air environments where

an under 300 cfm hood is required. This

kit reduces the ducting to 5” round and

reduces the cfm to under 300

CFMRED

CFM Reducer Kit

A 4” high stainless steel vent grate which

is installed below the cabinet to recirculate

the air back into the kitchen when

ducting outside is impossible or

impractical. Includes the stainless grate,

installation hardware and charcoal ﬁlters

Ductless Vent Grate Kit

30” / DUCTGRT30

36” / DUCTGRT36

Model #

Size / Model #

NEW STAINLESS FILTERS

Dimensional Diagrams & Electrical Knockouts

Rev.07/11

24” minimum

30” suggested maximum

bottom of hood to cooking surface

18” minimum

clearance upper

cabinet to

countertop

36”

70 5/16” minimum

76 5/16” maximum

to bottom of cabinet frame

24” or 30” or 36”

cabinet opening width

Make your ductrun as straight and short as

possible. The ductrun should not exceed 35

equivalent feet if ducted with the required

minimum of 6” round ductwork. Count 45º

angles as 3 feet, 90º elbows as 5 feet, and 90º

at elbows as 12 feet.

For best results, use no more than three 90°

elbows. Make sure that there is a minimum

of 24” of straight duct between elbows if

more than one is used. Do not install two

elbows together. If you must elbow right

away, do it as far away from the hood’s

exhaust opening as possible.

Pre-Planning Your Ductwork -

Important: Consult the installation instructions

before you begin installing this rangehood.

Recirculating Installations

IT IS HIGHLY RECOMMENDED THAT

PROFESSIONAL STYLE COOKING BE

VENTED TO THE OUTSIDE. For installations

where ductwork to the outside of your home

is impossible or highly impractical Charcoal

Filters, which attach to the blower assembly,

absorb smoke and odors.

WARNING! Product specications are subject to change without notication. Consult the installation instructions before you begin installing this rangehood.

Pre-Planning Your Installation - Important: Consult the installation instructions before you begin installing this rangehood.
