Faber 5980410 Manuel utilisateur

For recirculating installations, high

quality, heavy duty filters ensure

the removal of smoke and odors

from the kitchen. Some ductwork is

required to exhaust the unit out of

the cabinet.

Charcoal Filters FILTER1

Choose from a white, black, or

brushed aluminum front strip (all

are included in the box). For a

totally integrated look, the front

strip can also be replaced with a

custom built strip to match your

cabinets. See reverse for front

strip dimensions.

For a streamlined look in the kitchen, the Cristal HC is your

integrated solution. The Cristal HC has a sleek pull-out visor

which slides in, ﬂush with your cabinets, neatly tucking the

hood away. For total integration, the front strip can be

replaced with material to match your cabinets, hiding the

hood completely.

slideout rangehood

slim styling

microswitch turns motor/lights on

when pulled out

closes ﬂush with cabinets

easily replaces existing hoods

500 cfm

1 glass covered ﬂuorescent light

3 speed control

dishwasher safe grease ﬁlters

convertible to recirculating

top or direct rear venting

built-in mounting system

sone range: 3.5 - 6.5

6” round duct

Size | Color Model #

30 *

36 *

* white, black and brushed aluminum

front trims come with every Cristal HC

in the box

CRIS30

CRIS36

p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: [email protected] • www.faberonline.com

Cristal HC

powerful, practical, pretty

Integrated Collection

For use in make up air environments where

an under 300 cfm hood is required. This

kit reduces the ducting to 5” round and

reduces the cfm to under 300

CFMRED

CFM Reducer Kit

3 3/8”

Side View

Cut-Out

Bottom View

Note: The Cristal HC comes standard in the top vent

position. The direct rear vent position can be achieved

by rotating the blower

housing.

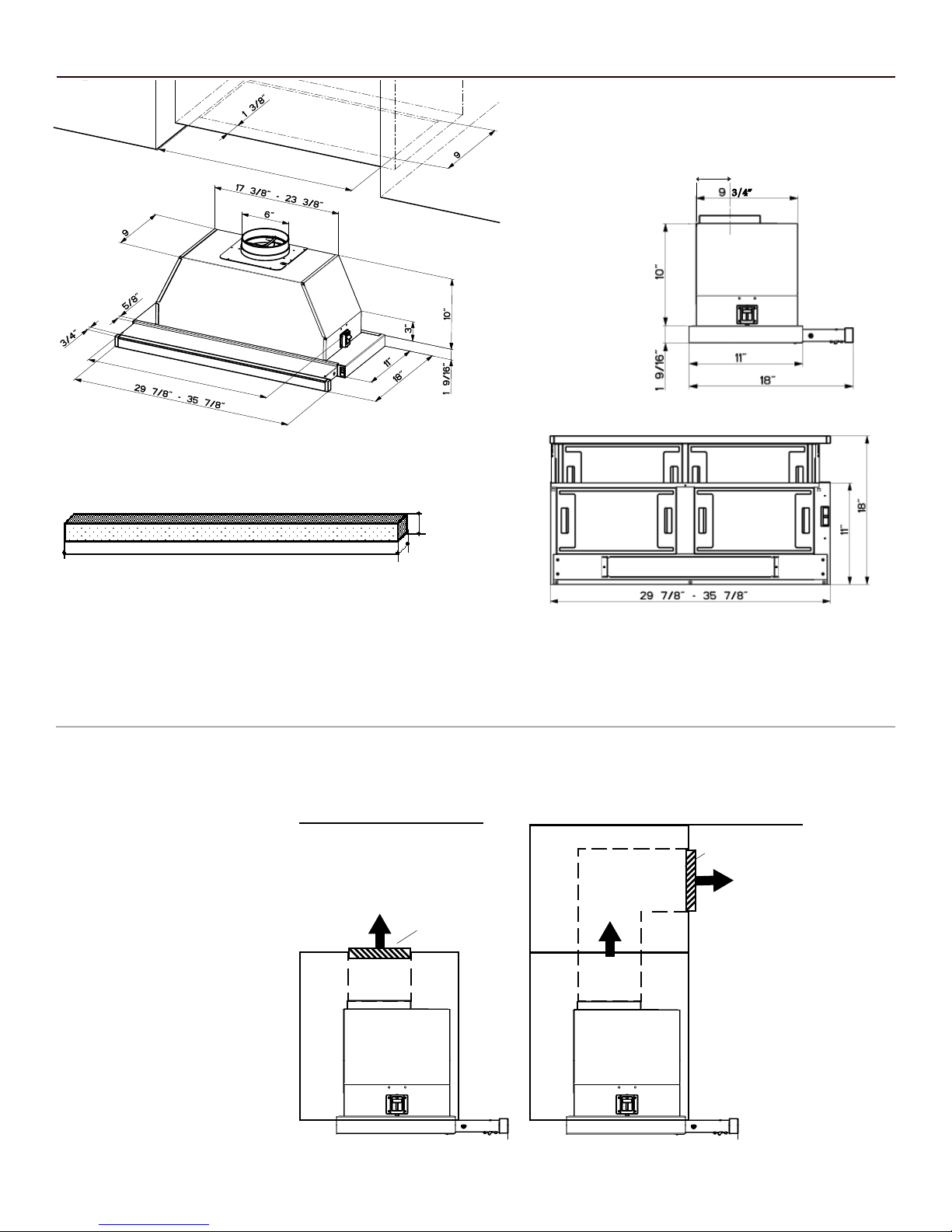

Dimensional Diagrams

Rev.07/11

WARNING! Product speciﬁcations are subject to change without notiﬁcation. Consult the installation instructions

before you begin installing this rangehood.

Custom Front Panel Dimensions

Make your ductrun as straight and

short as possible. The ductrun

should not exceed 35 equivalent feet

if ducted with the required minimum

of 6” round duct. Count 45º angles

as 3 feet, 90º elbows as 5 feet, and

90º ﬂat elbows as 12 feet.

For best results, use no more

than three 90° elbows. Make sure

that there is a minimum of 24”

of straight duct between elbows

if more than one is used. Do not

install two elbows together. If you

must elbow right away, do it as

far away from the hood’s exhaust

opening as possible.

For more efficient airflow when

venting to the rear: Rotate the

Cristal HC blower housing so that

the 6” round exhaust outlet faces the

back, rather than running ductwork

up and elbowing back.

Pre-Planning Your Ductwork - Important: Consult the installation instructions before you begin installing this rangehood.

Recirculating Installations

Some ductwork must

be installed to exhaust

the rangehood back

into the kitchen, either

at the top of the

cabinet or at the face

of the soft. A plastic

vent grate supplied

with the rangehood

can be used to cover

the duct opening. This

duct work must not

terminate into a dead

air space.

Front View

For installations where ductwork to the outside of your home is impossible or highly impractical

Charcoal Filters, which attach to the blower assembly, absorb smoke and odors.

cabinet

ceiling

6” round

duct

hood

cabinet

ceiling

6” round

duct

hood

soft

vent grate

29 7/8” or 35 7/8” 3/4”

1 15/32”

25 1/4” - 31 1/4”

3/4”

25 1/4” - 31 1/4”

3/4”

Pre-Planning Your Installation - Important: Consult the installation instructions before you begin installing

this rangehood. The recommended height to install this hood off the cooktop is a minimum of 24” and a maximum of 30”

for maximum effectiveness. Also consult the cooktop manufacturer’s recommendation.
