Extron electronics FCMP 44 Manuel utilisateur

PRELIMINARY

The FCMP 44 (Flat Ceiling Mount Plate) is a simple and

easily installed mounting solution for hanging a projector in

installations where a short extension pole is used or where larger

mounting plates cannot be installed. The FCMP 44 can support a

projector setup weighing up to 200 lbs (91.6 kg), and is suitable

for installation on wooden joists. It has an integral 1½"

National Pipe Thread pipe adapter, allowing the attachment of a

suitable projector pole, such as one of the Extron PMP

(Projector Mounting Pole) series. The FCMP 44 is a complementary

mounting accessory for use with the Extron UPB 25

(Universal Projector Mount Bracket).

The features of the FCMP 44 are shown in ﬁgure 1. Included in the kit are:

Flat Ceiling Mounting Plate, (1), and Hex Wrench, 3/32", (1).

FCMP 44 • Installation Guide

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before starting installation.

When using this accessory, basic precautions should always be followed, including the following:

WARNING: Risk of Personal Injury. Maximum setup load for the FCMP 44 is 200 lbs (91.6 kg). The structural

ceiling must be capable of supporting 4 times the weight of the ﬁnal setup.

SAVE THESE INSTRUCTIONS

NOTE: Refer to local building standards and codes to verify that the installation will meet the regulatory

requirements. Observe all local and national building and safety codes, UL requirements, and ADA

accessibility guidelines.

Figure 1. FCMP 44 Features

Set Screw

Mounting

Holes

1½" NTP

Pipe Adapter

Checking the Mounting Location

Before starting the installation, it is important that these steps are followed:

• Check that the ceiling plate is suitable for the angle of the ceiling where the projector is to be installed.

• The installation must be done by a skilled technician

Get other manuals https://www.bkmanuals.com

PRELIMINARY

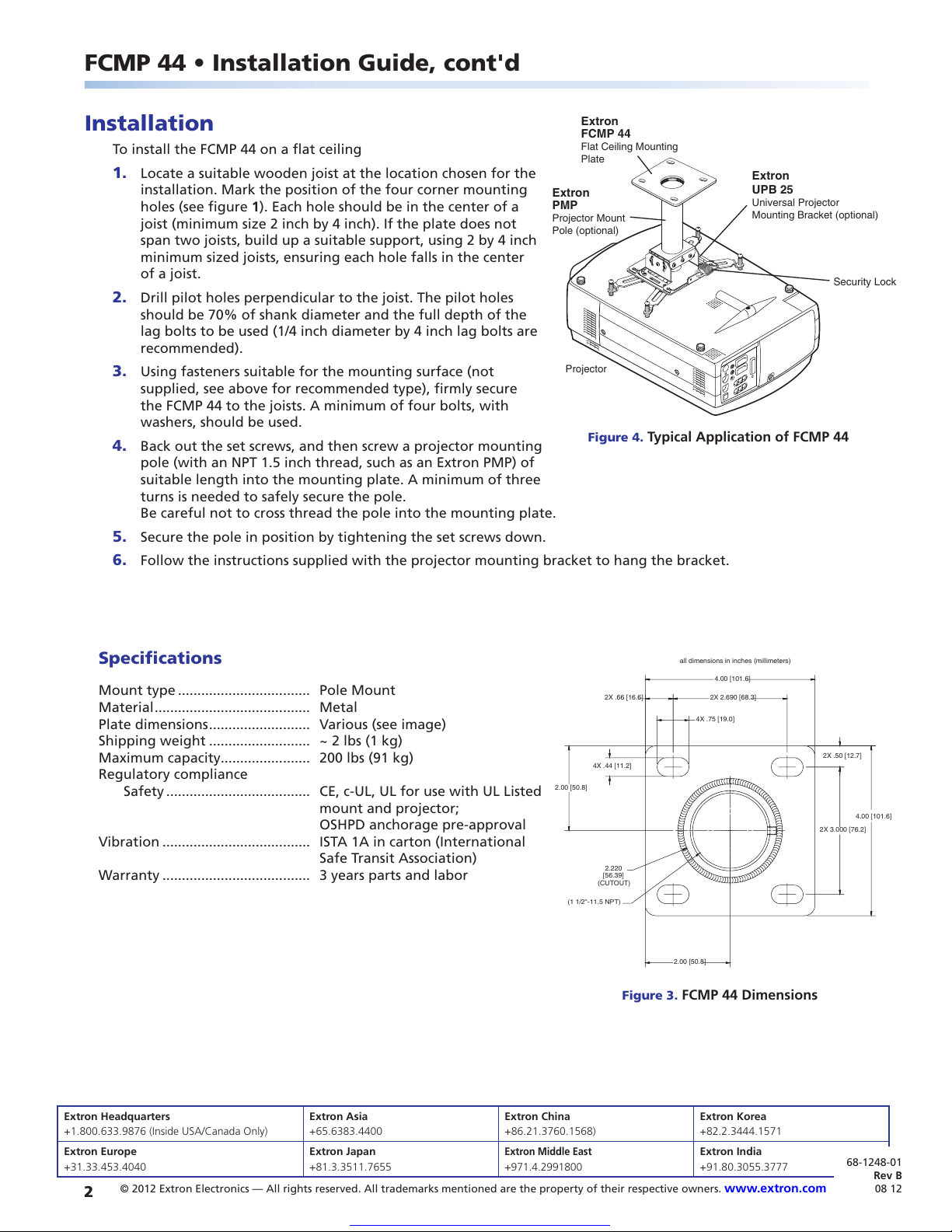

FCMP 44 • Installation Guide, cont'd

Installation

To install the FCMP 44 on a ﬂat ceiling

1. Locate a suitable wooden joist at the location chosen for the

installation. Mark the position of the four corner mounting

holes (see ﬁgure 1). Each hole should be in the center of a

joist (minimum size 2 inch by 4 inch). If the plate does not

span two joists, build up a suitable support, using 2 by 4 inch

minimum sized joists, ensuring each hole falls in the center

of a joist.

2. Drill pilot holes perpendicular to the joist. The pilot holes

should be 70% of shank diameter and the full depth of the

lag bolts to be used (1/4 inch diameter by 4 inch lag bolts are

recommended).

3. Using fasteners suitable for the mounting surface (not

supplied, see above for recommended type), ﬁrmly secure

the FCMP 44 to the joists. A minimum of four bolts, with

washers, should be used.

4. Back out the set screws, and then screw a projector mounting

pole (with an NPT 1.5 inch thread, such as an Extron PMP) of

suitable length into the mounting plate. A minimum of three

turns is needed to safely secure the pole.

Be careful not to cross thread the pole into the mounting plate.

5. Secure the pole in position by tightening the set screws down.

6. Follow the instructions supplied with the projector mounting bracket to hang the bracket.

Extron

UPB 25

Universal Projector

Mounting Bracket (optional)

Projector

Extron

PMP

Projector Mount

Pole (optional)

Extron

FCMP 44

Flat Ceiling Mounting

Plate

Security Lock

Figure 4. Typical Application of FCMP 44

4.00 [101.6]

2.00 [50.8]

2X 3.000 [76.2]

2X 2.690 [68.3]

4.00 [101.6]

2.00 [50.8]

4X .75 [19.0]

4X .44 [11.2]

(1 1/2"-11.5 NPT)

2.220

[56.39]

(CUTOUT)

2X .50 [12.7]

2X .66 [16.6]

all dimensions in inches (millimeters)

Figure 3. FCMP 44 Dimensions

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron Asia

+65.6383.4400

Extron China

+86.21.3760.1568)

Extron Korea

+82.2.3444.1571

Extron Europe

+31.33.453.4040

Extron Japan

+81.3.3511.7655

Extron Middle East

+971.4.2991800

Extron India

+91.80.3055.3777

68-1248-01

Rev B

08 12

Specications

Mount type .................................. Pole Mount

Material........................................ Metal

Plate dimensions.......................... Various (see image)

Shipping weight .......................... ~ 2 lbs (1 kg)

Maximum capacity....................... 200 lbs (91 kg)

Regulatory compliance

Safety ..................................... CE, c-UL, UL for use with UL Listed

mount and projector;

OSHPD anchorage pre-approval

Vibration ...................................... ISTA 1A in carton (International

Safe Transit Association)

Warranty ...................................... 3 years parts and labor
