Extron electronics CVC 100 Manuel utilisateur

CVC 100

Component

Video

Converter

User's Guide

EXTRON ELECTRONICS, ASIA

41B Kreta Ayer Road

Singapore 089003

+65-226-0015 FAX +65-226-0019

Singapore

EXTRON ELECTRONICS

1230 South Lewis Street

Anaheim, CA 92805

(714) 491-1500 FAX (714) 491-1517

U.S.A.

79-05

68-289-01

Rev. A1

EXTRON ELECTRONICS, EUROPE

Beeldschermweg 6C

3821 AH Amersfoort

+31-33-453-4040 FAX +31-33-453-4050

The Netherlands

CVC 100

Specifications

Input Level ....... 0.5 - 1.2 V p-p

Input Impedance ....... 75 Ohms

Output Level ....... 0.7 volts p-p

Bandwidth ....... 50 MHz (-3 dB)

Connectors ....... BNC (Female)

Power Supply ....... 100 - 240 volt 50/60 Hz internal

auto-switchable

Dimensions ....... 1.75" H x 8.72" W x 9.5" D

4.45 cm H x 22.15 cm W x 24.13 cm D

Shipping Weight ....... 3.26 lbs. (1.48 kg)

MTBF ....... 30,000 Hrs

Warranty ....... Two Years, parts & labor

Part Number CVC 100......60-184-01

Page 2Extron • CVC 100 Component Video Converter • User's GuideExtron • CVC 100 Component Video Converter • User's GuidePage 1

InstallationInstallation

Input

Output

CVC 100

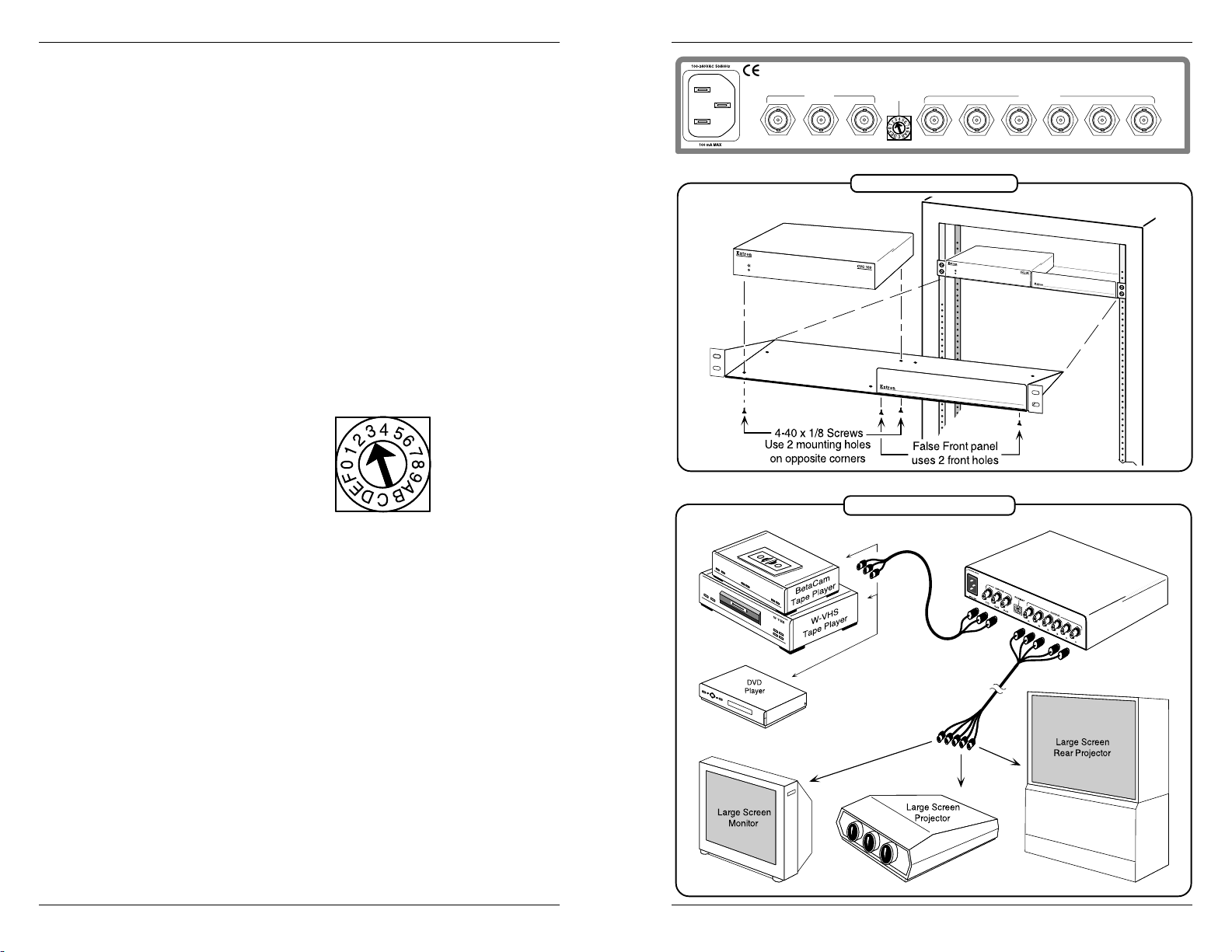

RACK MOUNT DIAGRAM

ONNECTION

IAGRAM

CVC 100 Component Video Converter

The CVC 100 Component Video Converter will convert all SMPTE standard

component video formats, DVD, Betacam video and HDTV component video to

RGBS or RGBHV on BNC connectors.

Installation

The CVC 100 can be rack mounted using one side of a 1U Universal Rack

Shelf (Extron Part Number 60-190-01) as shown in the drawing on the facing

page. To rack mount the CVC 100 do the following:

1. Remove feet from the case if previously installed.

2. Mount the CVC 100 on the rack shelf using two 4-40 x 1/8" screws in

opposite corners (under the shelf) to secure the case to the shelf.

Cable Connections

Use high resolution cable such as Extron's BNC-4 or BNC-5 to connect the

input and display devices to the CVC 100 using the connection diagram on the

facing page as a guide.

FORMAT Selection Switch

The FORMAT rotary switch must be set to match the video input format. Use a

small screwdriver to select the correct switch position as defined below. (See

Rear Panel drawing on facing page for switch location.)

0 .........Unused

1 .........YPbPr..... SMPTE 243

2 .........YPbPr..... HDTV (SMPTE 240)

3 .........YPbPr..... BETACAM

4 .........Unused

5 .........RGB......... Bi-level Sync

6 .........RGB......... Tri-level Sync

7 .........DVD

8-F......Unused

Output

The output video format is RGBS or RGBHV (both output sync types are

available for all inputs).

Glossary

BetaCam – High definition video format developed by Sony Corporation.

Component Video – Video equipment which accepts and maintains separate

luminance and color difference signals from input to output.

DVD – Digital Versatile Disk. An optical disc system that uses discs about the

size of a CD ROM but with a higher capacity (greater than 4 GB).

HDTV – High Definition Television – A next generation broadcasting system

which enables high-definition picture quality.

NTSC – National Television Standards Committee.Television standard for North

America and certain countries in South America.525 lines/60 Hz (60 Hz Refresh)

SMPTE – Society of Motion Picture and Television Engineers – A global organi-

zation, based in the United States, that sets standards for base-band visual

communications.This includes film as well as video standards.

W-VHS – Wide VHS refers to the wide screen video display format recorded

using multiple tracks in HD (HDTV) mode.

OUTPUT

RGB S

Y/G Pb/B Pr/R

INPUT FORMAT

FORMAT

Rotary

Switch
