AP460C Hardware User Guide

Read about and view specifications and compliance information for the AP460C devices in this topic. Install the AP460C devices using this topic.

The AP460C is a Tri Radio 802.11ax access point based on advanced radio technology and is IP67 rated for harsh and extreme outdoor envir-

onments, with an extended temperature range (-40 C - +60 C). The AP460C tri-radio design delivers 802.11ax 2x2:2 and 4x4:4 data rates con-

currently on the 2.4 and 5 GHz radios, and has a third radio for a dedicated dual-band sensor.

For regulatory and compliance information, see "Regulatory Compliance Statements".

Important! Change the Country Code

If youraccess point is configured for the WorldRegulatory Domain, it is important to set the country code to the country in which the APwill be

deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:

The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC reg-

ulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.

1. Power on the AP and allow it to find and connect to ExtremeCloudIQ. Once the APis connected it appears in the table of devices on the

Manage > Devices page.

2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box, select the

appropriate country from the drop-down list, and then click Save.

3. Upload your changes to the device.

Safety Guidelines

The information in this section applies to AP460C devices.

The following safety icons are used in these guidelines to identify the type of precaution:

AP60C Hardware Guide

AP460C Hardware Guide

This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.

This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or

death, and extensive damage to equipment.

This icon indicates a laser caution. Failure to comply with a laser caution can result in serious injury.

The following table lists the safety precautions you should follow when installing your AP460C devices.

Extreme Networks devices must be installed by a professional installer who is certified to install these types of devices

and to ensure that they are properly grounded and meet applicable local and national electrical codes.

These devices are intended for indoor use only.

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

Do not install the device in an environment where the operating ambient temperature might exceed the recom-

mended ranges.

For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selec-

tion of other channels is not possible.

Changes or modifications made to this device that are not expressly approved by the party responsible for com-

pliance could void the user's authority to operate the equipment.

Use only attachments and accessories specified by Extreme Networks.

These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental cap-

abilities, or with lack of experience of knowledge unless they are given supervision or instruction concerning use of the

devices by a person who is responsible for their safety. Children should be supervised to ensure that they do not play

with the devices.

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when elec-

tronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-pre-

vention procedures when handling electronic components and equipment.

During operation, the surfaces ofthe AP460C device can become hot. Use caution when handling.

To meet federal radiation exposure requirements, these devices should be installed at aminimum distance of 12" (30

cm) from people or animals.

Install the AP

The following sections describe how to mount your AP in an outdoor location on a pole or flat surface.

Shipping Carton Contents

The AP460C shipping cartons contain the following items:

lAP460C chassis with two installed M20 cable gland assemblies and plugs, two installed M25 seal caps.

lHardware bag containing grounding hardware (M4 screw, split washer, and lockwasher)

lRead Me card.

AP60C Hardware Guide

AP460C Hardware Guide

To meet Canadian radiation exposure requirements, these devices should be installed at aminimum distance of

14" (35 cm) from people or animals.

Mount the AP460C horizontally or vertically on a pole using the built-in brackets on the hardware, or on a solidflat surface using an accessory

bracket (see "Accessories "). These devices can be installed in even the most extreme outdoor environments. The following sections describe the

installation process.

Required Tools

To install your AP460C device horizontally or vertically on a pole, you will need the following items:

lTwo hose clamps that accommodate the diameter ofthe pole to which you are mounting the device.

lA slotted screwdriver to tighten the hose clamps.

Install the Device

Before you install the device, make sure that you have all the materials and tools necessary, and familiarize yourself with the safety and site haz-

ard warnings.

For best performance, deploy AP460C devices in relatively open areas at least 100' (30.5 m) apart from each other.

Install the Device on a Vertical or Horizontal Pole

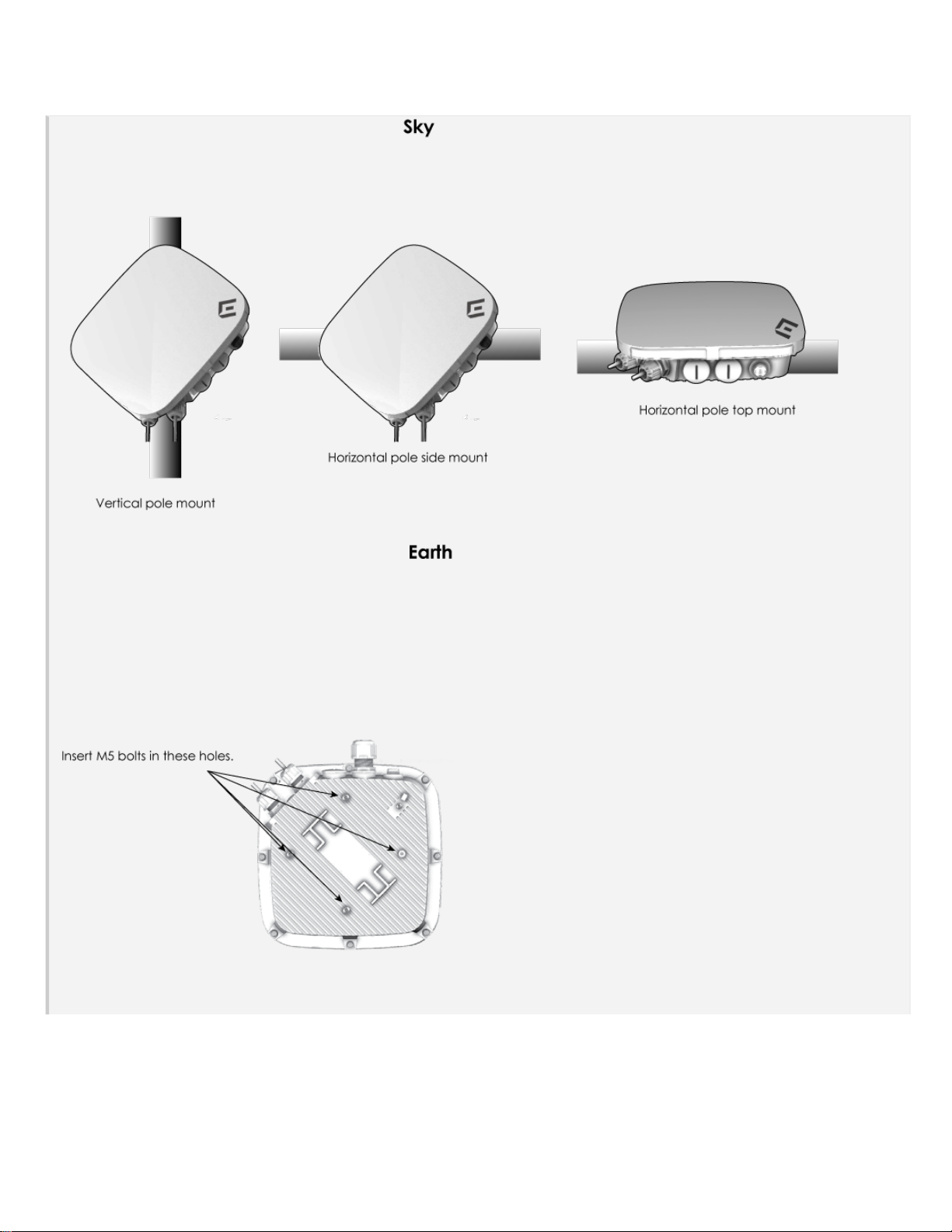

Use the following steps to install the device on a vertical or horizontal pole.

1. Thread two hose straps of the correct diameter forthe pole through the slots in on the back of the device and around the pole. Hose straps

should be 1/2" (12 or 13 mm) wide and made of stainless steel.

2. While holding the device against the pole, use a slotted screwdriver to tighten first the top and then the bottom hose straps until the

device is secure. Make sure that the LANglands are facing down (earth) to eliminate the chance of water entering the chassis. If you are

installing the device to sit on top of a horizontal pole, make sure the top of the device faces up (sky) with the LANglands are protected by

the top.

AP60C Hardware Guide

AP460C Hardware Guide

Install the AP

Install the Device on a Flat Surface

You can Install the device on a vertical or horizontal solid flat surface using the accessory wall bracket (AH-ACC-BKT-ASM). This kit contains the

mounting bracket and four bolts without washers in the plastic bag labeled "Wall Mount". You will need to provide four mounting bolts or screws

and wall mount anchors that are appropriate for the wall type where you are installing the device.

1. Insert the four M5 bolts that come in the bracket accessory kit into the holes on the bottom of the AP and torque each bolt to 16 inch-lbs.

1. Use the bracket as atemplate to mark the location of the mounting holes in the wall. Use the holes indicted by the blue arrows in the illus-

tration below.

AP60C Hardware Guide

AP460C Hardware Guide

2. Drill a hole in the wall at each mark using a drill bit that is slightly smaller than the diameter of the screws so the screw threads will grip the wall

securely.

If you are not installing the device on a concrete wall, you can use threaded screws and plastic wall anchors (not supplied) to mount the

device.

3. Attach the bracket to the wall using the appropriate mounting screws for the wall type.

4. Insert the heads of the bolts on the device into the large end of the bracket keyholes and slide the device down until the bolts rest in the

narrow end of the keyholes.

5. Tighten the locking screws on the bracket to secure the device.

6. Ground the device as shown below.

For horizontal mounts, be sure that the ports are facing earth to reduce the chance of water entering the chassis. As an added security measure,

you can threada safety strap through one of the cable strap slots in addition to the hose strap. Connect the other end of the strap to a secure

object.

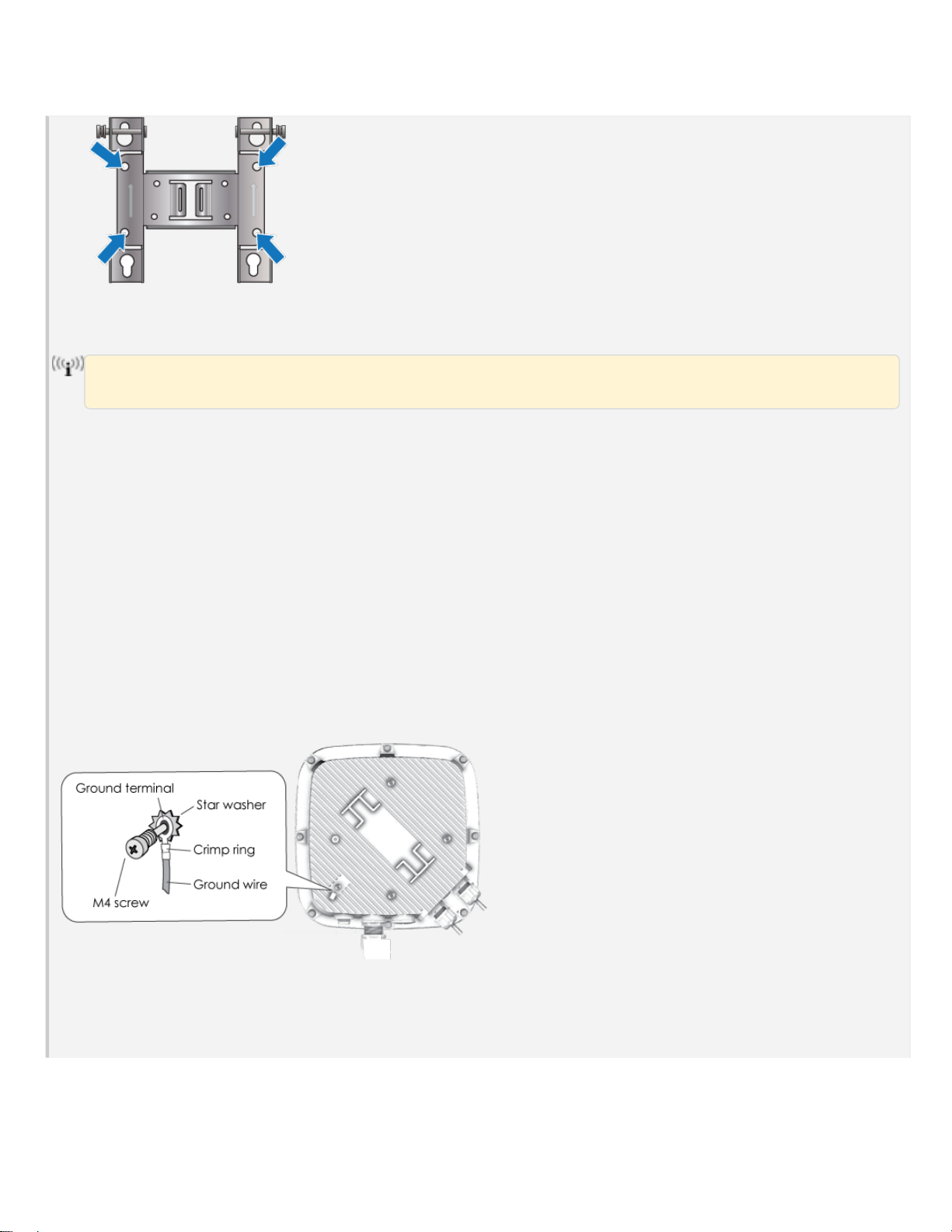

Ground the Device

Use the following steps to properly ground the AP460C.

1. Crimp the ground terminal onto a 10 AWG ground wire.

2. Insert the terminal on to the M4 screw, followed by the star washer.

3. insert the screw into the AP and torque it to 12 inch-lbs.

4. Connect the other end of the ground wire to an appropriate earthing location.

Install the Waterproof Ethernet Cable Housing

Use the waterproof Ethernet cable housing to ensure a weatherproof seal for the Ethernet cable. Use the following procedures to install the

housing.

AP60C Hardware Guide

AP460C Hardware Guide

1. Disassemble the waterproof housing. There are four pieces: the sealing nut, the claw, a waterproof 2-part seal, and a threaded main hous-

ing body. Assemble these pieces around the Ethernet cable in the order shown here:

2. Insert the Ethernet cable through the sealing nut and claw.

3. Take the seal apart, insert the cable between the two halves and reassemble the seal.

4. Insert the seal into the claw.

5. Insert the Ethernet connector into the main body until the seal and claw fit snugly. Make sure that the small tabs on the claw fit into their

counterparts on the main body.

6. Screw the threaded nut onto the threaded housing until it is tight.

7. Insert the Ethernet cable into the female connector on the chassis. Rotate the head of the threaded housing clockwise until it locks into

place.

8. Connect the other end of the Ethernet cable to a PoE injector or PoE-enabled switch.

Accessories

The following accessories are available for the AP460C:

lAH-ACC-PW-CBL-US: 6' 18 AWG universal power cord with US plug

lAH-ACC-PW-CBL-UK: 6' universal power cord with UK plug

lAH-ACC-PW-CBL-EU: 6' universal power cord with EUplug

lAH-ACC-PW-CBL-AU:6' universal power cord with AUplug

lAH-ACC-PW-CBL-JP: 6' universal power cord with Japan plug

lAH-ACC-PW-CBL- KR: 6' universal power cord with Korea plug

lAH-ACC-BKT-ASM: Mounting bracket assembly for wall mounts. Attach this bracket to the back of the unit using the four holes in the chassis.

Remove the RJ45 Cable Safely

If you need to uninstall the device for any reason, for example for troubleshooting, you will need to remove the RJ45 cable. Use the following

steps:

1. For GE1 or GE2, loosen the gland sealing nut.

2. Move the gland cap, claw and seal down the cable at least 6 inches from the LANconnector.

3. Use a thin, strong non-conductive tool, such as a flat wooden stick to reach into the main gland body and depress the plastic locking latch

on the RJ45 connector.

Make sure not to touch any components of the PCBA board near the gland area.

5. While pressing down on the latch, gently pull on and remove the cable.

6. Remove the sealing nut, claw, and seal from the cable.

AP60C Hardware Guide

AP460C Hardware Guide

Hardware Components

Youcan see the hardware components ofthe AP460C in the illustration below and read about them in the sections that follow.

Component Descriptions

Status Light

The status light, located between the two Ethernet ports, conveys operational states for system power, firmware updates, Ethernet and wireless

interface activity, and major alarms. At setup, this light cycles through the following sequence:

lSolid White: The power is on and the device is operational.

lSolid Amber: The device is on and is booting..

lBlinking Amber: The device is performing a firmware upgrade.

lDark: The power is off.

Ethernet Ports

AP460C devices have two RJ45 Ethernet ports (Eth0 and Eth1) that automatically negotiate half- and full-duplex connections with the con-

necting device. The ports are autosensing and adjust to straight-through and crossover standard Cat2, Cat5, Cat5e, or Cat6 Ethernet cables

automatically. The APreceives power through an Ethernet connection to the ETH0 port from PSE (power sourcing equipment) that is compatible

with the 802.3at and 802.3at standards.

Micro USB Console Port

Remove the waterproof screw cap to access the micro USB port and the Reset button. Through the micro USB Console port you can make a

serial connection between your management system and the AP. When youconnect to the device using the micro USB Console port, the man-

agement station from which you connect to the device must have a VT100 emulation program, such as Tera Term Pro©(a free terminal emu-

lator) or Hilgraeve HyperTerminal®(provided with Windows®operating systems from XPforward). The serial connection settings are: 9600 bits per

second, 8 data bits, no parity, 1 stop bit, no flow control.

You can order a micro USB console adapter cable for this AP here.

To troubleshoot an AP460C, you must first uninstall it from the outdoor location.

AP60C Hardware Guide

AP460C Hardware Guide

The pin-to-signal mapping for the Console port is shown below:

Pin Definition

1 NC

2 RxD (input to AP)

3 TxD (output to terminal)

4 Signal (GND)

5 Signal (GND)

USBPort

AP460C devices have a standard USB port that you can use to connect USB-based beacons (iBeacon, for example) and IoT (Internet of Things)

devices. To access the port, remove the gland cap screw.

Reset Button

The Reset button is located behind the same waterproof screw cap as the micro USB port. Use the Reset button to reset the device or restore the

factory default settings.

To prevent the reset button from resetting the configuration, enter this command:

no reset-button reset-config-enable

When this command is enabled, pressing the button for 5 seconds will still reboot the AP, but pressing it for more than 10 seconds will not reset its

configuration.

Hardware Specifications

The following sections list radio, device, power, and environmental specifications for the AP460C.

Interfaces

l100/1000/2500 Mbps auto-negotiation RJ45 Ethernet PoE port

AP60C Hardware Guide

AP460C Hardware Guide

This illustration shows the USB, Micro USB and Reset buttons, which are located behind waterproof screw caps.

l10/100/1000 Mbps auto-negotiation RJ45 Ethernet port

lBLE Bluetooth Low Energy

lIEEE 802.11a/b/g/n/ac/ax 4x4

lIEEE 802.11a/b/g/n/ac/ax 2x2

lIEEE 802.11a/b/g/n/ac/ax 1x1 scanner

Radio Specifications

802.11a

l5.150-5.350, 5.470 - 5.850 GHz operating frequency

lOrthogonal Frequency Division Multiplexing (OFDM) modulation

lRates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with auto fallback

802.11b

l2.4-2.5 GHz operating frequency

lDirect-Sequence Spread-Spectrum (DSSS) modulation

lRates (Mbps): 11, 5.5, 2,1 with auto fallback

802.11g

l2.4-2.5 GHz operating frequency

lOrthogonal Frequency Division Multiplexing (OFDM) modulation

lRates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with auto fallback

802.11n

l2.4-2.48 and 5.150-5.350, 5.470 - 5.850 GHz operating frequency

l802.11n modulation

lRates: MCS0 - MCS7 (6.5 MBps- 600Mbps)

l1x1, 2x2,4x4 MIMO radio

lHT20/HT40 support

lA-MPDU and A-MSDU frame aggregation

802.11ac

l5.150-5.350, 5.470 - 5.850 GHz operating frequency

l802.11ac modulation (256-QAM)

lRates: VHT_MCS0 - MCS9, (6.5-3467 Mbps), NSS = 1-4

l1x1, 2x2,4x4 MIMO radio

lVHT20/VHT40/VHT80 support

lTxBF (transmit beamforming)

802.11ax

l5.150-5.350, 5.470 - 5.850 GHz operating frequency

l802.11ax modulation (1024-QAM)

lDual-band OFDMA

lRates (Mbps): HE0-HE1 (8 Mbps - 1200 Mbps), NSS =1-2

l1x1, 2x2,4x4 MIMO radio

lVHT20/VHT40/VHT80/VHT160 support

lTxBF (transmit beamforming)

802.11ax (for 5 GHz sensor)

l2.4-2.48, 5.150-5.350, 5.470 - 5.850 GHz operating frequency

l802.11ax modulation (1024-QAM)

lDual-band OFDMA

lRates (Mbps): HE_MCS0-11 (8 Mbps - 1200 Mbps), NSS = 1-4

AP60C Hardware Guide

AP460C Hardware Guide

l1x1, 2x2,4x4 MIMO radio

ll VHT20/VHT40/VHT80/VHT160 support

lTxBF (Transmit beamforming)

Transmit Power and Sensitivity Specifications

Output power may be limited by regulatory requirements.

2.4 G: Reviewers -

Tolerance +2/-2 dB @25°C

Mode Data Rate Power Unit

11b 1,2,5.5,11 18 dBm

11g 54 Mbps 15 dBm

48 Mbps 16 dBm

36 Mbps 17 dBm

6 Mbps 18 dBm

HE20 MCS 0,1,2 18 dBm

MCS 3 17 dBm

MCS 4, 5 16 dBm

MCS 6,7 15 dBm

MCS 8,9 14 dBm

MCS 10,11 12 dBm

2.4 G Sensitivity

11b 1 Mbps -99 dB

11 Mbps -90 dB

11g 6 Mpbs -96 dB

36 Mpbs -84 dB

48 Mbps -80 dB

54 Mbps -78 dB

HE20 MCS 0 -95 dB

MCS 1 -91 dB

MCS 2 -89 dB

MCS 3 -86 dB

MCS 4 -83 dB

MCS 5 -79 dB

MCS 6 -77 dB

MCS 7 -76 dB

MCS 8 -72 dB

MCS 9 -70 dB

MCS 10 -67 dB

MCS 11 -64 dB

AP60C Hardware Guide

AP460C Hardware Guide

Table des matières

Autres manuels Extreme Networks Point d'accès sans fil

Extreme Networks

Extreme Networks ExtremeWireless AP302W Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP3935i Manuel utilisateur

Extreme Networks

Extreme Networks Altitude 4600 Series Manuel utilisateur

Extreme Networks

Extreme Networks AP3000 Manuel utilisateur

Extreme Networks

Extreme Networks IdentiFi 3600 Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeMobility AP410i/e Manuel utilisateur

Extreme Networks

Extreme Networks AP305C Manuel d'installation

Extreme Networks

Extreme Networks ExtremeWireless AP560h Manuel utilisateur

Extreme Networks

Extreme Networks Extreme Wireless WSAP3825i Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP5010 Manuel utilisateur

Extreme Networks

Extreme Networks AP460C Manuel d'installation

Extreme Networks

Extreme Networks Altitude 4700 Series Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP560i Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP510i Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless WS-AP3915i-FCC Manuel utilisateur

Extreme Networks

Extreme Networks Altitude 3500 Series Manuel d'installation et d'exploitation

Extreme Networks

Extreme Networks ExtremeWireless AP3000X Manuel utilisateur

Extreme Networks

Extreme Networks Altitude 4700 Series Manuel d'installation et d'exploitation

Extreme Networks

Extreme Networks ExtremeWireless AP410i Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP560i Manuel utilisateur

Extreme Networks

Extreme Networks AP410C Manuel utilisateur

Extreme Networks

Extreme Networks ExtremeWireless AP3965i Manuel utilisateur

Extreme Networks

Extreme Networks Extreme Wireless WSAP3825i Manuel utilisateur

Extreme Networks

Extreme Networks WiNG AP-7612 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
