Exsys EX-6007POE Manuel utilisateur

Thank you for purchasing this Gigabit PoE Injector. It was designed to

add 56 VDC power to an Ethernet port so you can deliver power and

data over a single Ethernet cable to your Ethernet device in the field.

Features:

✓Provides power to remote network devices

✓Supports 10/100/1000 Base-T Ethernet standards

✓Fully IEEE 802.3at compliant PoE (PSE) type 1 and 2 operation

✓Maximum Power Delivered:

Type 1: 13W

Type 2: 25.5W

✓One DC-Jack and one TB-2 for 12~24V DC power input

✓Supports one PoE power enabled LED indicator

✓One Ethernet Data and one PoE RJ45 connectors

✓Built in step-up converter from 12~24V DC to 56 VDC

✓Small Rugged Metal Housing for critical applications

✓Provides direct panel and DIN Rail mounting methods

Gigabit PoE Injector

with DIN-Rail Mounting Kit

Installation Guide

1. Introduction

2. Connector Layout

Power LED

Power input

terminal blocks

PoE LED

(Amber)

No connection)

Data input

port

PoE output

port

Power input

DC-jack

Gigabit PoE Injector with DIN-Rail Mounting Kit

DC-jack and 2-pin terminator blocks for power input: To inject the

DC power to the Ethernet cable, the Injector needs a 12~24V DC

power applied either on its DC jack or the 2-pin terminal blocks

(but not both at the same time), its internal circuits will convert it to

56V DC to use for PoE.

Warning!!

Please make sure the polarity of the input power should be

correctly match the terminal block pins, otherwise it will damage

the Injector.

Power LED: It Lights up when the 12~24V DC power is being

applied. It is OFF when no power is applied on DC jack or terminal

blocks.

LAN Data input port: RJ45 connector for the data input. It accepts

10/100/1000Gbps Ethernet data cable.

PoE output port: RJ45 connector that is able to be added 56V DC

power with the input Ethernet data. If there is a PoE PD was

connected, the Injector will supply the PoE power and lights up

the Amber LED. Otherwise, it won’t apply any power on the cable

and the Amber PoE LED will NOT light up.

1. Connect data cable to RJ45 connector marked as “LAN”

2. Apply DC power (12~24V) to the DC jack or 2-pin Terminal Blocks

Connector. The Power LED should light up. If you are applying the

power on the 2-pin terminal blocks instead, please note its

polarity should match the marking next to the terminal blocks’

pins.

3. Connect your PoE PD device to the PoE port, the Amber PoE LED

should light up if the PD was detected and powered by the

Injector

3. Hardware Installation

+12~24V

GND

Gigabit PoE Injector with DIN-Rail Mounting Kit

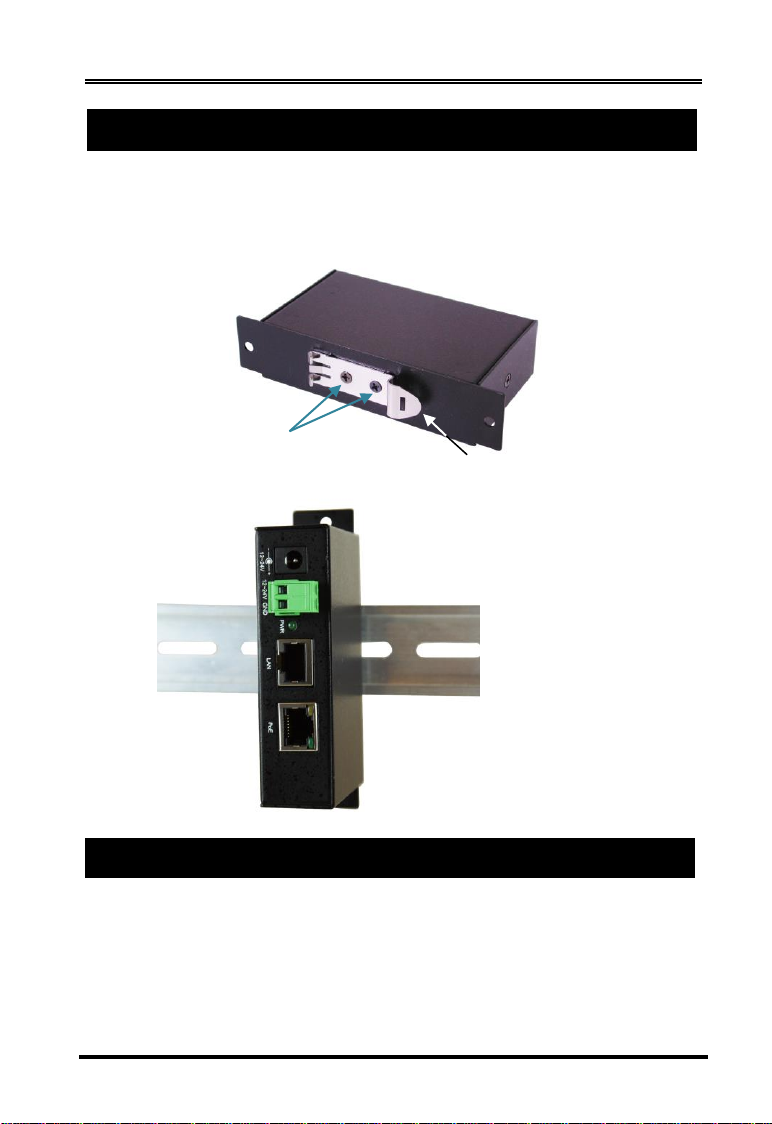

The metal DIN-Rail attachment clip should be used when you are

mounting the Injector onto a DIN-Rail. The clip came with 2 screws to

fix it on the rear side of the Injector.

Operating temp.: 0 to 55C (32 to 131F)

Operating humidity: 5 to 95% RH

Dimensions (LxWxH): 4.51 x 2.25 x 1.03 in

(114.60 x 57.26 x 26.20 mm)

5. Environmental Specifications

4. DIN-Rail Mounting

DIN-Rail Clip

Fixing screws

Gigabit PoE Injector with DIN-Rail Mounting Kit

6. Mechanical Drawings
