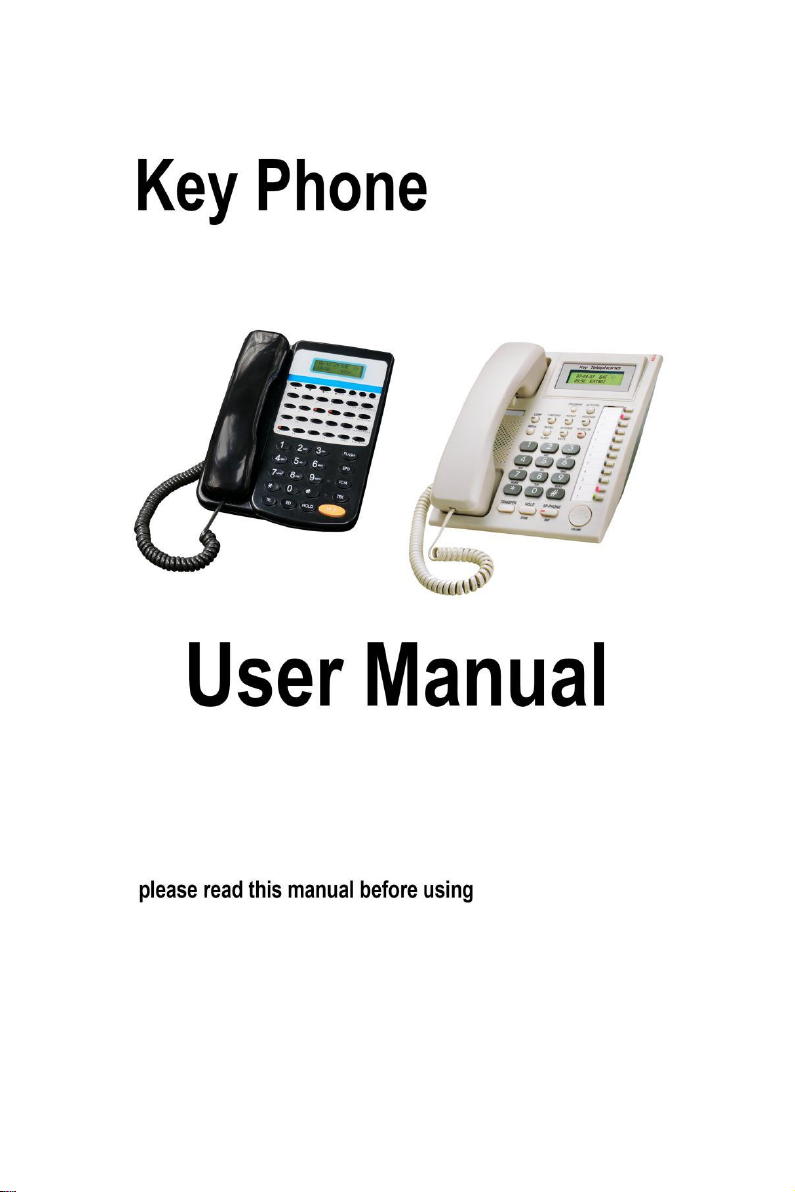

Excelltel PH202 Manuel utilisateur
Table of Contents
Table of Contents.......................................................................................................1
Chap 1 Specification...............................................................................................2
Chap 2 Panel Illustration........................................................................................3
Chap 3 Installation..................................................................................................8
Chap 4 Using Guide .............................................................................................10
1) Intercom Call....................................................................................................10
2) Outgoing Call...................................................................................................10
3) Redial................................................................................................................10
4) Speed Dial........................................................................................................11
5) Call Transfer.....................................................................................................11
6) Call Hold...........................................................................................................11
7) Restore the holding call..................................................................................11
8) Multi-party Conference...................................................................................11
9) Function Key（for PH202).............................................................................11
10) Alarm Clock Setting（for PH202)................................................................12
11) Call Forwarding(for PH202).........................................................................12
12) Boss/Secretary(for PH202)..........................................................................12
13) DND Key(for PH202)....................................................................................12
14) Paging.............................................................................................................13
15) Auto Answer（for PH202)............................................................................14
16) Mute Key (for PH202)...................................................................................14
17) Call Booking（for PH202)............................................................................14
Chap 5 Using Setting............................................................................................15
Chap 6 DSS Setting..............................................................................................17
Chap 7 Speed Dialing...........................................................................................18
Chap 8 How to set multiple DSS to connect with key phone..........................19
P2
Chap 1 Specification
1．Wiring Length : Please use twisted pair (TP) upon CAT5. (The length of
connecting 1 key phone should be < 250m ; Connecting 2 key phones should
be <150m ; Connecting 4 key phones should be <50m .
2．Working Current : less than 100mA
3．Environment humidity: 10%~95%, noncondensing
4．Weight : 0.8kg
5．Size : 22.8mm*18.3mm*12mm
P3
Chap 2 Panel Illustration
2.1. Shortcut key Definition for PH202
(PH202 Outlook)
1. DSS: Direct Station Selection keys, PH202 with 16 DSS keys, on default,
DSS1 -12 corresponding to CO line 1-12, DSS 13-16 corresponding to Ext port
1-4. On hook status, press DSS key, to call corresponding extension or access
corresponding CO line.
2. Direction key: used to configure parameter. On hook status, the left and right
arrow key are used for entering incoming/outgoing call query interface, the up
arrow key is used for adjusting ring volume, the down arrow key is used for
adjusting speaker volume
3. PROG: enter menu setting interface, including using setting, programming,
DSS setting, Speed Dialing setting, press H.F key to exit menu.
4. FUN: fast enter operator setting, equal to the operation of off hook + #, end
with H.F key
5. ALARM: set the alarm clock
P4
6. CONF: During the call with CO line, press this key to hold this call as
conference status
7. FWD(BUSY): when extension is busy, forward the incoming call to another
extension, press this key, input extension number, prompt “operation succeed”,
meanwhile the indicator is on. Press again this key, input #, to cancel this setting.
8. PAGE: press this key + (0, broadcast by extension / 8, call all extension)
9. BOSS/SEC: auto forward the incoming call to another extension
10. MUTE: press this key, the microphone of key phone is closed, the light of
keys is on, press again, cancel MUTE function, the light is off.
11. AUTO ANSR: press this key, when any call is coming, system will auto
answer in speaker, press again, to cancel this function.
12. DND: press this key, the extension is in Do Not Disturb status, press again,
to cancel this function.
13. BOOKING: press this key, equal to press #0, when booking is succeed, key
light is on, after booking is performed, key light is off.
14. Flash : used in call switch for the call with CO line. Equal to flash the hook
and dial #8 during the conversation with CO line .
15. SPD: on hook status, press this key, and input speed dialing group number,
to make speed dialing function. Off hook status, press this key, input system
speed dialing group number, to make peed dialing function.
16. ICM: press this key, system is in intercom status, the light is on
17. TRK: press this key, system is in CO line access status, the light is on, equal
to off hook + 9
18. TR.: press this key, and input another extension number, to transfer the call
to another extension.
19. HOLD: during the call with C.O line, press this key, to hold the current call,
after finish the call with another C.O line, press corresponding DSS key, to
continue with previous call
20. RD: off hook, press this key, system will auto call the last dialed number. You
can select incoming/outgoing call records to press redial.
P5
2.2. Shortcut key Definition for PH201-D
(PH201-D Outlook)
1. PROGRAM ---Enter using setup, system program setup, DSS key setup, and
auto-dial number setup status.
2. FWD/DND(red light) ----FWD: Forward the call to different EXT;
DND(Do-not-disturb)function can be used to restrict call when you are busy.
3. CONF (red light) ---- For conference talking
P6
4. BROAD ---- For external broadcasting system and key phone system,
including paging and monitoring function.
5. REDIAL ---- For CO line redial.
6. RECALL/ FLASH ---- For incoming calls recalling; or flash operation during
conversation.
7. AUTO ANS / MUTE (red light) ----Enable the auto answer mode; press to mute
the microphone in talking mode.
8. INTERCOM(ICM) (red light) ---- Making or answer internal call.
9. TRANSFER—Transfer the call to the other EXT in talking state
10. HOLD/STORE----For holding calls (including extension line and CO line); and
store the settings in programming setup mode
11. SP-PHONE / EXIT (red light) ---- With SP-PHONE, dial numbers or talking
without picking up the handset is possible; for exit in programming setup mode.
12. Navigation key / volume adjustment key ---- 4 direction keys, the normal
state up and down keys for ringing volume adjustment and sp-phone volume
adjustment, left right keys for dialed and incoming calls checking. In
programming state, 4 direction keys are menu choosing keys.
13. DSS key -------total twelve from NO1 to NO12 with green and red indicator;
on default setting, the 12 DSS setting as below:
NO1-8 is CO keys, correspond to NO1 to NO 8 CO lines------ display the status
of Co line ;press it for calling or answer of the CO. line show working status of
each CO line. Press key to make corresponding single key operation of CO line,
such as make or answer calls.
NO9-12 is EXT keys, correspond to EXT601 to EXT604(default NO) -------
display the status of EXT; press it for calling or answer of the EXT
Notice: 12 DSS key can be flexible set to corresponding different extensions or
CO. line, the detail see “DSS SETTING” sections.
14. MESSAGE (green light) ----For CO line access.
15. AUTO DIAL-----For auto dial
16. RUN/Ringer indicator ----the lamp flashing when this telephone is ringing;
also it can indicate the day/night mode, PBX is in night mode where lamp is
always on.
P7
2.3 LCD Display
P8
Chap 3 Installation
Attention!!!: When customer need to lengthen(extend) the cable or make a 4
wire cable by himself, he should be attention to the correct wire sequence of
cable: the two wires on middle(wire 2,3) are for voice transmission. wire 1,4 are
for power supply. If wrong connection, the key phone will not work, even
destroy PABX system. Furthermore make sure good contact and correct line
sequence when make the RJ11 crystal head.
In order to prevent interference between power supply and voice transmission,
the network twisted-pair wire is highly recommended to be used for making the
key phone cables.(power supply is two wires, voice is two wires)
3.1 The making method for the cable are both 6P4C RJ11 crystal heads on
two ends.
Wire sequence diagram：
Twisted-pair wire diagram：
P9
If customer use 4 wires telephone co rd to make the cable,
probably will cause noise problem during call co nversation. So
we suggest network twisted -pair wire(for example:.use
white-blue, and two blue wires to connect wire 1, 4. Use
white-brown, and two brown wires to connect wire 2,3)
3.2 The making method for the RJ45 network cable are split with two 6P4C
RJ11 crystal heads.
One RJ45 port can be connected with two key phones.
We suggest customer make the cable as per following color sequence:
Wires 1-8 of RJ45 corresponding to colour as: white-brown, white-blue, blue,
brown, white-green, white-orange, orange, green)
Wire sequence diagram：
Twisted-pair wire diagram：
