Ewheels EW-46 Mode d'emploi

EW-46

Service & Repair Manual

Table of Contents

Contents

Customer Diagnosis............................................................................................................... 2

Complete Loss of Power: ................................................................................................................2

Loss of Throttle Response:..............................................................................................................3

Section 2 –Technician Diagnosis Guide.................................................................................. 4

All Possible Tools Needed:..........................................................................................................4

Complete Loss of Throttle Response:.........................................................................................5

Checking Connections.................................................................................................................5

Testing the Throttle: .............................................................................................................................6

Testing the Rheostat (Speed Knob/Potentiometer):............................................................................7

Testing the Wire Harness:.....................................................................................................................8

Testing the Controller: ..........................................................................................................................9

Testing the Motor ........................................................................................................................11

Intermittent or Random Loss of Throttle Issue ..............................................................................12

Section 3- Upkeep and Maintenance.................................................................................... 16

Daily Checks Before Riding ...........................................................................................................16

Customer Diagnosis

Complete Loss of Power:

1.) If the scooter has no power when turned on, the first thing to check is that the circuit breaker

underneath the seat* is flipped to the on position. If the circuit breaker is labeled with an “I’ and

an “O”, the “I’ is the on position.

www.ewheelsdealers.com

(888) 571-2845 - Service

(888) 305-0881 - Sales

(888) 571-2845 Service

2.) Check that the light on the charger turns from green while plugged just into the wall outlet,

to red when plugged into the scooter and wall outlet.

If neither of these steps returns power or the charger light is staying green, please contact

EWheels service department directly for assistance

Loss of Throttle Response:

1.) If the throttle does not respond when turned, the first thing to check is the current battery

charge. Look at the battery indicator when the scooter power it turned on. If the scooter is not

displaying a full charge, please fully charge the machine

2.) The only feature of the EW-46 that can cut off power to the motor is the brake sensors that

are within the brake handles. To check the brake sensors, pull the brake handle while looking at

the taillights with the scooter’s power turned on. If the sensors are working correctly, the brake

lights will illuminate when the brake handle is pulled and turn back off when the brake handle is

released.

3.) If the above steps have been followed and the machine is still not driving, the next step is to

reset the controller (brain) for the scooter. Turn the circuit breaker to the off (“O”) position, and

let it sit in the off position for a minimum of three hours to allow for the controller (brain) to

restart.

Loss of All Lights:

1. If all lights will not come on at all even the power light on the dash, it’s more than likely

going be a voltage regulator in the rear of the scooter, under the seat, under the storage

box. It’s a small metal box with 1 connection going to it. (See page 37)

Charging Issues:

If the scooter is completely dead the charger will show a Green Light but only for about 30min to

1 hour. After the time it will switch over the red light indicating that the scooter is charging. If it

stays green, then you would need to test the charger.

If you are noticing that your scooter is getting less and less miles every time its full you might

need to get the batteries checked. A good indication that you might have bad batteries is if you

have a full charge and when twisting the throttle, the battery level drops very low.

If following these steps still do not allow the scooter to drive, please contact Ewheels service

department directly for assistance.

*If unsure on how to open the seat, please check page 8 of the owner’s manual.

Section 2 –Technical Diagnosis Guide

All Possible Tools Needed:

1.) Metric wrench set

2.) Metric socket wrench set

3.) Metric hex wrench set

4.) Phillips head screwdriver set (#1, #2, #3)

5.) Multimeter or voltage tester

6.) Floor jack (optional, not needed)

7.) Solder pen and solder

8.) Shrink wrap tubing

9.) Zip ties (any length or color)

10.) Box cutter

11.) Wire stripper

12.) 3/8th Rachet (Extensions If Needed )

Throttle Power loss/ Throttle Testing:

Checking Connections

Start by checking all connections on both ends of the wire harness, focusing specifically on the

three-wire throttle connector and motor wires. Make sure no pins are pulling out of the backside

of any connectors, and that the pins on the female side of connectors are not folded over to the

side of the connectors.

There are very rare instances where a short in the accessory wiring can cause the machine not to

drive. To ensure this is not the issue, please leave lights, turn signals, and all other accessories

turned off.

A continuity test can be run on each side of connectors to ensure there is not an issue with the

connector pins making proper contact. Connections can be checked by separating the connecting

pins, one separated the pins can be folded or pulled out of the connectors.

Testing the Throttle:

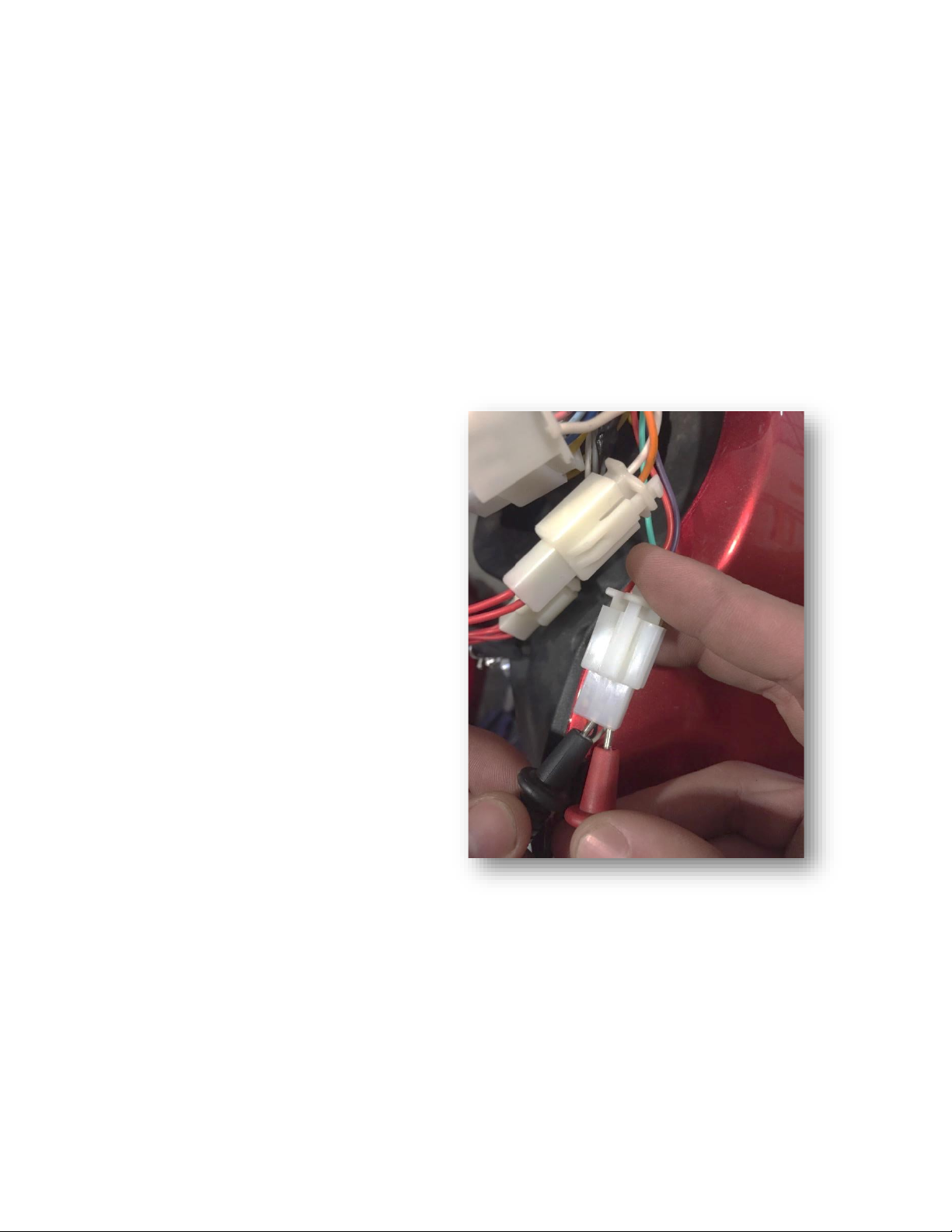

The throttle responds via a hall effect positioning sensor. The sensor increases its output voltage

the more the throttle is pulled. To test this sensor, start by turning the scooter on. Next, set your

multimeter to DC 20 volts (or closest setting). While leaving the scooter powered on, and

ensuring the throttle to harness, harness to controller, and controller to motor connections are

plugged in, insert the multimeter red lead into the throttle connections red wire, and the black

multimeter lead into the throttle connections black wire. The voltage reading should be around

.82 volts when the throttle is not being pulled

(no load).

If you are getting the correct voltage with

the power turned on, without pulling the

throttle (no load), then the next step is to

check the throttle voltage under load

(while pulling the throttle). The voltage

should increase to around 3.51 volts under

full load (while fully rotated). The scooter

should engage forward when the voltage

rating hits approximately 1.54 volts. If all

steps above are followed, and the scooter

is not driving, the throttle is not the

component causing the problem.

If the throttle is not working properly,

please contact EWheels service

department directly for a replacement.

Testing the Rheostat (Speed Knob/Potentiometer):

To test that the rheostat (speed knob/potentiometer) is working properly, you can disconnect it

from its wire harness connection, and try to see if a throttle response returns. This removes all

the limitation and ohm resistance from the positioning sensor in the throttle.

The rheostat can also be tested with a

multimeter. The rheostat will have an

OHM rating of 100k if it is a sport EW-

36, which is marked on the rheostat

itself. Set your multimeter to OHM

100K (or closest setting above 100K)

and use the two ports with the wires

soldered on to obtain an OHM reading.

Twist the knob with your leads attached,

and check that the rheostat varies from

approximately 0, to the 100k OHM's it is

rated for.

If the rheostat (speed

knob/potentiometer) is not working

properly, please contact EWheels

service department directly for a

replacement.

Testing the Wire Harness:

To test that the wire harness is working properly, visually inspecting and running continuity

checks will be necessary. Touch your leads together to see if your specific multimeter beeps

when there is continuity.

If your leads are long enough, you can run test of both ends of each wire on the wire harness. If

your leads are not long enough to reach both ends of the harness, you can find something

conductive to cross the pins of two wires in a connector that are located right by each other

(screwdriver tip, paperclip, or any other conductive

item you have available to you). Doing this will allow

for one multimeter lead to receive the voltage being

sent from the other multimeter lead, which helps to

verify there are no breaks in the wires being tested. If

crossing connections, ensure that the power is turned

off, and that both ends of the wire harness are not

plugged in.

Focus on testing the throttle wires, rheostat (speed

knob/potentiometer), and brake sensors, which all

pertain to drivability issues. Testing accessory wiring

is not needed when diagnosing drivability issues.

If the wire harness has breaks that are not able to be repaired, please contact EWheels service

department directly for a replacement.

Testing the Controller:

To test that the controller is working properly,

checking the output voltage for the throttles

positioning sensor will be necessary. Leave the

scooter power turned on while testing, but Do Not

cross the throttle wires or a short may occur

which can cause damage, personal injury, or

death.

Use the two outside wires of the three prong

throttle wires on the harness, shown in the picture,

to obtain a voltage reading. Set the multimeter to

DC 20 (or closest setting higher than 20). If the

controller is working properly, it should be

emitting approximately 3.48 volts while plugged

into the harness with the scooter power turned on,

or approximately 4.99 volts with the harness

connection unplugged. If there is no voltage under

load, this means the controller has failed and needs

to be replaced.

To test that the controller is emitting the proper voltage to the motor, connect your multimeter to

any color combination on the motor phase wires where they connect at the yellow junction box.

Set your meter at DC 50 or higher, and test under load (with the scooter power turned on, while

pulling the throttle). The voltage should start at 0 and increase between 2.5-3.6 volts while under

full load (holding the throttle pulled at the way).

*Continued next page*

Next, check that the controller

is supplying the motor Hall

Effect sensors with the proper

voltage, which is

approximately 4.95-5 volts.

Leave the scooter powered on

and the connector connected.

This reading should be

obtained at the black and red,

yellow and green, and green

and blue sensors wires while

not under load.

If the controller is not working properly, please contact EWheels directly for a replacement.
