Evo VT5 Manuel utilisateur
VT5 E-SCOOTER
INSTRUCTION MANUAL
14+
Please read and understand this entire manual before assembly or use
IMPORTANT:
Please contact our customer service number if any enquiries:
www.htigroup.co.uk
0300 303 5544
Save all packaging material until assembly is completed.
HTI Group, Eastham House,
Copse Road, Fleetwood,
FY7 7NY, UK
HTI EU Authorised Representative
The Merrion Buildings -
Iconic Offices, 18-20 Merrion Street,
Dublin 2, D02 XH98, Ireland
Scan the QR code
to learn more
about this
lithium scooter
P. 1
TABLE OF CONTENTS
P. 1-3
P. 4
P. 5
P. 6
P. 7
P. 8
P. 9
P. 10
P. 11-12
P. 13
P. 14
P. 15
SAFETY NOTICE
ABOUT YOUR SCOOTER, PARTS LIST & OPERATING RANGE
GENERAL WARNINGS & PRODUCT DIAGRAM
ASSEMBLY & SET UP
FOLDING INSTRUCTION
CHARGING YOUR LITHIUM SCOOTER
HOW TO OPERATE YOUR LITHIUM SCOOTER
LCD CONTROL PANEL INSTRUCTION
WARNING
MAINTENANCE & DISPOSAL OF BATTERY
TROUBLE SHOOTING GUIDE
WARRANTY STATEMENT
SAFETY NOTICE
WARNING! IT IS ILLEGAL TO USE THIS VEHICLE ON PUBLIC HIGHWAYS (ROADS/PAVEMENTS): ONLY TO BE
USED ON PRIVATE PROPERTY WITH THE OWNER'S CONSENT. APPROPRIATE PROTECTIVE EQUIPMENT TO BE
WORN AT ALL TIMES AND CHILDREN MUST BE SUPERVISED BY AN ADULT. .
NOTE: PLEASE READ THE FOLLOWING IMPORTANT SAFETY INFORMATION CAREFULLY BEFORE USE AND
FOLLOW IT.
2. This product is an electric scooter for adults. Usage
is limited to one person. Do not carry others at the
same time.
3. Do not ride this product in unsafe or illegal places.
Only use the product in accordance with local
regulation.
The correct way to ride
1. When riding the scooter, please wear a safety
helmet and other protective equipment, as well as
fitting sports shoes.
5. Do not take dangerous actions such as riding with
one hand while operating the scooter. Always hold
the handlbars with both hands and keep both feet
on the scooter.
P. 2
SAFETY NOTICE

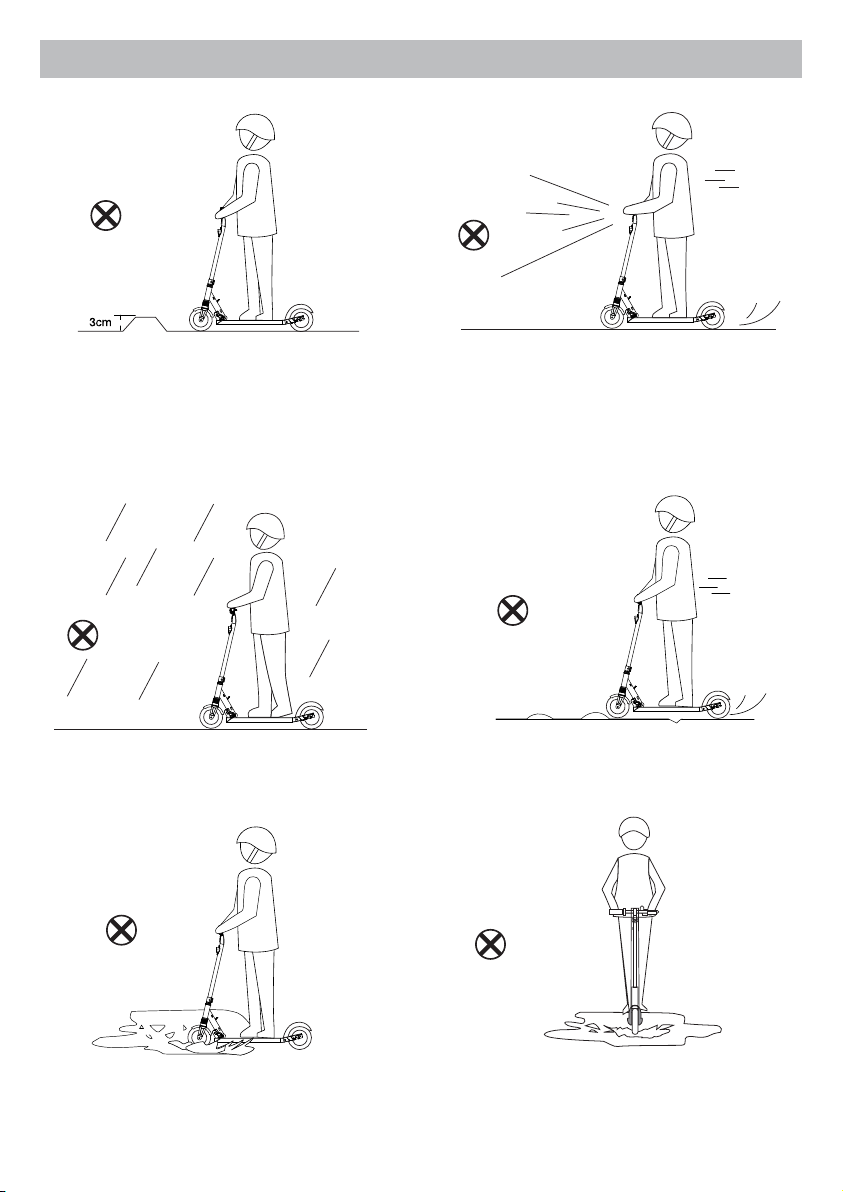

10. Do not ride the scooter on oily terrains or
icy surfaces.
8. Do not use in wet or icy weather.
7. For your driving safety, always keep safe speed.
Avoid using the scooter at night.
6. Do not go over bumps that are steeper than 3 cm.
This may cause the scooter to overturn and cause
injury to the user or damage the scooter. Bumps
or potholes less than 3cm should also be avoided
as much as possible.
9. In the event of bumps or poor road conditions,
please operate the scooter slowly or get off the
scooter and manually push until conditions improve.
11. Do not immerse the product in water to avoid
damage to the electrical parts of the vehicle.
P. 3
SAFETY NOTICE
12. In severe weather such as rain, snow, or strong
winds, please avoid riding as much as possible to
avoid possible damage. During wet weather,
extension of braking distance should be reserved.
16. Ride legally in strict accordance with the local laws
and regulations.
14. Please avoid using or placing or store the scooter
in a extremely high or low temperature
environment.
Caution!
Fire
15. Ride on a smooth road. Don’t ride on a road
with pits.
13. The user should use this product in accordance
with the relevant instructions in this product
manual, and not exceed the load that the
scooter can bear (Maximum weight: 100kg).
>100kg
P. 4
Please notice the scooter can travel a distance of 15km on a fully charged battery in ideal conditions. The following
are some of the major factors that will affect the operating range of your scooter.
TERRAIN: A smooth, flat surface will increase your driving distance, while driving uphill, as well as rough or uneven
terrain will reduce your distance significantly.
WEIGHT: The weight of the user can affect driving distance, a lighter user will have further range than a heavier
user.
AMBIENT TEMPERATURE: Please ride and store the scoooter under recommended temperatures, which will
increase driving distance, battery life, and overall performance of your scooter.
MAINTENANCE: Reasonable battery charging and maintenance will increase the distance. Overcharging the
battery can reduce range.
SPEED AND DRIVING STYLE: Maintaining a moderate speed will increase your distance; while travelling at high
speeds for extended periods, frequent starts, stop, idling, along with frequent acceleration and deceleration will
reduce your overall distance.
OPERATING RANGE
PARTS LIST
Handlebar
1
Hex Key
2
1
1
1
1
pair
Instruction
Manual
PART
NO.
PART
NAME PICTURE REMARKS
QTY
(pcs)
PART
NO.
PART
NAME PICTURE REMARKS
QTY
(pcs)
1
3
5
2
4
Left &
right
Body
Charger
ABOUT YOUR NEW ELECTRIC LITHIUM SCOOTER
Material: Steel & Alu.
Folded Size(mm):
1070*435*350mm
Unfolded Size(mm):
1070*435*1040mm
Net Weight: 11.5kg
Max Load: 100kg
Max Speed(km/h): 25km/h
Max Range(km): 15km
Max Incline:12°
Using Temperature:
0°C - 45°C
IP Grade: IPX4
Weight:
Scooter:
Motor:
Battery:
Charger:
Materials
&
Size:
Rated Input (V/A):
100-240VAC 50/60Hz 2.5A
Rated Output Voltage: 42V
Current: 2.0A
Charging Time(H): 4-5 Hours
Model No.: FY-4202000
Plug: Type G
Rated Voltage: 36V
Capacity(Ah): 5.0Ah
Rated Power(W): 350W
Front Wheel Size: 8inch
Rear Wheel Size: 8inch
Thank you for purchasing our product. Keep these points in mind as you read this guide:
5mm
3mm
P. 5
WARNING!
PRODUCT DIAGRAM
Front light
Right handlebar
Throttle
Electric brake lever (Red)
Display
Display
Left handlebar
Deck
Rear light
Rear wheel
Front wheel
Charging port
Front fender
Steering column
2
3
2
4
5
6
7
9
Folding lever
8
10
1
11
12
13
14
15
Shift down gear button
Shift up gear button
On / O botton
Rear fender/
Rear brake
• PREVENT FIRE AND ELECTRIC SHOCK:
- Do not charge near heat or flammable materials. Charge the battery in a well-ventilated area ONLY.
- Do not over charge the lithium battery.
- Charge the battery in a dry area indoor only.
• The charger is not a toy.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock. Only adults may handle or
charge the battery. NEVER allow child to handle or charge the battery.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors. DO
NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.
• The electric lithium scooter is not intended for use by persons (including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the electric lithium scooter by a person responsible for their safety.
• Do not allow children under 14 years old to use this product.
• IF the supply cord of charger is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• The output cord of charger cannot be replaced. If the cord is damaged, the charger should be scrapped. Use only with
FY-4202000 supply (The charger supplied with the scooter).
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this electric
lithium scooter.
• This electric lithium scooter contains batteries that are non-replaceable. The battery should be replaced by a competent
person. Please contact helpline for assistance.
FOR SAFETY, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS.
KEEP THIS GUIDE FOR FUTURE REFERENCE. ADULT ASSEMBLY REQUIRED
The product contains small parts, which are for adult assembly only. Keep children away when assembling.
P. 6
ASSEMBLY & SET UP
1. Unfold
2. Handlebars Assembly
●Adjust and fix the throttle and electric brake with small
hex key provided.
●Assemble handlebars in direction as shown.
Handlebar
Handlebar
Small hex key Small hex key
●Lift up the foldng lever. Push up the steering column until it locks.
1 2
Folding
lever
P. 7
FOLDING INSTRUCTION
1. Fold
●Lift down the folding lever BY HAND only. Push down the steering column slowly
and mind your head when folding up the scooter.
●Lift down the folding lever. Push down the steering column slowly until the deck reaches the ground.
Then, it can rest on ground stably.
3. Rest
1 2
1 2
Folding lever
●Lift up the folding lever. Push up the steering column until it locks.
2. Unfold
1 2
P. 8
CHARGING YOUR LITHIUM SCOOTER
SCOOTER SHOULD ONLY BE CHARGED
UNDER SUPERVISION OF ADULT!
WARNING!
● Plug-in the charging plug of
battery charger to charging port
of lithium scooter.
●Plug-in the power plug of
battery charger in socket.
● Power off the scooter. Set up the scooter in rest
mode and let it rest on ground and open
charging port cover.
• This product has CHARGING PROTECTION: When charging, all the functions will be cut off!
1
2 3
4. Charge for 3 to 4 hours until the light indicator changes from Red to Green.
5. During charging, all function of the lithium scooter is disabled.
6. During the charging, the RED indicator of battery charger will light up.
7. Once the charging is completed or disconnected from the lithium scooter, the GREEN indicator will light up.
8. Unplug charger from lithium scooter and place charging cover back to the charging port.
9. There is CHARGING PROTECTION and the lithium battery will not be charged when the temperature of lithium
battery is hot (e.g. 50 degrees or after extended period of riding. ). If this happens, switch off the lithium scooter,
wait for 30 minutes and let the temperature of lithium battery cool down. Then plug-in the charging plug for
charging again.
P. 9
ASSEMBLY STEPSHOW TO OPERATE YOUR LITHIUM SCOOTER
POWER ON / OFF
Press and hold the On / Off button for 2 seconds to POWER ON the scooter.
Press and hold the On / Off button for 2 seconds again to POWER OFF the scooter.
SPEED CONTROL
Press and hold the right Throttle to accelerate.
Release the Throttle to decelerate.
The deeper the Throttle is pressed down the faster the scooter will move.
GEAR SWITCH
Tap the Shift up/ Shift down button to switch gears
The gear can be set to:
Level 1 (Eco mode) at max. 6km/h
Level 2 at max. 15km/h
and Level 3 at max. 25km/h
HANDBRAKE
Press the left Electric brake lever to stop the scooter or use the foot to press the rear brake on rear fender.
HEADLIGHT ON / OFF
When the scooter is powered on, press and hold ‘’Shift up gear button” for 2 seconds to TURN ON the headlight.
When the headlight is on, press and hold ‘’shift up gear button” for 2 seconds to TURN OFF the headlight.
Speed
Shift up gear button
Shift down gear button
Mileage
Battery level
Gear
On / Off button
ThrottleElectric brake lever
Lcd Control Panel Display
Note: Kick start until the scooter is moving, then press throttle. The motor will
engage only if the scooter gains momentum.
