EverFocus EZ.HD Series Manuel utilisateur

EZA2880 eZ.HD Series

8MP Dual Power IP66 IR Bullet Camera

User’s Manual

Release Date: May, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

Equipped with a 8MP CMOS sensor, the EZA2880 deliver 8MP image quality.

The model provides motorized 3.6-11mm lens with ICR. Featured with True

Wide Dynamic Range (T-WDR), the camera can provide clear images even

under backlight circumstances where intensity of illumination can vary

excessively. The EZA2880 supports dual power (12VDC / 24VAC, depends on

model) and supports both NTSC and PAL scanning systems (auto detection).

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 3

User Manual x 1

1.2 Features

8MP CMOS sensor, delivering amazing high sensitivity

Motorized 3.6-11mm lens with ICR to capture the desired field of view

Extended IR range of up to 40m / 131ft. with 4 LEDs (depends on scene

IR reflectivity)

T-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports dual power (12VDC / 24VAC, depends on model)

Supports UTC function: Control camera OSD settings directly from DVR

end

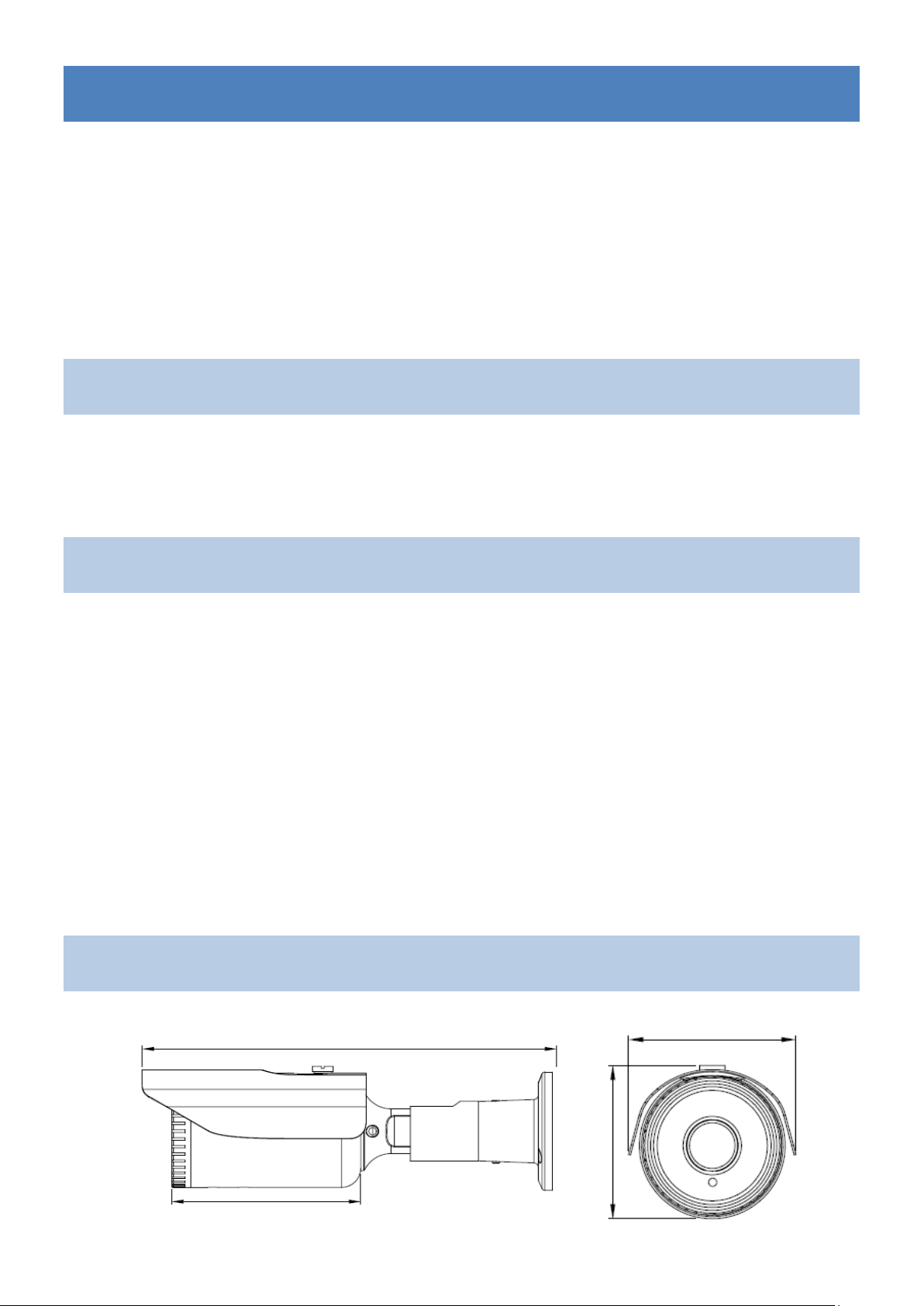

1.3 Dimensions

128mm / 5"

280mm / 11"

91.5mm /3.6"

84mm / 3.31"

1.4 Optional Accessory

BAE3201

Color: White

Size (Φ x H): 138 x 54mm / 5.43” x 2.16”

Weight: 700g / 1.87

Material: Metal

1.5 Cable Description

12VDC or 24VAC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw

positions. Drill 3 holes on the surface and insert the supplied 3 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 3 screw area.

2. To mount the camera to the surface, screw the Camera Base to the surface

using the supplied 3 Screws.

Mounting

Surface

Screws Screw Anchors

Camera Base

3. Connect the Power Cable to a 12VDC / 24VAC power source. Connect the

Video Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings or

switch to different video formats. Remove the Protection Cap from the

Joystick before using it.

Switching Video Format:

•Push the joystick up for 5 sec. to switch to

AHD.

•Push the joystick right for 5 sec. to switch to

TVI.

•Push the joystick down for 5 sec. to switch to

CVI.

•Push the joystick left for 5 sec. to switch to

CVBS.

Configuring OSD Settings:

•Push the Joystick up / down to select among

menu items.

•Push the Joystick left / right to adjust the level

of the selected item.

•Press the Joystick to enter the submenu or

exit the OSD Setup Menu.

5. You can optionally adjust camera angles. To do so, loosen the Tilt Screw or

Rotate Screw on the bracket using the supplied L-Type Wrench to adjust

camera angles. After adjusting camera angles, tightly screw back the

Tilt/Rotate screws.

Tilt Screw

Rotate Screw

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 Motorized

AF Mode

One Shot, Manual

D&N Filter

Sync On, Sync Off

Initial

2 Exposure

Brightness

0-20

Shutter

Auto

Mode

Normal / Deblur

Manual Speed

1/30, 1/60, 1/120, 1/250,

1/500, 1/1000, 1/2000,

1/4000, 1/8000, 1/15000,

1/30000

Flicker

Sens-Up

Not supported

AGC

0-10

3 Backlight

HLC

Level

0-20

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

BLC

H-POS

0-38

V-POS

0-35

H-SIZE

0-38

V-SIZE

0-35

WDR

WDR Mode

Line

ROI Mode

Box

Window Zone

0-3

Window Use

On, Off

H-POS

0-3856

V-POS

0-2176

H-SIZE

0-3856

V-SIZE

0-2176

Polygon

Window Zone

0-3

Window Use

On, Off

POS0-X

0-935

POS0-Y

0-361

POS1-X

0-935

POS1-Y

0-361

POS2-X

0-935

POS2-Y

0-361

POS3-X

0-935

POS3-Y

0-361

Off

Weight

High, Middle, Low

Off

4 Day/Night Mode

Auto

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Color

B/W

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Extern

IR LED

Adaptive, Off

Anti-Sat.

0-20

Extern SW

High, Low

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

5 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K, 5000K, 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

High, Middle, Low, Off

7 Image

Sharpness

0-10

Gamma

0.45, 0.55, 0.65, 0.75

Mirror

On, Off

Flip

On, Off

D-Zoom

Not supported

ACE

High, Middle, Low

Defog On

Mode

Auto, Manual

Level

High, Middle, Low

Off

Shading

Weight

0%-100%

Off

Privacy

Box On

Zone Num

0-15

Zone Disp

On, Off

H-POS

0-120

V-POS

0-68

H-Size

0-80

V-Size

0-61

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

Polygon On

Zone Num

0-7

Zone Disp

On, Off

POS0-X

0-240

POS0-Y

0-136

POS1-X

0-240

POS1-Y

0-136

POS2-X

0-240

POS2-Y

0-136

POS3-X

0-240

POS3-Y

0-136

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

8 Motion On

Det Window

Window Use

0-3

Window Zone

On, Off

Det H-POS

0-96

Det V-POS

0-56

Det H-Size

0-96

Det V-Size

0-56

Sensitivity

0-10

Motion OSD

On, Off

Text Alarm

On, Off

Signal Out

On, Off

Off

9 System

Output

Frame Rate

4K/15fps, 4MP/30fps, 1080p/30fps

Freq

60Hz (Auto Detection)

SDI Mode

Not supported

SDI UCC Stop

Not supported

Analog Mode

AHD, TVI, CVI, CVBS

Confirm

Yes

Return

Image Range

Full

Comp

User

Offset

0-32

Color Space

HD-CbCr, SD-CbCr, YUV

Audio Mic

Not supported

Color Bar

On, Off

Language

ENG, CHN, CHN(S), JPN, KOR, POR, ESP

Cam Title

Left-Down

Right-Up

Off

Reset

Exit
