EverFocus EQ-2250 Manuel utilisateur

EQ-2250

High Resolution WDR - Color Camera

with 22 x Optical and 10 x Digital - Zoom Lens

Installation / Operation Manual

EF004-EQ2250-E001

SAFETY WARNING

Handle the camera with care. Do not expose the camera to

shock or vibration. Install the camera on a solid ground.

Install the camera away from electromagnetic elds

(transformers, electrical motors, TV, audio speakers etc.), as the

magnetic elds may distort the video image.

Install the camera only in surroundings within the specied

ambient temperature.

The maximum ambient temperature range for this camera is

-20°C ~ +50°C.

The recommended temperature range is 0°C ~ +40°C. Avoid

severe changes in temperature to prevent condensation.

Never face the camera’s CCD chip toward the sun or similar

powerful light sources.

Operate the camera only with stabilized power supply 12 VDC

+/- 0,5V /600 mA (or above).

The camera may be opened by authorized service personnel

only.

SAFETY WARNING

ATTENTION! This is a class A product which may cause

radio interference in a domestic environment; in this case, the

user may be urged to take adequate measures.

Your EverFocus product is designed and manufactured with

high quality materials and components which can be recycled

and reused. This symbol means that electrical and electronic

equipment should be disposed of separately from your

household waste at their end-of-life.

Please dispose of this equipment at your local community

waste collection / recycling centre. In the European Union,

there are separate collection systems for used electrical and

electronic products.

Please help us to conserve the environment we live in!

This product is RoHS compliant.

The information in this manual was current upon publication. The

manufacturer reserves the right to revise and improve his products.

Therefore, all specications are subject to change without prior notice.

Misprints reserved.

Please read this manual carefully before installing and using this unit. Be

sure to keep it handy for later reference.

SAFETY WARNING

SAFETY WARNING······································2

1 General ··························································5

1.1 Product Overview··········································· 5

1.2 Features····················································· 5

1.3 Specications··············································· 5

1.4 Dimensions·················································· 6

1.5 Back panel controls and connectors······················ 7

2 Installation························································ 8

2.1 Power························································ 8

2.2 Video························································· 8

2.3 Remote Control············································· 9

2.3.1 RS-485················································· 9

2.3.2 DC-Lens control······································ 10

2.3.3 Day- / Night switching······························· 10

3 Camera setup··················································· 11

3.1 Zoom························································ 11

3.2 Focus······················································· 11

3.3 OSD setup menu·········································· 12

3.3.1 OSD display··········································· 12

3.3.2 Menu Structure········································

3.3.3 Setup - Menu Operation······························15

3.3.3.1 FOCUS········································ 16

3.3.3.2 EXPOSURE·································· 17

3.3.3.3 White Balance································ 18

3.3.3.4 D-WDR/BLC·································· 19

3.3.3.5 DAY& NIGHT································· 21

3.3.3.6 IMAGE········································· 22

3.3.3.7 SPECIAL······································ 23

3.3.4 RESET······················································ 25

Contents

1.1 PRODUCT OVERVIEW

The EQ2250 is a high resolution color camera equipped with a

22x auto-focus zoom lens and 10 x optical zoom.

Many advanced features allow utilizing the EQ2250 in a wide

range of CCTV - applications.

1.2 FEATURES

• 22 x optical and 10 x digital zoom

• 600 TVL horizontal resolution

• 3DNR noise reduction

• Enhanced sensitivity with 256 x DSS(Digital Slow Shutter)

• Extended wide dynamic with D-WDR

• HSBLC : Highlight Suppression BLC

• 8 privacy zones

• Day- / Night mode

• Remote control by RS-485 and DC lens control

1.3 SPECIFICATIONS

Image sensor 4,5mm / 1/4” CCD

Effective pixel 752 x 582 (PAL)

Light sensitivity 0,6 Lux ( F = 1,6, AGC high, DSS off, 30 IRE)

Lens Autofocus zoom lens 3,9 ~ 85,8 mm, DC-iris

22x optical zoom

Video output BNC socket, composite 1 Vs-s / 75 Ohm

Video resolution 600 TV lines horizontal

Signal/noise ratio > 50 dB (AGC off)

Min. object distance 1 cm (wide) up to 1m (tele)

DSS Digital Slow Shutter auto, manual, off (2x to 256x)

Remote control RS-485 (Pelco-D/P), DC lens control(+/- 5VDC)

Back light compensation HSBLC on/off, BLC on/off

Camera title max. 20 character, 16 colors

Power 12 VDC +/- 10%

Power consumption 3 W max.

Environmental temp. 0°C ~ +50°C

Humidity 20 ~ 85%

Dimensions (WxHxD) 48 x 51,6 x 88,5 mm

Weight 210 g

1 GENERAL

1.4 DIMENSIONS

1 GENERAL

110.8

64.0

66.0

38.232.0

1.5 BACK PANEL CONTROLS AND CONNECTORS

Arrow keys T / W Buttons for zoom control, in OSD menu row

selection up/down

Arrow keys N / F Buttons for focus control, in OSD menu change of

parameters

MENU key Open/close OSD setup menu

Video output BNC Video output BNC, composite 1 Vs-s / 75 Ohm

LED LED on indicates power on.

Control inputs 485+ / 485-: Remote control input RS485

ZOOM/COM/FOCUS:

input for zoom/focus control with +/- 5VDC

D/N / GND:

contact input for external day/night - switching

12V / GND Power input terminal for 12 VDC stabilized (+/- 10%)

1 GENERAL

485+

485-

ZOOM

COM

FOCUS

D/N

GND

Arrow keys

T / W(N / F)

Video output BNC

12V / GND

Control inputs

LED

MENU key

2.1 POWER

Connect a stabilized 12 VDC power supply (500mA or higher)

to the power terminal.

2.2 VIDEO

Connect the video output (BNC) with 75 Ohm video coax cable

with DVR, monitor or other equipment with video input. Please

take care for correct 75 Ohm termination.

2 INSTALLATION

INTERMEDIATE END MONITOR

VIDEO VIDEO

2.3 REMOTE CONTROL

The EQ2250 camera provides an input for RS-485 control with

Pelco-D/P protocol.

Further on the lens can be controlled by control devices with 5

VDC voltage (PTZ-receiver, control keyboards with DC output).

The day / Night mode can be switched by an external contact.

2.3.1 RS-485

Connect the RS-485 input with twisted pair cable to the control

device.

For details of RS-485 wiring please consult the related chapters

in user manuals of EverFocus DVRs or control keyboards.

The RS-485 parameter (baud rate / address) need to be

adjusted in the OSD menu SPECIAL.

RS-485 pin assignment EKB-500, EverFocus DVR

Control commands for OSD - menu (Pelco-D/P protocol)

(Go to) Preset 95 (or Preset 96) OSD setup menu open / close

Joystick/arrow keys up / down or zoom +/- switch between menu lines

Joystick/arrow keys left / right or focus +/- change of values / parameters

Joystick/arrow key right or focus + Enter

2 INSTALLATION

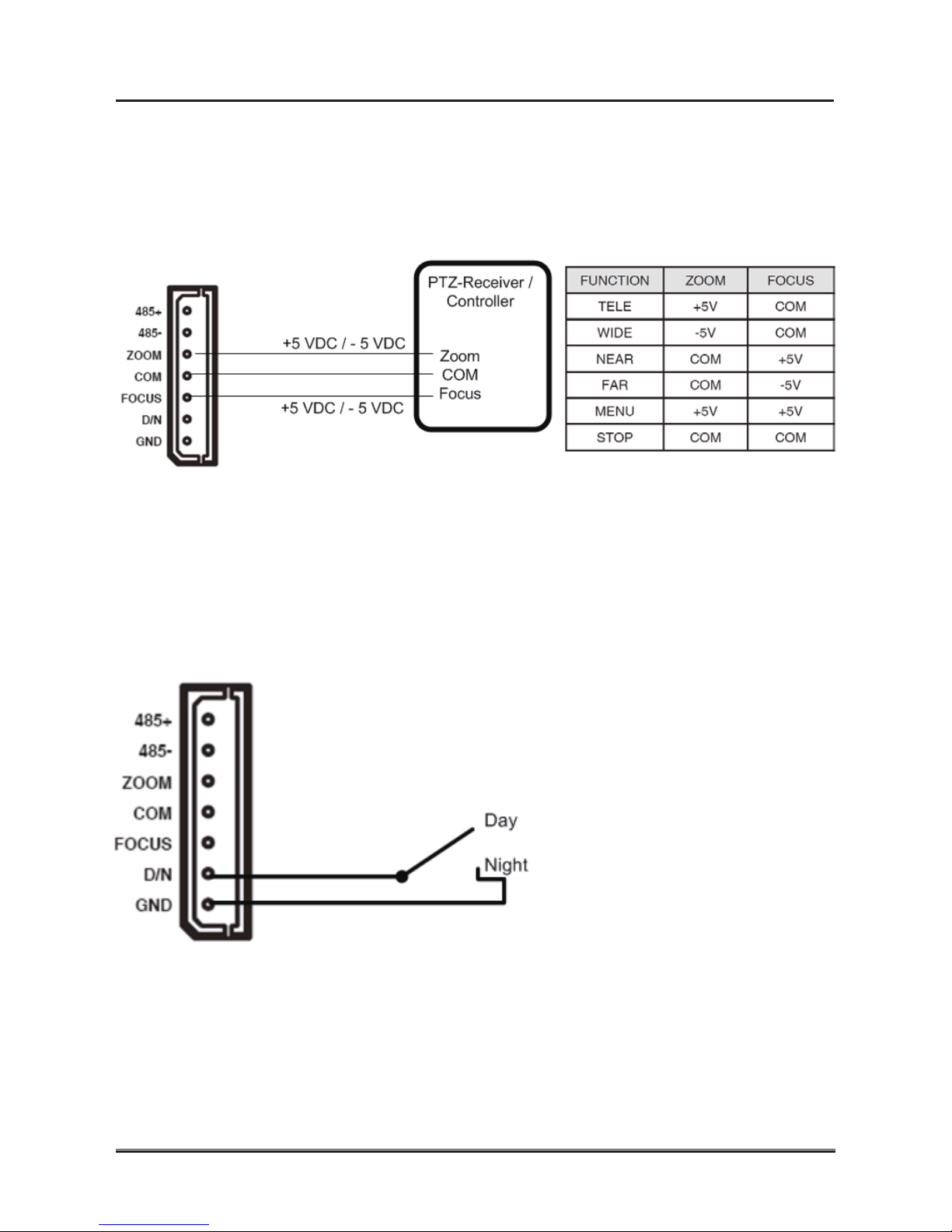

2.3.2 DC-Lens control

The lens can be controlled by control devices with 5 VDC

voltage (PTZ-receiver, control keyboards with DC output).

Please check the control device to correct output voltage

(+/- 5VDC max).

2.3.3 Day- / Night switching

The day/night switching can be controlled by an external dry

contact. Closing the contact (to GND) will turn the camera in

night mode. In OSD menu DAY&NIGHT the item MODE needs

to be set to EXTERNAL.

ATTENTION: This camera is equipped with a xed IR-cut lter.

For this reason the camera is not applicable for installation wit

IR illumination.

2 INSTALLATION
