EverFocus EFD300 Manuel utilisateur

EVERFOCUS

1/3” 520TVL Color Flush Dome Camera

Operation Instructions

Model No. EFD300

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within 0℃~ 50℃/32℉~122℉and humidity between 20%~

80%. The input power source is 12VDC/24VAC.

PREFACE

EFD300 High Resolution Flush Dome Camera Series are compact, full functioned CCD

Color Cameras. The flush dome camera is designed with advanced digital processing

circuitry for high resolution 1/3" color interline transfer CCD sensor, it has DIP switch for FL

ON/OFF, Mirror ON/OFF, AGC ON/OFF and D/N ON/OFF. The dome camera uses a

vari-focal auto iris lens for discreet surveillance or close-up viewing and it features with iris

level volume control for the best viewing quality.

FEATURES

z1/3” SONY Super HAD color CCD pick up device for more than 520 TV lines of

horizontal resolution

zThe high sensitivity of 0.4Lux/F=1.2 is achieved by using 1/3” SONY Super HAD

interline transfer color CCD

zThe Electronic Shutter and AGC functions allow the camera to be used in environment

with varying light levels

zBuilt-in Vari-Focal lens

zWith manual PAN/TILT mechanism

zFL, Back Light Comp., AGC ON/OFF switchable

zCompact size: 135 mm O.D. x 112 mm H/5.4” O.D. x 4.4” H

zSystem available for NTSC or PAL

SPECIFICATIONS

Pickup Device 1/3'' SONY Super HAD CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec.

Picture Elements 768x494(NTSC) ; 752x582(PAL)

Horizontal Resolution 520TVL

Sensitivity 0.1Lux/F=1.2

S/N Ratio Over 48dB (AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type Vari-focal lens, Auto Iris

f=4~9mm

Auto Gain Control ON/OFF Switch

Flickerless ON/OFF Switch

Back Light Comp. ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal sync

Vandal Proof Yes

Power Source 12VDC/24VAC

Power Consumption 12VDC: 2W max.

24VAC: 1.5W max.

Dimensions 135mm(O.D.) x 112mm(H);

5.4"(O.D.) x 4.4"(H)

Weight 0.7kg ; 1.6lbs

Operating Temperature 0°C~50°C ; 32°F~122°F (20%~80% Humidity)

Certifications FCC/CE

STANDARD ACCESSORIES

¾Camera Unit

¾Operation Instructions (this document)

¾Drill Template

OPTIONALACCESSORIES

•EN220 - 5.6-inch High Res LCD Field Monitor

DIMENSION DIAGRAM

120mm/4.72”

90mm/3.54”

55mm/2.17”

45mm/1.77”

55mm/2.17”

HARDWARE OVERVIEW

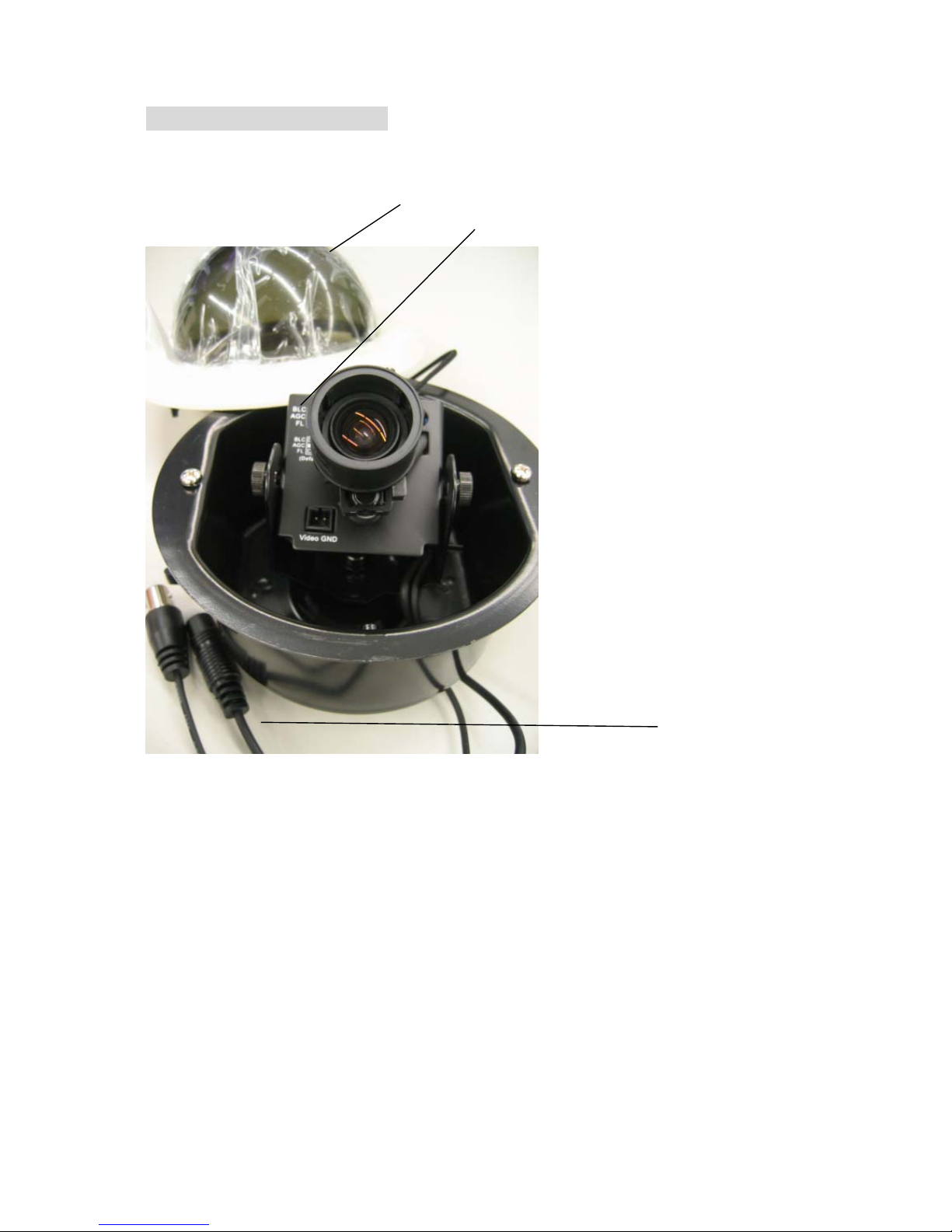

1. Camera Bubble Cover

2. Camera Setting- Please refer detail in camera setting for user manual.

3. BNC and Power Pigtail

INSTALLATION

This section covers simple steps and detail installation. Please follow instruction for preventing

any unnecessary damage.

Simple Steps:

1. Cut a circle on the ceiling and mount the camera

2. Adjust lens, camera position

3. Adjust camera setting on Dip Switch

Detail Steps:

1. Cut a circle on the ceiling and mount the camera

a. Make a hole on the ceiling (110mm/4.33”φ) against the housing’s shape by using Drill

Template in the package.

b. Mount camera into the hole that you just made.

c. Connect Power and Video - Please connect 12VDC or 24VAC. Wrong power connection will

cause power failure and shortage.

d. Screw the bolts on both sides of housing by using a screwdriver until they are perfectly fit to

the ceiling.

e. Place the cover back and clip it on the camera.

2. Adjust lens, camera position

a. Optional connecting to testing monitor- You can connect to testing monitor with video

pin shown as following.

b. Zoom and focus (for Vari-focal Lens Model)

(1) Loosen the zoom ring knob, and then turn the ring towards <W> or <T> as necessary to obtain

the desired view range.

W side (Zoom out), the viewing range will be wider and the subject is smaller.

T side (Zoom in), the viewing range will be smaller and the subject is larger.

(2) Loosen the focus ring knob, then turn the ring towards <∞> or <N> as necessary to obtain

clear video image.

(3) Repeat steps 1 and 2 until the best image is obtained.

Once the lens setting is finished, tighten the zoom ring and the focus ring knobs.

c. Adjust View Angle

Monitor Testing Pin

You can lose the camera fixing screw and tilt the camera to your best angle of view.

3. Camera Setting

CAMERA SETTING

¾BLC (Back Light Compensation)

When BLC is turned on, the AGC, FL and IRIS operating point is determined by averaging over

the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area

can be clearly distinguished from brightly-lit backgrounds. BLC should not be used unless it is

needed to compensate for back-light.

The default setting is OFF. For Auto-Iris lens model, the brightness can also be adjusted via the

Iris level control VR.

¾AGC (Automatic Gain Control)

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A-low-noise picture is obtained under a low light condition.

The default setting is ON.

¾FL (Flickerless)

When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic

shutter at 1/100(S)(NTSC) or 1/120(S)(PAL) automatically, and reduce the flicker immediately.

The default setting is OFF.

¾IRIS Level Control (For Vari-Focal Lens Model)

Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.

•Turn counterclockwise to L to get darker picture.

•Turn clockwise to H to get brighter picture.¾Electronic Shutter (For Fixed Lens Model)

Tilt Camera Fixing Screws

ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second

to 1/100,000 second according to the luminance conditions of the scene.

ES OFF: The shutter speed is fixed at 1/60 (NTSC),1/50 (PAL) second.

Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp.

Otherwise, turn ES on for optimum performance.

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China 100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MEFDG00400
