Instruction Manual

Volume

EVERFOCUS ELECTRONICS CORPORATION

EDSR 400h Instruction Guide

2445 Huntington Drive

Phone 626.844.8888 • Fax 626.844.8838

form or by any means without written permission of the Everfocus Electronics Corporation.

QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark

of the Microsoft Corporation in the United States and other countries. Linksys is a registered

trademark of the Linksys Corporation. D-Link is a registered trademark of the D-Link Corporation.

DynDNS is a registered trademark of the DynDNS.org Corporation. Other product and company

names mentioned herein may be the trademarks of their respective owners.

Table of Contents

Introduction I

CHAPTER 1

Product Overview 1

Features 1

Specifications 2

Front Panel Keys 3

Back Panel Keys 5

CHAPTER 2

Installation 8

Basic Wiring Instructions 9

Hard Disk Drive Installation 10

Final Install Process 10

CHAPTER 3

DVR Menu Setup 11

Clock/Language Setting Menu 12

Title Setting Menu 14

Daylight Setting Menu 15

Timer Setting Menu 17

Normal Record Setting Menu 19

Alarm Record Setting Menu 21

Buzzer Setting Menu 24

Archive Setting Menu 26

Network Setting Menu 28

Sequence Setting Menu 30

RS232/RS485 Setting Menu 32

Motion Setting Menu 35

System Setting Menu 38

CHAPTER 4

Recording Overview 40

Basic Recording Setup 40

Timer Recording Setup 41

Motion Recording Setup 42

Alarm Recording Setup 43

CHAPTER 5

Playback Overview 45

Basic Playback 45

Search Playback 46

Segment List Playback 46

Alarm List Playback 47

Date/Time Playback 48

CHAPTER 6

Copying Video 50

Still Image Copy 50

Copy as a MOV File 51

Other Archiving Methods 52

Viewing Copied Files 52

CHAPTER 7

Audio Overview 53

CHAPTER 8

How to Upgrade Firmware? 54

CHAPTER 9

Networking Overview 56

Introduction to TCP/IP 56

Subnet Masks 56

Gateway Address 57

Virtual Ports 57

Pre-Installation 58

What type of Network Connection 59

Simple One to One Connection 60

Direct High Speed Modem Connection 66

Router or LAN Connection 68

CHAPTER 10

Linksys Port Forwarding 71

Dynamic DNS 75

CHAPTER 11

D-Link Port Forwarding 77

Dynamic DNS 80

CHAPTER 12

DDNS 82

Creating a DDNS Account 82

CHAPTER 13

Viewing through Internet Explorer 85

CHAPTER 14

Interface Specifications 89

Transmission Setting 90

Remote Control Protocol 90

APPENDIX A

Remote Control 93

APPENDIX B

Time Lapse Recording Time 94

APPENDIX C

Alarm Board Configuration 96

TROUBLESHOOTING

Troubleshooting 99

EVERFOCUS ELECTRONICS CORPORATION

Product Overview

DVRs are the industry’s first full-featured digital video recorder designed specifically

for use within the security industry. The Digital Video Recorder incorporates all the

benefits of digital video recording, is simple to install, and operates just like a VCR.

Highly efficient compression technology and superior resolution of recorded images

make the Digital Video Recorder stand out from the competition as the best choice for

security surveillance.

Features

¾Easy-to-use control panel with common VCR and Multiplexer functions.

¾Shuttle/Jog dial for picture-by-picture or fast/slow viewing.

¾No tapes to manage, clean, or replace.

¾Instant retrieval of stored video.

¾On-screen setup menu and system timer.

¾Ethernet TCP/IP connectivity for remote viewing.

¾Pre-Alarm and Post-Alarm process.

¾Built-in M-JPEG compression/decompression with configurable quality.

¾Programmed with various time-lapse speeds.

¾3.5” IDE Type Hard Disks for storage with Hot-Swap tray.

¾RS232 and RS485 for Remote Control.

¾Real-Time Live Display for all Cameras.

¾Variable recording speeds up to 60/50 fps for NTSC/PAL.

¾Alarm-activated recording.

¾Data can be stored in a Compact Flash Card.

¾Audio recording capabilities.

Chapter

EVERFOCUS ELECTRONICS CORPORATION

Specifications

Video Format NTSC/PAL

Video Input 4 camera inputs (BNC),1Vp-p/75ohm

Video Output 1 BNC video out (1Vp-p/75 ohm) for Main Monitor

1 BNC video out (1Vp-p/75 ohm) for CALL Monitor

4 video out (1Vp-p/75ohm)for looping

Video Compression M-JPEG

Recording Resolution 720x484 (NTSC); 720x576 (PAL)

Compact Flash Memory Yes, Built-in Compact Flash card slot

Alarm Input 4 alarm inputs

Alarm Output 1 alarm outputs

Video Display Full, PIP, Quad and 2x2 zoom for Live and Playback

Video Loss Detection Yes

Ethernet RJ45 connectors for network communications

Event Log Yes

Hard Disk Storage 3.5” IDE type, Hot- swappable

Recording Mode Continuous, Time-lapse recording, Schedule or Event

Recording

Recording Rate Up to 60/50 fps for NTSC/PAL

Playback Rate Up to 60/50 fps for NTSC/PAL

Playback Search By Date/Time or Event/Segment

Setup On screen display setup

User Interface Menu Driven

User Input Device Front Panel Keypad

Timer Built-in real time clock

Watch Dog Timer Yes

RS-232 9-pin female connector

RS485 RJ11 Connector

Dimension 320.8mm (L) x 215mm (W) x 100mm (H)

Operating Temperature 0C~+40C

Power Consumption 60 W

Power Source AC100~240V

EVERFOCUS ELECTRONICS CORPORATION

Front Panel Keypads

Keys:

20 10

912

11 13 14 16

143 5 6 8

CH1 ~CH4:

1 4

Press channel key (1~4) to display the video image in full screen

format for the channel specified.

SEQ: Press this key to enter the auto sequential switching mode.

6 ZOOM: Pressing this key while viewing a full screen image will display a magnified resolution

of the image on the monitor.

5 MODE:

8 MENU: Press this key to enter Setup menu.

STOP : Press this key to stop recording and playback.

PAUSE: Press this key to pause the playback picture.

SEARCH: Press this key to enter the Search Menu.

REC : Press this key to start recording.

COPY: Under PAUSE or PLAYBACK, Press this key to start copy still picture or video

stream onto a Compact Flash card.

REV. PLAY : Pressing this key will start reverse playback.

PLAY: Press this key to playback.

Press to switch between Picture-In-Picture and Quad modes.

EVERFOCUS ELECTRONICS CORPORATION

Display: Pressing this key once will turn the display on. Pressing it a second time will give you

Hard Disk Drive statistics.

Display OFF Display Date/Time and Titles

Shuttle and Jog Dia

Shuttle : In Playback mode, turn the shuttle dial can fast

forward/rewind the picture.

In Pause mode, turn the shuttle dial can slow forward/rewind

the picture.

Jog Dial :

In Pause mode, turn the jog dial can forward/rewind the

Picture.

In Menu mode turn the jog dial to change setting Menu

page.

Compact Flash Card Slot: Insert a Compact Flash Card.

Hard Disk Tray: Hard Disk holder for HDD.

LEDs: LEDs for system active power ,LAN and ALARM access.

Remote Control: IR Remote receiver

HDD KEY: Turning this key to the lock position will activate the Hard Drive for recording

and keep it securely locked into the DVR.

2003/04/22

10:41:00

Disk:120 GB(0)

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

2003/04/22

10:42:00

LIVE: 60IPS

DISK:80G

EVERFOCUS ELECTRONICS CORPORATION

Back Panel Connections

Audio IN:

udio input for recording.

Audio OUT: Audio output can be set to “ON” or “OFF” in Setup Menu.

hen in recording or standby mode, the out of

SW1 is connected to Audio IN.

Playback Audio

hen in playback mode the out of SW1 is

connected to SW2 Audio.

When Playback Audio is enabled then the output of SW2

will be connected to Playback Audio.

hen Playback Audio is disabled then there is no

audio output (MUTE).

Operation of SW1: Operation of SW2:

Audio IN

Audio OUT

OFF / Mute SW1

SW2

( Internal circuit )

5247 9

10 38

POWER

AUDIO

When Audio Out is enabled and machine is in Recording or Standby mode, the Audio IN is loop-

through to Audio Out connector. When Audio Out is enabled and machine is in Playback mode then the

Audio Out playback audio.

Main Power plug: Connect the DC12~24V power source to Adapter for AC100~240V.

EVERFOCUS ELECTRONICS CORPORATION

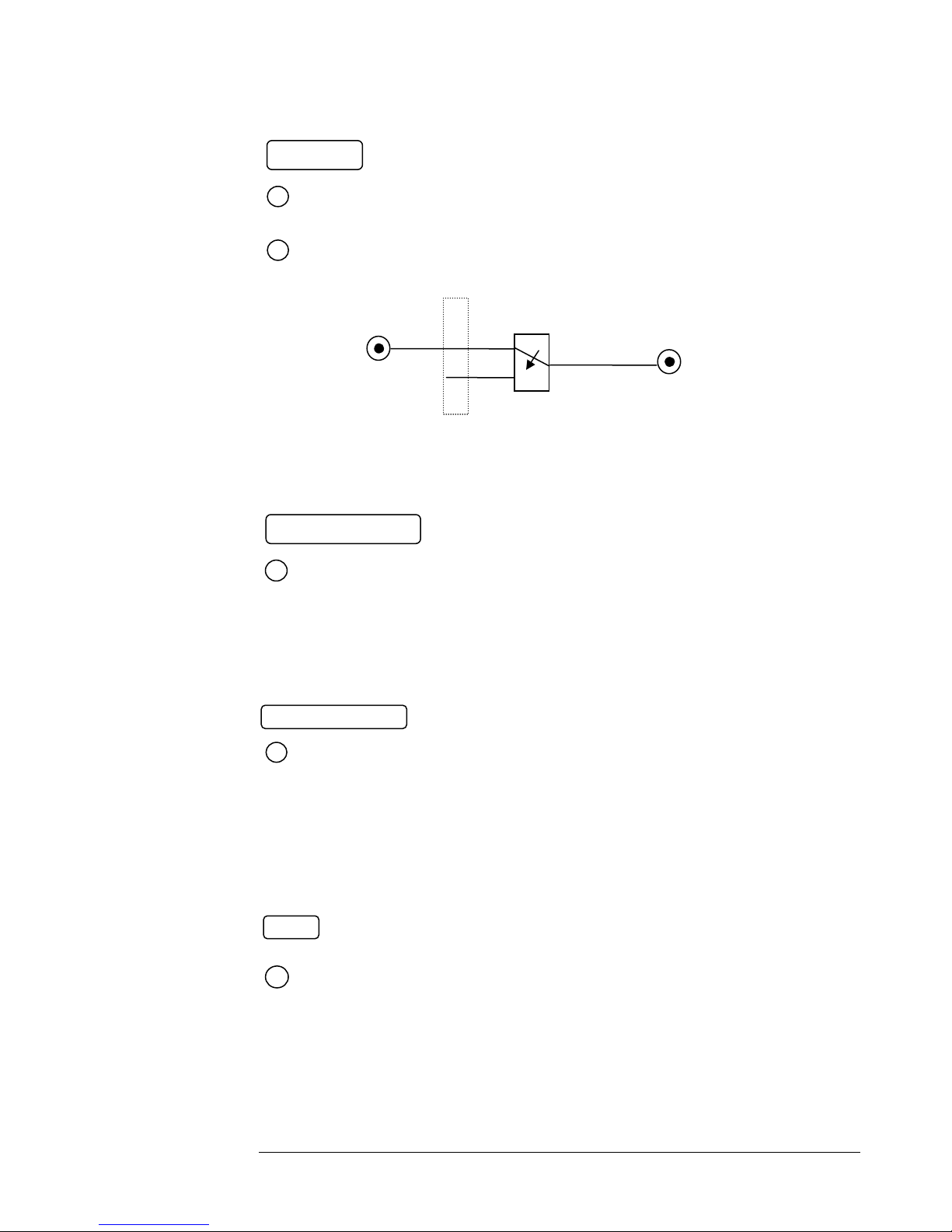

MAIN MONITOR:

his connector is used for the Main monitor display, a number of

different display modes may be selected for viewing. This output

must be used to display the menu settings.

MAIN

MONITOR MONITOR OUT

INTERNAL

VIDEO

SW3

hen the machine is in Menu, Search or Copy mode, the internal Video is switched to Monitor Out, so that the user can view

full screen OSD. In other modes, the Video from multiplexer main monitor will be loop-through to the Monitor Out.

MONITOR

( Internal circuit )

4 CALL MONITOR:

his connector is used for the Call (secondary) monitor.

This monitor can only display full screen pictures.

VIDEO IN (1~4):

he BNC connectors of video input enable the system to receive the

signals from each camera through the 75 ohm coaxial cables.

VIDEO OUT (1~4): Sends the signals from each camera to other external devices

(loop out).

VIDEO In/Output

ALARM-OUTPUT: Normal Close Alarm output. In normal condition, this terminal is

shorted to the terminal of ALARM-COM. In alarm status, it is

open between ALARM-NC and ALARM-COM terminals.

ALARM-INPUT: Normal Open or Normal Close type alarm sensor input. The Alarm Input

can be selected as Normal Open or Normal Close input in the setup menu.

When an alarm occurs, alarm recording will automatically start.

larm Input

LAN Connector:

he RJ-45 LAN connector used to connect to a local area

network.

larm Input/ Output

LAN
